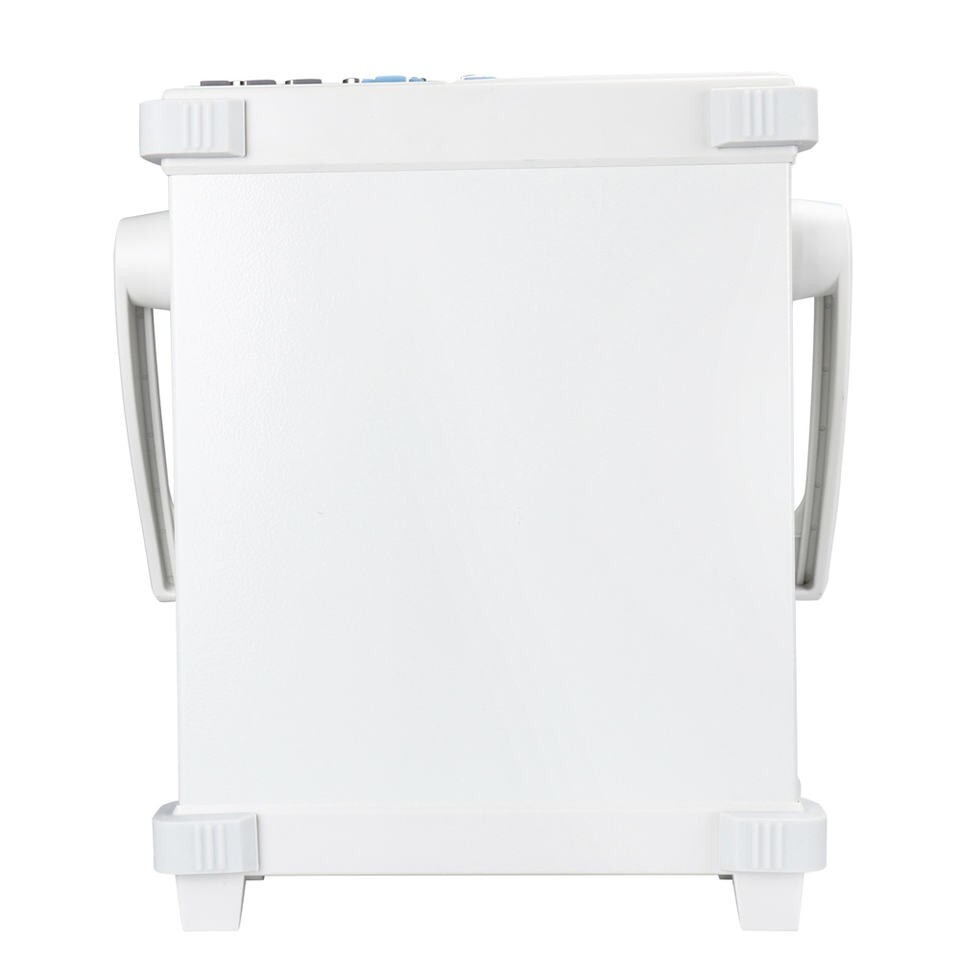

LCR Meter Benchtop LCR Digital Bridge DCR Electrolytic Capacitance Measurement

Name: LCR Meter Benchtop LCR Digital Bridge DCR Electrolytic Capacitance Measurement
SKU: 256722623712
Price: 488.00 USD
Availability: InStock

$244.00

$488.00 -50%

Brand CNYST

Condition New

Item ID 256722623712

Measured parameter	Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR
Basic Accuracy	0.1%
Product	LCR Meter
Testing frequency:	10-10KHz continuous adjustable, 1Hz step[1]by-step
MPN	2024
Calibration function:	Open circuit calibration, short circuit calibration
Display screen	Display screen 3.5 inch TFT LCD
Brand	CNYST
Interfaces	standard: RS232（or 485）, USB Device, Handler ;
Form Factor	Benchtop
Measuring display speed	2 time/s (slow), 4 times/s (medium), 8 time/s (fast)
Number of display digits	Principal parameter: 5 digit，Secondary parameter: 5 digit
Model	Digital LCR Meter
Signal source output impedance	30Ω、100Ω
Country/Region of Manufacture	China
Internal bias	0-1500mV adjustable, at a step of 1mV.
Testing level	0.01~2V adjustable, at a step of 1mV.
Measurement Range	L：0.001μH～9999H C：0.001pF～99.999mF R：0.0001Ω～99.99MΩ
UPC	635408811813

Check the listing for details. LCR Meter Benchtop LCR Digital Bridge DCR Electrolytic Capacitance Measurement. Condition: New. Listed at 488.00 USD. Signal source output impedance. 10-10KHz continuous adjustable, 1Hz step[1]by-step. 0-1500mV adjustable, at a step of 1mV. 0.01~2V adjustable, at a step of 1mV. Testing level. AC±10%, or 110V. AC±10%, 45~65Hz;.
