| Effective stroke | 100mm(3.94 in) |
|---|---|
| Brand | TOSEASTARS |
| MPN | M-DXG6042 |
| Type | slide table |
| Country/Region of Manufacture | China |
| Guide Diameter | 12mm |
| Certification | CE |
| stroke | 100mm-300mm Optional |
| Repeat positioning accuracy | 0.02-0.03mm |
| Vertical load | 30KG (Max) |
| Horizontal load | 60KG (Max) |
| Guide Type | MGW12R |
| Slider Type | MGW12C |
| Mobile panel size | 60mm*42mm |
| Total length of slide | Effective stroke+80mm |
| Ballscrew accuracy | C7 level |
| Product type | CNC Table |
| Product type 1 | Linear Rail |
| Product type 2 | Monorail Sliding Table |
| Application Areas | 3D Printer |
| Application Scenarios | CNC Milling Machine |
| Overall Travel Length | Effective stroke+80mm |

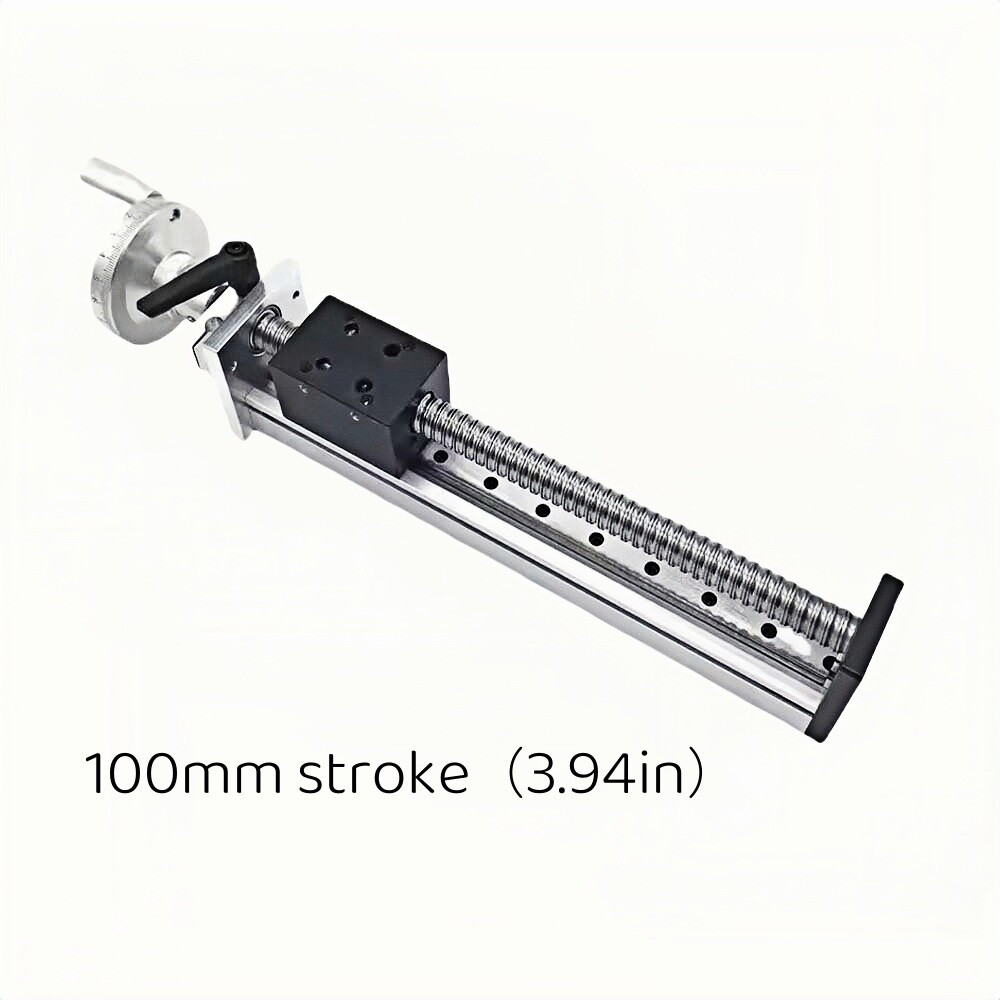

Check the listing for details. Linear Rail Slide Table System Ball Screw 1605 88 lbs Load Handwheel 3D printers. Condition: New. Listed at 93.88 USD. Its compact 60×42mm platform supports40KG loads, making it ideal for CNC and high-speed automation. 🏭 CNC Machinery ---High-speed PCB drilling heads----Laser cutter XY gantries. Solution:MGW12R rail + SFU1605 ballscrew prevent deflection.60×42mm compact size maximizes workspace efficiency.
You may also like
$1179.91
Mitsubishi MR-J3-70B-RJ004 CNC Controller
$145.13
New Rexroth R165189320 Linear Rail Bearing Slider Bearing Linear Motion System
$62.98
Shashibo XL Shape-Shifting Magnetic Fidget Cube – 70+ Shapes – Fun in Motion App
$855.6
Mitsubishi MR-J3-70B-RJ004 CNC Controller
$1186.81
Mitsubishi MR-J3-70B-RJ004U502 CNC Controller
$1057.32
NSK HD24152-702-002 2640mm LS25 LINEAR SLIDE ASSY (BALERWALL)
$36000
Banner Emitter MGE3616A Serial: E3601855 (0-0-17) J7BNMZGOVPP
$297.32
Dakota Digital CMD-4001 Four-Function Remote Entry Kit w/ 2 - lb Push Pull...
$2312.89
T606 250mm linear guide + Yamaha SR1 controller
$324.95
AFAG Gmbh HLF25-M-12 Linear Feeder 50274258 Machine Module Unit 230V 50Hz 100VA
$3310.64

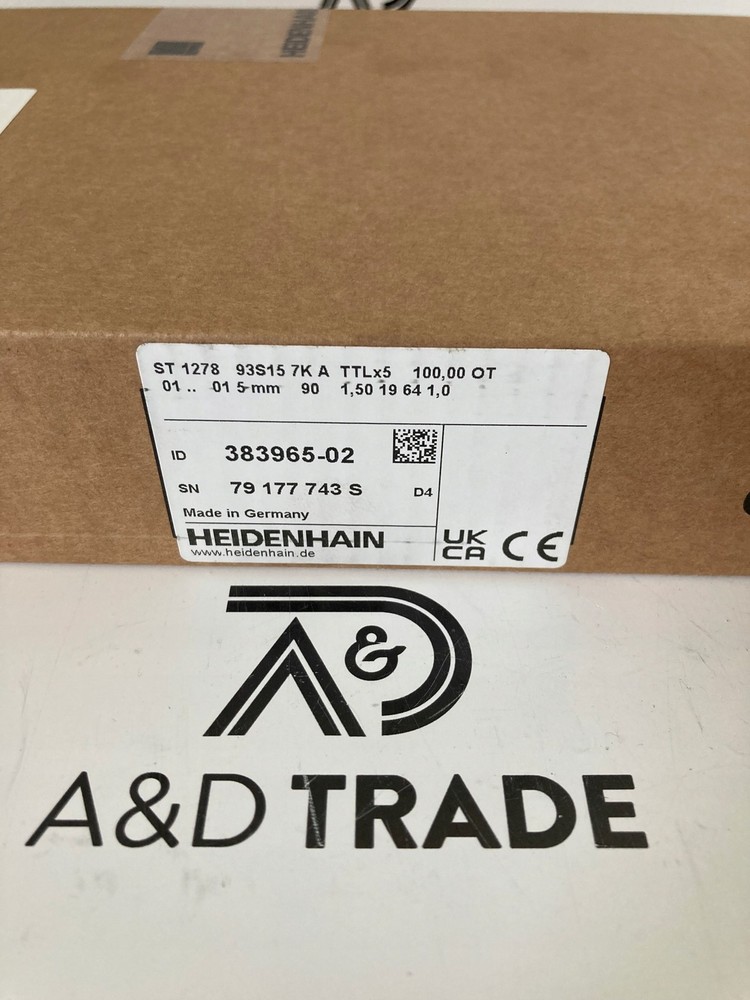

Heidenhain 383965-02 ST 1278 Communication Module
