| Country of Origin | United States |
|---|---|
| Conduit Size | 3/8-16" |
| MPN | M3326-SM |
| Electrical Connections | PTFE Jacketed Wire Leads |
| Operating Temp. Range | 221 Degrees F Max. |
| Float Specific Gravity | 0.80 |
| Item | Tank Liquid Level Switch |
| Tank Connection Size | 3/8-16 UNC |
| Unit Type | Unit |
| Max. Voltage | 240 |
| Stem Length | 1.24" |
| Features | Selectable NO or NC |
| Height | 1.85" |
| Unit Quantity | 1 |
| Float Dia. | 0.58" |
| Overall Length | 1.85" |
| Stem Material | Polypropylene |
| Standards | UL, CE |
| Contact Form | SPST |
| Max. Pressure | 50 psi |
| California Prop 65 Warning | NA |
| Mounting | Side |
| Brand | Madison |
| Switch Function | Selectable |
| Body Material | Polypropylene |
| Float Material | Polypropylene |
| Package Quantity | 1 |
| Max. Current | 0.12A |
| Float Length | 0.63" |

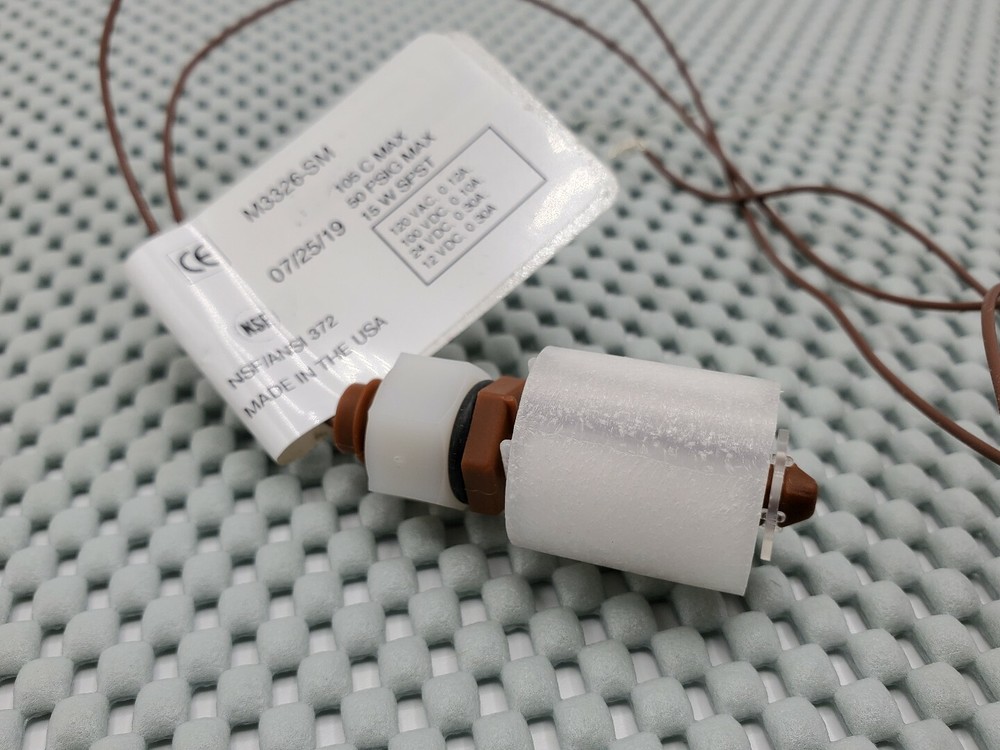

Check the listing for details. Madison M3326-SM Liquid Level Float Switch 15 VA SPST, 3/8"-16 UNC, 50 psig. Condition: New – Open box, Made in United States. Listed at 21.95 USD.
