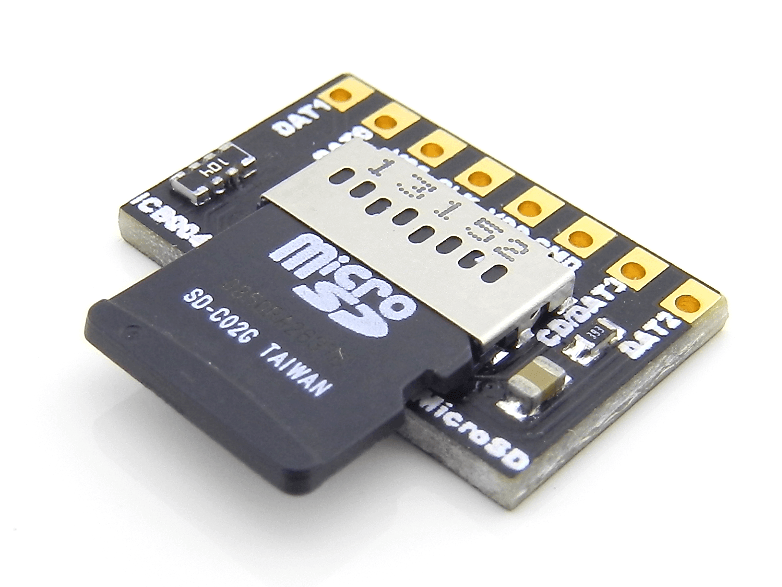

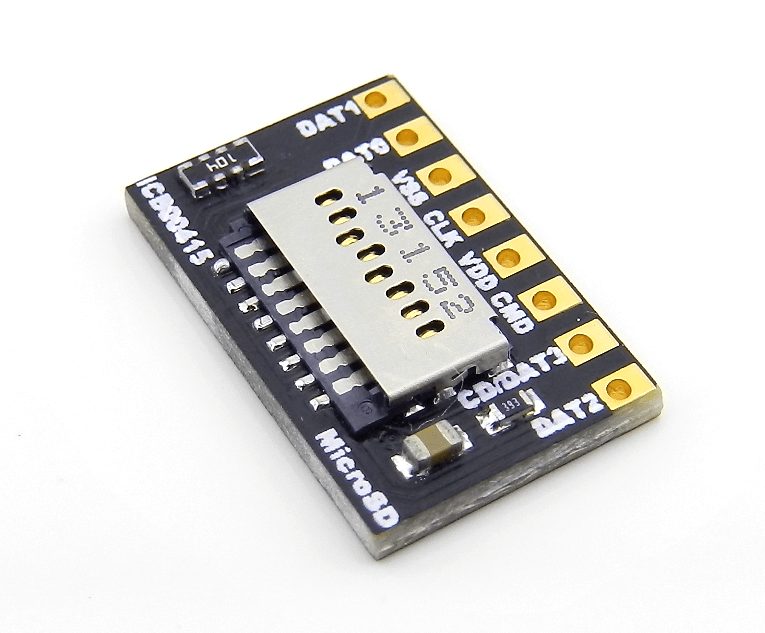

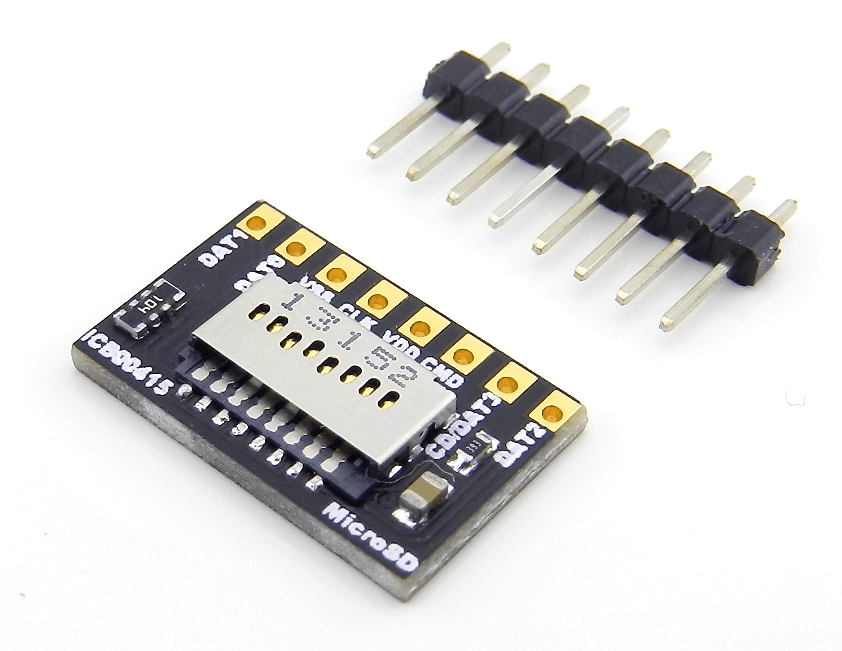

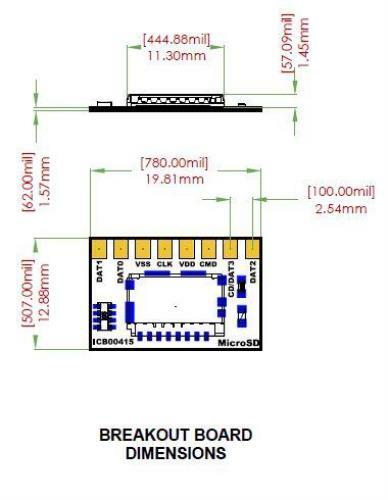

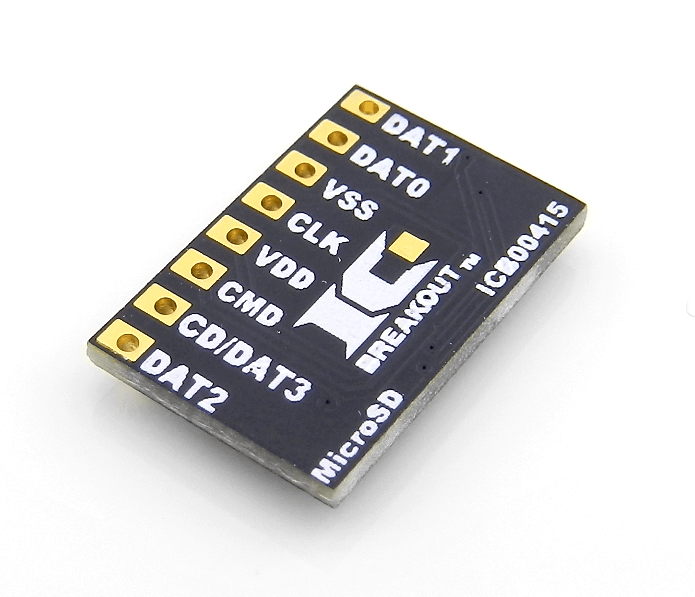

Check the listing for details. Micro SD Breakout Board. Condition: New. Listed at 9.95 USD. The MicroSD breakout board is a DIP adapter for the Micro SD connector. This board has all of the support components to use a Micro SD card. You don't need to add any pull-up resistors or a power decoupling capacitor, it's already on the board for you! Also, the SD card hangs over for easy removal and insertion. Technical Details Footprint Dimensions Body (mm): n/a Pitch (mm): n/a Thermal Pad (mm): n/a Breakout Board Dimensions Board Dimensions (mil): 780 x 507 Board Thickness (mil): 62 Through-Hole Spacing (mil): 100 mil (X-axis) n/a (Y-axis) Breakout Board Specifications Board Layers: 2 Finish: Immersion Gold Copper: 1 oz Traces (mil): 10 Trace Lengths (mil): < /> Pin/Through-Hole Count: 8 What's Included? Parts Installed on Board: 100k resistor array, .1uF capacitor, 100K resistor Parts Included (but not installed): 8 PIN Break Away Header (Straight) Additional Features Easily identifiable PIN 1 indicator and PIN numbers White silk “Label Pads” allow you to label the pins for quick reference Extended through-hole pads make for an easy connection point for surface mount parts Breadboard friendly pin spacing All boards have been E-tested for failures and are RoHS compliant
