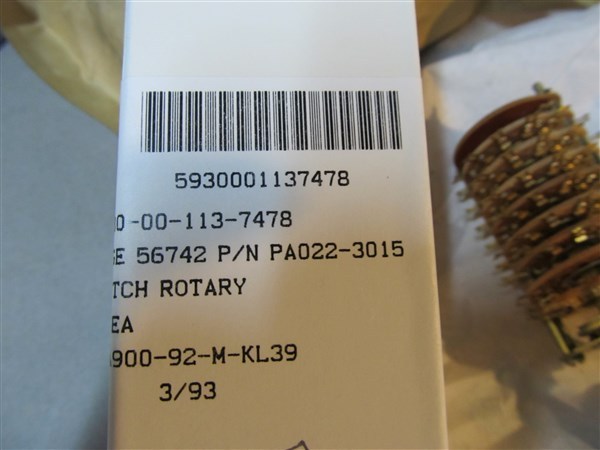

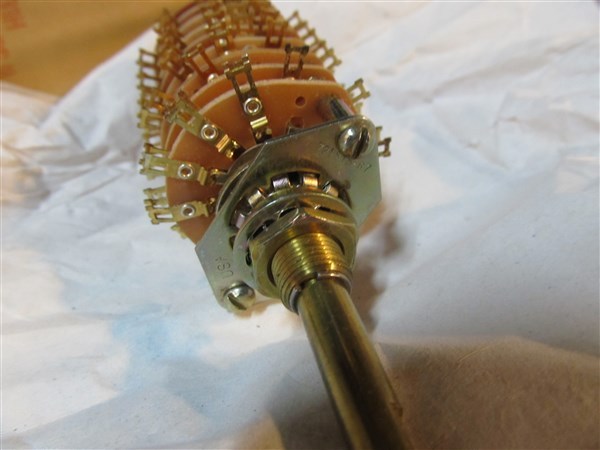

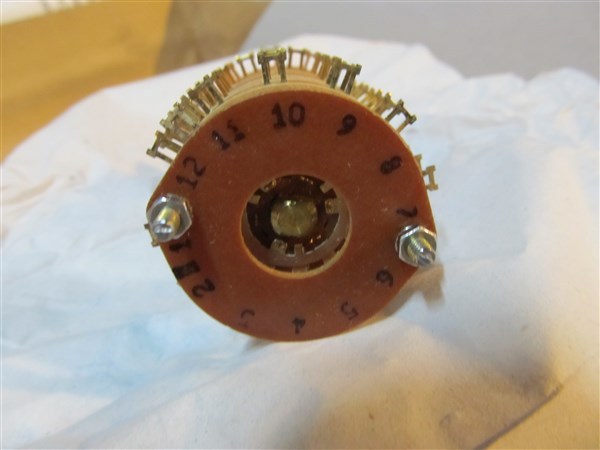

Check the listing for details. Mil-Spec Electroswitch Rotary Switch Part # PA022-3015. Condition: New. Listed at 29.95 USD. Mil-Spec Electroswitch Rotary Switch Part # PA022-3015 PRODUCT DESCRIPTION:This is a Brand New Mil-Spec Electroswitch Rotary Switch Part # PA022-3015 Master Cross Reference Data (MCRD) - shows alternate part numbers for a national stock number NSN Description MCRL Information Part and Contact Information 5930001137478 SWITCH,ROTARYINC: 02134HMIC: PESDC: ENAC: Cancelled By: Part # MCRLInformation CAGE Code PhoneFax Company NameAddress 257126-K8 ISC: 2RNVC: 2RNCC: 5DAC: 5 7685491983307079198338016 ELECTRO SWITCH CORP. DBA OAK GRISGSBY2010 YONKERS RDRaleigh NC 27604-2258 721815-67 ISC: 2RNVC: 2RNCC: 3DAC: A 0586991577152259157780346 RAYTHEON COMPANY DBA RAYTHEON1901 WEST MALVERN BLDG 617 E102Fullerton CA 92833-2177 PA022-3015 ISC: 2RNVC: 2RNCC: 5DAC: 6 82121781-607-3328781-335-4253 ELECTRO SWITCH CORP. DBA ELECTROSWITCH180 KING AVEWeymouth MA 02188-2927 Procurement History - US Gov't Purchase History NSNContract #Delivery Order #SOS DateLine Item # Price QTY (U / M) CAGE CodePhoneFax Company NameAddress 5930001137478DLA90092MKL39MODFDSCC 1992-07-200001 $164.10 3 (EA) 56742 CHARLES V CLARK CO.DAYTON, OH45459-4826UNITED STATES 5930-00-113-7478 Features MRC Parameter Characteristics AAJD Thread Class 2A single mounting facility AASA Thread Length 0.375 inches nominal single mounting facility ABHP Overall Length 4.500 inches nominal ABNB First Flat Length 0.310 inches nominal single actuator ABNC Flat Height 0.211 inches minimum single actuator and 0.221 inches maximum single actuator ABWV Shaft Diameter 0.248 inches minimum single actuator and 0.251 inches maximum single actuator ABXF Shaft Length 1.005 inches nominal single actuator ADAV Overall Diameter 1.690 inches maximum AFBH Individual Section Quantity 8 AFDC Nonturn Device Type Flatted bushing at 3:00 o'clock AFGA Operating Temp Range -65.0/+85.0 deg celsius AJZE Switch Contact Basic Design Nonpile-up symmetrical AKPX Pole Quantity 1 1ST section rear AKPX Pole Quantity 1 2ND section front AKPX Pole Quantity 1 3RD section front AKPX Pole Quantity 1 3RD section rear AKPX Pole Quantity 1 4TH section rear AKPX Pole Quantity 1 5TH section rear AKPX Pole Quantity 1 6TH section rear AKPX Pole Quantity 1 7TH section rear AKPX Pole Quantity 1 8TH section rear AKPY Throw Quantity 12 4TH section front AKPY Throw Quantity 12 5TH section front AKPY Throw Quantity 12 6TH section front AKPY Throw Quantity 12 7TH section front AKPY Throw Quantity 12 8TH section front AKPY Throw Quantity 4 1ST section front AKPY Throw Quantity 4 1ST section rear AKPY Throw Quantity 4 3RD section front AKPY Throw Quantity 6 3RD section rear AKPY Throw Quantity 8 2ND section front AXGY Mounting Method Threaded bushing W/panel seal single mounting facility CQJX Nominal Thread Size 0.375 inches single mounting facility CQMK Contact Voltage Rating IN Volts 115.0 ac at sea level CQMK Contact Voltage Rating IN Volts 28.0 dc at sea level CQRQ Shaft Flat/Slot Angular Location 330.0 degrees from nonturn device single actuator CQTH Rotor Through Connection Quantity 1 5TH section CQTH Rotor Through Connection Quantity 1 6TH section CQTH Rotor Through Connection Quantity 1 7TH section CQTH Rotor Through Connection Quantity 1 8TH section CQTH Rotor Through Connection Quantity 1 1ST section CQTH Rotor Through Connection Quantity 1 4TH section CRJH Switch Actuator Indexing Position Quantity 12 single actuator CRSJ Shaft Type Round, flatted single actuator CSCF Terminal Type Tab, solder lug CSHW Contact Switching Action Breaks before makes 1ST section rear CSHW Contact Switching Action Breaks before makes 3RD section rear CSHW Contact Switching Action Breaks before makes each section front CSLC Switch Actuator Positioning Increment 30.0 degrees single actuator CSMW Detent Rotational Torque Range +1.500/+6.000 inch-pounds single actuator CTHF Contact Load Current Rating 250.0 milliamperes resistive load ac at sea level CTHF Contact Load Current Rating 500.0 milliamperes resistive load dc at sea level and 50.0 milliamperes inductive load dc at sea level STYL Style Designator Circular wafer, bushing mount THSD Thread Series Designator Unef single mounting facility We’re e-liquidators. We specialize in Military, Government, Industrial and Business liquidation services, disposition and asset recovery management. Our surplus inventory comes to us from many sources, big and small: corporate clients, closing businesses, military DRMO’s, and local government agencies, and individuals. Feel free to contact us with your questions, concerns and suggestions. Contact information:We are "E-liquidators" on Facebook Google “E-liquidators” for additional informationPlease take a moment to see our current specials on eBay our other eBay listings. Powered by SixBit's eCommerce Solution
