| Number of Throws | 1 |
| MPN | EDB34030 |
| Suitable For | Wall |
| Tripping Characteristics | Type D |
| Current Type | AC |
| Control Style | Switch |
| Number of Outlets | 3 |
| Color | Black |
| Number of Spaces | 51-60 |
| Brand | Square D |
| Operation Method | On/Off |
| Interruption Type | Thermal Circuit Breaker |
| Number in Pack | 51-60 |
| Features | Trip Indicator |
| Number of Positions | 3 |
| Number of Phases | 3 |
| Electrical Connection | Box Lugs |
| Break Time | Instantaneous |
| IP Rating | IP06 |
| Model | Square D EDB34030 |
| Number of Poles | 3 |
| Number of Circuits | 51-60 |
| Smart Home Protocol | Powerline/UPB |

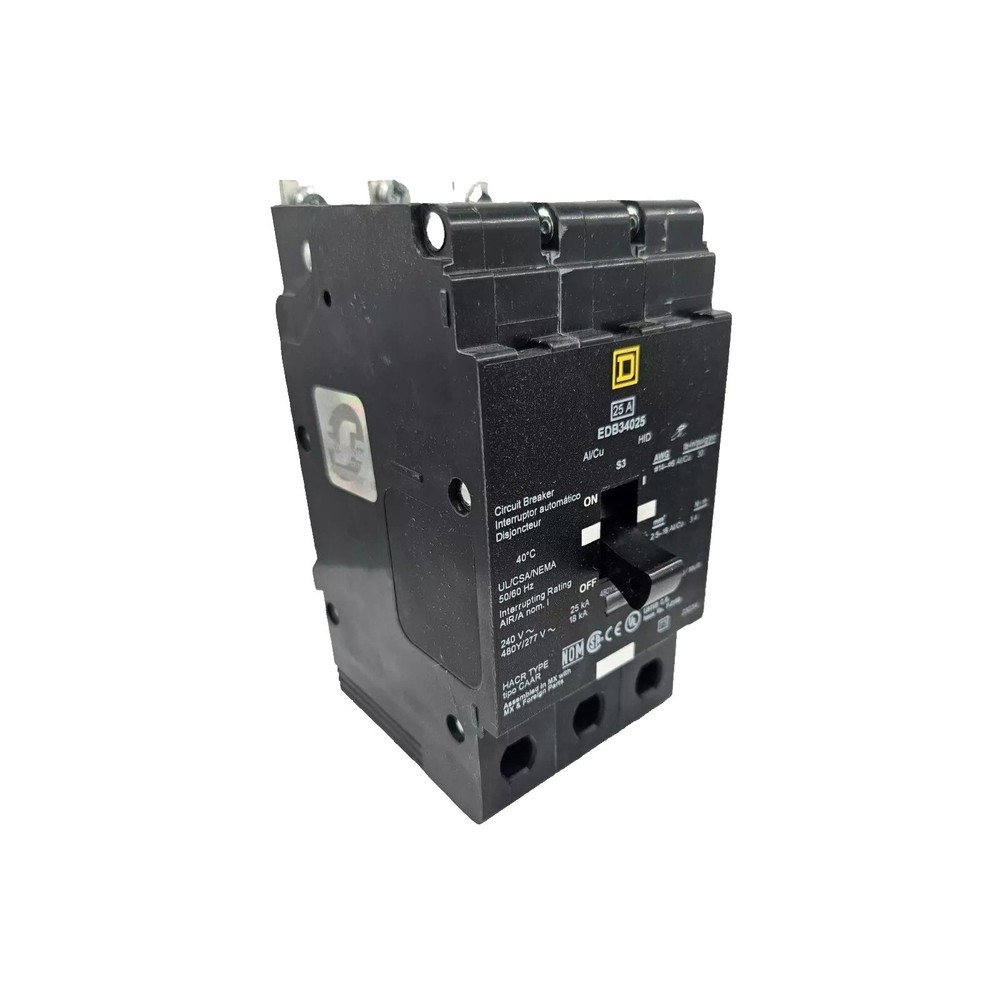

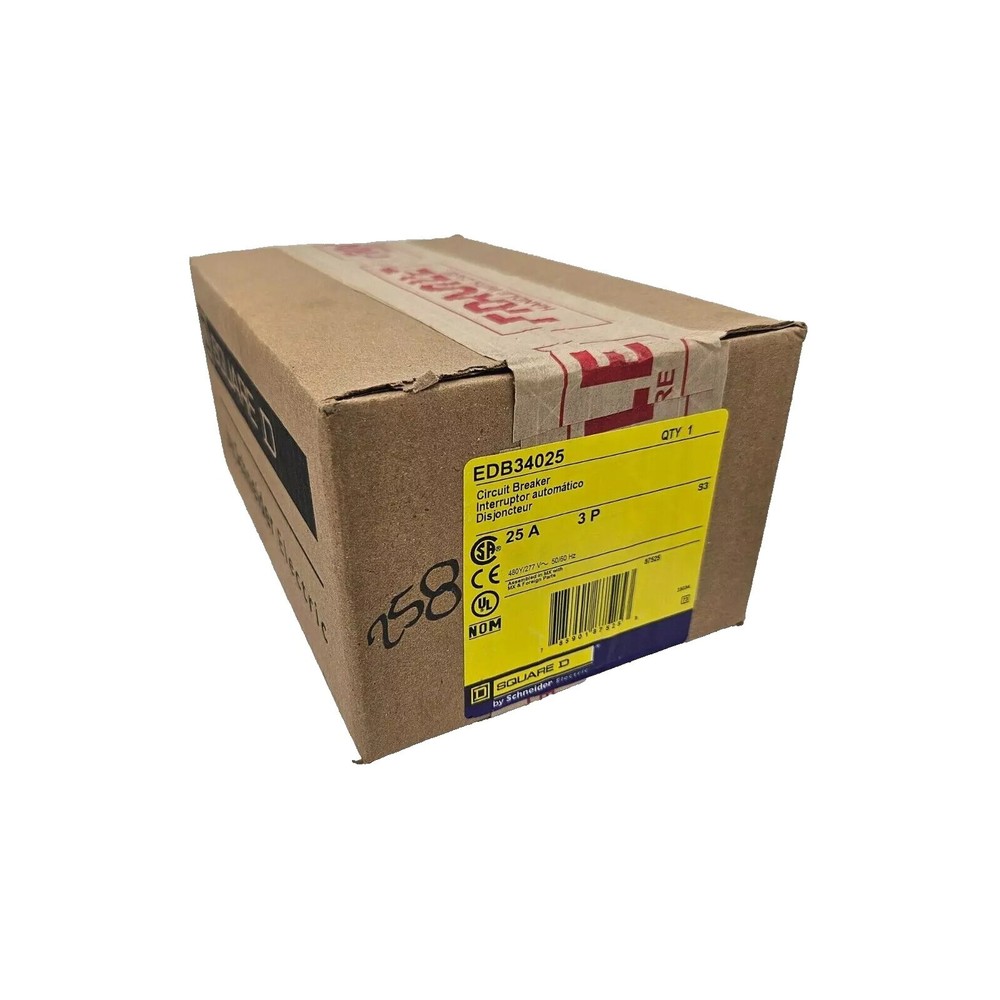

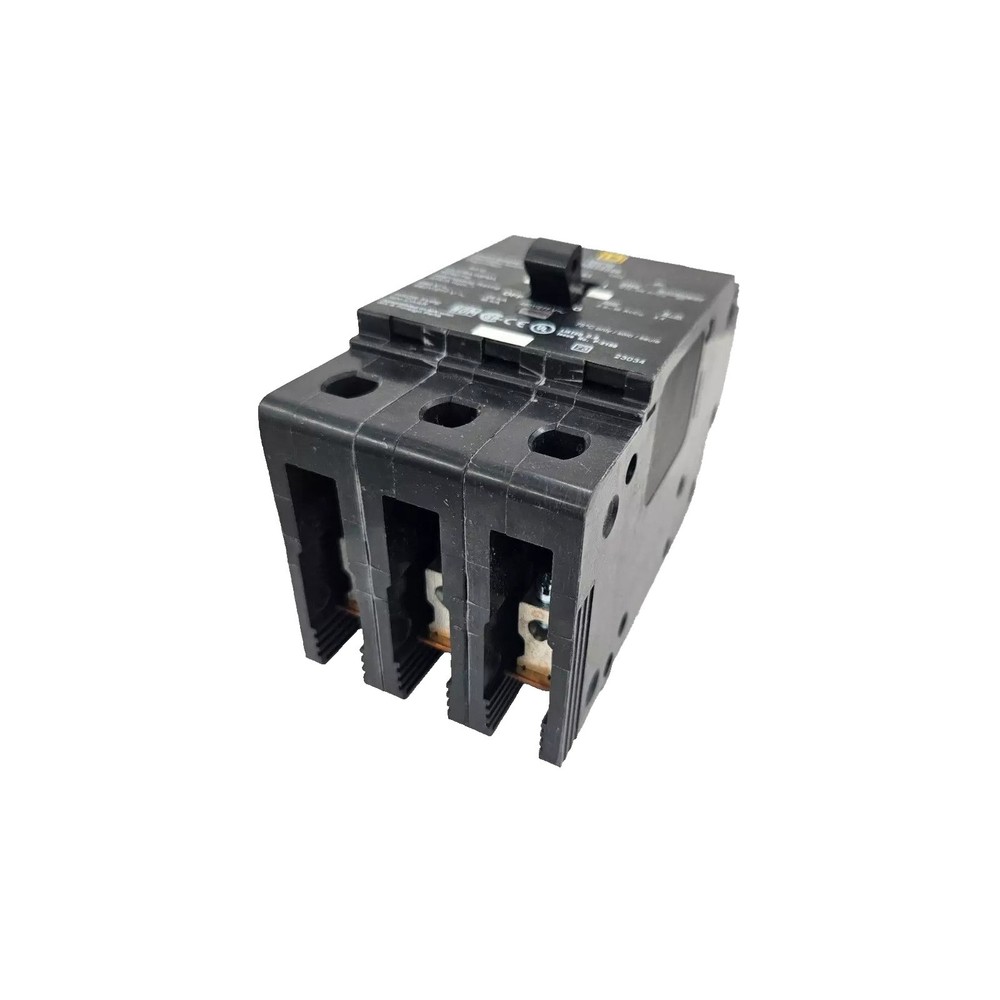

Check the listing for details. NIB - Square D - EDB34025 - Mini Circuit Breaker, E-Frame, 25A, 3 Pole. Color: Black, Condition: New. Listed at 236.00 USD. NIB - Square D - EDB34025 - Mini Circuit Breaker, E-Frame, 25A, 3 Pole The Mini circuit breaker is an E-Frame type with a 25A rating and 3 poles. It is designed for high current applications with a maximum voltage of 480Y/277 VAC and 25 kA breaking capacity. Product or Component Type: Miniature circuit-breaker Device Short Name: EDB Module Type: E-Frame Trip Unit Rating: 875A Line Rated Current: 25A Maximum Operating Voltage: 480Y/277 V AC AWG Gauge: AWG 12 to AWG 6 (Aluminium) AWG 14 to AWG 6 (Copper) Breaking Capacity: 18 kA at 277 VAC 25 kA at 240 VAC 18 kA at 480Y/277 VAC 25 kA at 120 VAC 25 kA at 120/240 VAC Circuit Breaker Application: HID rated HACR rated Electrical Connection: Lugs aluminium Holding Current: 270A Local Signalling: Trip indicator Mounting Mode: Bolt-on Product Destination: NF panelboard Overload Protection Type: Short-circuit Trip Unit Technology: Thermal-magnetic Breaking Capacity Code: D Tightening Torque: 30.09 lb.in (3.4 N.m) 0.00 to 0.02 in² (2.5 to 16 mm²) for AWG 14 to AWG 6 Ambient Air Temperature for Operation: 104°F (40°C) Warranty: 18 months Mercury Free: Yes RoHS Exemption Information: Yes Reach Regulation: REACh Declaration EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope) China RoHS Regulation: China RoHS declaration (Product out of China RoHS scope) LiveWire Electrical Supply has been serving electrical distributors across the United States since 2005. With thousands of items in stock and ready to ship. LiveWire is the trusted need-it-now power distribution partner for leading electrical distributors for new-in-box circuit breakers, fittings, fuses, motor control and switchgear. We stock a $60+ million inventory of new-in-box, products across Square-D, Eaton, GE, Siemens, Allen-Bradley, Crouse-Hinds, Appleton, Bussmann, Hammond Power, and ACME. Through our core values of Customer First, Integrity, and Commitment to Premium Vendor Relationships, LWES is committed to your success.
