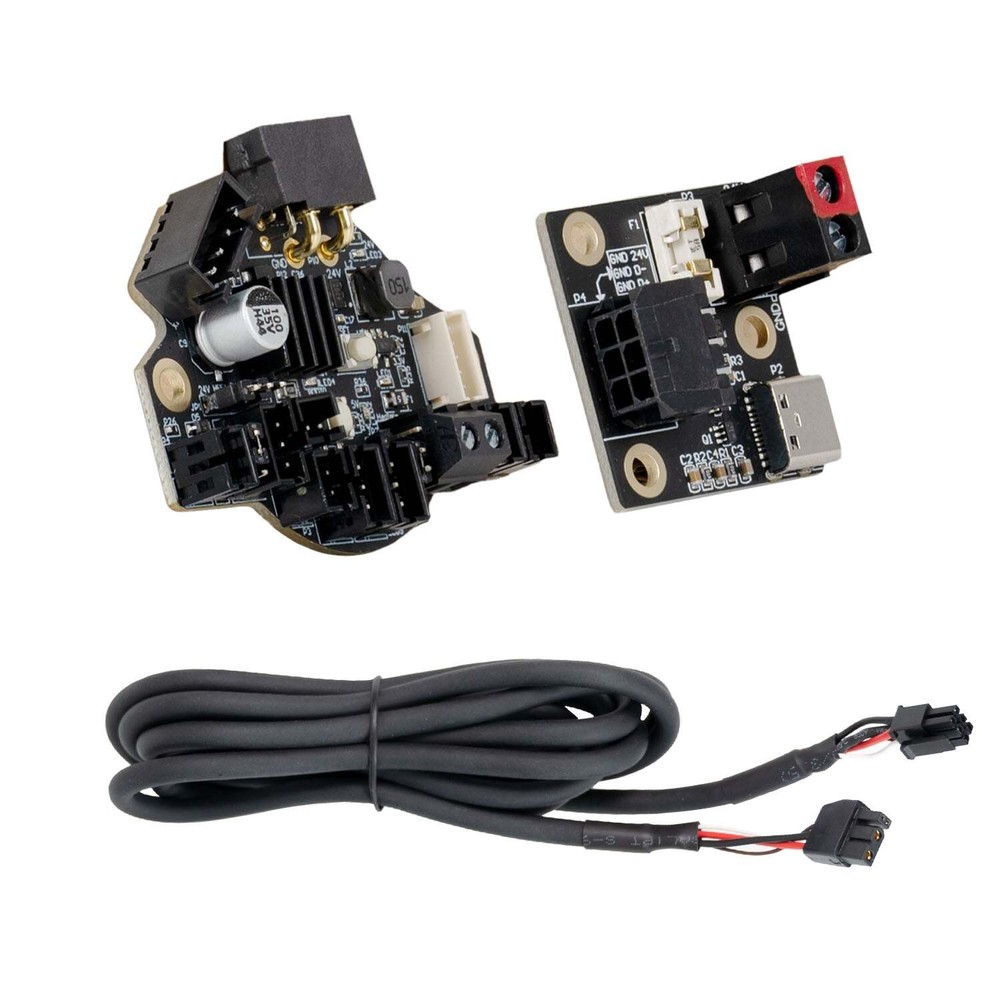

Check the listing for details. NiteHawk-36 USB Toolboard PCB by LDO Motors. Condition: New. Listed at 43.19 USD. NiteHawk-36 USB Toolboard PCB by LDO Motors Introduction Nitehawk-36 by LDO is a toolboard featuring RP2040 MCU, TMC2209 stepper drive, ADXL345 accelerometer, and USB port. Nitehawk-36's USB-based connection method allows for a simple and easy setup compared to other CAN toolboards. The USB connection also allows for a secondary USB port to connect your nozzle webcam or eddy current probe. If you're looking for the Nitehawk-SB specifically designed for the Stealthburner Toolhead you can find it here. Features Convenient wiring, no more complicated and error-prone breakout cables - Nitehawk only requires 24V power and a USB connector to the RPI host. USB Klipper connection, no additional software or hardware setup compared to CAN. Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable. Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in an umbilical configuration. Convenient Input Shaping, run input shaper calibration at any time with an onboard accelerometer. Tacho enabled HEF, the hotend fan port is three-pin tachometer compatible, allowing for additional diagnostics and safety. System Overview The Nitehawk system consists of two PCBs and the Umbilical Cable. A simplified wiring diagram is shown below: Nitehawk-36, this is the main PCB, which houses the MCU, stepper driver, fan drivers, and other circuits. Umbilical Cable, this is a custom flex cable that is rated for drag chain use. It delivers 24V power to the main Nitehawk PCB while also carrying USB data. USB Adapter, this simple PCB combines 24V power from the power supply and USB data from the Raspberry Pi into a unified connection to the main Nitehawk PCB via the Umbilical cable. More information can be found here. NiteHawk-36 USB Toolboard PCB by LDO Motors Introduction Nitehawk-36 by LDO is a toolboard featuring RP2040 MCU, TMC2209 stepper drive, ADXL345 accelerometer, and USB port. Nitehawk-36's USB-based connection method allows for a simple and easy setup compared to other CAN toolboards. The USB connection also allows for a secondary USB port to connect your nozzle webcam or eddy current probe. If you're looking for the Nitehawk-SB specifically designed for the Stealthburner Toolhead you can find it here. Features Convenient wiring, no more complicated and error-prone breakout cables - Nitehawk only requires 24V power and a USB connector to the RPI host. USB Klipper connection, no additional software or hardware setup compared to CAN. Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable. Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be uséd in an umbilical configuration. Convenient Input Shaping, run input shaper calibration at any time with an onboard accelerometer. Tacho enabled HEF, the hotend fan port is three-pin tachometer compatible, allowing for additional diagnostics and safety. System Overview The Nitehawk system consists of two PCBs and the Umbilical Cable. A simplified wiring diagram is shown below: Nitehawk-36, this is the main PCB, which houses the MCU, stepper driver, fan drivers, and other circuits. Umbilical Cable, this is a custom flex cable that is rated for drag chain use. It delivers 24V power to the main Nitehawk PCB while also carrying USB data. USB Adapter, this simple PCB combines 24V power from the power supply and USB data from the Raspberry Pi into a unified connection to the main Nitehawk PCB via the Umbilical cable. More information can be found here. &times &times &times Buy now and save! Shipping info Click the Shipping & Payments tab above the listing description for more info Click the Shipping & Payments tab above the listing description for more info! Additional delivery notes PICK UP OPTION Sorry, our items are NOT available for pick-up. PAYMENT Immediate payment is required upon selecting "Buy It Now" or upon checking out through the cart. We accept payment via U.S. PayPal accounts and all Major Credit Cards, Debit Cards & Google Pay. We are legally required to collect sales tax in those states and localities where we maintain a physical presence (nexus). The applicable amount of sales tax charged to an order will be calculated based on the shipment destination's state and local sales tax laws. Thank you for shopping with us on eBay! Additional Information No additional information at this time Ask seller a question You might also like AMBROSIA Über ABS Filament of the Gods - 1KG Bambu AMS Friendly Cardboard Spools AMBROSIA ASA Galactic Filament of the Gods (Glitter / Sparkle) - 1KG Bambu AMS F AMBROSIA PETG Filament of the Gods - 1KG Bambu AMS Friendly Cardboard Spools Pre AMBROSIA PLA Filament of the Gods - 1KG Bambu AMS Friendly Cardboard Spools Prem Contact To contact our Customer Service Team, simply click the button here and our Customer Service team will be happy to assist. Ask seller a question © West3D Printing Shipping & Payments Click the Shipping & Payments tab above the listing description for more info Payment Accepted Payment Methods Immediate payment is required upon selecting "Buy It Now" or upon checking out through the cart. We accept payment via U.S. PayPal accounts and all Major Credit Cards, Debit Cards & Google Pay. We are legally required to collect sales tax in those states and localities where we maintain a physical presence (nexus). The applicable amount of sales tax charged to an order will be calculated based on the shipment destination's state and local sales tax laws. Thank you for shopping with us on eBay! Returns Returns are accepted Items must be returned within 30 days of the auction ending Seller will pay for return shipping. eBay integration by
