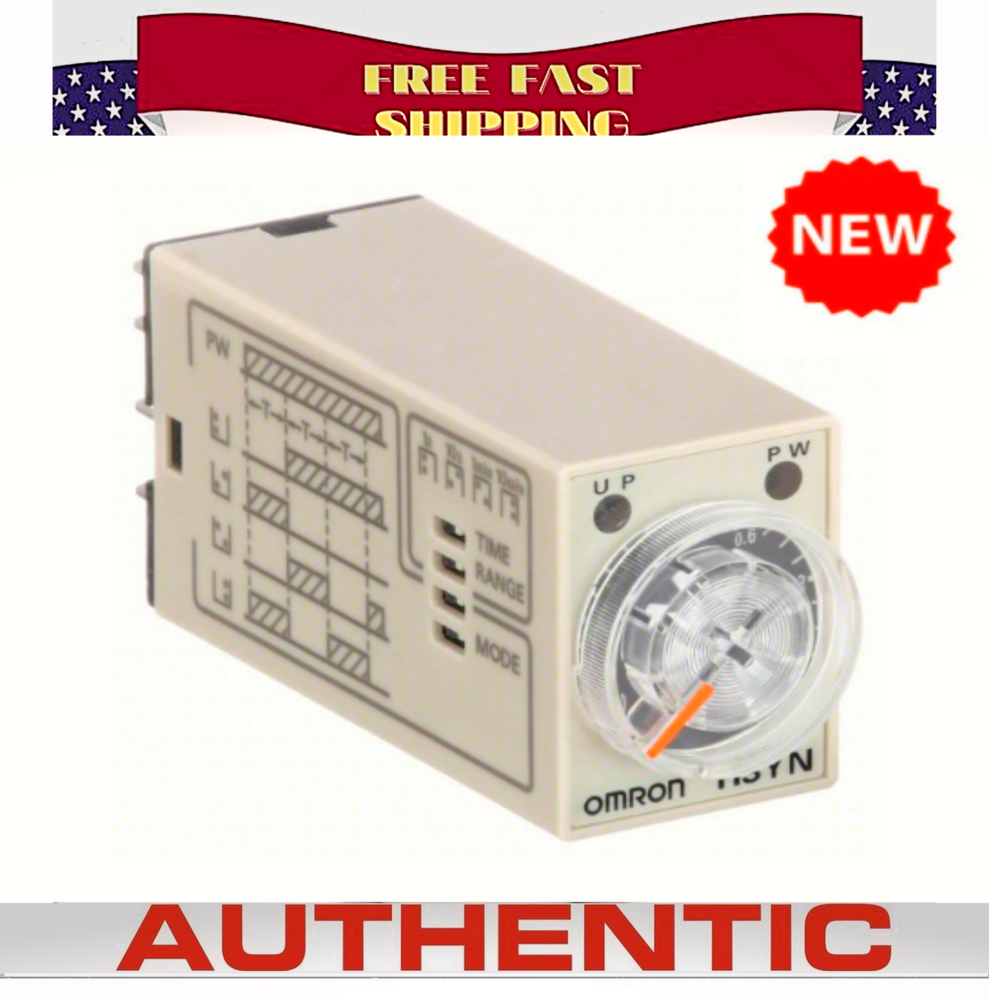

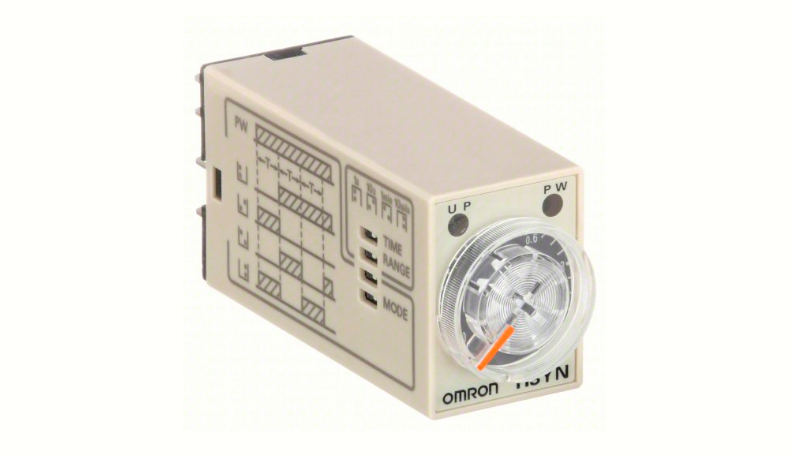

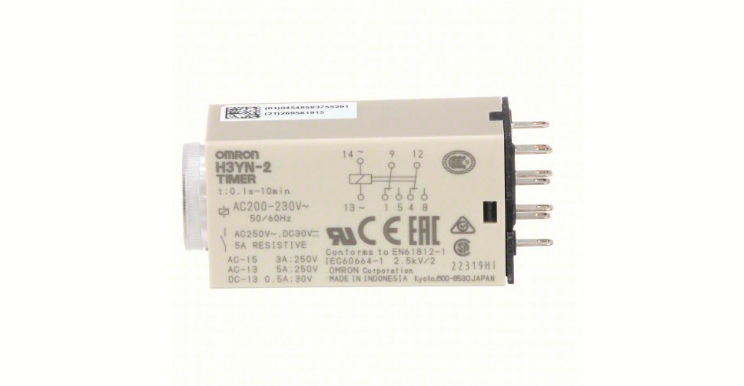

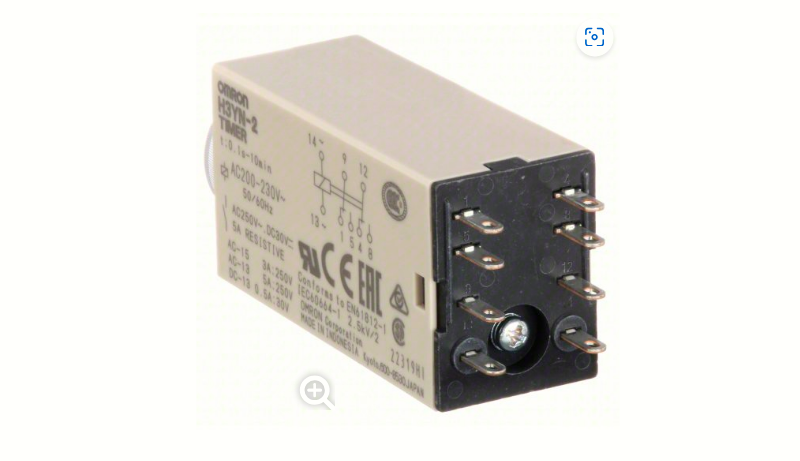

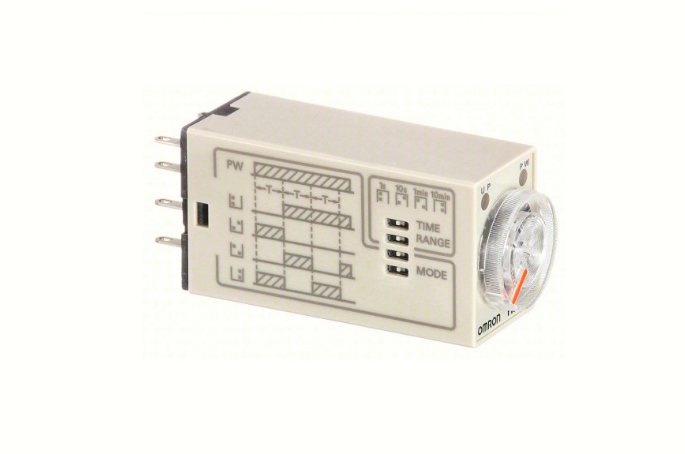

Check the listing for details. OMRON H3YN-2 AC200-230 MULTI FUNCTION TIME DELAY RELAY SOLID STATE TIMER SOCKET. Condition: New. Listed at 59.99 USD. OMRON H3YN-2 AC200-230 MULTI-FUNCTION TIME DELAY RELAY SOLID STATE TIMER SOCKET RELAY MOUNTING200 to 230V AC, 0.1 sec – 10 min GENUINE AUTHENTIC BRAND NEW UNUSED OPEN BOX.TOP QUALITY GENUINE AUTHENTIC OEM PART.BUY WITH CONFIDENCE WE ARE AND HAVE BEEN A T0P RATED SELLER OF QUALITY NEW, REFURBISHED, AND USED ITEMS FOR OVER 20 YEARS. FAST USA SELLER AND FREE SHIPPING.__ 100% GUARANTEE NO HASSLE 30 DAY WARRANTY AND FREE RETURNS ACCEPTED. Specification Ratings Rated supply voltage 24 VDC, If power supply incorporates a single-phase full-wave rectifier. Operating voltage range 85% to 110% of rated supply voltage Power consumption (Relay ON) Approx. 1.1 W (at 24 VDC) Power consumption (Relay OFF) Approx. 0.1 W (at 24 VDC) Reset voltage 10% max. of rated supply voltage Number of time ranges 4 Time ranges 0.1 s to 1 s, 1 s to 10 s, 0.1 min to 1 min, 1 min to 10 min Operating mode ON delay, Interval, Flicker OFF start, Flicker ON start, Pulse Operation (use in interval mode, connect power supply terminals as pulse operation) Control output Type Time-limit: DPDT Control output (Contact output) Switching capacities (resistive load (cos (phi) = 1)): 250 VAC 5 A Minimum applicable load: 1 mA at 5 VDC (failure level: P) Ambient temperature Operating: -10 to 50 CEL Storage: -25 to 65 CEL (with no icing) Ambient humidity Operating: 35 to 85% RH Characteristics Accuracy of operating time +/- 1% max. (FS) (+/- 1% +/- 10 ms max. in a range of 1 s) Setting error -10 to 10% +/- 50 ms max.(FS) Reset time 0.1 s max. (including halfway reset) Influence of voltage +/- 2% FS max. Influence of temperature +/- 2% FS max. Insulation resistance 100 MOhm min. (at 500 VDC) Dielectric strength between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC, 50/60 Hz for 1 min (Terminal screw sections are not excluded) between control output terminals and operating circuit: 2000 VAC, 50/60 Hz for 1 min between contacts of different poles: 2000 VAC, 50/60 Hz for 1 min between non-continuous contacts: 1000 VAC, 50/60 Hz for 1 min Impulse withstand voltage between power terminals: 1 kV between exposed non-current-carrying metal parts: 1.5 kV Noise immunity +/- 1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 us, 1-ns rise) Static immunity Malfunction: 4 kV Destruction: 8 kV Vibration resistance (Destruction) 10 to 55 Hz, 0.75 mm single amplitude each in X, Y, and Z directions for 1 hour Vibration resistance (Malfunction) 10 to 55 Hz, 0.5 mm single amplitude each in X, Y, and Z directions for 10 min Shock resistance (Destruction) 1000 m/s**2, 3 times each 6 directions Shock resistance (Malfunction) 100 m/s**2, 3 times each 6 directions Mechanical Life expectancy (relay output) 10000000 operations min. (under no load at 1800 operations/h) Electrical Life expectancy (relay output) 500000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h) Degree of protection IEC60529 (JEM): IP40 Applicable standard (UL) Standard No.: UL508 File number: E41515 Applicable standard (CSA) Standard No.: CSA C22.2 No.14 File number: LR22310 Applicable standard (LR) 97/10015 Applicable standard (CCC) Printed Applicable standard (EC Directive (Low Voltage Directive) ) EN61812-1 IEC60664-1 2.5 kV/2 Applicable standard (EC Directive (EMC Directive) ) EMI: EN61812-1 Emission Enclosure: EN55011 Group1 class A Emission AC mains: EN55011 Group1 class A EMS: EN61812-1 Immunity ESD: IEC61000-4-2(8 kV air discharge) cRF-interference: IEC61000-4-3(10 V/m, AM radio waves (80 MHz to 1 GHz)) Immunity Burst: IEC61000-4-4(2 kV power-line and I/O signal-line) Immunity Surge: IEC61000-4-5(1 kV line to line, 2 kV line to ground) External connection method Plug-in terminal Case color Munsell 5Y7/1 (Light gray) Weight Approx. 50 g MAKE NO ASSUMPTIONS SEE THE PICTURES AND READ THE DESCRIPTION FULLY FOR ALL PERTINENT DETAILS. ALL SALES ARE FINAL NO CANCELLATIONS WILL BE ACCEPTED ONCE PAYMENT HAS BEEN RECEIVED. STOCK PHOTO USED.
