| All returns accepted | ReturnsNotAccepted |
|---|---|
| Machine Type | Drill & Tap Press |
| Stand Type | Floor |
| Power Source | Electric |
| Number of Speed | Variable |
| Swing | 22.00 in |
| Power | 3.00 hp |
| Brand | Optimum |
| Drive Type | Geared Head |

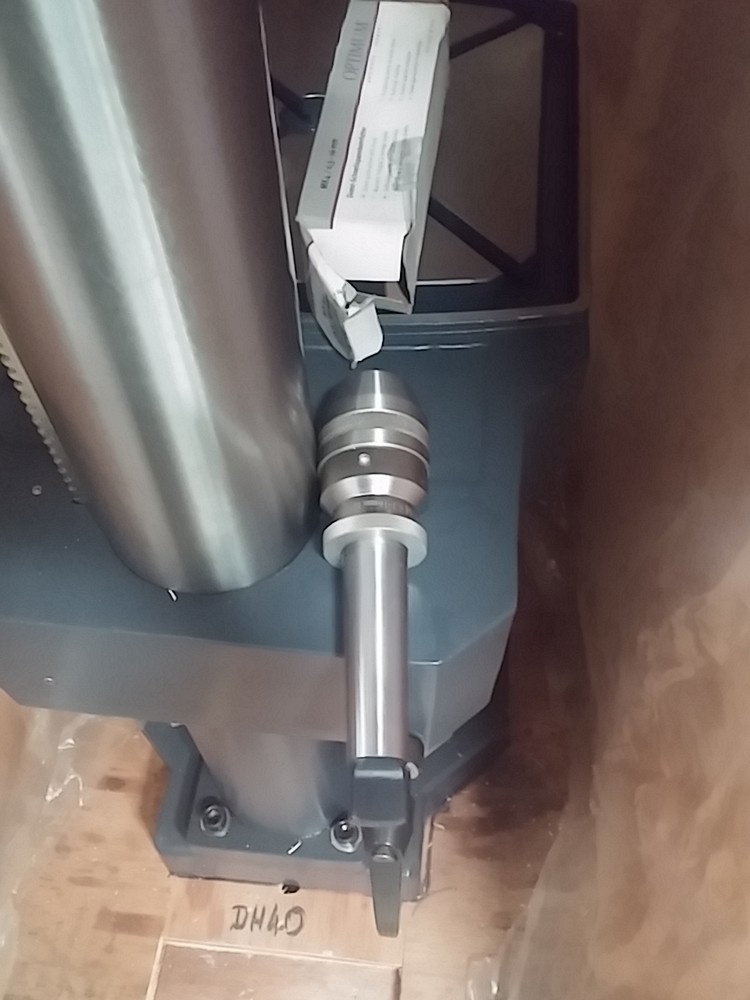

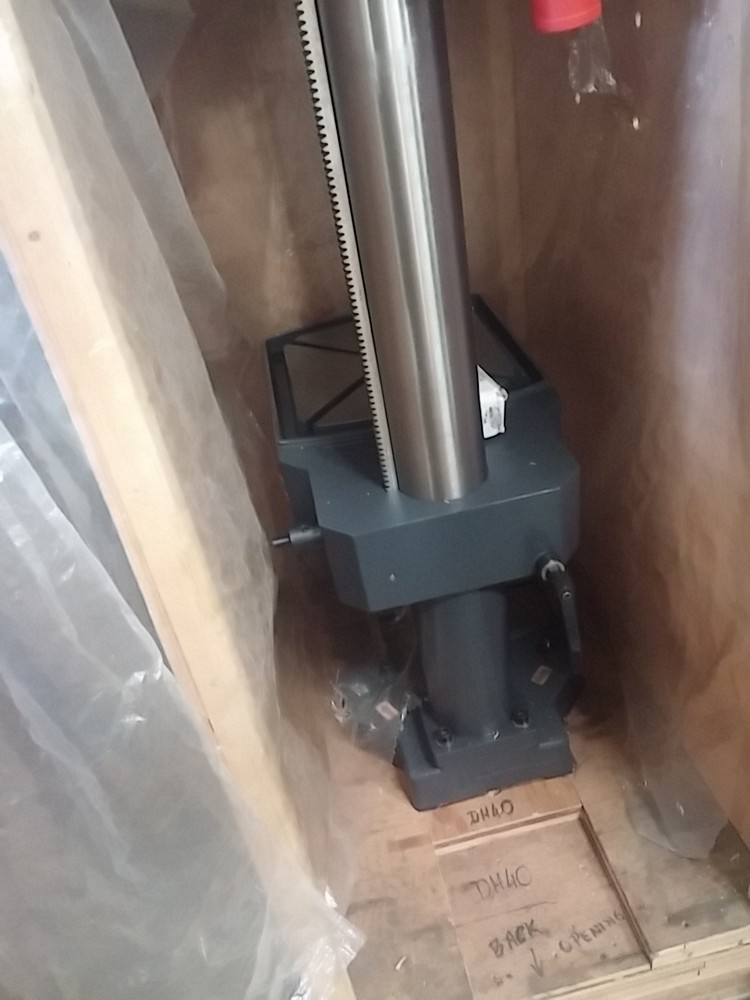

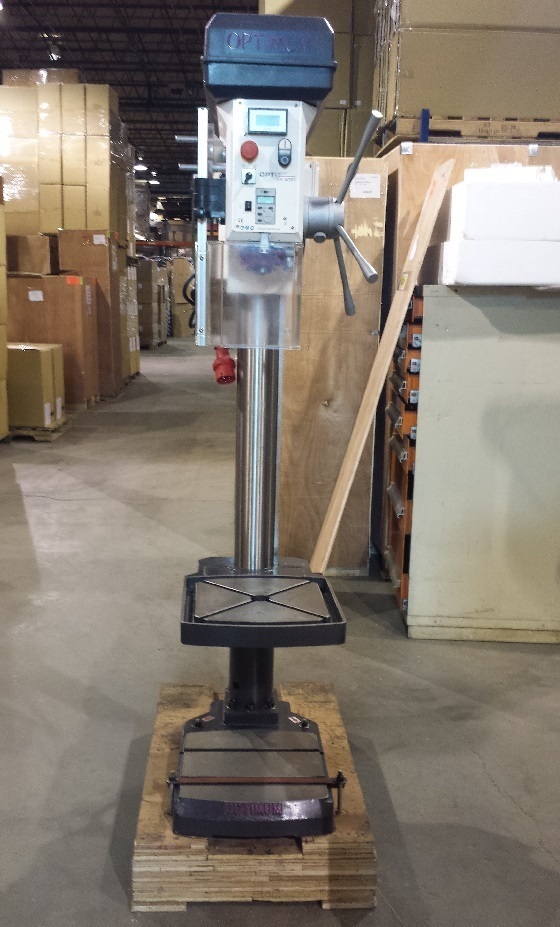

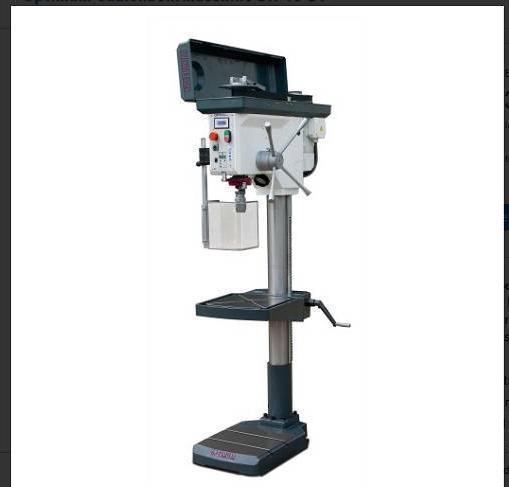

Check the listing for details. Optimum DH40BV 22" 3HP Variable Speed Drill Press. Condition: New. Listed at 3200.00 USD. This is a new drill press. If you have a shipper, I can get it loaded. OPTIMUM Drill DH40BV. Retail: $4,900. Size: 22" Floor model Type: Mechanical variable speed Horsepower: 3 Speed range: 150-2000 Speed control mechanism: pulley sheaves Digital speed display Drilling cap cast iron: 1.5" Spindle Travel: 6.2" Spindle taper: 4MT Spindle tolerance: 0.0004" Spindle pulleys: steel Machined T-slots in upper table: 1/2" Column dia: 4" Voltage: 230 Phases: 3 Table: 15.7 x 16.5" Weight: 595 lbs Category: Metalworking Description Upright drilling machines with infinitely variable mechanical gearboxSmooth running and powerful electrical motorSpindle sleeve lever made of steelBase plate usable as a working surface for extra high workpieces due to the pivoting the drilling table awayRight-hand/left-hand rotation2 speed stagesV-belt cover with safety switch Intermediate gearbox - so a far higher torque is reached Features Infinitely variable mechanical gearbox Extremely reliable due to manual speed regulationPowerful smooth runningDurable wide groove beltSpeed modification while the motor is runningPermanently optimum efficiency factor of the motorNew at DH 40BVwith intermediate gearbox
