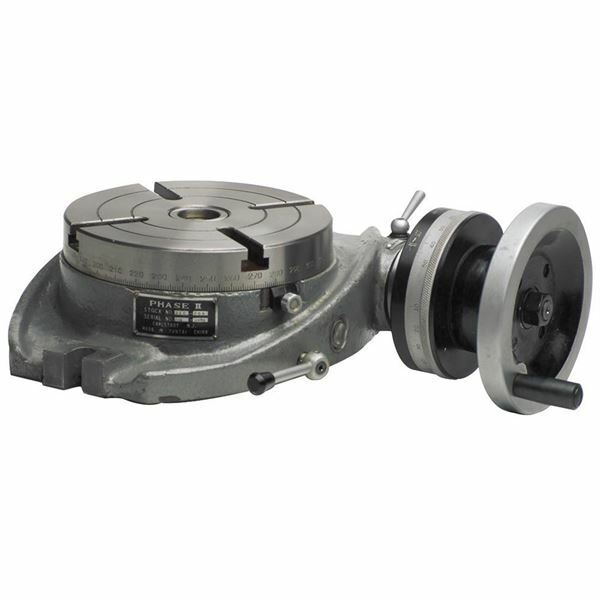

Check the listing for details. Phase II H220-006 8" Horizontal Precision Rotary Table. Condition: New. Listed at 737.75 USD. 8" HORIZONTAL ROTARY TABLE-Phase IIApplicationsUse for indexing, drilling or milling.Machining curved surfaces by utilizing circular milling.Milling and boring where close tolerances are required.Machining flat surface is Set at a certain angle to a given reference.Quality control.Jig boring.Features Adjustable satin chrome dials are extremely large in diameter for easy reading. All dials are Precision ground and graduated in minute and second increments as well as degrees.Totally enclosed rugged base casting, Precision ground and parallel within .0006".(2) Locks provided for positive action.The worm and shaft are of one Piece hardened and ground.All rotary tables are equipped with disengageable worms which affords quick rotation for indicating workPieces.Oiling facilities are provided for all moving parts.Low profile.TurntableMade of "high grade meehanite castings". Precision ground and parallel within .0006".All T-Slots are machined. Graduations are accurately cut in increments of one degree. Optional AccessoriesDividing plates have all divisions from 2 to 66 and all numbers from 68 to 132 that can be divided by 2, 3 and 5. Fits all except 6".Second vernier: 10" Gear ratio: 90:1Adjustable tailstocks: 2 MTBenefitsA convenient method of worm adjustment is provided to compensate for wear.Each table is supplied with a signed inspection certificate and an operating certificate.NoteRotary Table/Lathe Chuck Adapter Plate Ordering Information Don"t know which Adapter plate/lathe chuck to use with your rotary table? Use the guide below to help you determine what to buy: Rotary Table Adapter Plate Lathe Chuck 4" 4" 3" 6" 6" 5" 8" 8" 6" 10" 10" 8" 12" 12" 10" 16" 16" 12" Product Specifications Item # 65-220-008 Catalog Price $384.99 Unit of Measure each Must Buy 1 Country of Origin Import Shipping Restrictions None Brand Phase II Description Phase II 8" Horizontal Rotary Table Model# H220-008 Size 8" Weight 53 lbs. Center Hole 3 MT
