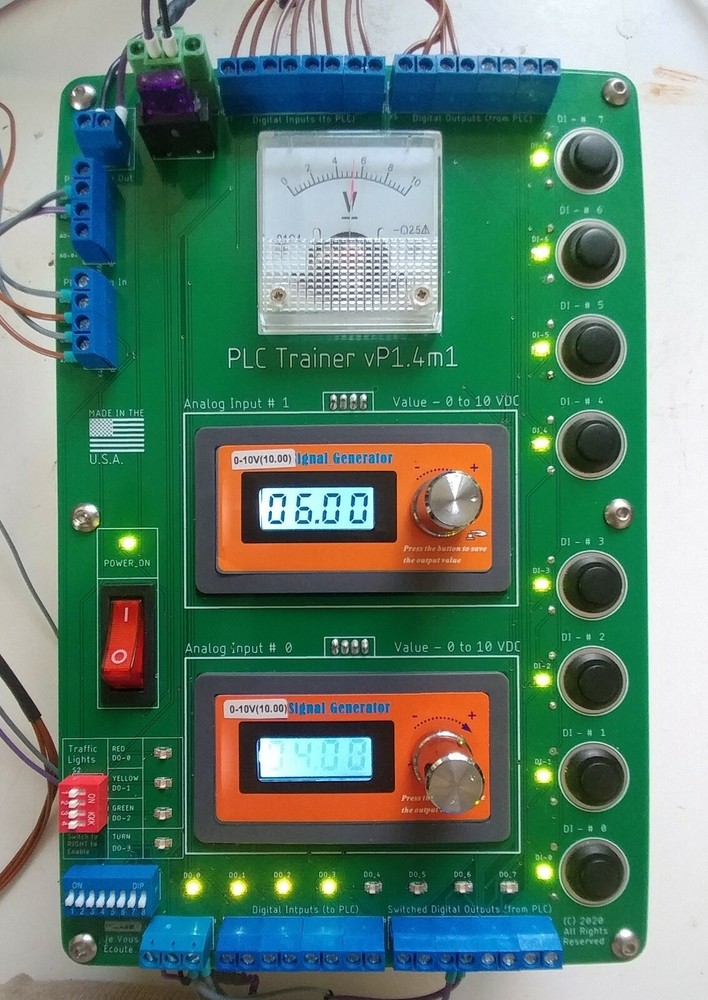

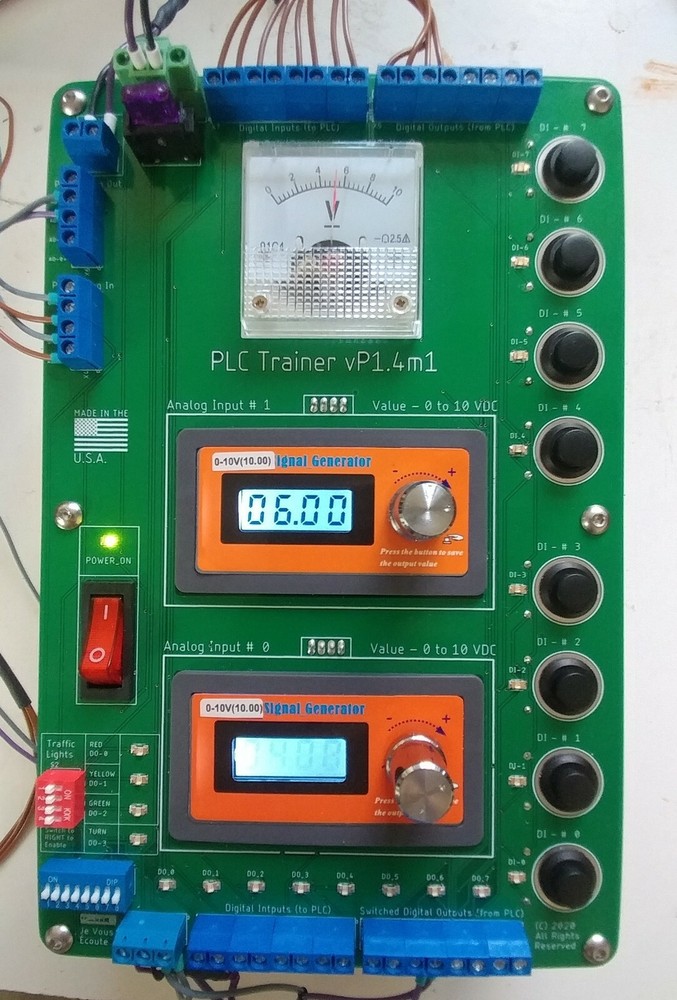

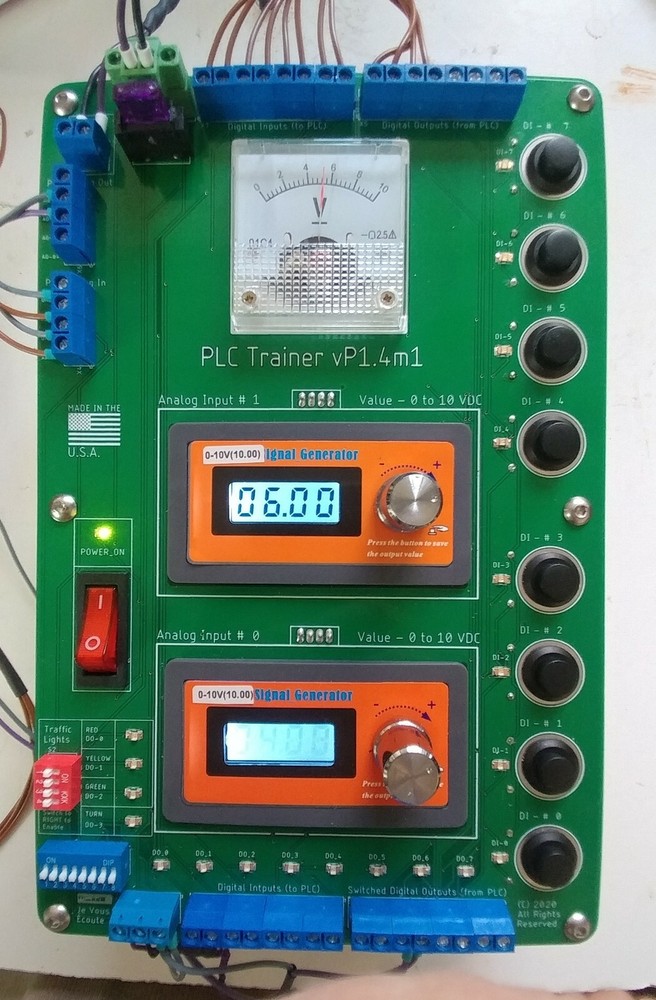

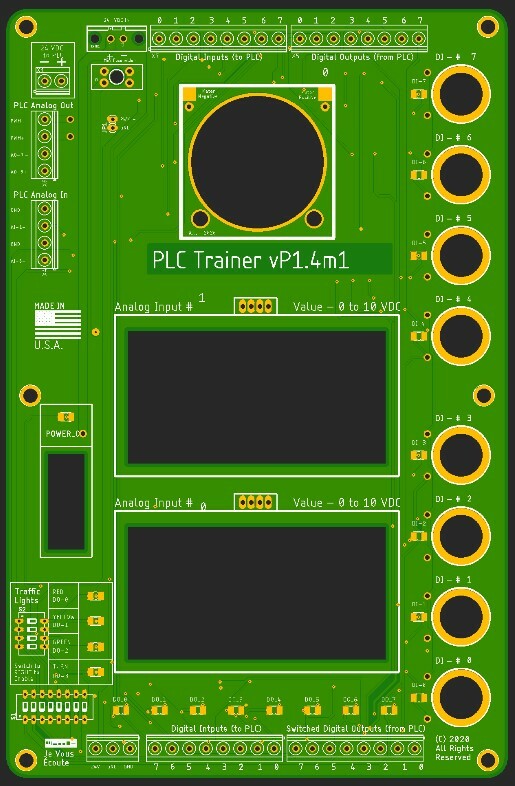

Check the listing for details. PLC Trainer Interface - Digital Inputs, Digital Outputs, Analog Inputs and PWM. Condition: Seller refurbished. Listed at 450.00 USD. Thanks for Viewing This Auction. For sale is for ONE: Custom - "PLC Trainer Interface" with the following features: Mounted in a protective plastic enclosure.8 of: 24 VDC - High Active - PLC compliant - Outputs - with LED status indicator (column of manual switches (latching) on left side).Connect these to your PLCs Digital Inputs.8 of: 24 VDC - High Active - PLC compliant - Inputs - with LED indicators (row of LEDs at bottom).Also has Red, Yellow and Green LEDs for use as Traffic Light Programing training.Red "Switch Bank" can disable these LEDs Connect these to your PLCs Digital Outputs.2 of: Analog Outputs - 0 to 10 VDC - manually adjustable with some user selectable output patterns.Connect these to your PLC's Analog Inputs (these are located at upper left side).1 of: PWM Input - 0 to 10 VDC PWM - Used to drive the analog 0- 10 VDC panel meter.Connect this to your PLC's PWM output (this is located at upper left side).CAUTION: NOT all PLCs have PWM output capability.Additionally, PWM to DC conversion is "something", but is is not "all that".Don't believe the YouTube videos on this subject matter - these are geared to hobbyists - not mission critical industrial applications. Don't expect rail to rail capability.Don't expect rail to rail linearity.Don't expect repeatable performance.Don't expect performance longevity.This Trainer Interface has a 24 VDC input, with a 3 amp fuse protecting your circuits, and with an ON / OFF switch.. You can then choose to also power your PLC from the 24 VDC output (top left hand corner)You MUST provide a 24 VDC - 3 Amp minimum Power Supply, and a PLC of your choice. Please be aware that this trainer interface is designed to connect to PLCs with DC outputs (example: Siemens S7-1212C DC/DC/DC / Beckhoff EL 2002 / EL1008, and so many others. ). If you contact me I would be more than happy to work with you to determine if your current PLC / prospective PLC can be interfaced with this trainer. Now, if you have a "relay output" type of PLC, with a small amount of customization it can be interfaced to this trainer. This type of work is not out of the usual scope of required work when installing and deploying PLC systems into industrial environments. == == == NO Software is included in this sale. You MUST provide a 24 VDC - 3 Amp minimum Power Supply, and a PLC of your choice. FYI - I also attached an image of a Beckhoff TwinCAT "WebVisu" screen capture of this "PLC Trainer Interface" connected to a Siemens S7-1212 (8 DI, 4 DO, 1 PWM and 2 AI), where the Siemens PLC is publishing its I/O variables to the Beckhoff TwinCat system via OPCUA. The Beckhoff TwinCAT then uses those variables and displays them online through the WebVisu. To accomplish this, I needed to program both the Siemens S7-1212, the Beckhoff TwinCAT, and enable OPCUA in both systems so that they could communicate with each other over Ethernet. Just an example of what you can work to do as well using your own PLC. == == == Make your Best Offer, Get a GREAT deal. 5 Identical items are available at the start of this auction. == == == Sale price includes FREE shipping to U.S.A. locations. This item ships fast from the U.S.A. using USPS or UPS (my choice which one) - no hassles / no long waits. This items has been pre-packaged, and is re ready to ship TODAY. Staging location: 1A77 == == == Please always closely review the images that I attach to the auction to see exactly what you are buying. I do try my best to describe the items as they are, and provide as much details as I have about each. == == == Thanks for your interest in my auction - I appreciate it == == == RightFitSales - Shop with Confidence USA Seller. Shipping is Fast and Free.
