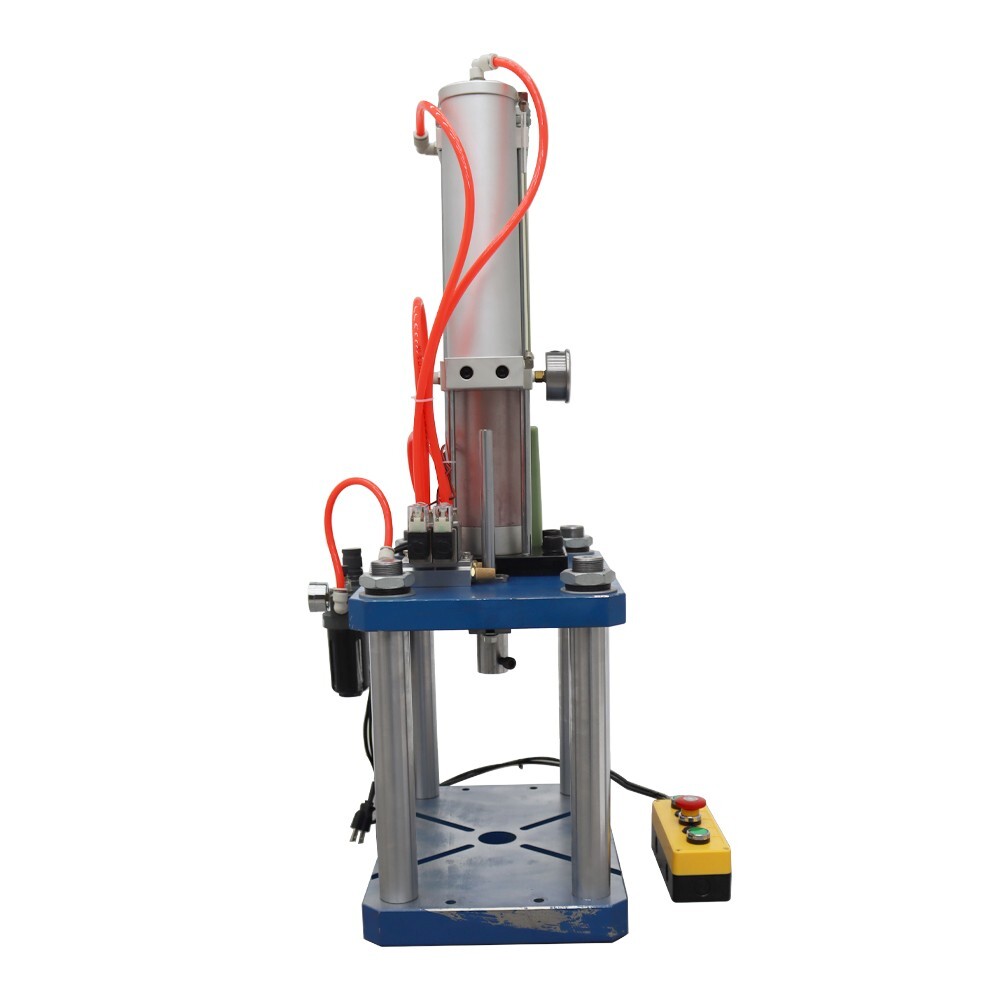

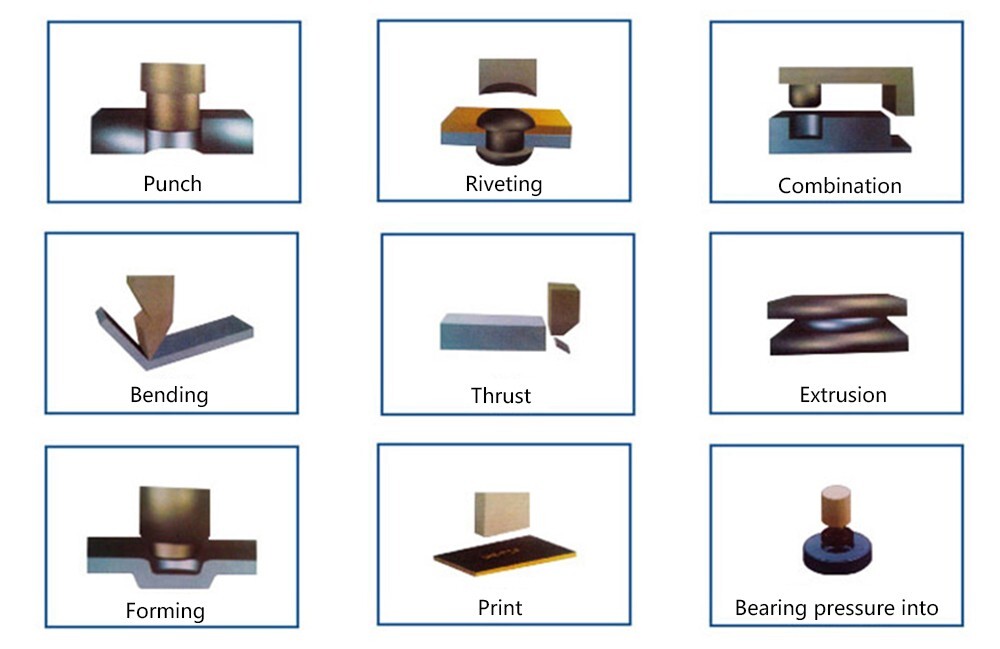

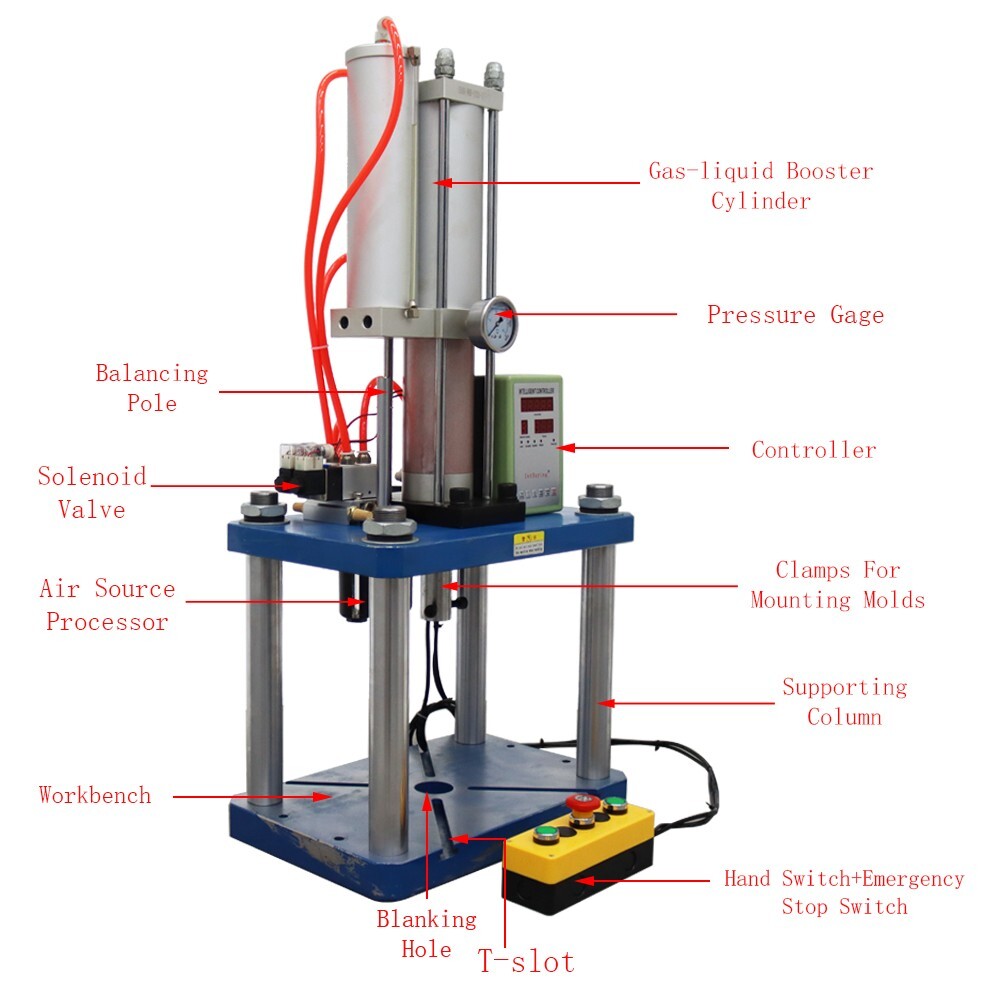

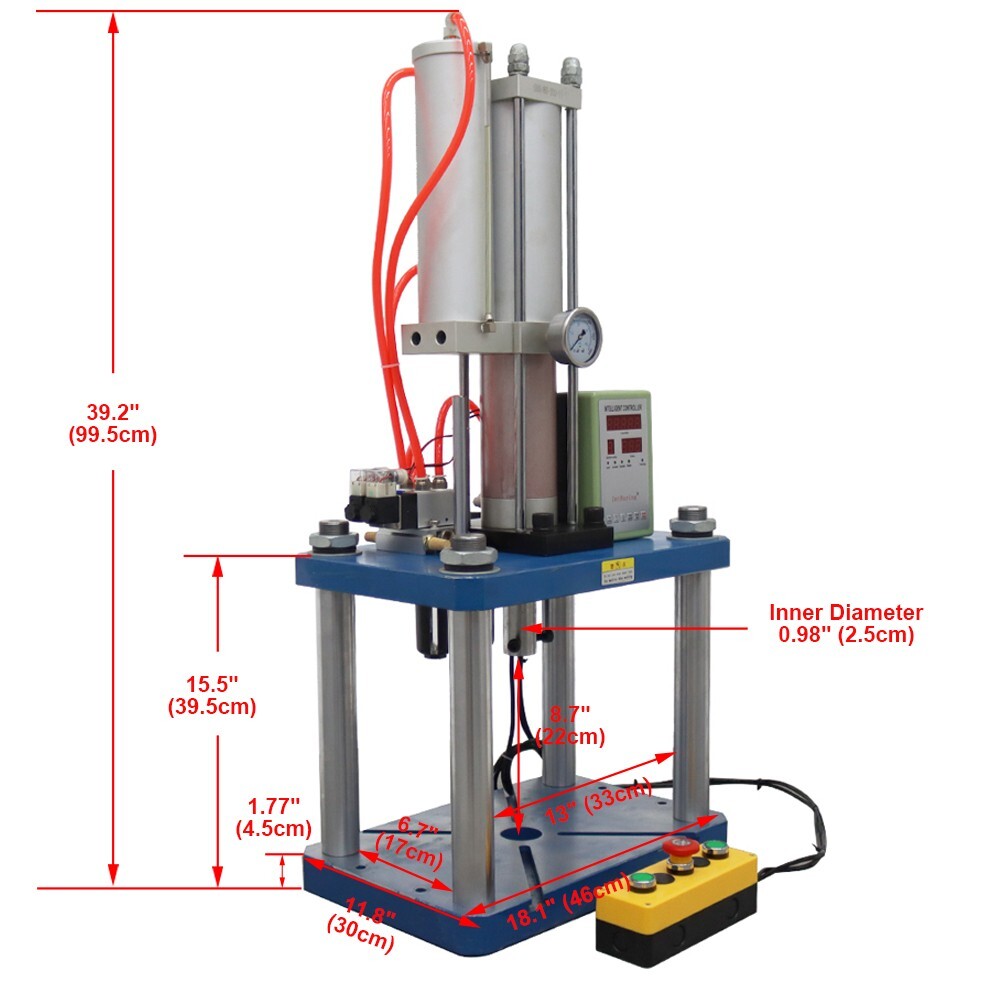

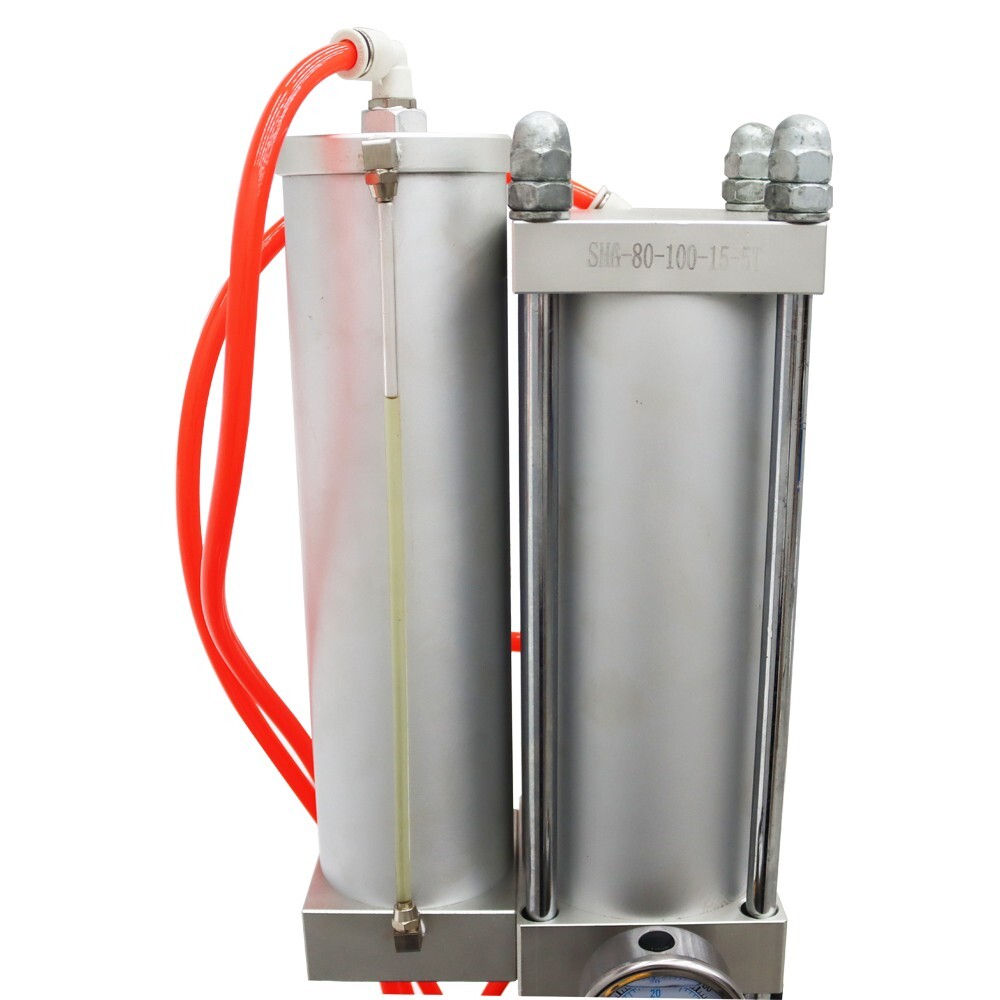

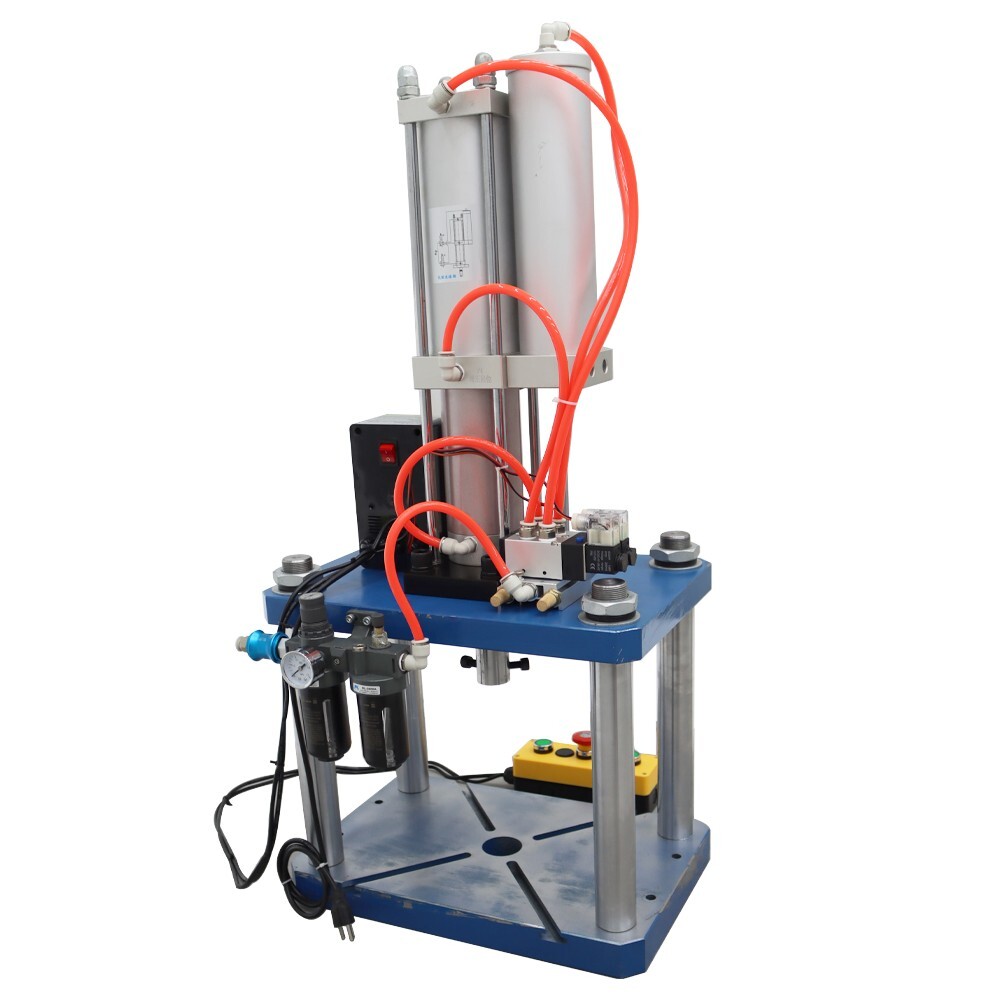

Check the listing for details. Pneumatic Punch Machine 5 Tons Punch Press Four Columns Digital Display 110V. Condition: New. Listed at 1728.09 USD. 新建网页 15 Pneumatic Punch Machine 5 Tons Punch Press 110V Pneumatic Punch Pressing Machine Four Columns Air Pressure Punch Press for Bending And Riveting etc. 11000LBS Pneumatic Punch Digital Display The pneumatic press is the high-pressure gas produced by the compressor, which is transported to the solenoid valve through the gas pipe. The working state of the cylinder is controlled by the movement of the solenoid valve through the switch, and the punching is completed. It needs connect air compressor! Parameters: Voltage: 110V Pressure Type: 11000LBS/5 Tons Die Hole Diameter: 0.98inch/2.5cm Working Countertops Size: 18.1*11.8inch/46*30cm Outer Diameter of Trachea: 0.39inch/0.1cm Booster Cylinder Specification: 3.93inch-0.59inch/10cm-1.5cm Working Air Pressure: 0.5-0.8MPa Featerus&Details: 1 .Compressed air as power source,high efficiency and easy operation,can reduce labor,can be applied to manual operation integration,automated assembly line. 2 .Simple structure,convenient operation, cheap price,superior performance,no noise produced during the hydraulic system and electric standby,can save electricity consumption reduce production cost,has the very high cost performance. 3. Easy adjustment of output, need to adjust the air pressure is adjustable up to the required pressure,high yield .Equipped with guide plate,high accuracy,can adapt to high speed precision impact load. 4.According to different products or mould,adjust the speed, and the size of the pressure and stamping time. 5.Optional manual switch control,with emergency stop switch,can also be controlled by a controller. 6.Microcomputer control system,can choose manual,semi- automatic and fully automatic operation. Note: 1. 46# antiwear hydraulic oil should be added to the hydraulic cylinder. It is recommended to replace the hydraulic oil after one year of use. (Due to ex-factory debugging, there will be a small amount of hydraulic oil in the machine, please prepare your own hydraulic oil after receiving the goods). 2.Check whether the machine bolts are tightened before working. If they are loose, they must be tightened before working. Check whether the air pipe is properly connected to prevent air leakage and make the machine unable to work normally. 3. Avoid placing your hand under the punching shaft during work to avoid accidents . 4.Do not wipe the machine with a damp cloth to avoid rusting the machine . 5.When disassembling, installing and adjusting the mold fixture, the machine must be turned off, and standby operation is strictly prohibited to avoid personal injury . 6.The rated pressure of the air compressor is 0.8mpa. The capacity of the air compressor storage tank is about 60L,the larger the capacity, the longer the service time and the more stable it is. The displacement is optional 200L/min, the larger the displacement, the larger the applicable machine model. 7.Note :The actual output pressure is about 80% of the theoretical pressure. Item Included: 1 PC Pneumatic Punch Machine 5 Tons Punch Press 110V Pneumatic Punch Pressing Machine Four Columns 110V 230293 Shipping & Handling Details Default Shipping Cost or Free Shipping Information: ▲ Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. ▲ Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. ▲ Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges ▲ All returns must be made within 30 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. ▲ Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. ▲ Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges ▲ All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products ▲ If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. ▲ Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. ▲ If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Warranty & Feedback ▲ 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. ▲ Any warranty shipping cost to us is responsible by buyer. ▲ Any shipping cost to buyer is responsible by the seller. ▲ We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much. On Oct 8, 2023 at 19:21:38 PDT, seller added the following information:
