| Return shipping will be paid by | Seller |
|---|---|
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| MPN | IS-75F-C1 |
| Item Length | 1.75 |
| Item Depth | 2.45 |
| Brand | PolyPhaser |
| Type | Surge Protector |
| System of Measurement | Inch |
| Manufacturer Warranty | 1 Year |
| Item Height | 2.45 |
| Number in Pack | 1 |
| Model | IS-75F-C1 |
| Connector B | F-Female |
| Connector Type | F-Female |
| Connector A | N-Female |
| Maximum Operating Frequency | 0.7 GHz |
| Item Weight | 0.5 |
| Protection Properties | Lightning Protection |
| Item Width | 1.5 |

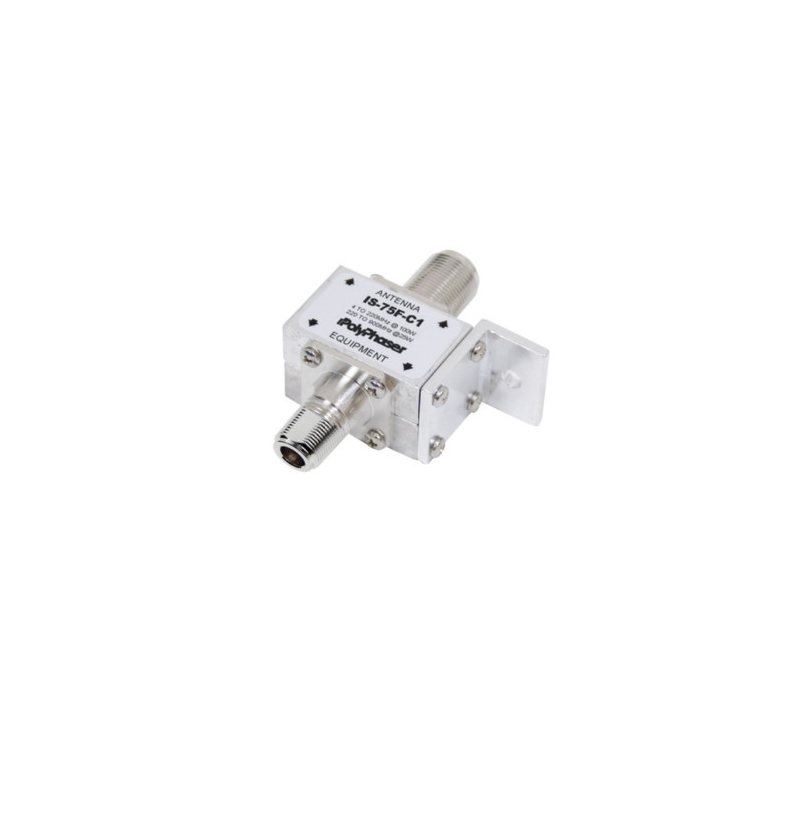

Check the listing for details. Polyphaser IS-75F-C1 CATV/MATV Flange Mount Protector. Condition: New. Listed at 176.95 USD. Manufacturer Part Number: IS-75F-C1 Polyphaser IS-75F-C1 flange mounted channel 2 through 83 CATV/MATV protector for 4 MHz to 900 MHz with F- Female connectors on both sides. It is designed to protect against lightning events for HF, UHF and VHF radios. Key FeaturesBroad frequency ranges from 4 MHz to 900 MHzF-Female Connectors Type on both endsInsertion Loss less than 0.20 dBMax surge rating of 50kAFlexible non-weatherized flange mounting option Key Specifications Electrical Specification Frequency Range DC - 0.7 GHz Insertion Loss (at Fmax) 0.2 dB VSWR 1.2 :1 Mechanical Specification Mounting L-Bracket Dimensions (Inches) 1.75 x 1.5 x 2.45 Weight 0.5 lb Connector 1 F-Female Connector 2 F-Female Please message us for questions on the specs.
