| All returns accepted | ReturnsNotAccepted |
|---|---|
| Features | Color Scanning |
| Interface | USB 2.0 |
| Country/Region of Manufacture | Israel |
| Model | MV4D |
| Scanning Technology | Structured Light |
| Export File Formats | .ascii |
| Brand | Mantis Vision |
| Type | Handheld |

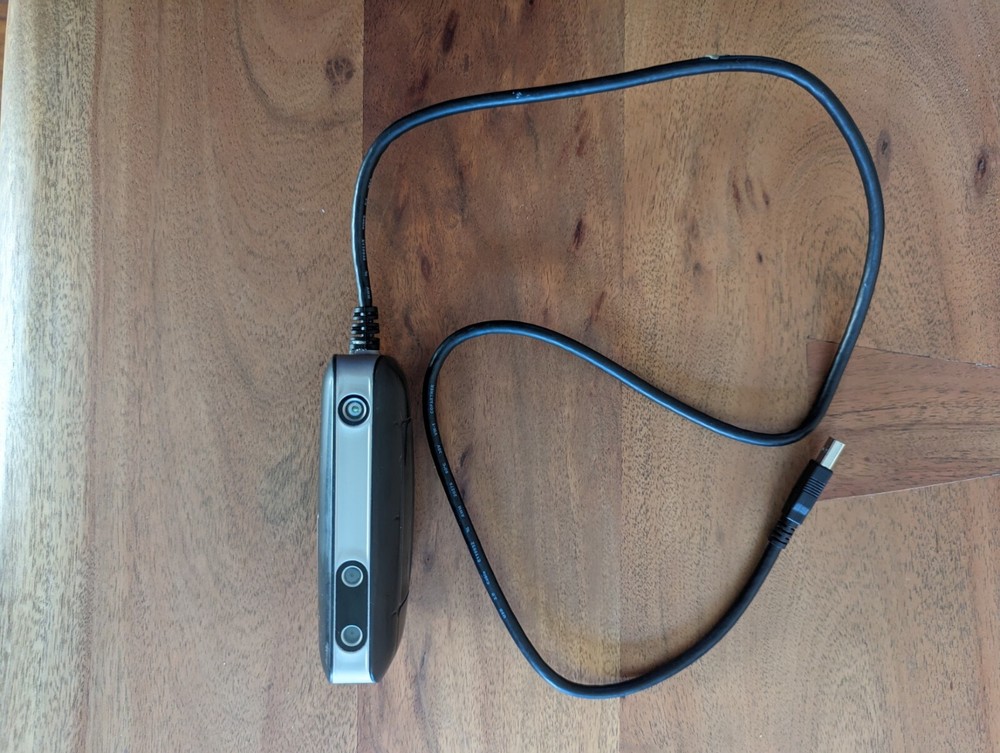

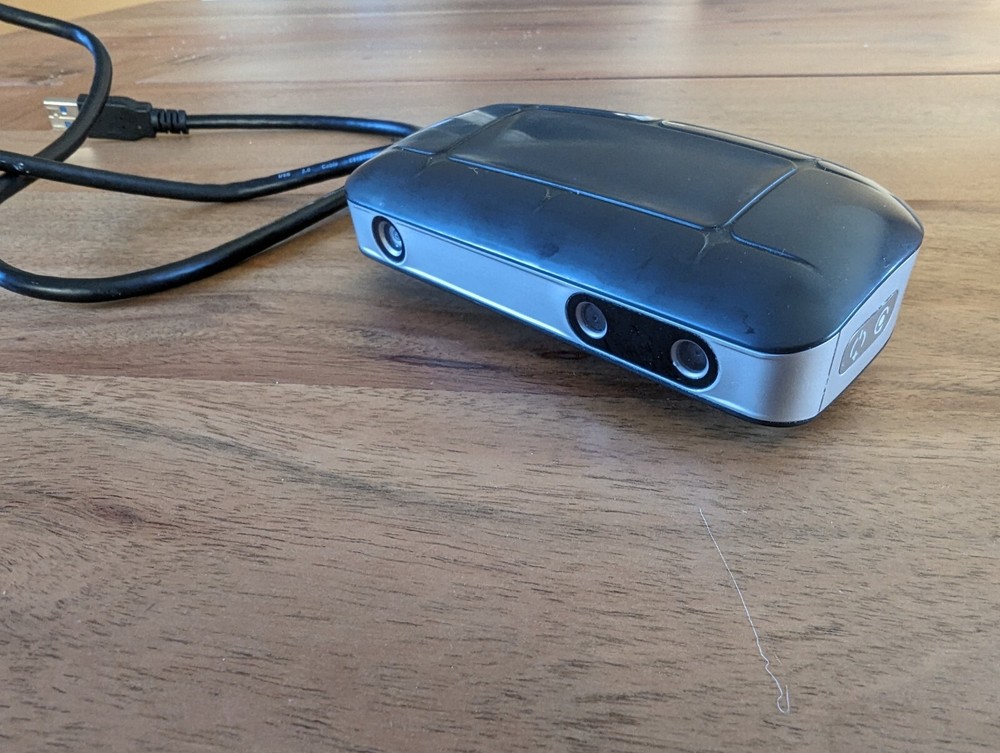

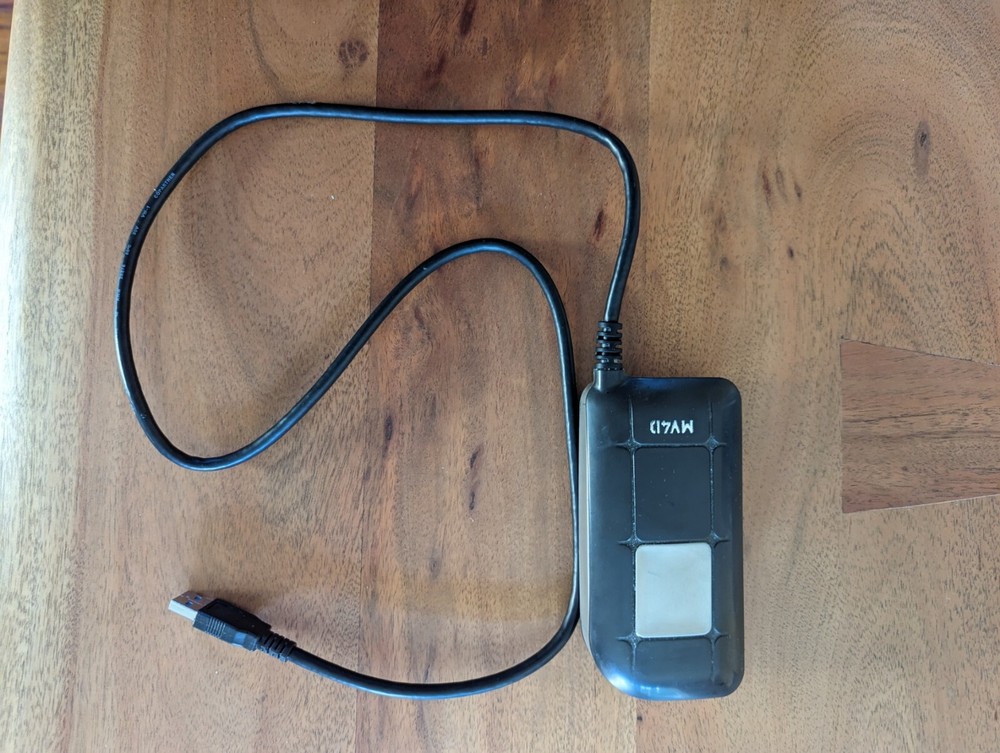

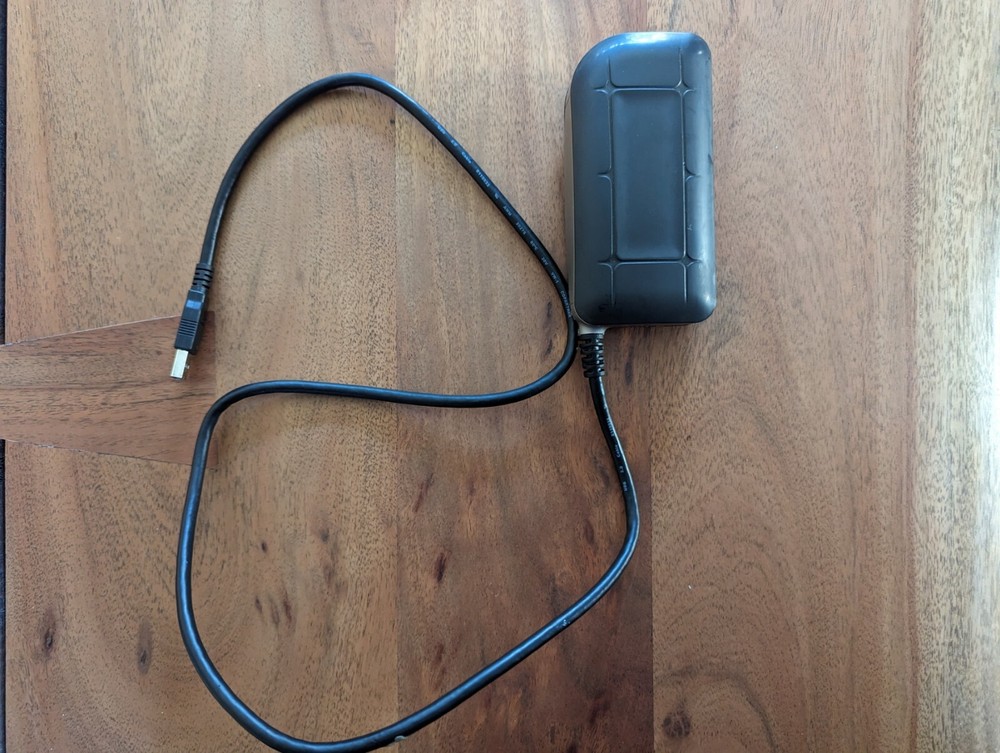

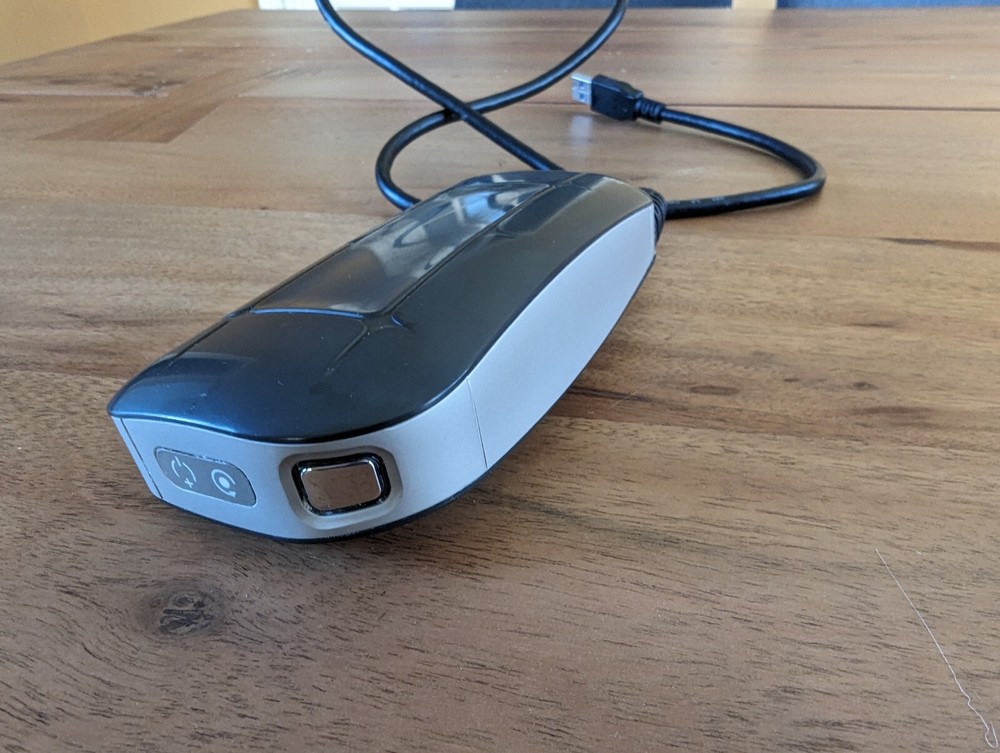

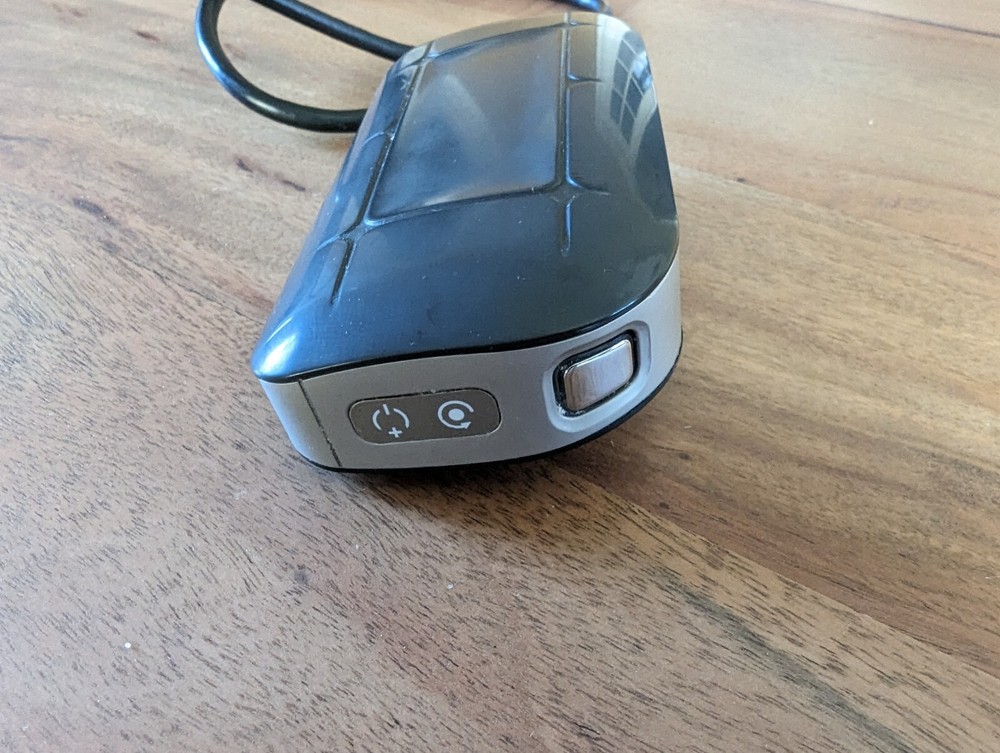

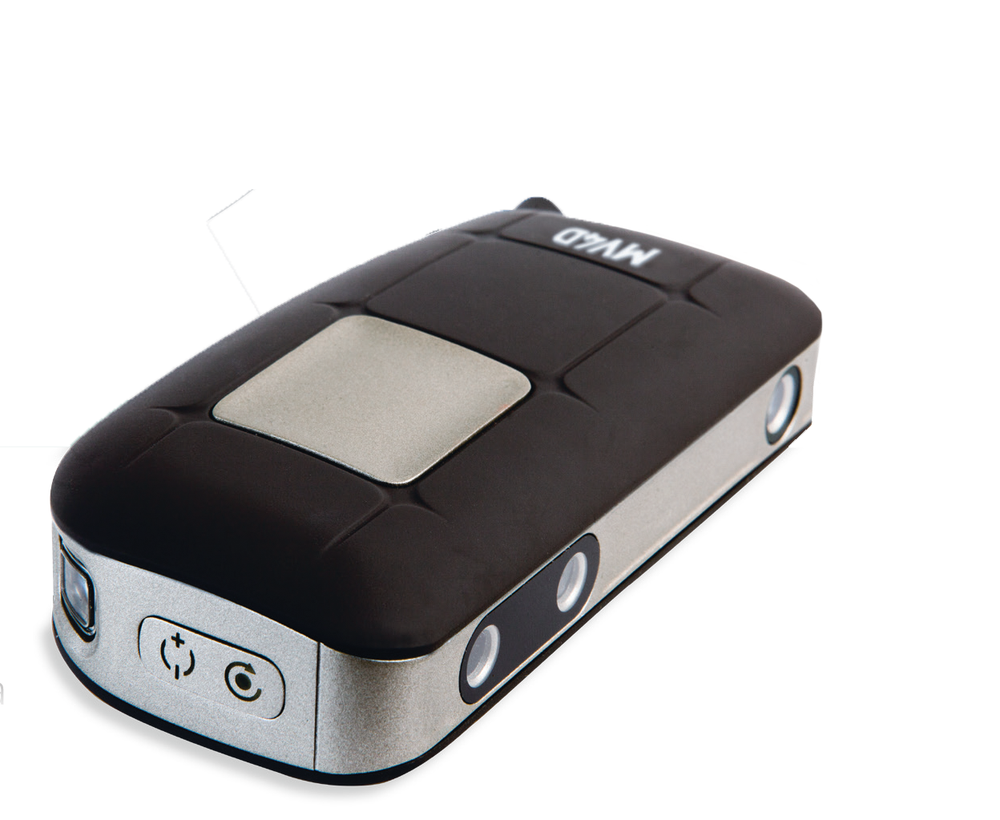

Check the listing for details. Mantis Vision - PocketScan 3D Handheld Scanner. Condition: Used. Listed at 975.00 USD. Mantis Vision - PocketScan 3D Handheld ScannerWorks with Mantis Vision Echo Software- can be downloaded from https://mantis-vision.com website Features:Pocket-sized ergonomic design.Fully automatic process.Composition and measurement tools.Mesh, triangulation and surfacingTechnical Specs: 3D point accuracy: Better than 1mm @ 0.5m distance Better than 2mm @ 1m Distance XY point density: 3mrad Unlimited in stitch mode Accuracy: 0.2% from measured dimension Eye safety: Class 1 laser (no protection required) Ambient lighting: Indoor environment only Linear field of view: HxV 33° x 54° HxW 592 x 1020mm @1m Angular field of view: HxV 33° x 54° HxW 592 x 1020mm @1m Video frame rate: 10fps to 30fps Exposure time: 0.005 - 0.042s Data acquisition speed: 600,000 points/s Dimensions, HxDxW: 120 x 60 x 30mm Weight: 0.25kg Power consumption: 3W Interface: USB 3.0 Calibration: Calibration board Environmental vibrations: Unaffected due to dynamic referencing Working temperature: 10 to 30C Minimum Computer Requirements USB3 interface NVIDIA graphic card 640M or above Quad-core processoR
