| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money back or replacement (buyer's choice) |
| Uncertainty （dB） | ±0.15（3.5%） |
| Alkaline battery | 3*AA，1.5V（not included） |
| Date storage capacity | 1000 |
| Detector type | InGaAs |
| Product | Optical Power Meter |
| MPN | 2023 |
| Power Range | see details |
| Brand | VTSYQ |
| Optical Interface(s) | FC |
| linearity (dB) | ±0.02 |
| Form Factor | Handheld |
| Wave ID（nm） | 1310，1490，1550，1625 |
| Storage temperature (℃) | -25～+70 |
| Display resolution（dB） | 0.01 |
| Frequency ID（Hz） | 270，330，1K，2K |

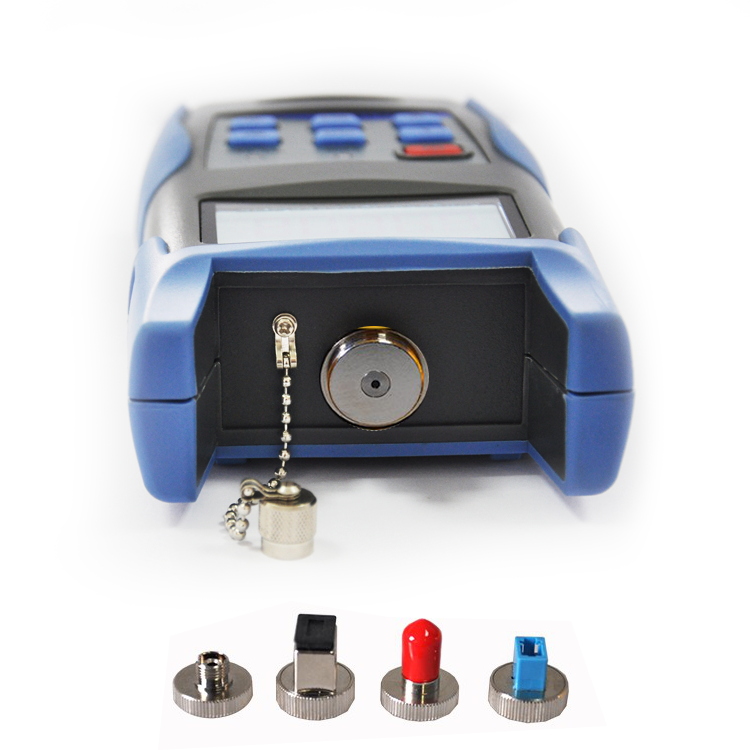

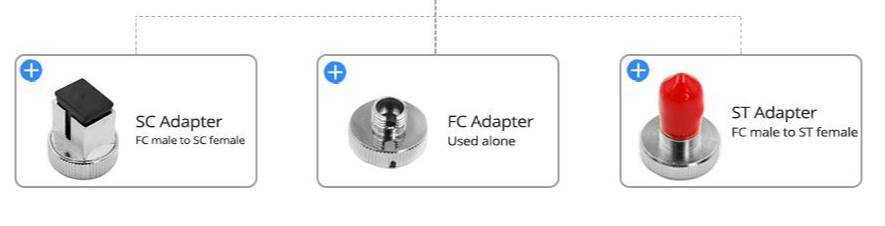

| Optical Connector type | FC,SC,ST interchangeable |
| Country/Region of Manufacture | China |
| Wavelength Range | see details |
| Operating temperature (℃) | -10～+60 |
| Measurement Range | -50～+26（dBm） |

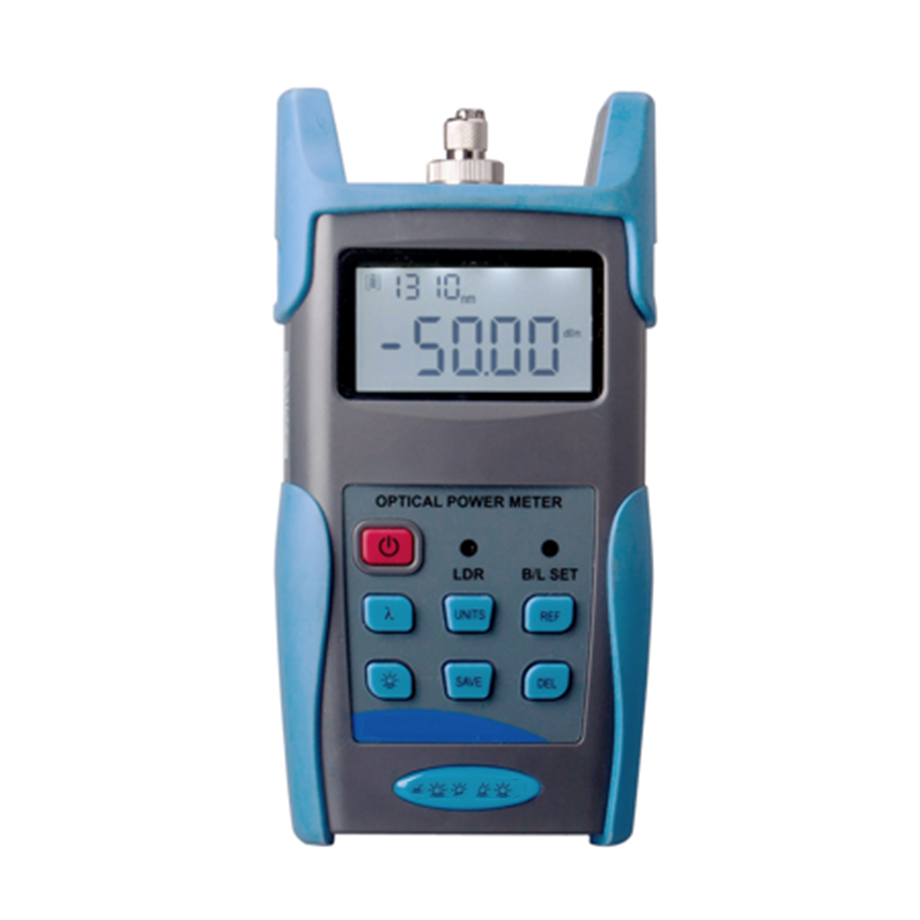

Check the listing for details. Portable Optical Power Tester Meter Analyzer with Measurement Range -50～+26 dBm. Condition: New. Listed at 149.99 USD. Portable Optical Power Tester Meter Analyzer with Measurement Range -50～+26 dBm Features· Wave ID—Automatic wavelength identification and switching· Frequency ID/Tone detection---Automatic frequency identification· Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)· Data storage function, up to 1000 test records· USB communication port for saved testing records download· Reference power level can be set up and stored· User self-calibration function· Auto-off function can be activated or deactivated.· AA alkaline and AC adapter for power supply· Low battery indication Specifications:Calibrated（nm）wavelength850, 1300,1310,1490,1550,1625Detector typeInGaAsMeasurement Range（dBm）-50～+26Uncertainty (dB)±0.15（3.5%）linearity (dB)±0.02Display resolution(dB)0.01Frequency ID（Hz）270，330，1K，2KWave ID（nm）1310，1490，1550，1625Date storage capacity1000Communication PortUSBOptical Connector typeFC,SC,ST interchangeableAlkaline battery3*AA，1.5V（not included）Power Supply Adaptor(V)8.4Battery Operating time (h)200Operation Temperature(℃)-10～+60Storage Temperature(℃)-25～+70Dimension23.5*16*8cmWeight0.75kg
