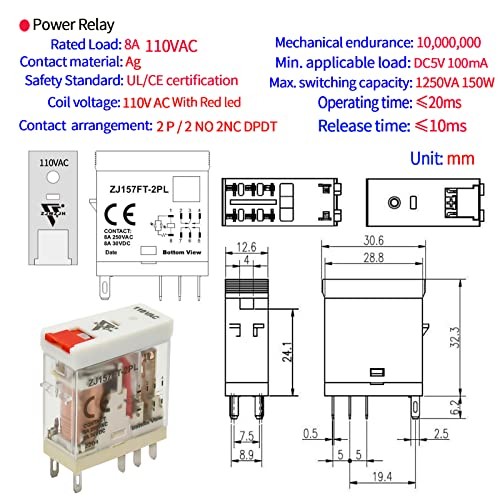

Power Relay Electromagnetic with Test Button 110V 120V AC 8 Pin- 8A AC 110V

Name: Power Relay Electromagnetic with Test Button 110V 120V AC 8 Pin- 8A AC 110V
SKU: 397515429204
Price: 22.64 USD
Availability: InStock

$15.85

$22.64 -30%

Condition New

Item ID 397515429204

Connector Type	Screw
Contact Material	Silver Alloy
Contact Type	2no 2nc,dpdt
Current Rating	8 Amps
Mounting Type	DIN Rail Mount
Operation Mode	ON-OFF
Wattage	150 watts
Coil Resistance	6300 Ohms
Coil Voltage	110 Volts (AC)
Contact Current Rating	8 Amps
Maximum Switching Current	8 Amps
Maximum Switching Voltage	250 Volts (AC)
Minimum Switching Voltage	5 Volts (DC)
Specification Met	CE, UL
Upper Temperature Rating	70 Degrees Celsius
Product Dimensions	3.03 x 0.62 x 2.44 inches
Item Weight	2.08 ounces
Date First Available	January 7, 2022
Item Length	3.03
Item Height	2.44
Item Width	0.62
Size	8 Pin- 8A
Style	AC 110V

Check the listing for details. Power Relay Electromagnetic with Test Button 110V 120V AC 8 Pin- 8A AC 110V. Condition: New. Listed at 22.64 USD. Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module, UL Certification (8 Pin- 8A, AC 110V). The LED indicator on the relay is red for AC and green for DC.
