| Color | 100 mm |
|---|---|
| Rotary Table Handwheel Scale Number | 100 |
| Top Height for Horizontal Mounting Chuck | 4.7 in / 120 mm |
| Chuck Diameter | 80 mm |
| Product Dimensions | 6.3 x 5.8 x 4.7 in / 160 x 148 x 120 mm |
| High-concerned chemical | None |
| Brand | Unbranded |
| Rotary Table Handwheel Scale Value | 6' |
| Worm Gear Ratio | 1 |
| Center Height for Vertical Mounting Chuck | 3.4 in / 86 mm |
| With or Without Vernier Scale | No |
| Item Model Number | HV-4-KP |
| Table Diameter | 4 in / 100 mm |
| Net Weight | 11.7 lbs / 5.3 kg |

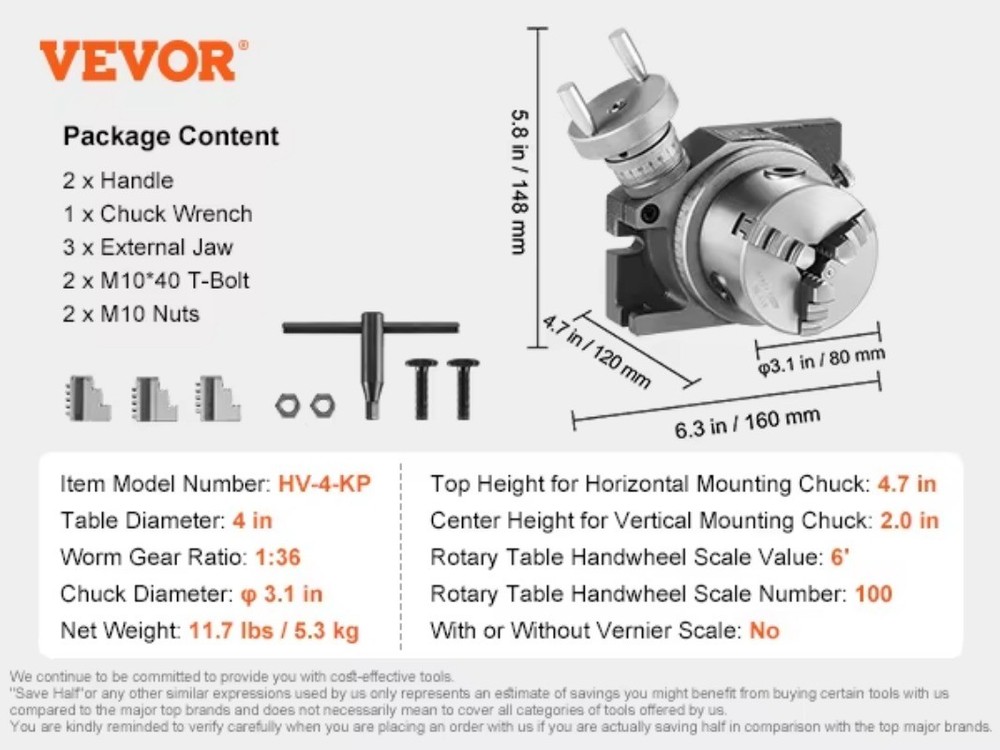

Check the listing for details. Precision Milling Rotary Table with Chuck Indexing Tools for Milling Machines. Color: 100 mm, Condition: New. Listed at 244.75 USD. Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7" / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 3.4" / 86 mm (±3 mm). Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability.
You may also like
$196.18
NEW SMC MSUB7-180S Rotary Table Basic Type Give Free Transportation Fast Ship#
$19
ASSORTS M8 Clamp Kit Set 8mm for HV4/HV6 Rotary Table - Precision Milling Clamp
$1400
Allenair rotary indexer
$392.75
FEY4015 40x40mm/1.6x1.6" XY Axis Sliding Table Sliding Stage Cross Roller Type
$139.95
Rotary Table 3" 80mm Horizontal And Vertical With 65mm 3 Jaw Chuck & Backplate
$66

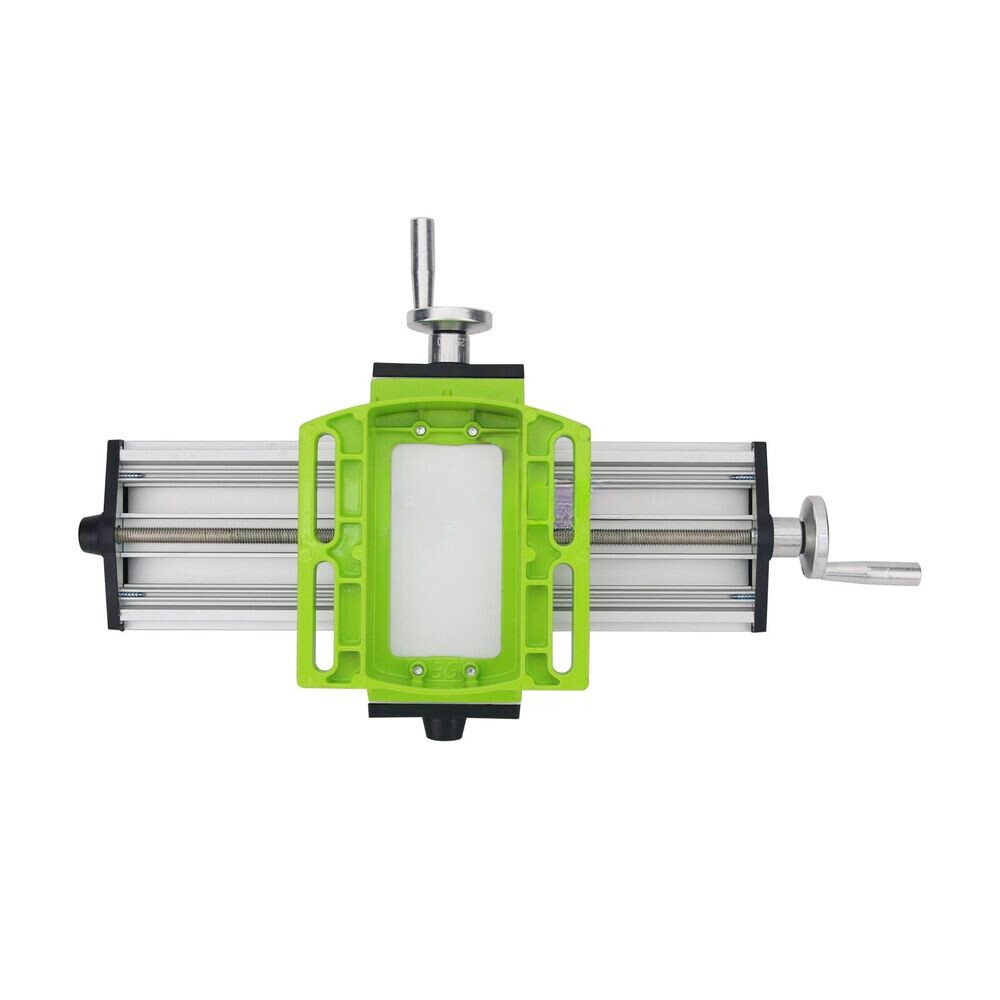

BG-6300 Compound Bench Cross Slide Table Milling Device Table f/Drill Bracket
