| Protection Level | IP32 |
|---|---|
| Current Output | 30A |

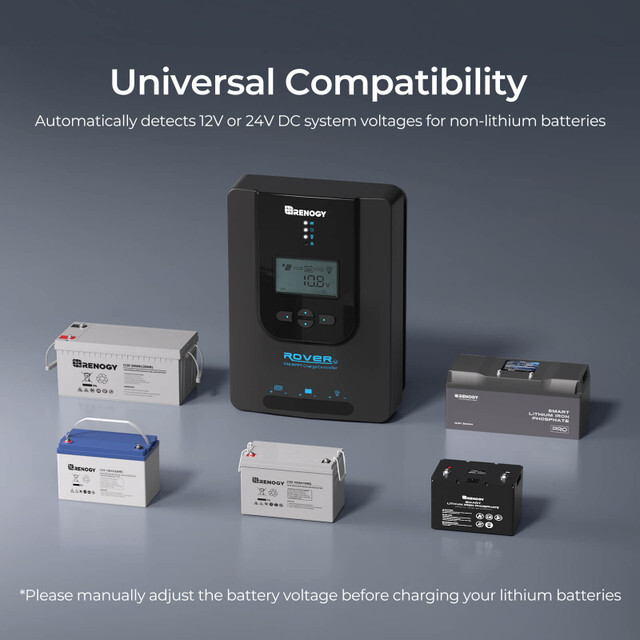

| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium Batteries) |
| System Configuration | Off-Grid |
| Power Source | Solar |
| Ground Type | Negative |
| MPN | RNG-CTRL-RVR30-BT-OP-US |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Current Type | DC |
| Temperature Compensation | -3mV/°C/2V |
| Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
| Features | Bluetooth Module, LCD Display, Rechargeable Battery Backup |
| Max Battery Voltage | 32V |
| Max. Terminals Size | 8 AWG 10mm2 |

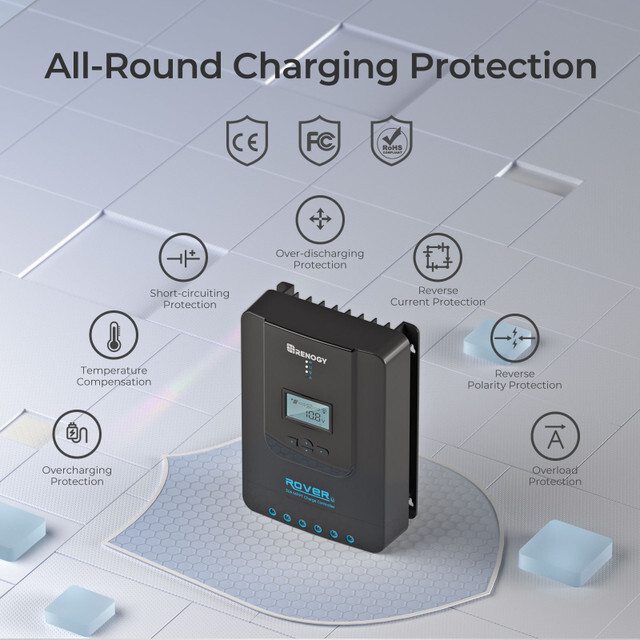

| Protection Properties | Overcharge Protection, Overload Protection, Short Circuit Protection |
| Maximum Input Power | 12V/400W, 24V/800W |
| Maximum Input Voltage | 95 VDC |

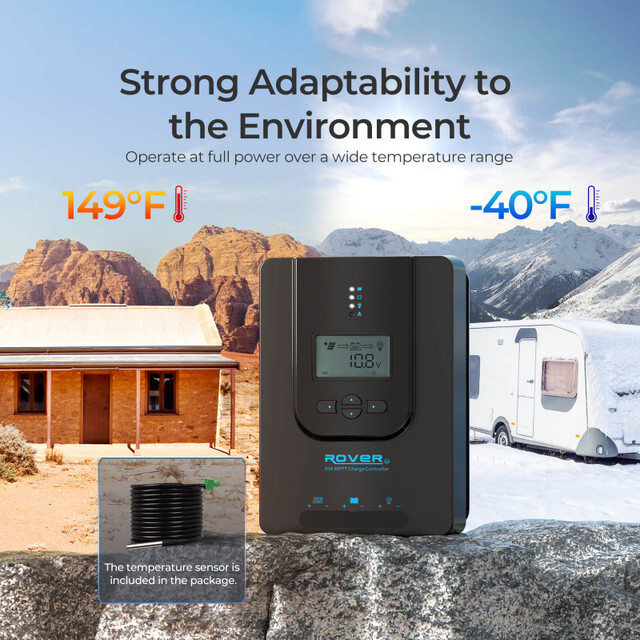

| Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Current Rating | 30A |
| Dimensions | 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in |
| Weight | 4.4 lbs / 2.0 kg |
| Brand | Renogy |
| Type | Solar Charge Controller |
| Model | MPPT |
| Recommended Environment | Outdoor |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |

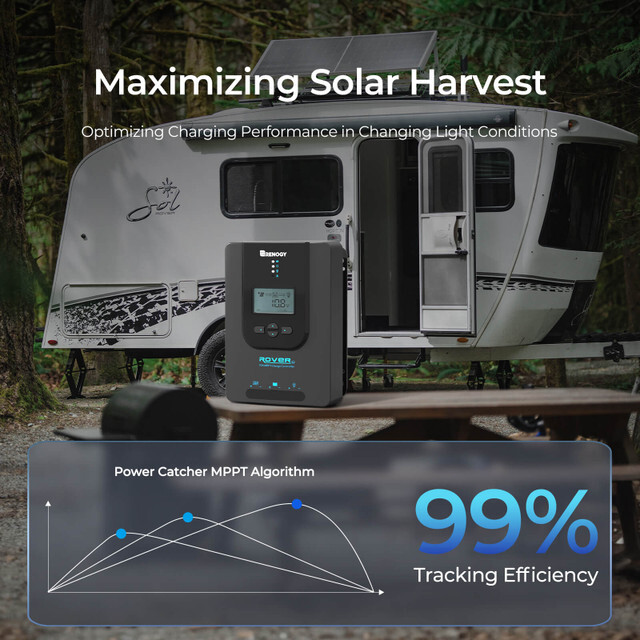

| Charging Mode | MPPT (Maximum Power Point Tracking) |
| Application | Back-up Power, Camping/Hiking, Electronics, Home/Garden, Recreational Vehicle (RV), Shed |
| Product Line | Renogy Rover |
Check the listing for details. Renogy 30A 12V/24V Auto DC Input MPPT Solar Charge Controller Open Box. Condition: Open box. Listed at 113.99 USD. Dual-Peak MPPT Efficiency. TVS surge protection (6kV) and safeguards against reverse polarity/overload. Compatible with gel, sealed, flooded, and lithium batteries (including LiFePO4).
