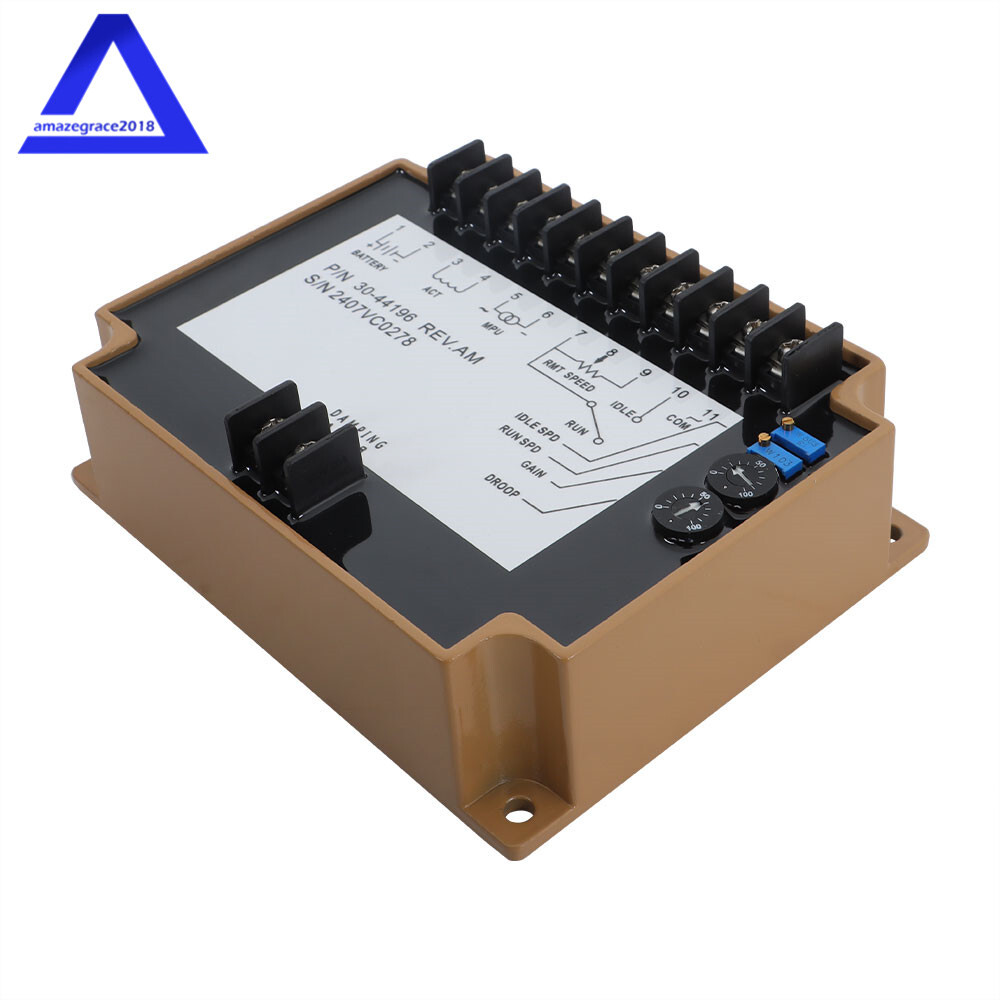

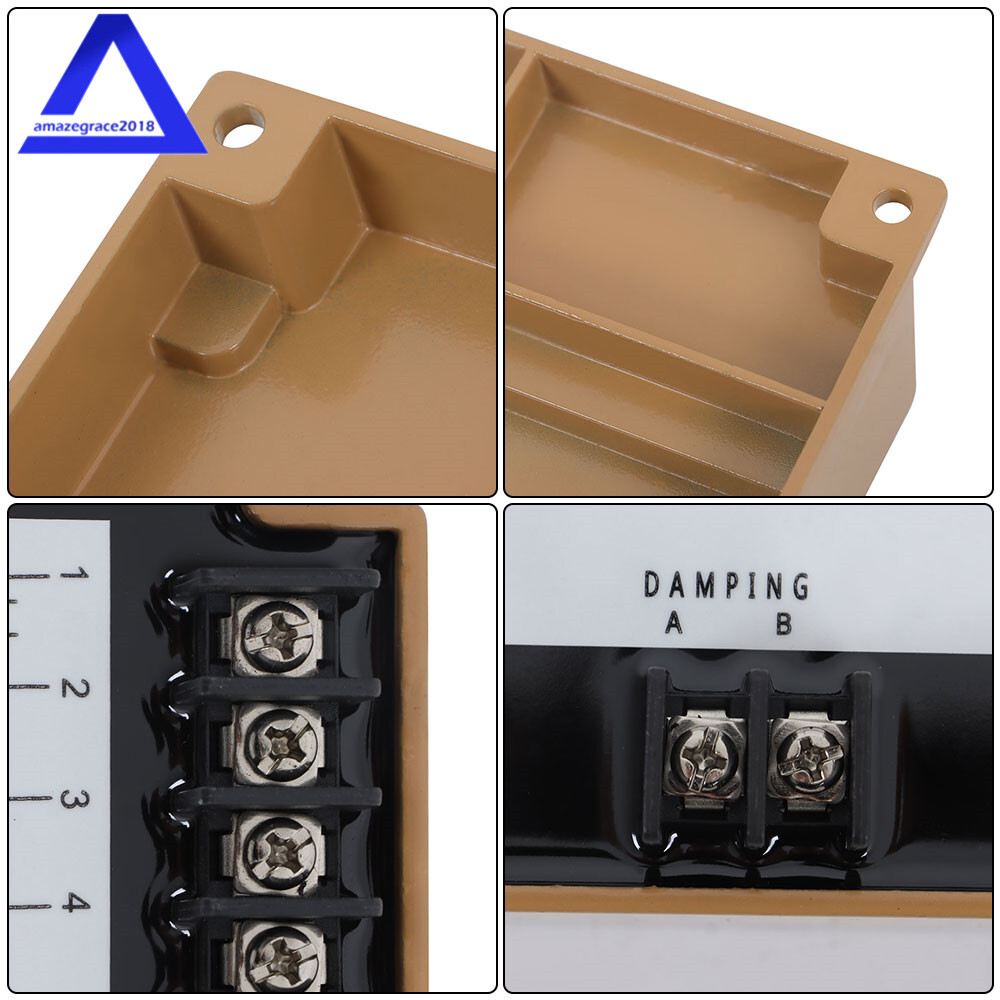

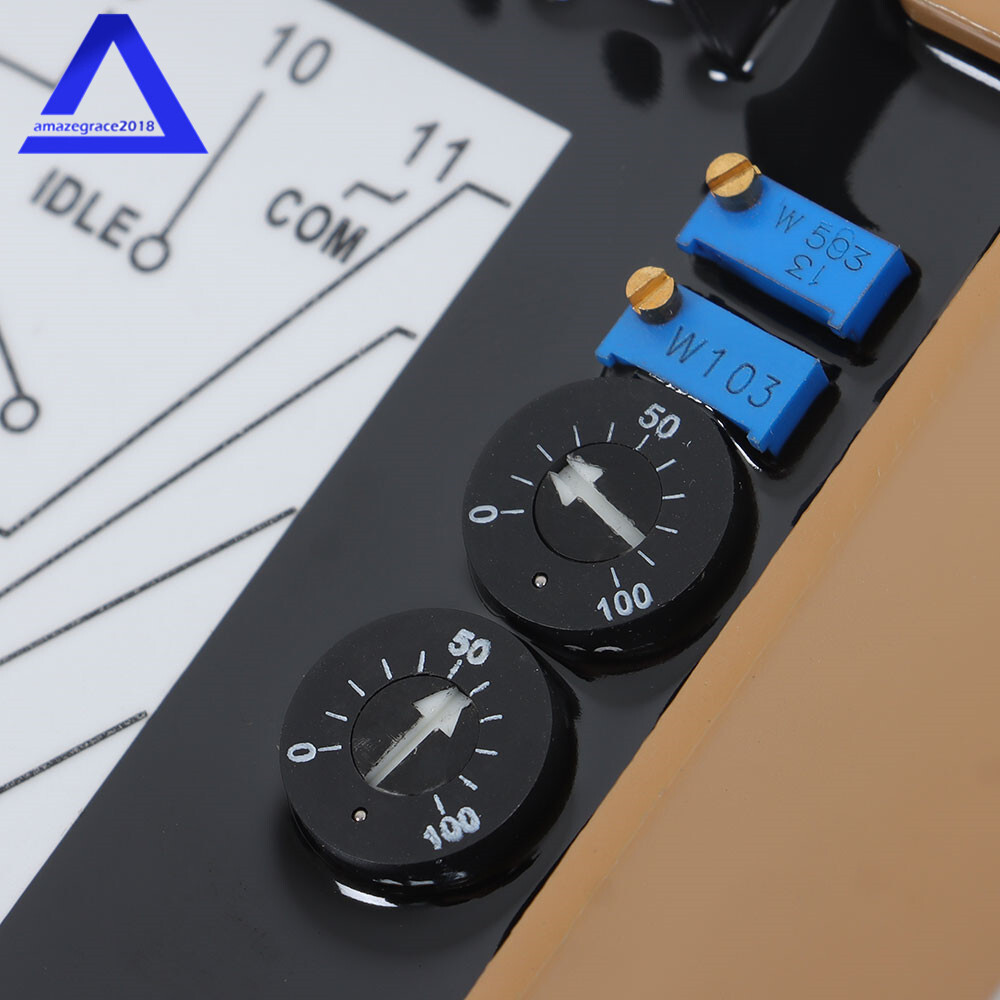

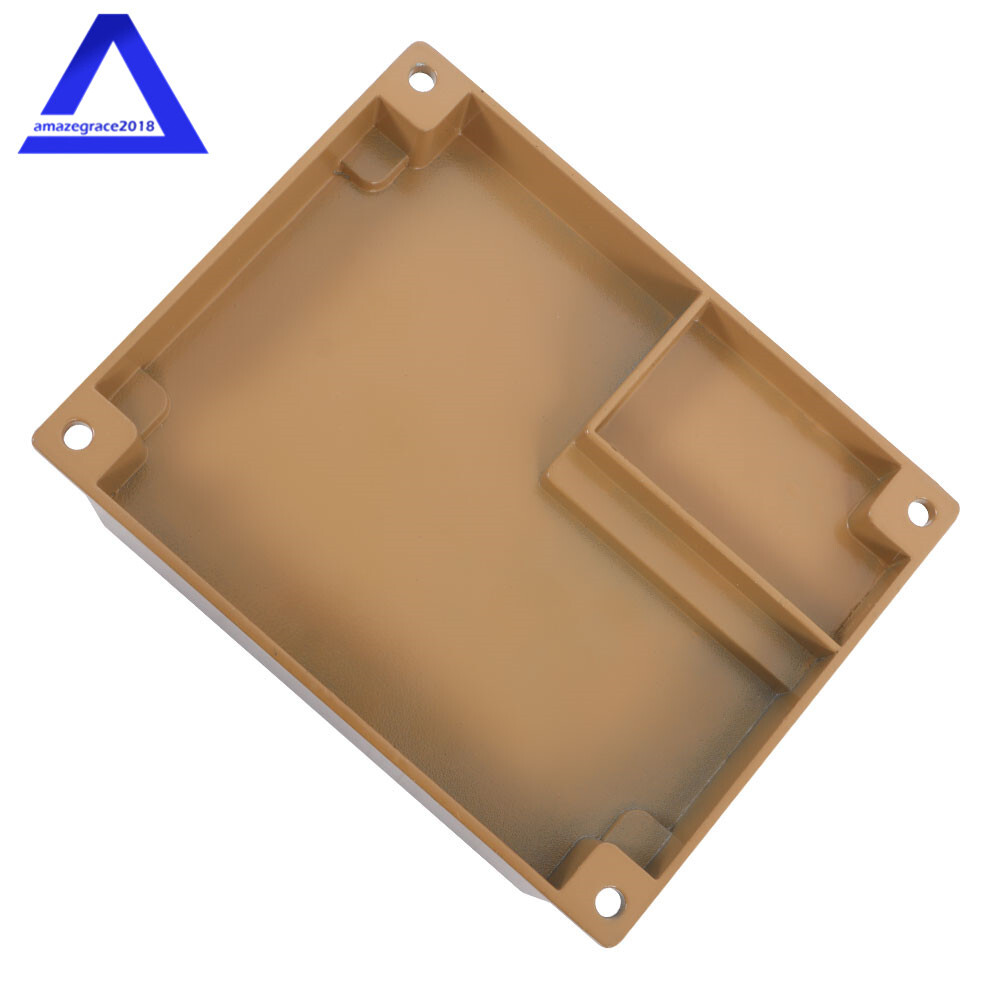

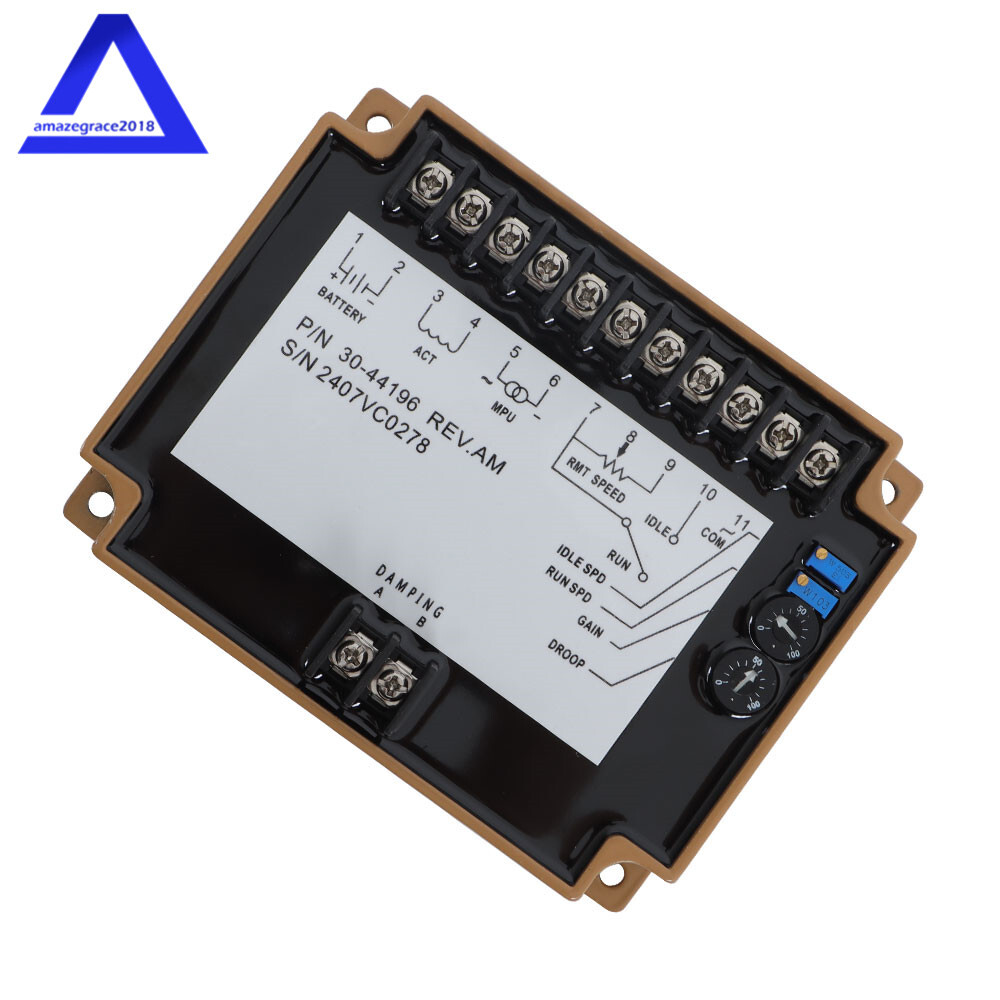

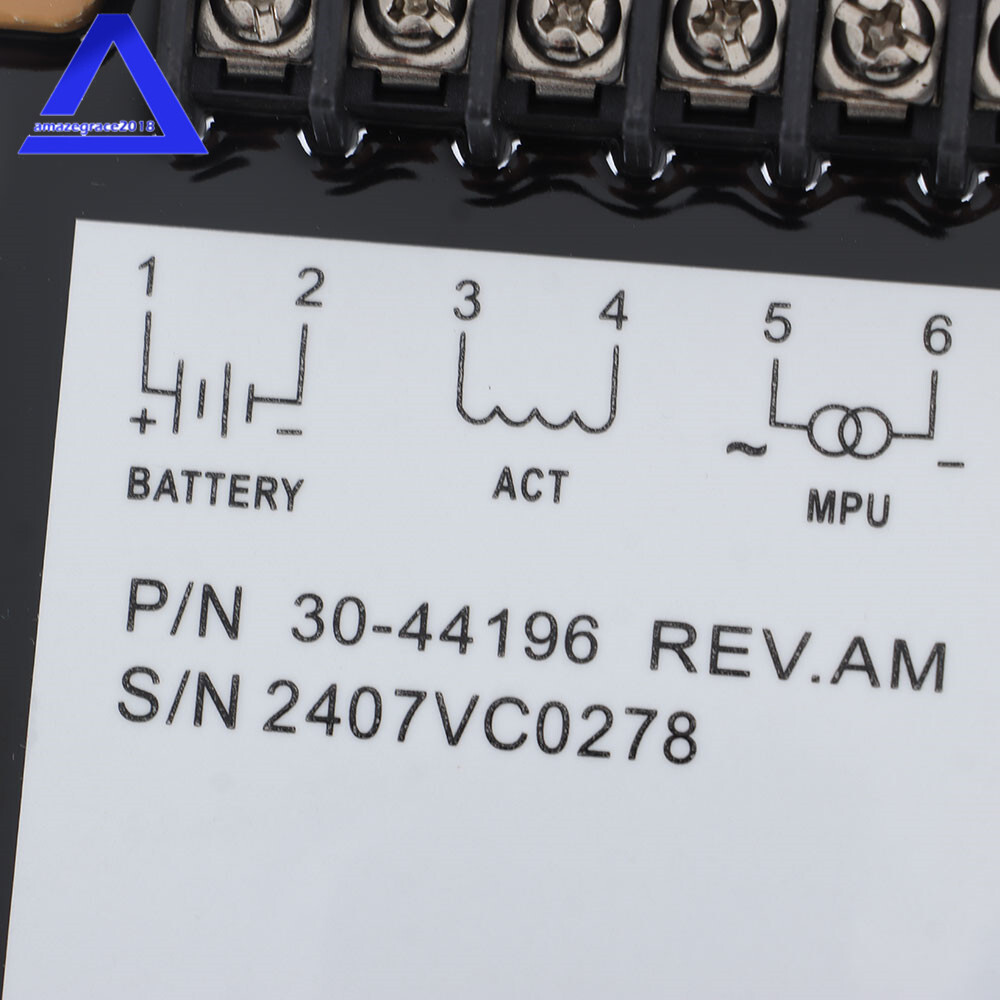

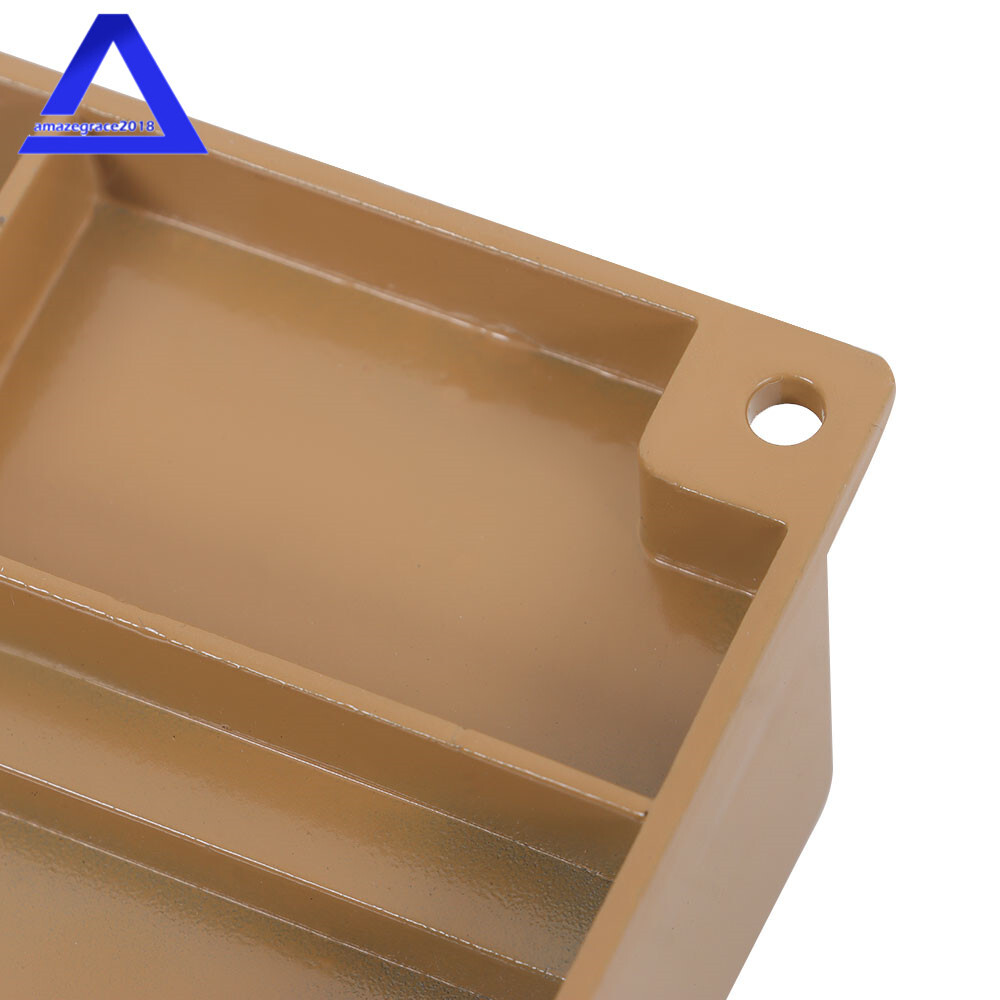

Replacement For EFC 3044196 Electronic Speed Controller Governor 12-24V

Name: Replacement For EFC 3044196 Electronic Speed Controller Governor 12-24V
SKU: 116523756635
Price: 26.91 USD
Availability: InStock

$18.84

$26.91 -30%

Brand marddpair

Condition New

Item ID 116523756635

Brand	marddpair
MPN	AMZ1622734
RPM Stability	<±0. 25%
Model	EFC 3044196
Speed Range	Speed Range
Thermal Stability	Max ±0. 7%
IDLE Regulation	260 ±20Hz
DROOP Regulation	Minimum 15Hz ±6Hz/ 1 Amp
Maximum	400Hz ±75Hz/ 1 Amp
External Speed Regulation	±200Hz (with 1 KΩ connected)
Impedance	1MΩ
Working Temp Range	-40 ~ 85 °C
Working Humidity Range	Maximum 95%
Stocking Temp	-55 ~ 92 °C
Shocking	20-100HZ 500mm/Sec.
Voltage	12V or 24V
Grounding Pole	Negative pole
Power Supply	40mA
Actuator Continuous Current	Minimum 1A, Maximum 4. 5A

Check the listing for details. Replacement For EFC 3044196 Electronic Speed Controller Governor 12-24V. Condition: New. Listed at 26.91 USD. Description: EFC 3044196 electronic speed controller Full closed-loop control technology Fast and accurate response to control engine speed It is easy to install and can be pre-adjustments For input multiple machines or special purpose machines Feature: High performance,reliable quality We work with every effort to provide quality products and professional service. Specification: RPM Stability:
