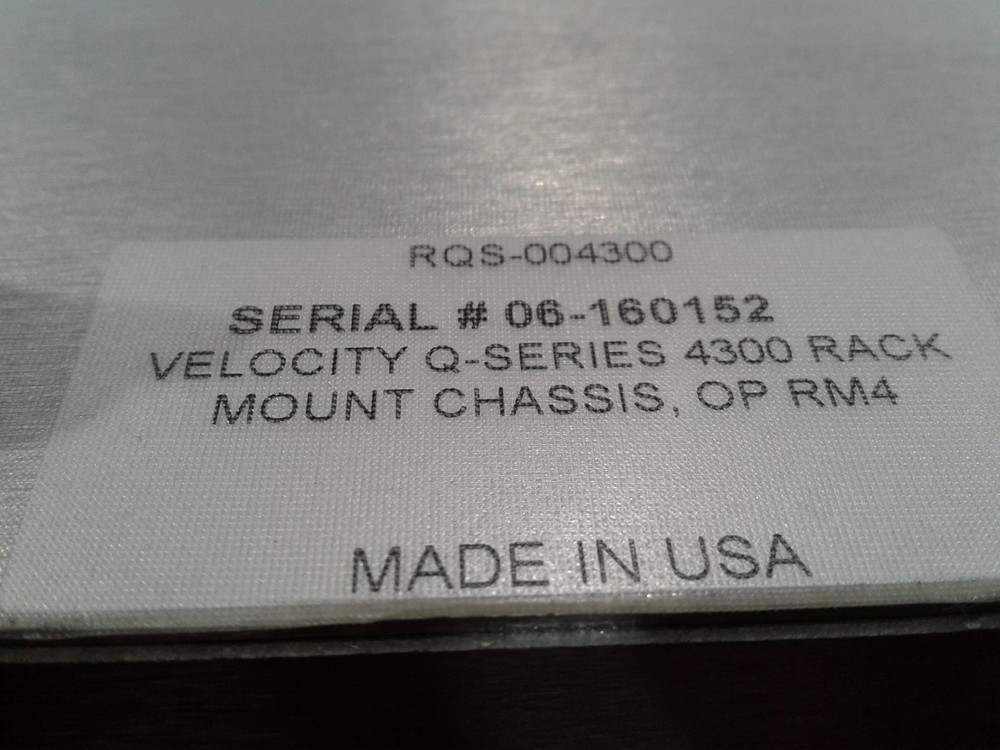

Check the listing for details. RGB RQS-004300 0PTO RM4 CHASSIS. Condition: Open box. Listed at 100.00 USD. RM4 Chassis I/O cards Up to 4 single-width or 2 double-width modules Power Dual redundant, hot-swappable Control Front panel USB for firmware updates; four-key cursor control Rear Panel Connectors IEC x 2 with power supplies installed Operating Temp. 0° – 50°C (32° – 122°F) Humidity 5 – 95% RH, non-condensing Size (H x W x D) 1.75 x 14.0 x 17.5 in (4.5 x 35.6 x 44.5 cm) EIA 19" Weight 15 lbs (4.99 kg) Power consumption 50W 100-240 VAC 47-63 Hz System Performance Multimode Fiber Up to 350 meters using multi-mode fiber type OM2 Up to 750 meters using multi-mode fiber type OM3 Up to 1000 meters using multi-mode fiber type OM4 Single-mode Fiber Up to 40 kilometers (24 miles) Fiber Characteristics Multimode 10km Single-mode 40 km Single-mode WaveLength (nominal) 850 nm 1310 nm 1550 nm Emitter Type VCSEL DFB laser DFB laser Output Power (nominal) -4 dBm -1.5 dBm -2.5 dBm Opto Rackmount Transmit and Receive Modules convert original native copper sources—DVI, dual-link DVI and HDMI—to an optical format for transmission over single mode or multimode fiber (TX units), or from fiber back to copper (RX units). Up to four transmit or receive modules can be mounted in an RM4 chassis, a compact 1RU enclosure that includes dual redundant power supplies and front panel control. Two channel DVI modules are also available, allowing an RM4 to support 8 channels in a single chassis. This provides the most space efficient DVI endpoint package available. The RM4 chassis simplifies set-up with an easy to navigate cursor-operated front panel LCD display. The display provides a computer-free method of configuring EDID and checking diagnostic data. A choice of EDID modes includes selection from a factory default table, capture from a display device and real-time passthrough. Like all Opto signal path components, a 6.22Gps per channel bandwidth ensures a perfectly clean video image without artifacts caused by bandwidth limitations, particularly for timings above 1920x1080/60p . Any compliant DVI or HDMI 1.3 timing is supported and all DVI single-link modules are HDCP compliant. Contact closure relays with a terminal block connector are provided for power failure or over-temperature alarms. A BNC connector for stereo emitter sync used in 3D applications is also included. Opto RM4 rackmount modules work with other Opto products in a variety of ways: • Point-point connection between Opto rack mount transmit and receive modules • Point-point connection between Opto rack mount modules and Opto standalone transmit or receive endpoints • RM-4 modules connected to the inputs or outputs of an Opto matrix switcher
