| Brand | ALL-CARB |
|---|---|
| Chain Size | #40 |
| Chain Length | 5 ft |
| Manufacturer Part Number | RC-#40/5FT |
| Chain Pitch | 1/2 in |
| Model | #40 |

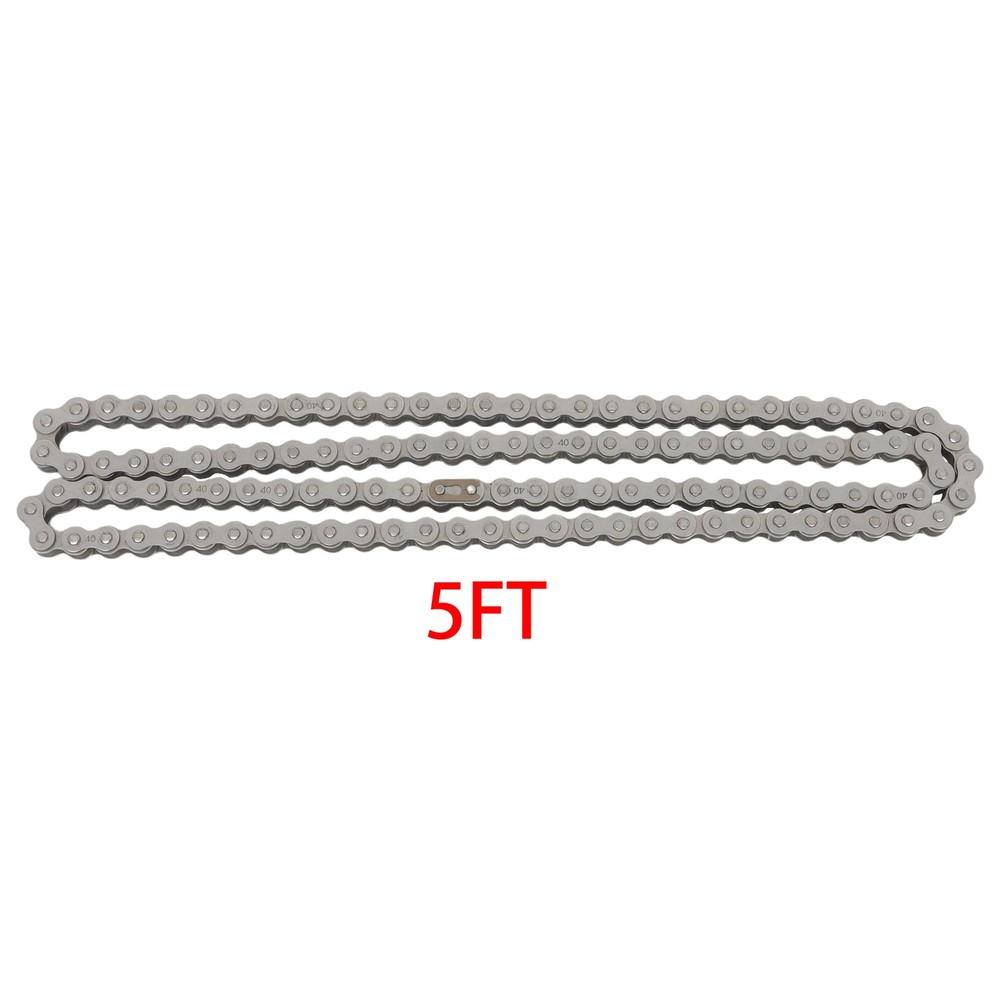

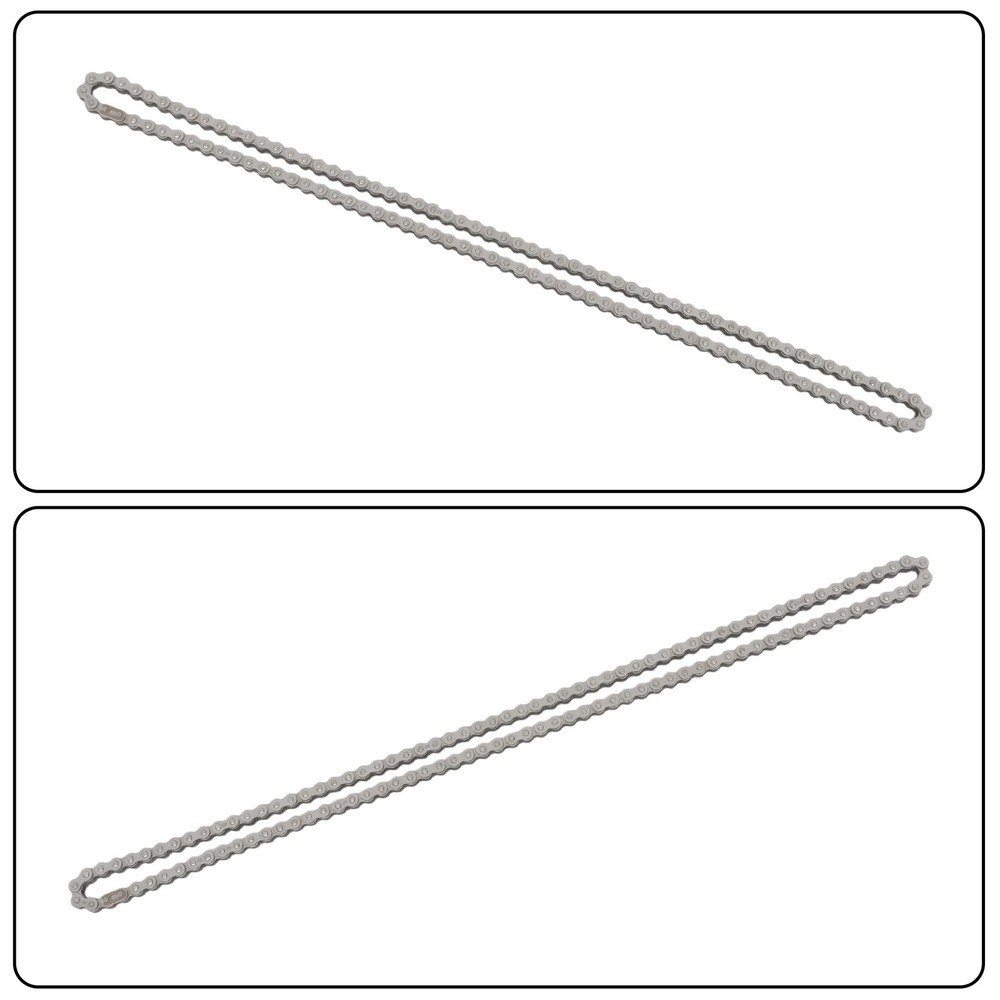

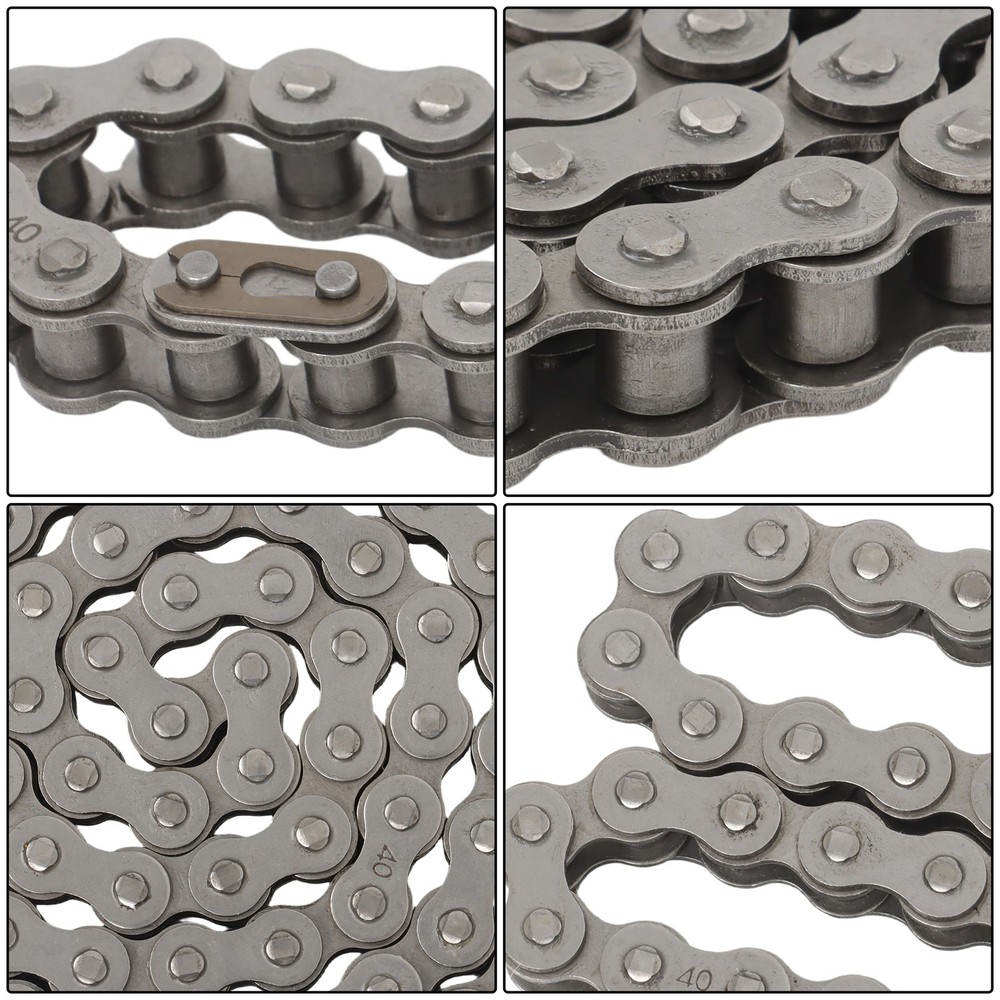

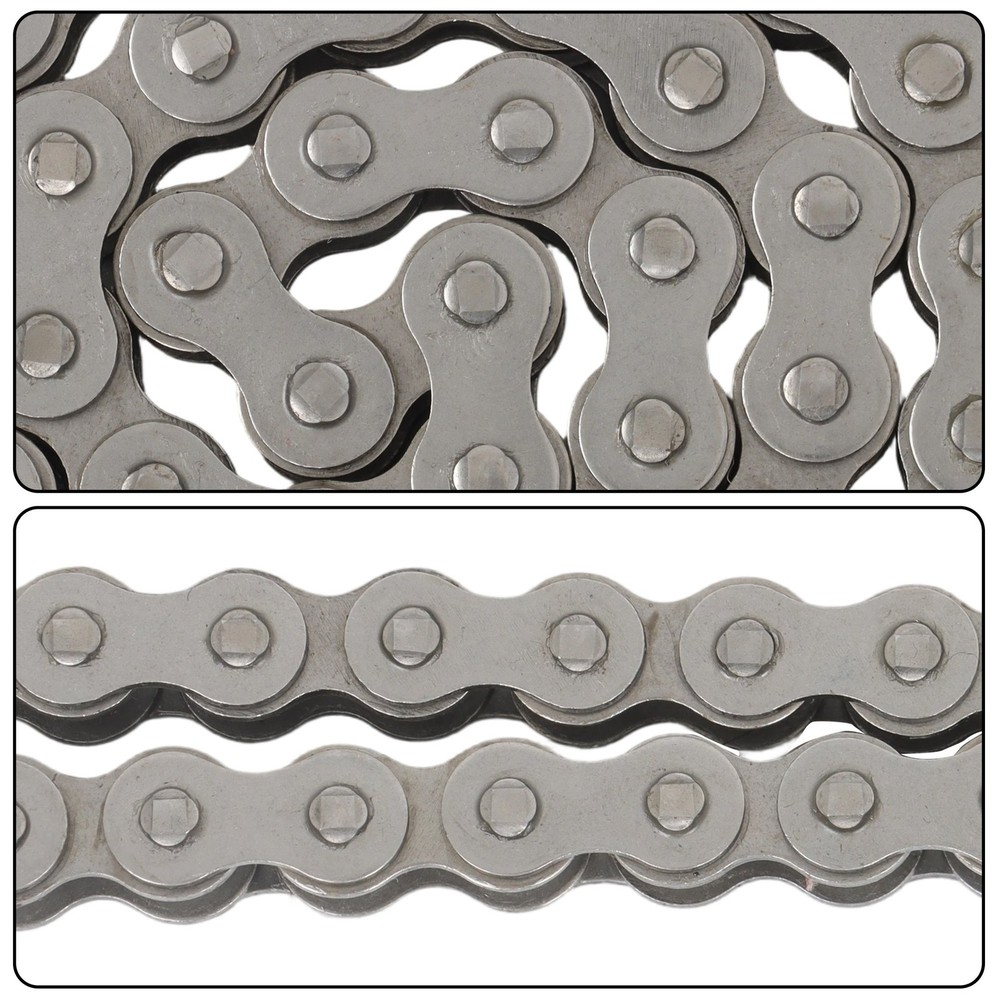

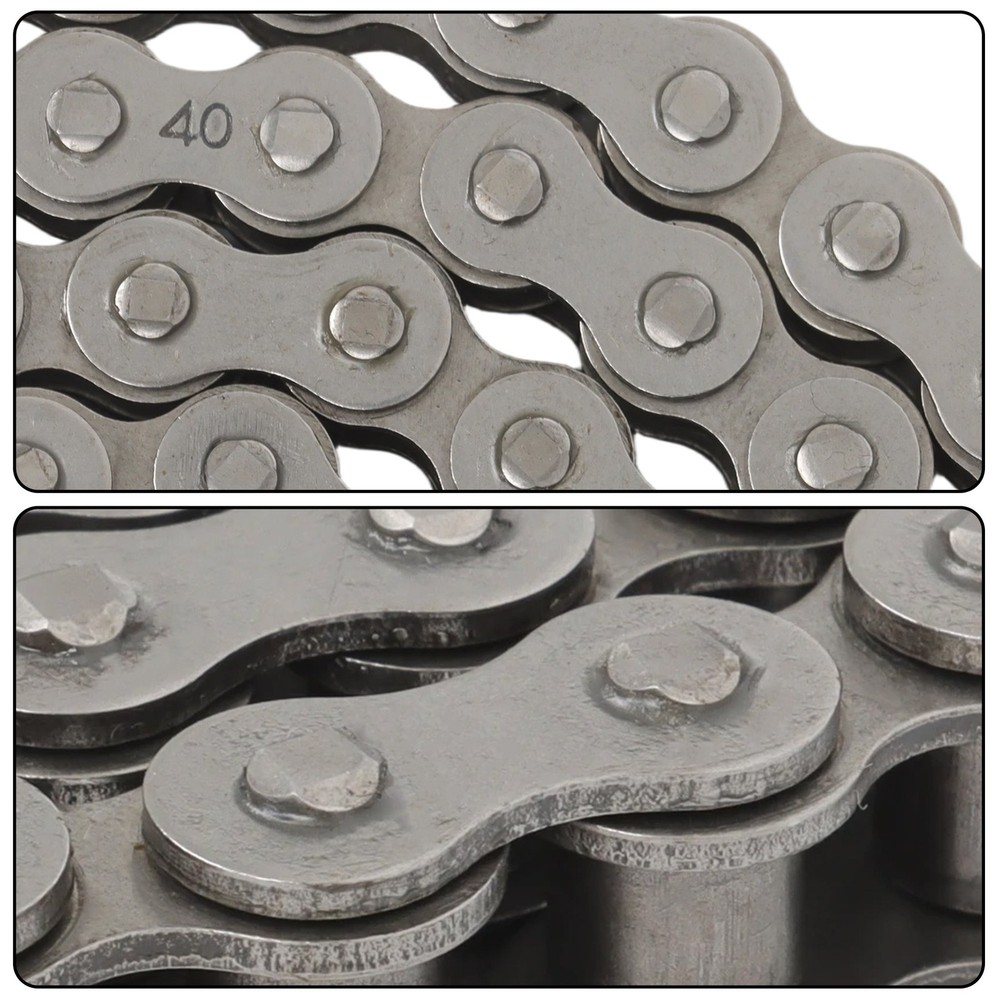

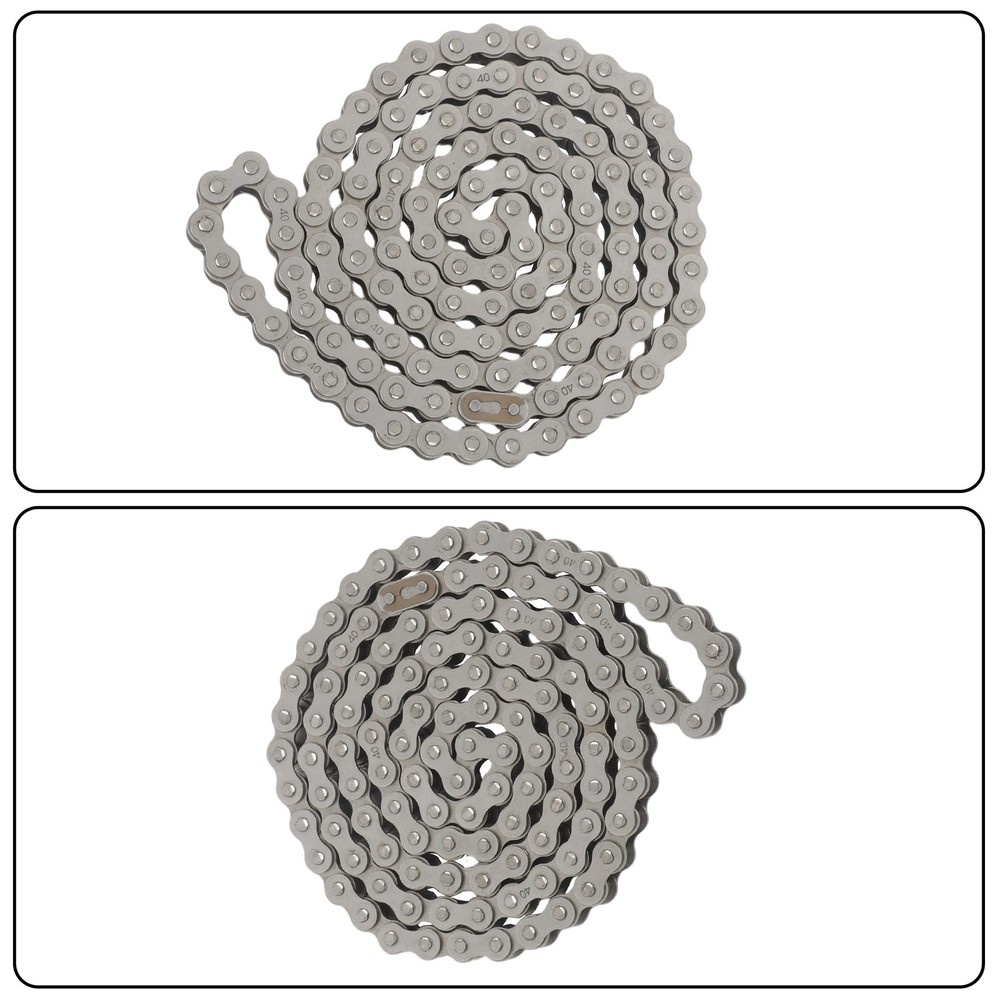

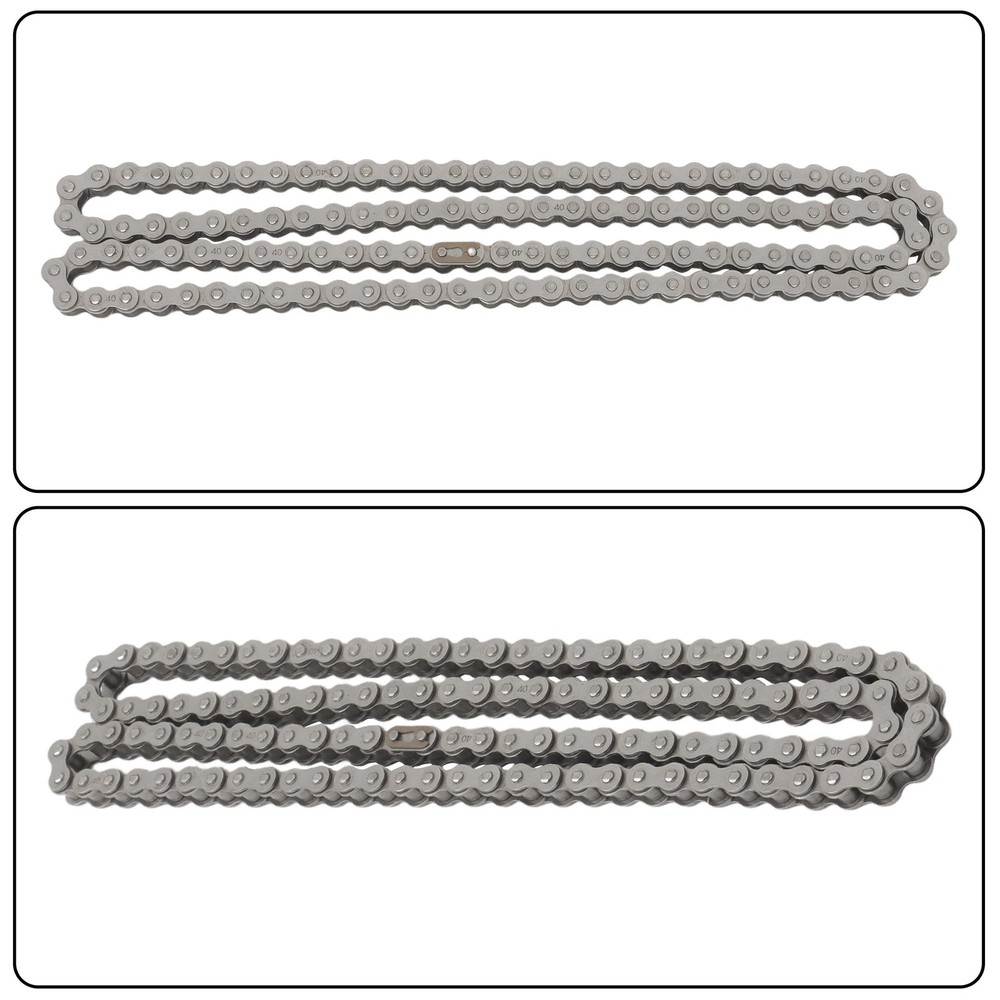

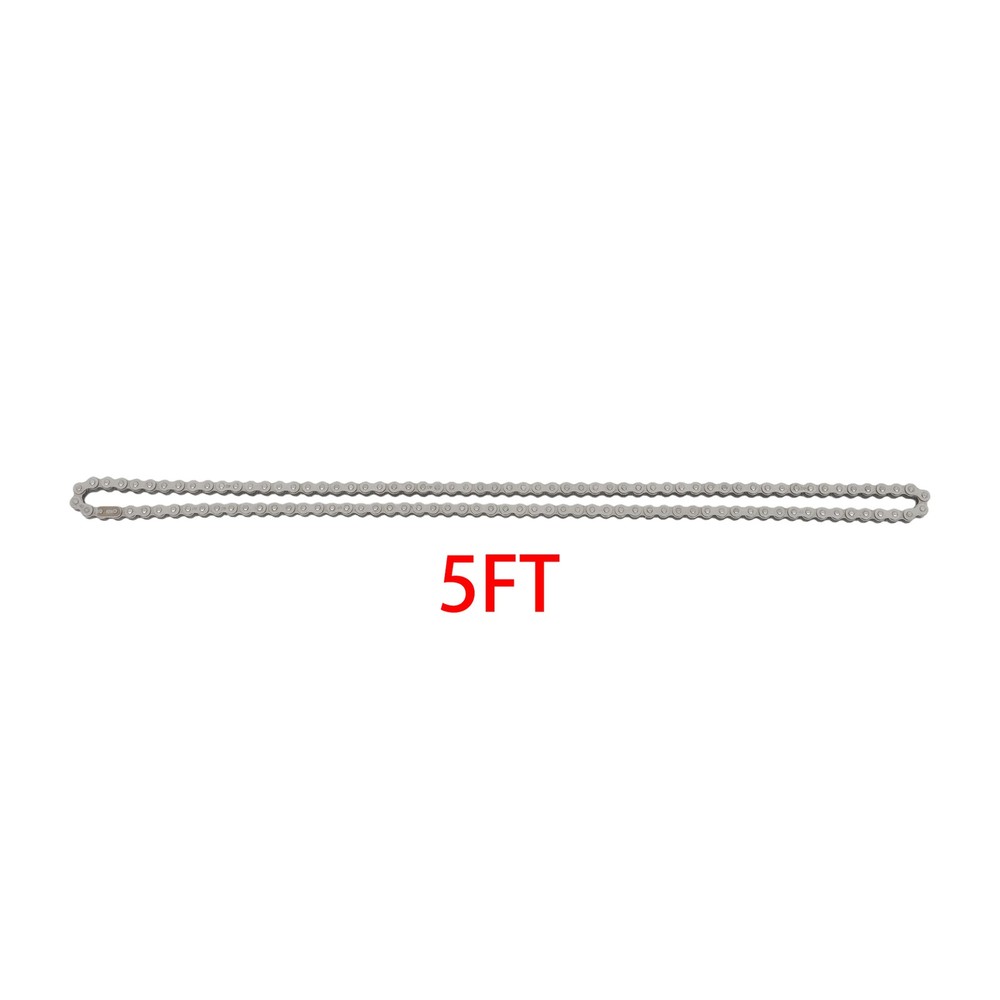

Check the listing for details. Roller chain #40 5ft with 2 connectors. Condition: New. Listed at 17.62 USD. Roller chain #40 5ft with 2 connectors #40 Roller Chain x 5 feet ANSI Chain No.: #40 Lenght: 5 feet Pitch (P): 0.5 inch (12.7 mm) Roller Diameter (d1 max): 0.313 inch (7.95 mm) Width Between Inner Plates (b1 min): 0.310 inch (7.85 mm) Pin Diameter (d2 max): 0.156 inch (3.96 mm) Pin Lenght (L max): 0.654 inch (16.60 mm) Pin Lenght (Lc max): 0.701 inch (17.80 mm) Inner Plate Depth (h2 max): 0.472 inch (12.0 mm) Plate Thickness (T max): 0.059 inch (1.50 mm) Ultimate Tensile Strenght (Q min): 14.10/3205 kN/LB Average Tensile Strenght (Qo): 17.5 kN Weight (q): 0.417 lb/ft (0.62 kg/m) .
