| Item model number | SZW26-20/D202.2D-W |
|---|---|
| Current Rating | 20 Amps |
| Number of Items | 1 |
| Upper Temperature Rating | 70 Degrees Celsius |
| Control Method | Touch |
| Terminal | Screw |
| Operating Voltage | 660 Volts |
| Contact Material | Silver |
| Number of Positions | 3 |
| Controller Type | Mechanical knob |
| Control Type | Manual |
| Connectivity Protocol | / |
| Material | Plastic, Copper, Silver Alloy |
| Vehicle Service Type | Various vehicle types |
| Circuit Type | 3-way |
| Is Discontinued By Manufacturer | No |

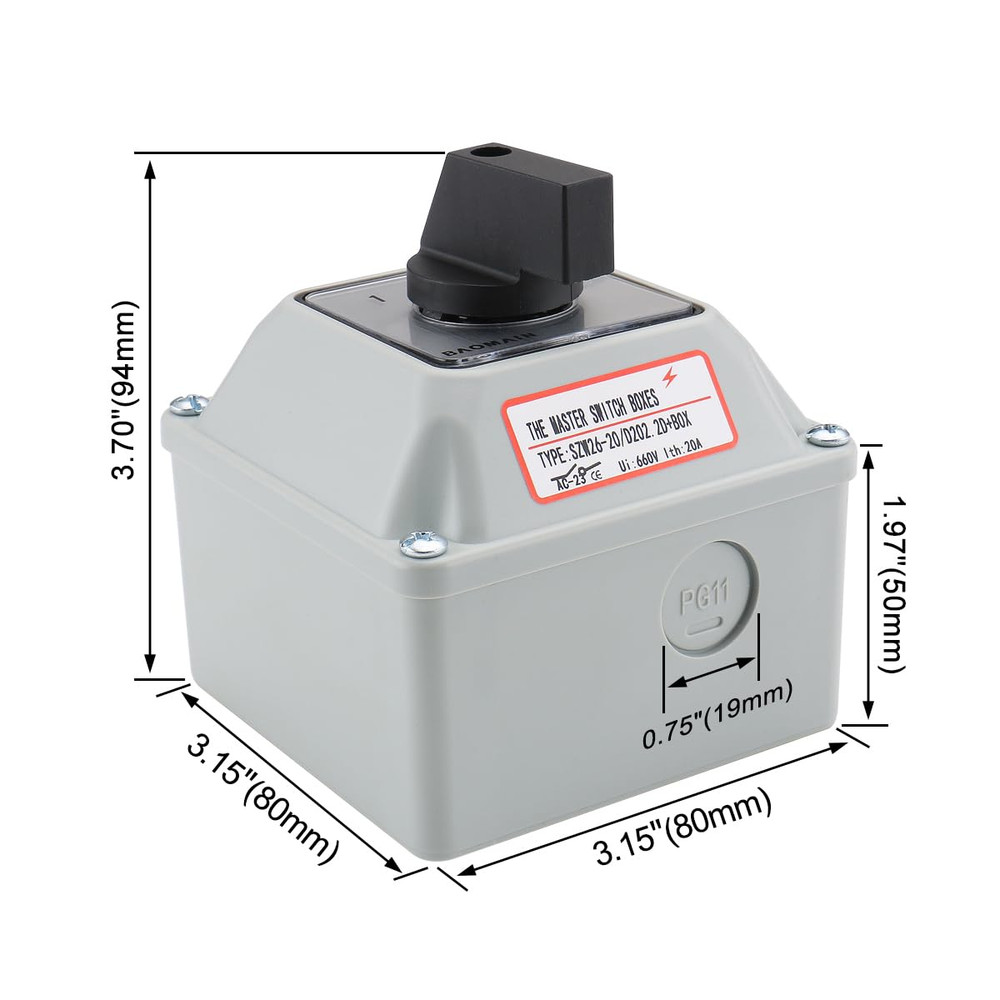

| Item dimensions L x W x H | 3.7 x 3.15 x 3.15 inches |
| Unit Count | 1 Count |
| Connector Type | Plug In |
| Item Weight | 7.8 ounces |
| Wattage | 13200 watts |
| Operation Mode | ON-OFF-ON |
| Actuator Type | Rotary |
| Contact Type | Normally Open |
| Switch Type | Rotary |
| Product Dimensions | 3.7 x 3.15 x 3.15 inches |
| Size | 3.15"x3.15"x3.7" |
| UPC | 313089161143 |

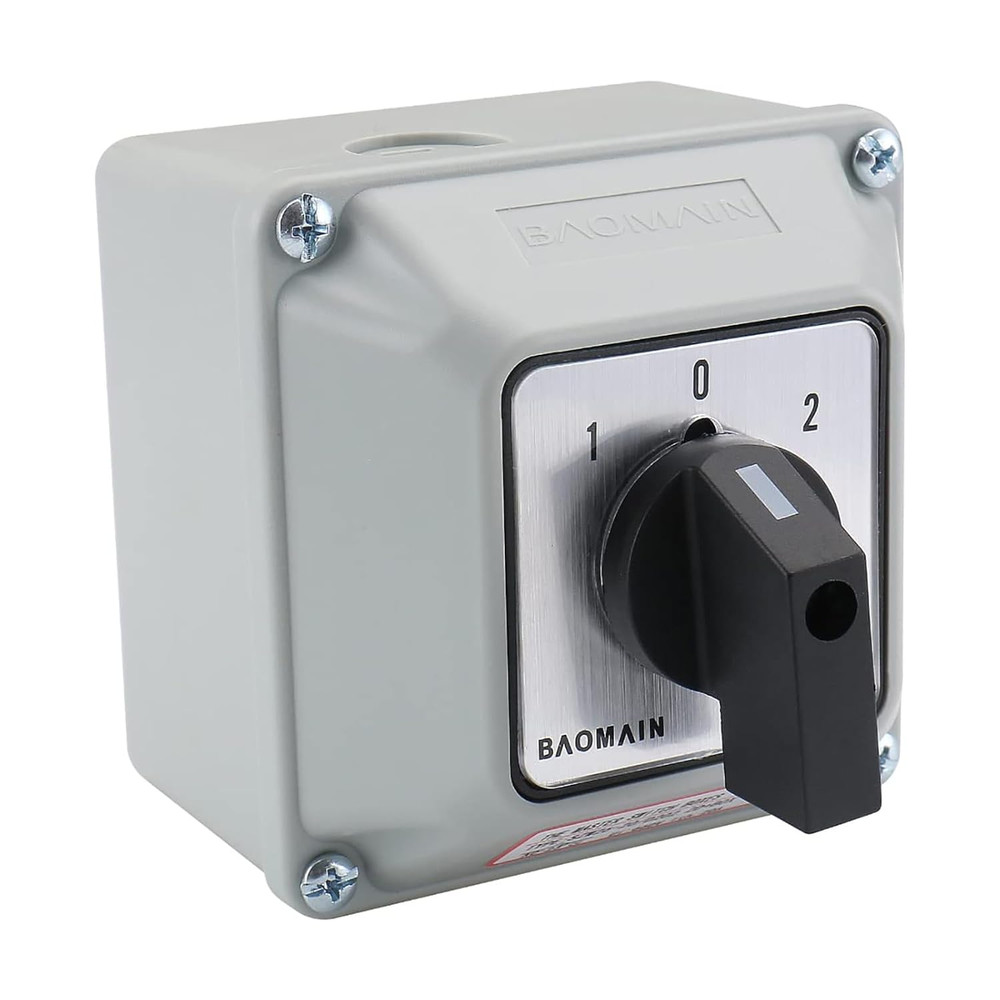

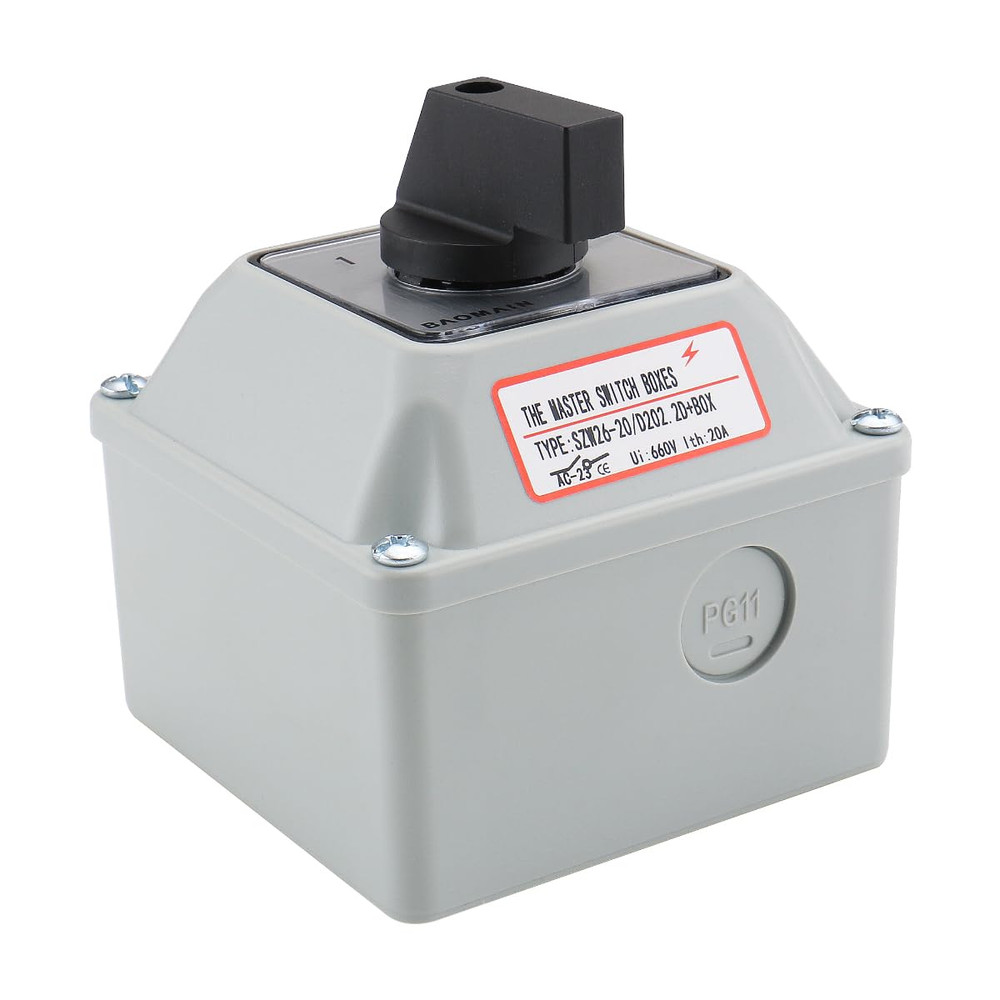

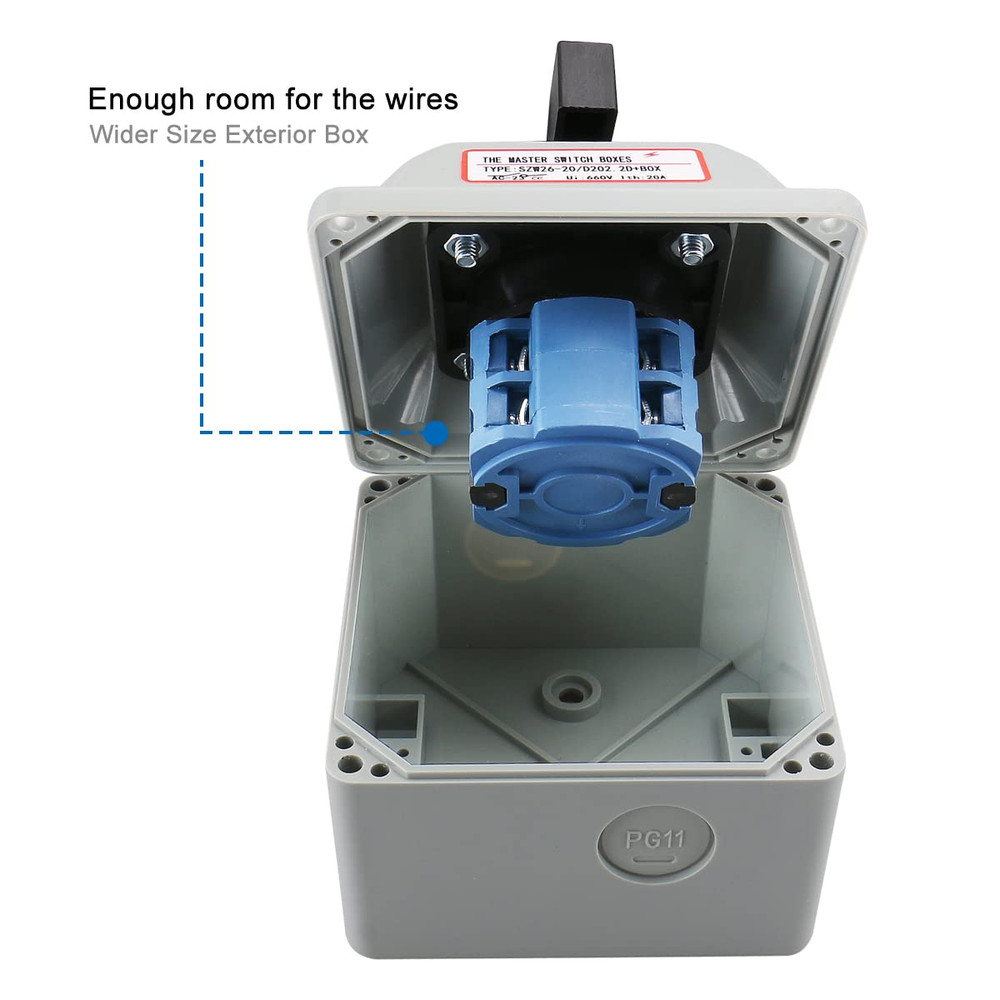

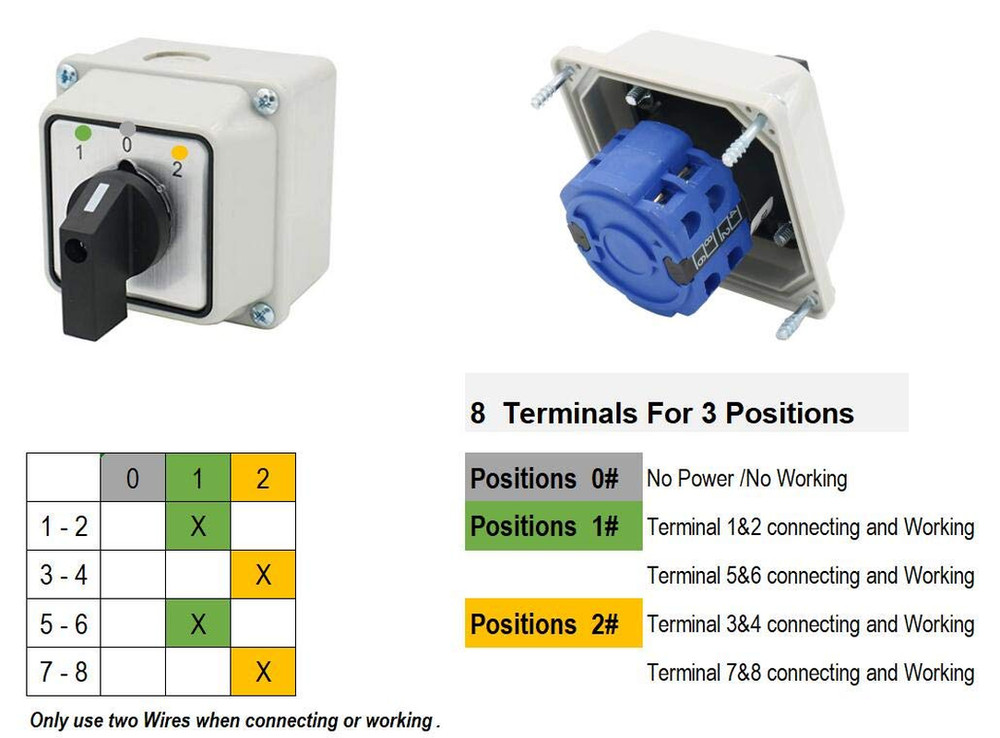

Check the listing for details. Rotary Changeover Switch 660V 20A 3 Position 2 Phase. Condition: New. Listed at 21.00 USD. Power source changeover. 2-Pole Rotary Cam Switch – 3 Position (1-0-2) – 20A. Thermal Current (Ith): 20A. 3 Switching Positions (1-0-2). Position 0: Off position. Position 2: Connect to second circuit.
You may also like
$4
GB Gardner Bender Brass Rotary Switch DPTT Off/On(A)/ON(B)/On(A&B) GSW-62
$19.99
6 C&K CD10RM0AB 10 Position BCD Flush R/A 8mm DIP Coded Rotary Switches
$95
SELECTOR SWITCH, 04P1633, ELMA, Rotary
$395
NEW CAMCO ELECTRONIC ROTARY LIMIT SWITCH No. CT-6004-10-ADO-04 120VAC
$34.99
Compact 40A 3-Phase Rotary Selector Switch for Versatile Installations
$18

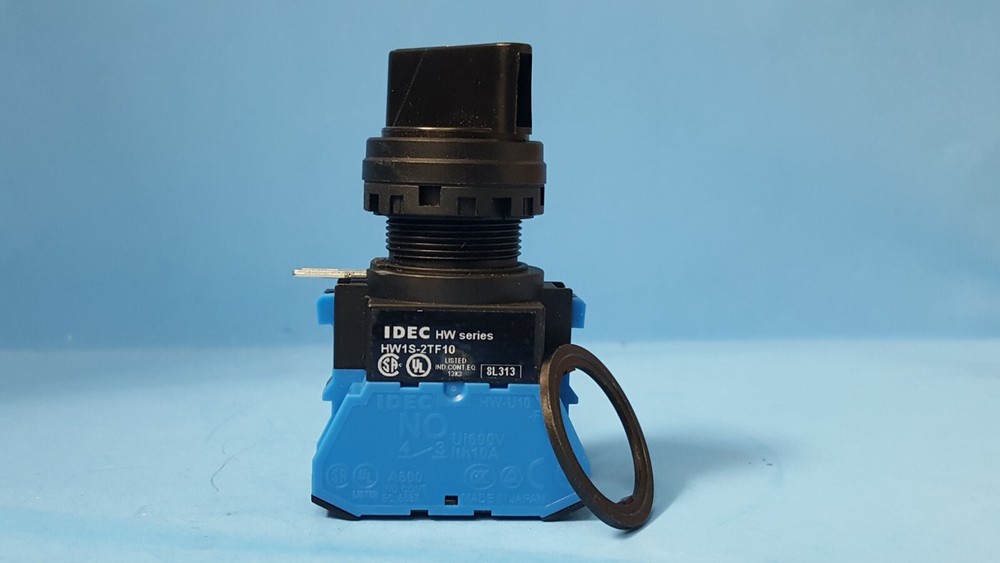

ONE- Selector Switch, HW1S-2TF10, IDEC, Normally open
