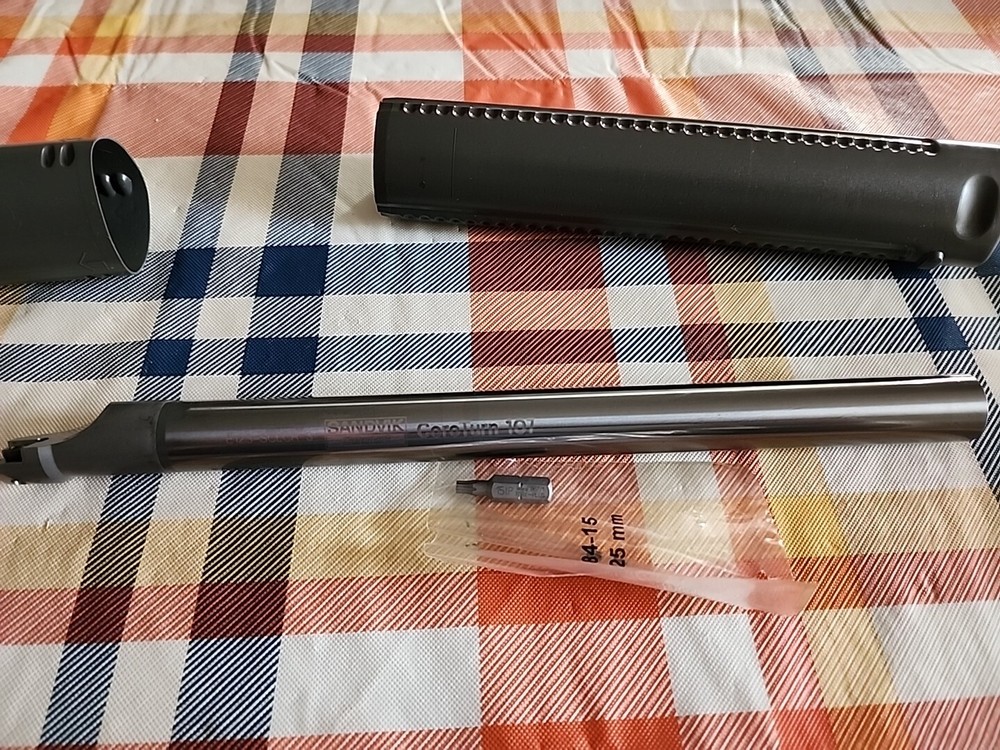

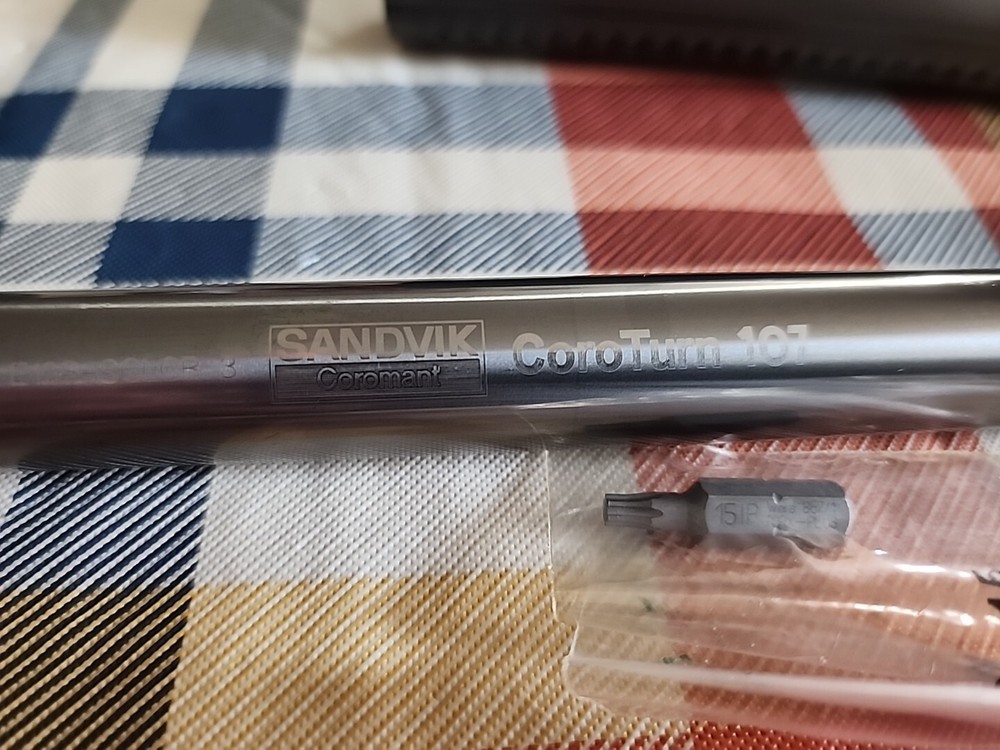

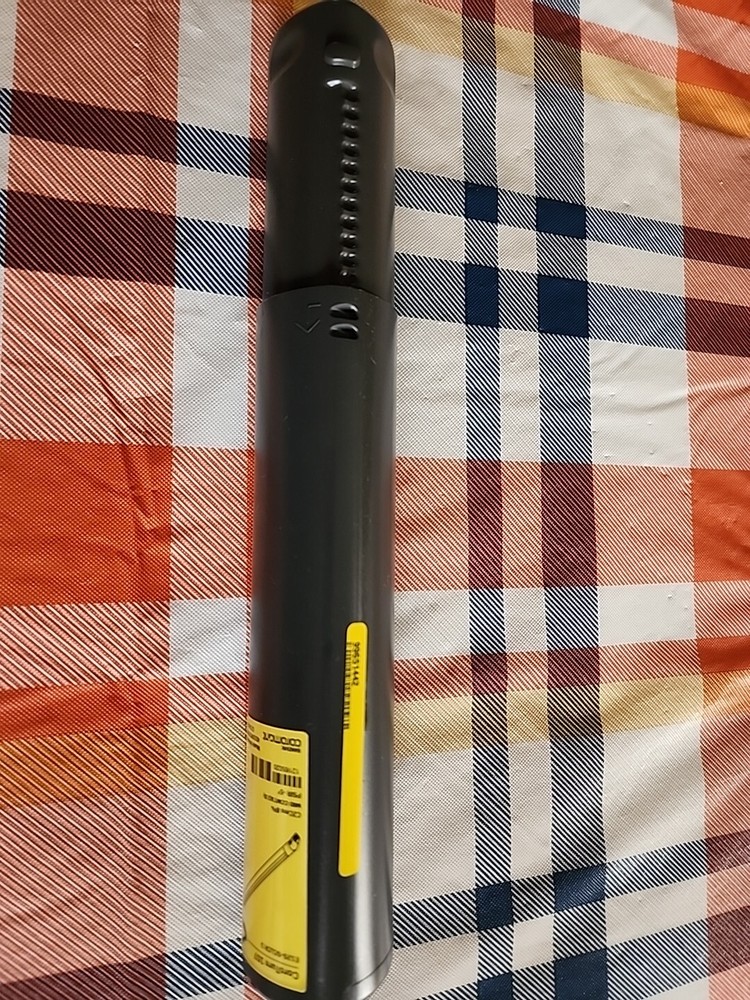

Check the listing for details. Sandvik CoromantIndexable Boring Bar: E12S-SCLCR3. Condition: New. Listed at 800.00 USD. Indexable Boring Bar: E12S-SCLCR3, 23.6 mm Min Bore Dia, Right Hand Cut, 3/4" Shank Dia, Solid Carbide 10" OAL, Screw Clamping, Uses CCMT 32.52 Inserts Specifications Minimum Bore Diameter (mm)23.60 Minimum Bore Diameter (Decimal Inch)0.9291 Toolholder StyleE-SCLC Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch)0.9291 Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch)0.9291 Tool MaterialSolid Carbide Insert CompatibilityCCMT 32.52 Shank Diameter (mm)19.05 Hand of HolderRight Hand Measurement TypeStandard Shank Diameter (Inch)3/4 Overall Length (Decimal Inch)10.0000 Overall Length (mm)254.00 Overall Length (Inch)10 Insert Holding MethodScrew Clamping RakeNeutral Rake Angle0.00 Lead Angle0 SeriesCoroTurn 107 Insert Inscribed Circle (Inch)3/8 Insert Inscribed Circle (Decimal Inch)0.3750 Insert Inscribed Circle (mm)9.53 Multi-use ToolYes Back of Bar to Cutting Edge (Decimal Inch)10.0000 Back of Bar to Cutting Edge (mm)254.00 Center to Cutting Edge (Decimal Inch)0.5000 Center to Cutting Edge (Inch)1/2 Center to Cutting Edge (mm)12.70 Number of Inserts Used on Toolholder1 Neck Diameter (Decimal Inch)0.7500 UNSPSC Code23241601 Neck Diameter (Inch)3/4 Insert Thickness (Decimal Inch)0.1563 Insert Thickness (Inch)5/32 Manufacturers Catalog NumberE12S-SCLCR 3 Coolant ThroughYes
