| Non-Volatile Memory | Stores all Settings |
|---|---|
| Step Rate - Minimum | 27.5 sec/µstep |
| Regulatory Certification | CE, UL, CSA, CB Scheme, EU RoHS |
| Number of Microsteps | per one rev.of Lead Screw 6,400 |
| Installation Category | II |
| Product | Syringe Pump |
| MPN | LEGATO 210 |
| Pusher Travel Rate - Minimum | 0.36 µm/min |
| Accuracy | ±0.35% |
| Step Rate - Maximum | 26 µsec/µstep |
| Flow Rate Maximum | (140 ml syringe, 37.948 mm inner diameter): 215.8 ml/min |
| Syringes (Min/Max) | 0.5 µl to 140 ml |
| Humidity | 20% to 80% RH non condensing |
| Classification | Class 1 |
| Manufacturer | Scientific |
| Linear Force (Max) | 34 kg (75 lb) @ 100% Force Selection |
| Storage Temperature | -10 degree C to 70 degree C (14 degree F to 158 degree F) |
| Flow Rate Minimum | (0.5 µl syringe): 3.06 pl/min |
| Model: | LEGATO 210 |
| Operating Temperature | 4 degree C to 40 degree C (40 degree F to 104 degree F) |
| Dimensions | 16.51 x 25.4 x 27.94 cm (6.5 x 10 x 11 in) |
| Drive Motor | 1.8 degree Stepper Motor |
| Weight | 4.9 kg (10.75 lb) |
| Connectors | RS232 - 9Pin D-Sub Connector, RS485 - IEEE-1394 6 pos, USB - Type |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Brand | Scientific |
| Pusher Travel Rate - Maximum | 190.80 mm/min |
| Mode of Operation | Continuous |
| Pollution Degree | 1 |
| Power | 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse |

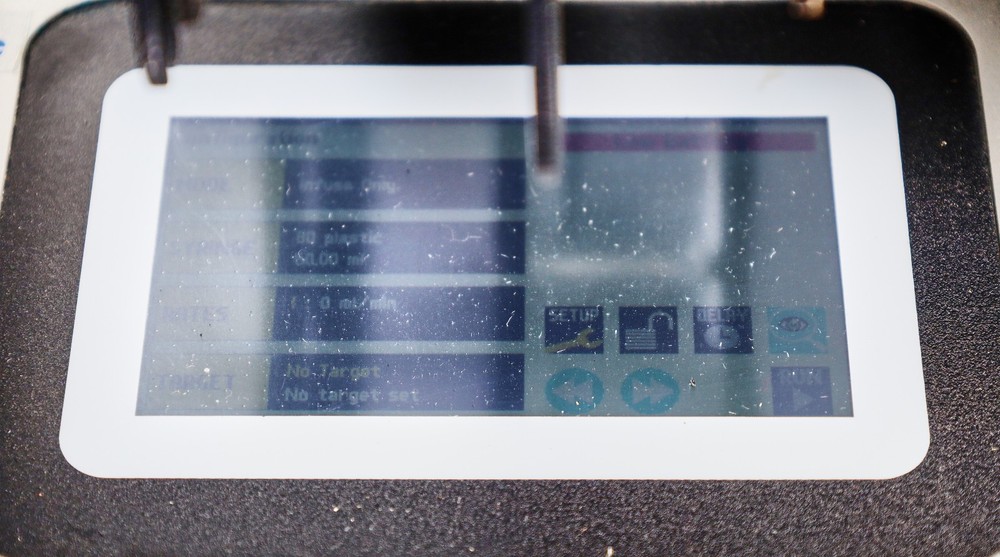

| Display | 4.3 WQVGA TFT Color Display with Touchpad |

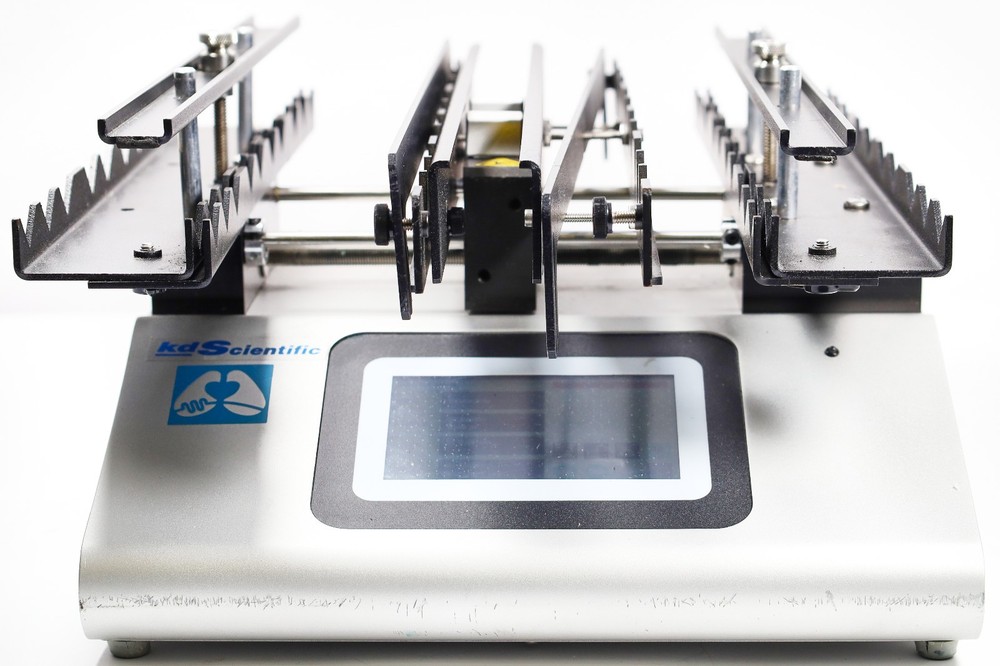

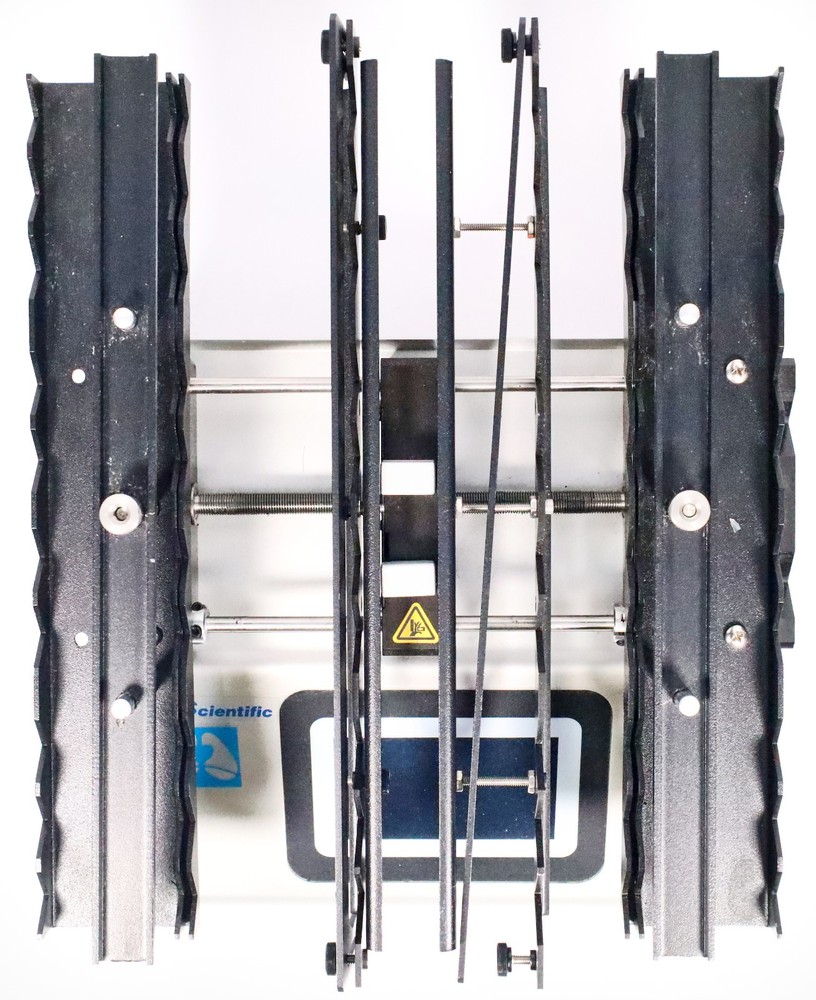

Check the listing for details. Scientific LEGATO 210 Syringe Pump. Condition: For parts or not working. Listed at 260.98 USD. 1x Scientific LEGATO 210 Syringe Pump, no power cable. This syringe pump is in good physical condition, it powers ON and the x-axis moves smoothly from side to side. The digital screen does alert to a low battery.
You may also like
$59
Compatible Top Case Assembly w/Keypad G6000737, fits for Medfusion 3500
$1299.99
SRS Medical EasyPro 4.1 Urodynamics System & Water Pump & UroFlo Scale Easy Pro
$260

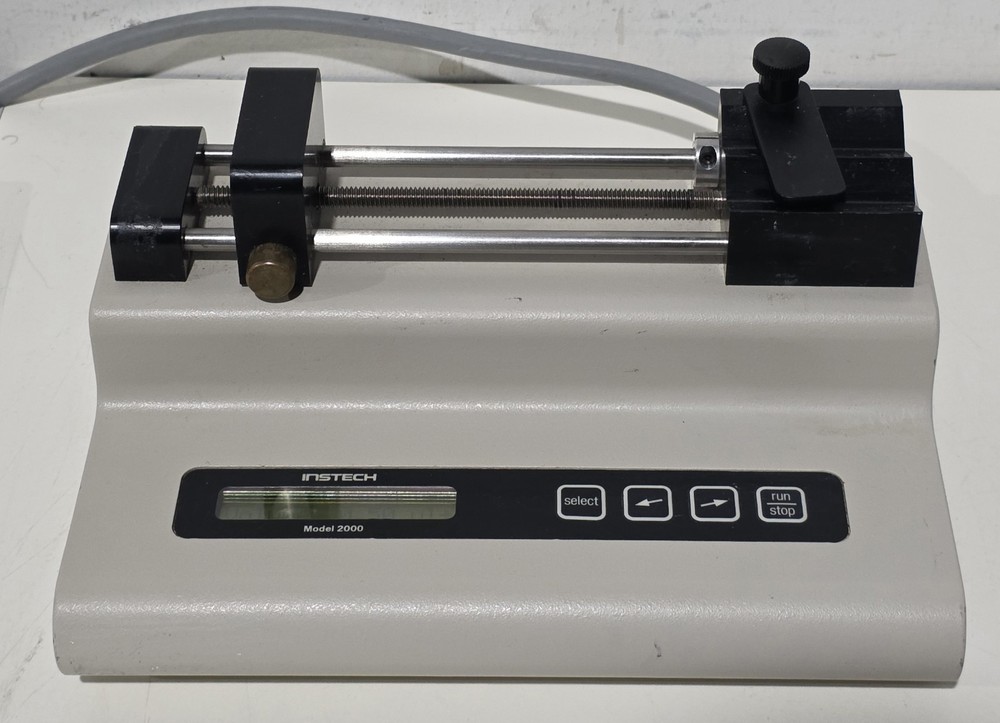

Instech Model 2000 KD Scientific 101 Laboratory Syringe Pump
