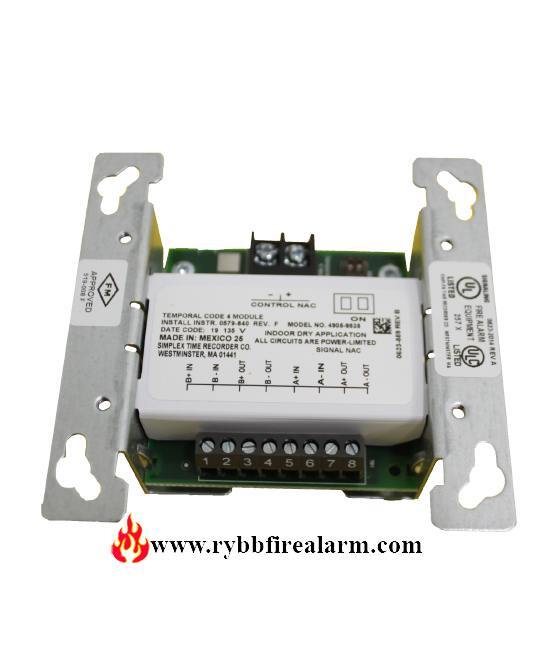

Check the listing for details. SIMPLEX 4905-9835 TEMPORAL CODE 4 MODULE. Condition: New. Listed at 150.00 USD. SIMPLEX 4905-9835 TEMPORAL CODE 4 MODULE The Simplex 4905-9835 offers 3 selectable operation modes. First, Synchronized operation; Second, Unsynchronized operation; Third, Stand-Alone operation. Consequently, the synchronized operation allows a separate and dedicated control NAC to both activate and synchronize the Temporal Code 4 output timing of up to 20, Simplex 4905-9835 modules. While, the unsynchronized operation also allows the separate and dedicated control NAC to activate the Temporal Code 4 output timing of up to 20, 4905-9835 modules, but without synchronization between the modules. Finally, Stand-Alone operation allows the input NAC in alarm. Additionally, in order to activate Temporal Code 4 timing for NAC dedicated for CO gas alarm, no fire alarm signals are available, and no control NAC is used. For both Synchronized and Unsynchronized modes, when the control NAC is off, the module output NACs will follow the fire alarm signals of the input NAC. Features / Specifications NAC Control: For 24 VDC NACs, up to 3 A maximum, limited by input NAC rating; for control of audible notification appliances compatible with TC4 code pulse duty cycle Mounting Distance to input NAC Source: Mount close-nippled, 20 ft (6 m) maximum distance Wire Connections: Screw terminals for in/out wiring, 18 AWG to 12 AWG wire (0.82 mm2to 3.31 mm2) Temperature Range: 32°F to 120°F (0°C to 49°C) Humidity Range: Up to 93% RH at 100°F (38°C) Dimensions: 4 in. H x 4 1/8 in. W x 1 3/8 in. D(102 mm x 105 mm x 35 mm) Download the Specification sheet in *.pdf format Similar Item Payment We accept the following payment methods: PayPal Visa Master Card American Express Discover Please contact us if you have any questions. Shipping Services We offer the following shipping services: USPS Priority Mail (free shipping) UPS Next Day Air Saver UPS 2nd Day Air UPS Next Day Air If you would like your package shipped differently, please contact us. Please note: Even if you selected free shipping, your package may still be shipped UPS Ground International Shipping If you are outside the United States and need our articles you can contact us through an Ebay message. We offer 4 shipping options if they do not work, please contact us and we will make changes for you. We process all orders the same day when we receive the payment before 5:00 PM ET. Daily we strive to provide the best service to our buyers and give the highest satisfaction but if for some reason there is an error to receive your purchase please contact us before leaving a negative feedback. Warranty Please be aware that we are not authorized distributors. We can not guarantee the featured item will have the manufacturer's warranty or support.
