| Brand | Unbranded |
|---|---|
| Material | ABS, PC |
| Circuit Breaker Type | Standard |
| Mounting Type | Wall Mount |
| Input | 6 Strings |
| Output | 1 String |
| Operating Temperature | -30~70℃/-22~158℉ |
| Number Of Poles | 6 |
| Current Rating | 63A |
| Circuit Breaker | 63A, 550V |
| Number Of Max. Connection PV Array | 6 |
| Max. Input Current of Single PV Array | 15A |
| Total Input Current of PV Array | 90A |
| Max Input Voltage of Single PV Array: | 1000V |
| Max Output Voltage | 550V |
| Protection Grade | IP65 |
| Relative Humidity | 0-95%, No Condensation |
| Cooling Method | Natural Cooling |
| Number of Surge Protection Devices | 1 |
| Surge Protection Device | 40KA, 600V |
| Product Size | 27*15*39cm/10.6*5.9*15.35inch |
| Gross Weight | 3.5kg/7.7 lbs |

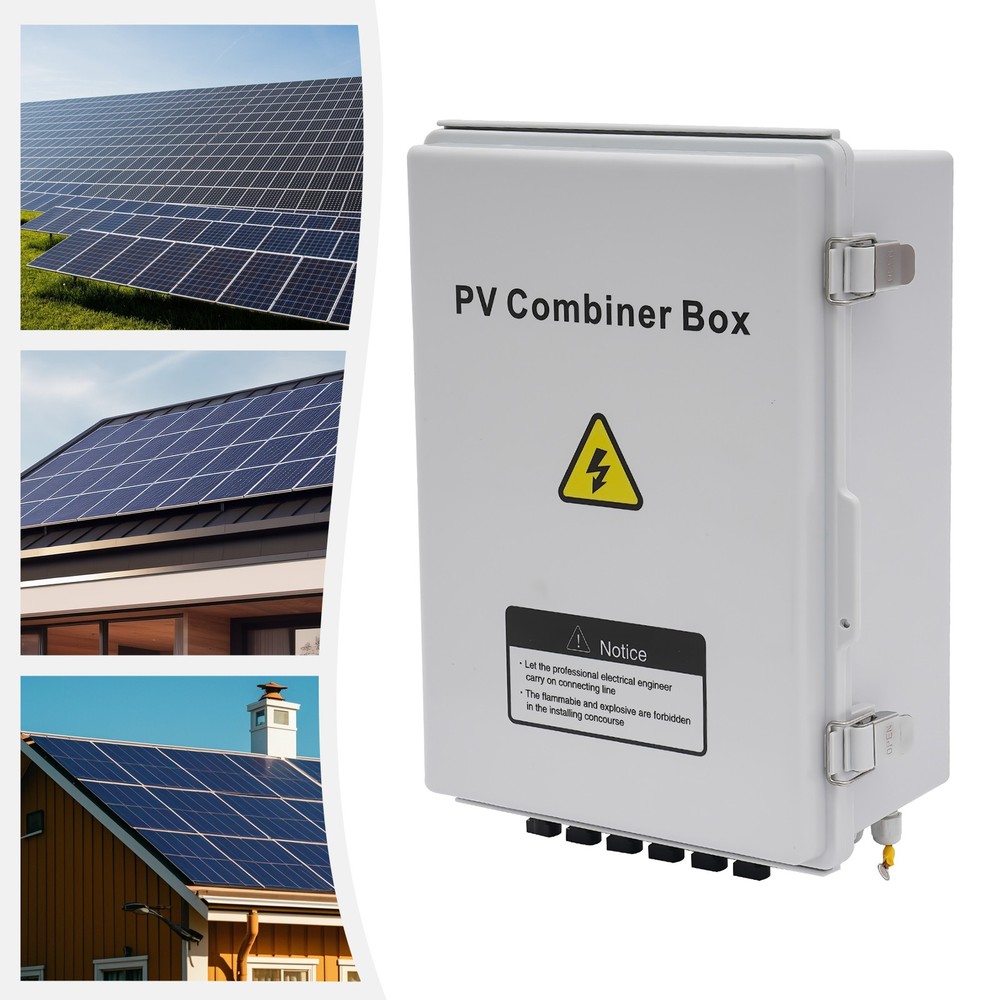

Check the listing for details. Solar PV Combiner Box 6 String 63A Circuit Breaker for Solar Panel System IP65. Condition: New. Listed at 86.53 USD. Package Included 1* PV Combiner Box 1* Combination Lock 4* Mounting Plates Specification Color: White Material: ABS, PC Style: Modern Circuit Breaker Type: Standard Mounting Type: Wall Mount Operating Temperature: -30~70℃/-22~158℉ Input: 6 Strings Output: 1 String Number Of Poles: 6 Current Rating: 63A Number Of Max. Connection PV Array: 6 Max. Input Current of Single PV Array: 15A Total Input Current of PV Array: 90A Max Input Voltage of Single PV Array: 1000V Max Output Voltage: 550V Protection Grade: IP65 Relative Humidity: 0-95%, No Condensation Cooling Method: Natural Cooling Number of Surge Protection Devices: 1 Surge Protection Device: 40KA, 600V Number of Circuit Breakers: 1 Circuit Breaker: 63A, 550V Product Size: 27*15*39cm/10.6*5.9*15.35inch.
