| Brand | Spranozzlee |
|---|---|
| Type | Oscilloscopes |
| Model | DSO152 |
| Sampling rate | 2.5MS/s |
| Bandwidth | 200K |
| Vertical Sensitivity | 10mV/Div-20V/Div |
| Time Base Range | 10μs/Div-50s/Div(in 1-2-5 way progression) |
| Voltage Range | X1:±40V(Vpp:80V) |
| Trigger Mode | Automatic/Regular/Single |
| Coupling Mode | AC/DC |
| Display | 2.8 inch/PPI 320*240 |
| USB Charging | 5V/1A |
| Interface | Type-C |

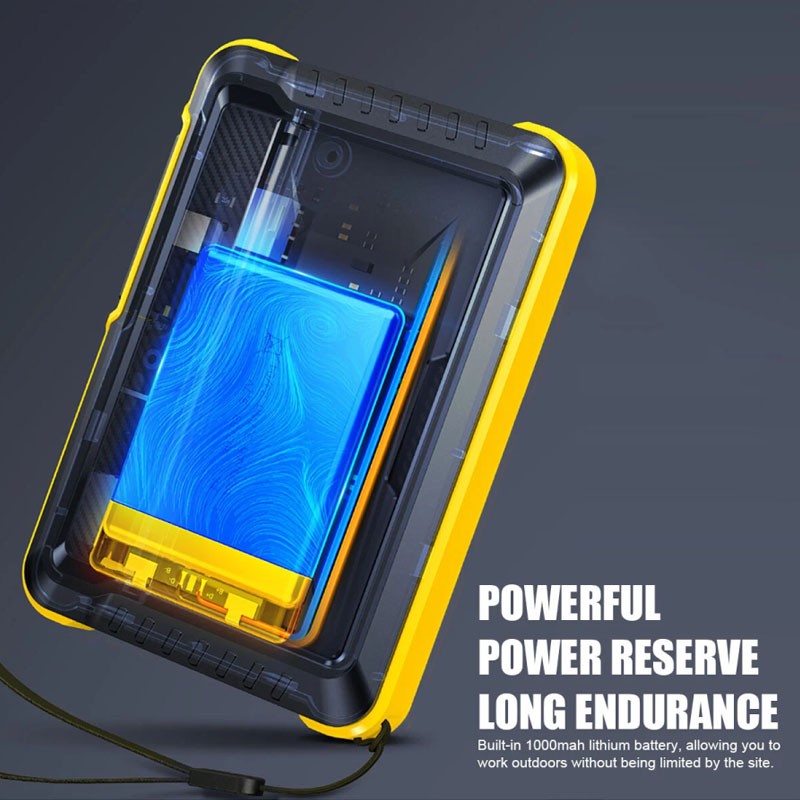

| Li-ion Battery Capacity | 1000mAh |
| Calibration Square Wave | Frequency 1K;Duty Cycle 50% |
Check the listing for details. Spranozzlee DSO152 Handheld Oscilloscope Type-C Portable Digital Oscilloscope. Condition: New. Listed at 38.89 USD. Features:The oscilloscope has a real-time sampling rate of 2.5MS/s, 200kHz bandwidthWith a full range of triggering functions (single, normal, automatic), both for periodicAnalog signals and non-periodic digital signals can be used freelyEquipped with a highly efficient one-key AUTO, without the need for cumbersome adjustments can be displayed on the measured waveforms1KHz calibration square wave, easy to calibrate the probe.Lightweight body, to get rid of equipment heavy belt troubleApplicable to a variety of occasions, carry with you on the job! Specification:Model: DSO152Sampling rate: 2.5MS/sBandwidth: 200KVertical sensitivity: 10mV/Div-20V/Div (by 1-2-5 way progression)Time base range: 10μs/Div-50s/Div(in 1-2-5 way progression)Voltage range: X1:.
