Stator plate and windings for MBK ? (3AA)

Name: Stator plate and windings for MBK ? (3AA)
SKU: 114797662569
Price: 25.16 USD
Availability: InStock

$17.61

$25.16 -30%

Condition Used

Item ID 114797662569

Returns Accepted	ReturnsNotAccepted
Classic Motorcycle Part	Yes
Type	Alternator Stator
Manufacturer Part Number	Does Not Apply
Brand	Unbranded
Intended Use	Replacement Part

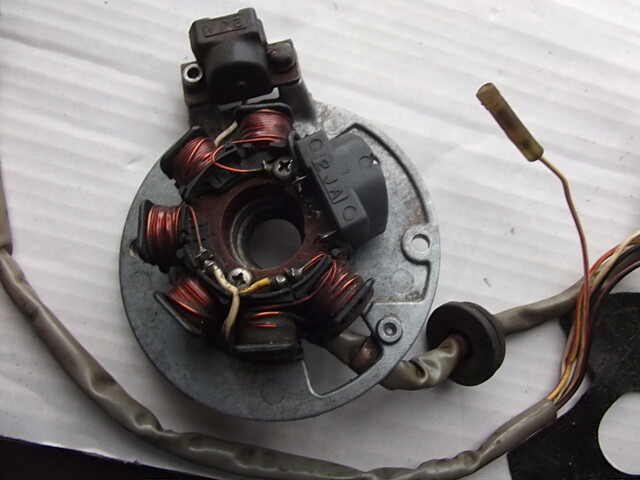

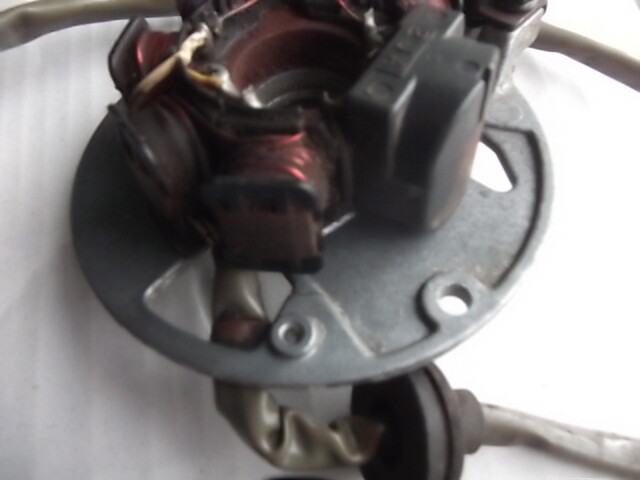

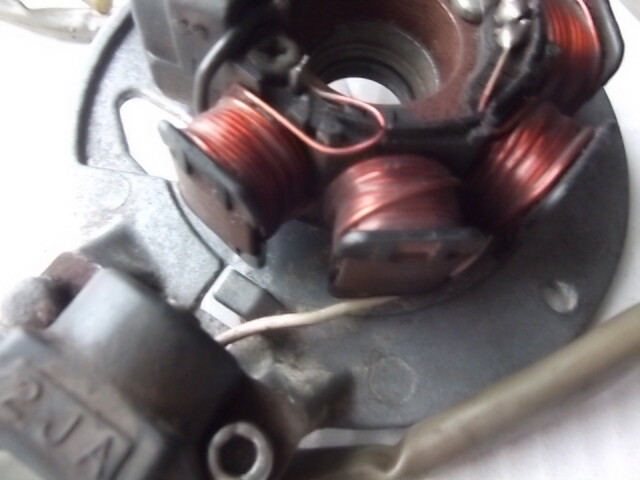

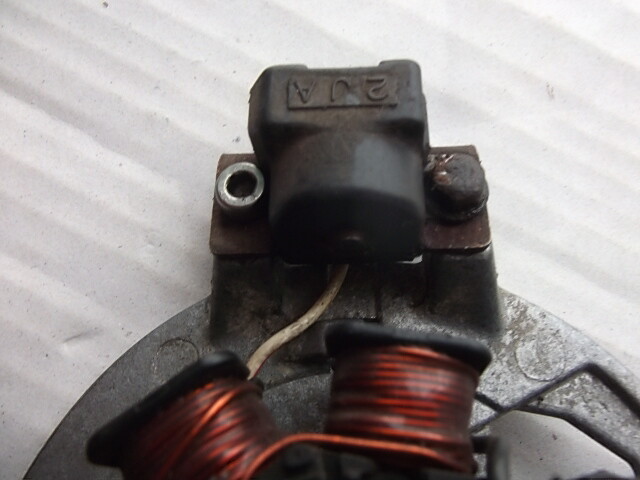

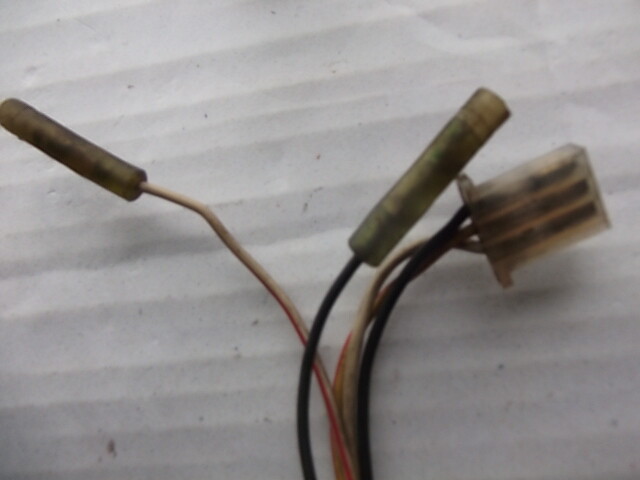

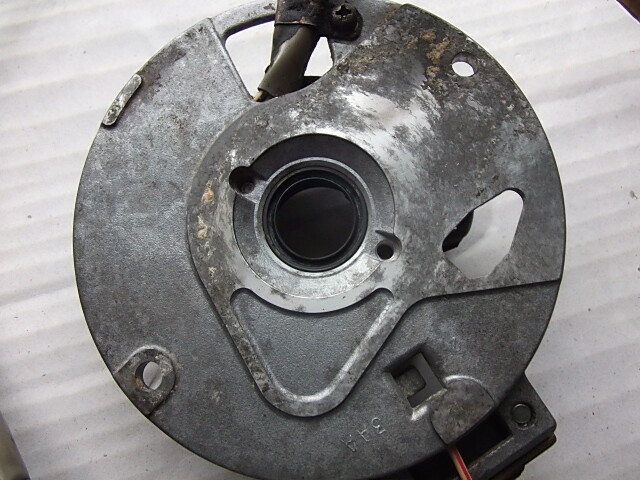

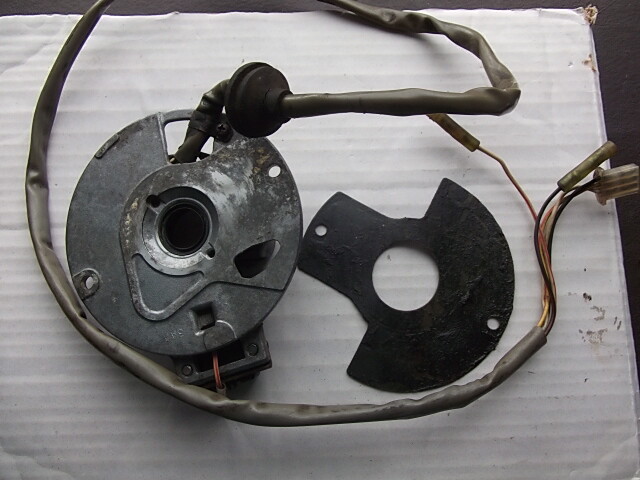

Check the listing for details. Stator plate and windings for MBK ? (3AA). Condition: Used. Listed at 25.16 USD. Possibly From a vintage MBK .I don't which model or the year.The only id numbers are '3AA' on the plate and '2JA' on the lighting coil. Diameter of windings is 80mm.The connectors and grommet are good.Comes with the central oil seal and pick up coilThe resistance readings between pairs of wires are as followsred/white-white =0.53 ohmsred/white-yellow/red=0.53 ohmsred/white-black =0.54 ohmsred/white-black/red = 1.29 ohmsblack/red-white =0.80 ohmsblack/red-yellow/red =0.80 ohmsblack/red-white = 0.80 ohms white-yellow/red =0white-black =0 yellow/red-black =0 I hope that provides you with enough info.
