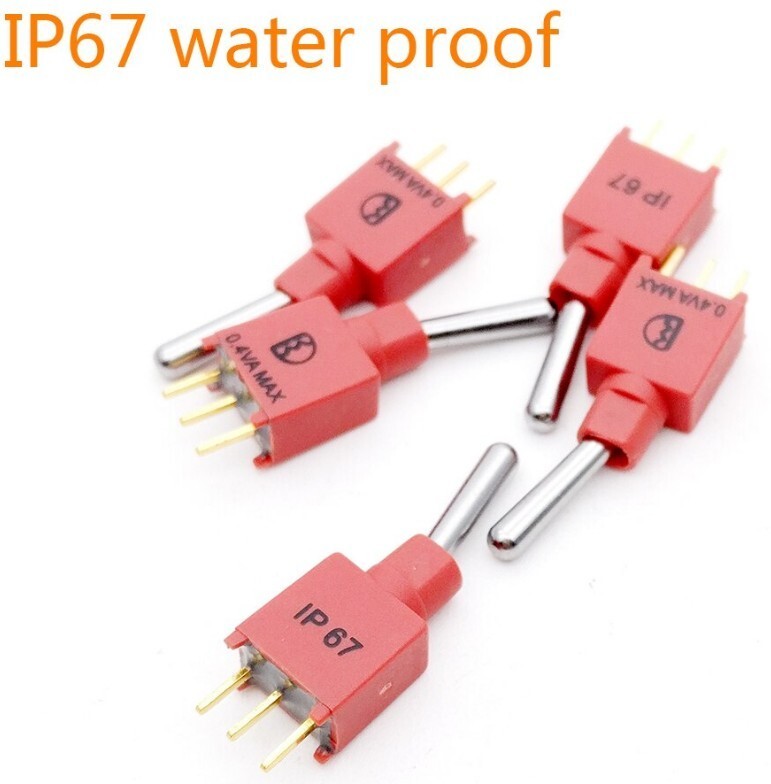

Sub-micro Sealed waterproof SPDT toggle switch 10 Pieces

Name: Sub-micro Sealed waterproof SPDT toggle switch 10 Pieces
SKU: 185790334420
Price: 15.00 USD
Availability: InStock

$10.50

$15.00 -30%

Condition New

Item ID 185790334420

Restocking Fee	No
Return shipping will be paid by	Buyer
All returns accepted	Returns Accepted
Item must be returned within	30 Days
Refund will be given as	Money Back
Features	Heavy Duty
Contact Material	Gold
California Prop 65 Warning	ROHS
MPN	2AS1T1A1M2RES
Maximum Amperage	2A

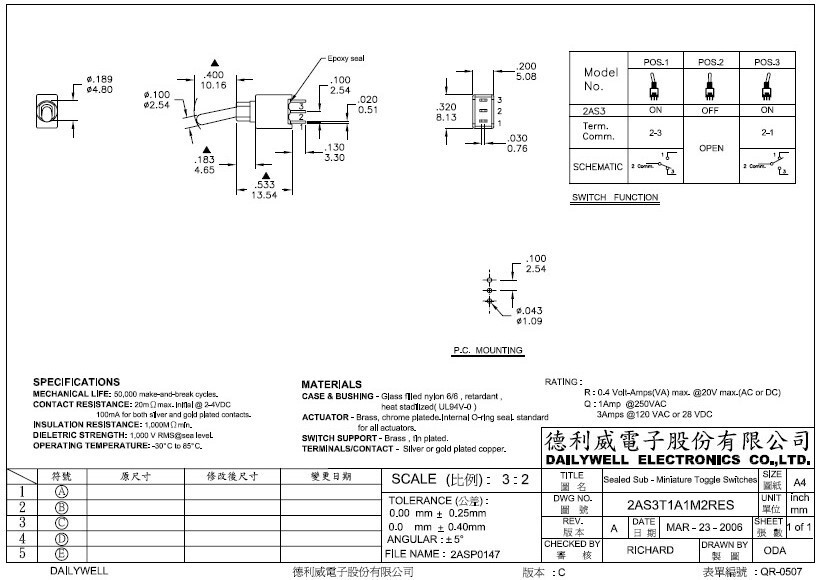

Item Width	see drawing
Item Length	see drawing
Item Height	see drawing
IP Rating	IP67
Suitable For	Wet Location
Country/Region of Manufacture	Taiwan
Number of Positions	3
Model	2AS3T1A1M2RES
Current Rating	2A
Current Type	AC/DC
Finish	Sealed Waterproof
Contact Configuration	Single Pole Double Throw (SPDT)/2-Way
Operation Method	Combination
Resistance Properties	Waterproof
Brand	Dailywell
Fuse Type	Switch
Color	Red
Termination Type	Solder
Operating Temperature	-40 °C (-40 °F)
Switch Style	ON-OFF-ON
Type	Miniature Toggle Switch

Check the listing for details. Sub-micro Sealed waterproof SPDT toggle switch 10 Pieces. Color: Red, Condition: New. Listed at 15.00 USD. Dailywell 2A sub-miniature toggle switch in SPDT configuration with sealed to IP67, and contact rating up to 2A. The operating temperature range is between -40℃ and 85℃. MaterialsCASE & BUSHING: Glass filled nylon 6/6,flame retardant, heat stabilized (UL94v-0).ACTUATOR: Chrome plated, internal O-ring seal.IP RATING: IP67 Epoxy resin sealed.SWITCH CONFIGURATION: ON-OFF-ON.CONTACT / TERMINALS: Gold plated copper alloy.TERMINAL PITCH: 0.1"
