| Frequency Range | 10 Hz~1 MHz |
|---|---|
| Model | TAG-101 |
| Material | Metal, Plastic |
| Color | White |
| Shape | Rectangular |
| Style | Modern |
| Power Source | Corded Electric |
| Plug Standard | US Standard |
| Power Supply | AC 110V (50/60 Hz), 8W |
| Number of Measurement Ranges | 5 |
| Accuracy | ±5% of Full Scale |
| Output Impedance | 600Ω |
| Output Control | 0dB, -10dB, -20dB, -30dB, -40dB, -50dB (Fine-tunable) |

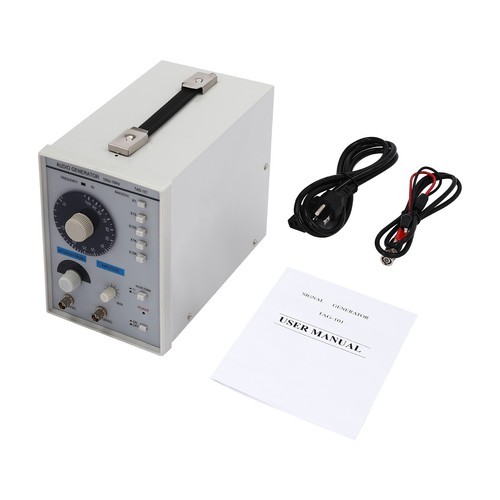

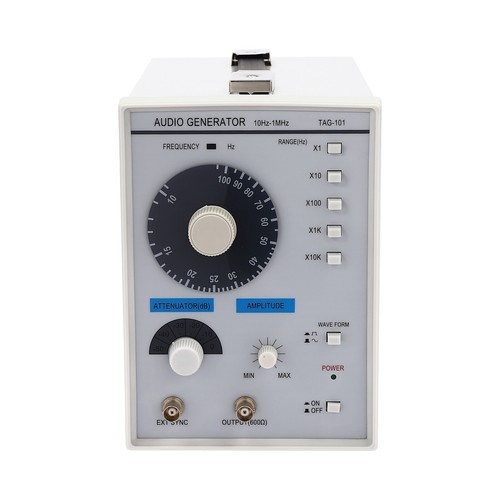

Check the listing for details. TAG-101 Audio Signal Generator Low Frequency Signal Source 10Hz-1MHz. Color: White, Condition: New. Listed at 60.35 USD. Specifications Model: TAG-101 Material: Metal, Plastic Color: White Shape: Rectangular Style: Modern Power Source: Corded Electric Plug Standard: US Standard Power Supply: AC 110V (50/60 Hz), 8W Frequency Range: 10 Hz~1 MHz Number of Measurement Ranges: 5 Accuracy: ±5% of Full Scale Output Impedance: 600Ω Output Control: 0dB, -10dB, -20dB, -30dB, -40dB, -50dB (Fine-tunable) Sine Wave Output Output Voltage: 5~6V RMS Distortion: 500 Hz~50 kHz ≤ 0.05% 50 Hz~500 kHz ≤ 0.5% Output Smoothness: ±1.5 dB for 1 Reference Square Wave Output Range: 10 Hz~1 MHZ Output Level: 10 V Peak Rise Time: 0.5 μs Synchronization Performance Range: Each 1V Output Voltage Can Change The Oscillation Frequency by 1% Input Impedance: 10 KΩ.
