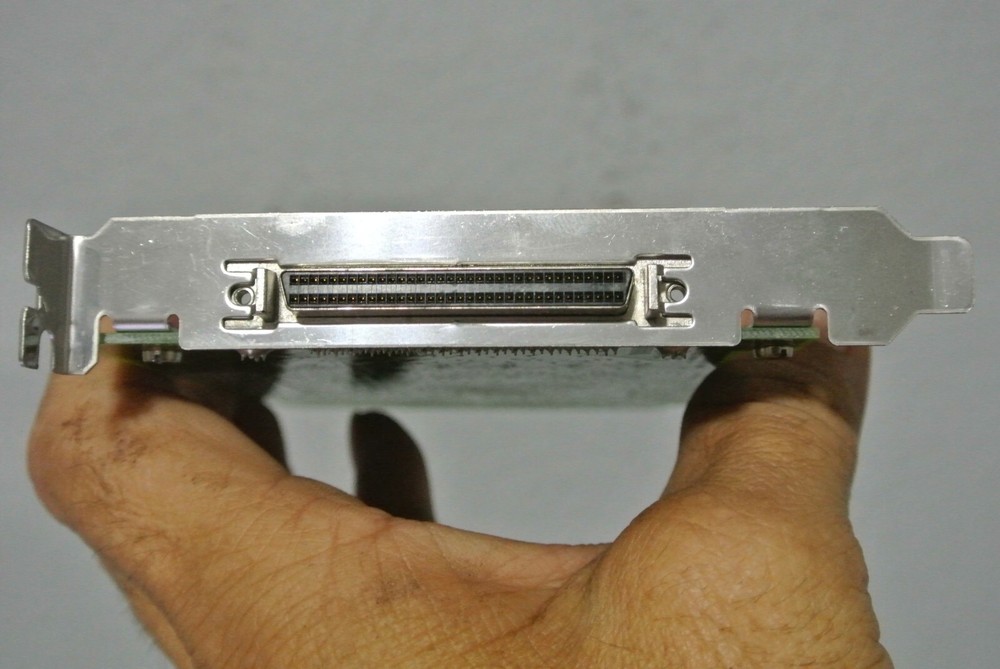

Check the listing for details. TEWS DATEN TECHNOLOGIES TPCI868-10 16 PORT ASYNCHRONOUS SERIAL INTERFACE. Condition: Used. Listed at 199.00 USD. TEWS DATEN TECHNOLOGIES TPCI868-10 16 PORT ASYNCHRONOUS SERIAL INTERFACE ***THIS ITEM IS USED USED, WORKING, GOOD CONDITION, BEING USED THIS ITEM MAY HAVE NORMAL SIGNS OF USE OR WEAR SUCH AS SMALL SCUFFS OR MARKS, PLEASE SEE PHOTOS The TPCI868 is a standard 33 MHz 32 bit PCI module and provides 16 asynchronous RS232 serial interface channels. The TPCI868 requires the 3.3V PCI power supply and operates in a 3.3V or 5.0V PCI I/O voltage environment. The module uses a 14.7456 MHz crystal oscillator which allows baud rates up to 921.6 kbaud. All 16 serial channels can generate interrupts on the PCI bus. The interrupt status information can be accessed via the 16 bit wide interrupt status register. For the serial interface the signals TxD, RxD, RTS#, CTS# and GND are available on the HD68 front panel connector. A 10-pin JTAG header is available for XMC module debugging purposes. All five JTAG signals are routed directly to the XMC slot. Software Support (TPCI868-SW-xx) Features PCI Card Interface PCI 2.2 compliant interface 3.3V and 5V PCI Signaling Voltage Size: 102 mm x 135 mm 16 channel asynchronous RS232 serial interface Support of TxD, RxD, RTS#, CTS# and GND per channel Baud rates up to 921.6 kbaud HD68 SCSI-3 type female connector INCLUDES: (1) TEWS TPCI868-10 PCI BOARD ONLY, NOTHING ELSE INCLUDED S/N: 778680052 FREE shipping & handling continental USA (48 STATES), Excludes AK, HI, PR, GU, VIRGIN/MARSHALL ISLANDS. Payment must be made within 4 days **MOST ITEMS SHIP THE SAME DAY** **INTERNATIONAL BIDDERS PLEASE BE AWARE WE DO NOT SHIP FIRST CLASS OUTSIDE THE USA, NO EXCEPTIONS** IF YOU SHOULD HAPPEN TO HAVE ANY ISSUE WITH YOUR ITEM ONCE RECEIVED PLEASE CONTACT ME FIRST SO I CAN TRY AND RESOLVE ANY PROBLEM FIRST HAND THANK YOU.
