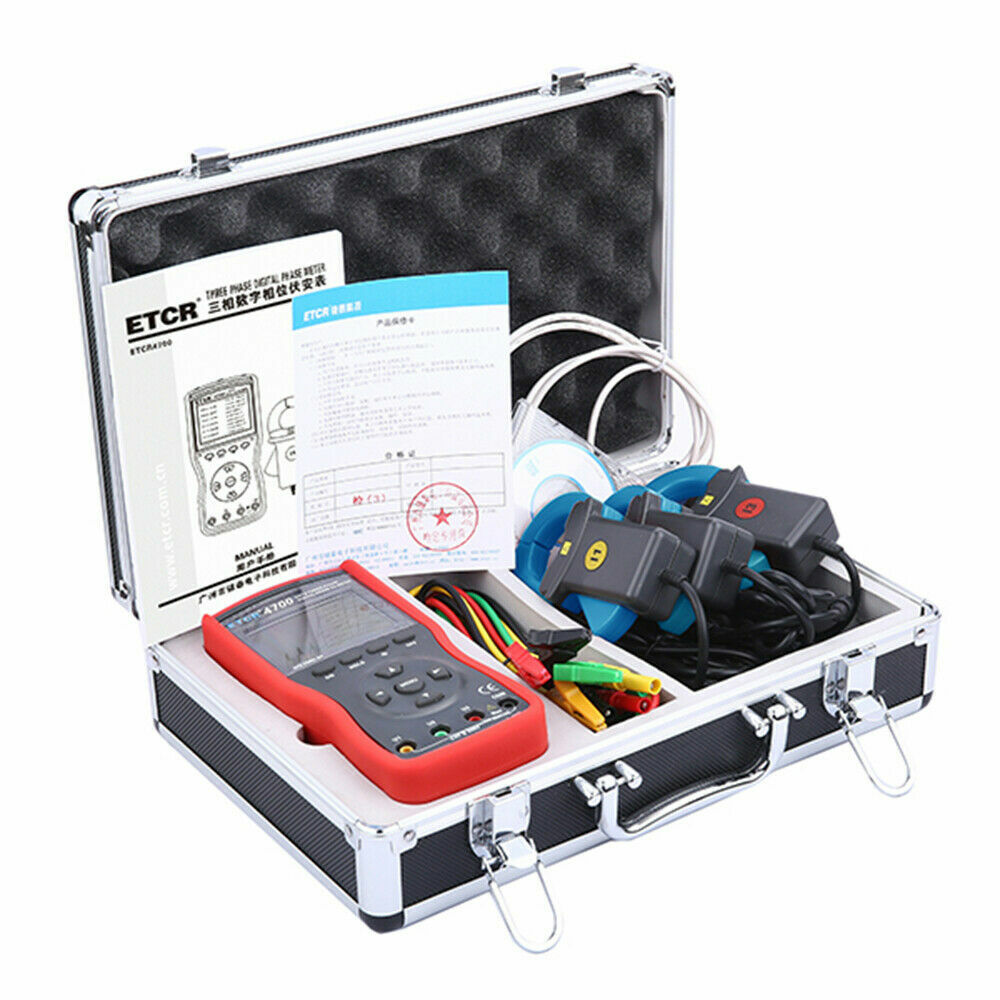

Check the listing for details. Three phase Digital Phase Voltmeter Clamp Meter 600V 600A 360° Current Detector. Condition: New. Listed at 897.26 USD. Three phase Digital Phase Voltmeter Clamp Meter 600V 600A 360° Current Detector Three phase Digital Phase Voltmeter Clamp Meter 600V 600A 360° Current Detector Instruction: ETCR4700 Large Caliber Three-phase Digital Phase Voltmeter is a multi functional, digital and intelligent instrument specially developed by our company for field testing. It has the characteristics of high accuracy, high stability, low power consumption and convenient to use etc. Under the condition of the tested circuit does not open-loop, it can measurement of three-phase AC voltage, current, phase between voltages, phase between current, phase between current and voltage, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector sum, judge transformer wiring group, sensibility and capacitive circuit, test the secondary circuit and differential bus protection system, read the phase relationship between differential protection between each groups CT, check watt hour meter wiring correctly or not, maintenance line equipment, etc., To provide a safe, accurate and convenient new power meter for electricity inspectors. ETCR4700 Large Caliber Three-phase Digital Phase Voltmeter with shake proof, skid proof, and high insulation sheath. Adopts 240dotsX160dots LCD screen, dynamic display, vector diagram indication, clear and obvious, which shows the exquisite and luxurious appearance. The instrument adopt large caliber current clamp, suitable for testing of thick conductor and large current place. ETCR4700 Large Caliber Three-phase Digital Phase Voltmeter also name intelligent three phase digital phase voltmeter, multifunction three phase digital phase voltmeter and three clamp digital phase voltmeter etc. Suitable for electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, measurement departments. It is especially suitable for electric energy billing system and relay protection system. Product Main Function 1. Simultaneous measurement of three AC current, range: 0.0mA~600A2. Simultaneous measurement of three AC voltage, range: 0.00V～600V3. Simultaneous measurement of UU, II, UI phase, range: 0.0°~360.0°4. Measurement frequency, phase sequence, active power, reactive power, apparent power, power factor and other parameters.5. Judgement of transformer wiring group, inductive, capacitive circuit and maintenance line equipment, etc.6. Line voltage: below 600V7. CT Size: Φ8mm8. Data Storage: 500 groups Specification:Functionin the case of the tested circuit is not open-loop, measure two AC voltages (), current, phase between voltages, phase between currents, phase, frequency, phase sequence, active power, reactive power, apparent power, and power factor between voltage and current. Discriminate the transformer wiring group, inductive and capacitive circuits, test the secondary circuit and the busbar protection system, read the phase relationship between the CTs of the differential protection groups, check the wiring of the meter for correctness, and repair the line equipment, etc.CT Size35mm×40mmPower SupplyDC9V alkaline batteries（1.5V AA×6）(not included)Working CurrentMax power consumption of open backlight: 80mA, battery power can continues working 8 hoursMeter power consumption of close backlight:50mA,battery power can continues working 12 hoursDisplay ModeLCD display, 240dots×160dotsMeter Size196mm×92mm×54mmVoltage RangeAC 0.00V～600VCurrent RangeAC 0mA～600APhase Range0.0°～360.0°Frequency Range45.00Hz～65.00HzActive Power Range0W～240kWReactive Power Range0var～240kvarApparent Power Range0VA～240kVAPower Factor Range-1～+1Current Vector Sum0A～1800AResolutionVoltage:AC 0.01VCurrent:AC 0mAPhase:0.1°Frequency:0.01HzActive power:0.1WReactive power:0.1varApparent power:0.1VAPower factor:0.001Current vector Sum:0.1APhase SequencePositive phase: U1, U2, U3 or I1, I2, I3 cursors flash from left to rightInvert phase: U1, U2, U3 or I1, I2, I3 cursor flash from right to leftSampling RateAbout2times/secondData HoldPressHOLDkey to keep data, "DH" symbol displayData Storage500 groupsCommunication InterfaceUSB interface, store data can be upload to computer, convenient to analyze management dataAuto Shutdown15 minutes after boot up, the meter shuts down automatically without any operationBacklight FunctionYes, Suitable for dark place and at night useVoltage DetectionWhen the battery voltage is lower than 7.2V, low battery symbol appears, reminding replace batteryWeightHost: 550gCurrent Clamp: 185g*3Test wires: 250gTest Wire Length1.5mCurrent Clamp Length2mWorking Temperature and Humidity-10℃～40℃；below 80%RhStorage Temperature and Humidity-10℃～60℃；below 70%RhInput ImpedanceTest voltage input impedance: 1MΩWithstand VoltageIt took 1 minute to withstand 1000V/50Hz sine wave AC voltage between the meter line and the out shellInsulation≥10MΩbetween meter lines and sheath shellStructureDouble insulation, with insulation vibration-proof sheathSuitable Safety StandardIEC61010-1 CATⅢ600V，IEC61010-031，IEC61326，Pollution 2 Packing:Package Outer Package Carton Inner Package Aluminum case Accessory Meter 1 PCS Current Clamp 3 PCS Test Wire 4 PCS Communication Cable 1 PCS Software CD 1 COPY Aluminum case 1 PCS Manual 1 PCS Certificate 1 PCS Warranty Card 1 PCSPaymentShippingReturn policyContact us & WarrantyWorking timePaymentWe accept PayPal only.Payment must be received within 7 business days of auction closing. We ship to PayPals address only. Please make sure your address in EBAY can match with your shipping address on PayPal. All major credit cards are accepted through secure payment processor PayPal. TOTAL AMOUNT DUE includes the final auction price plus S&H (Shipping and Handling). S&H will be determined based upon the ship to address. PLEASE NOTE: S&H DOES NOT INCLUDE DUTIES, LOCATL TAXES OR ANY OTHER IMPORTATION FEES.Shipping 1. Item processing time. We will ship the products within 1-5 working days upon the confirmation of your cleared payment, when buyers have some special request (e.g.Voltage, color...etc.), we may delay to ship the orders and will inform buyers about it. Do please check your message box in 1-2 days after payment is cleared. Otherwise order may be cancelled due to insufficient of your information. 2.Shipping methods. Items are shipped out via SpeedPAK or E-packet or any other shipping method that can fit your country, we will choose the reasonable way for you. 3. Delivery time may vary with countries and international shipping for some countries may be much slower than expected. Also your local custom may delay the shipping a lot due to the custom duty they want to charged from you for importing this item from other countries. Note: Any Import or export duties and the cost of dispatching for remote areas, will be borne by the buyer, because it is difficult to know all countrys custom duty or remote area before shipping the item. 4. Please Note buyers from some of the countries may need to contact us before making payment.You may be requested to pay extra shipping cost charged by shipping company otherwise order may be cancelled automatically due to insufficient payment for shipping. We need to revise your invoice before your payment please... Return policy(1) Taking photos and sending it via eBay Message Box. Missing item or get wrong item or damaged items, or the item seams can not work well, please keep all the items in original condition, make all the items together with packing, then take some photos of them and send us the photos by message box. (2) How we will react? We will investigate the case and may send you the missing item or replacement or refund upon the situation of the case. (sometimes you may be requested to return the incorrect item).Or if it is not sellers error, buyer may need to cover the returning cost. (3) Valid time for returning. Please contact us within 7 days upon receiving the package.All items must be returned within 30 days of purchasing the item.Contact us & WarrantyWarranty: 3-24 months warranty is provided to our products. The length of the warranty depends on the nature of the products. Please contact us if you are wondering about how the warranty works for your item. Contact: Do please contact us before leaving any negative feedback or Opening any kind of case. We promise to achieve your 100% satisfaction. But negative feedback actually can not solve any problem. Thank you so much for your kindness and understanding. Working timeBeijing time :AM 8:00 -PM 8: 00
