| Manufacturer Warranty | 3 Months |
|---|---|
| Relative Humidity | 0-90% without condensation |
| Data storage | 10 |
| Product | Fiber Optic Identifier |
| Country of Manufacture | Australia |
| Storage temperature | -40 Degrees Celsius to +70 Degrees Celsius |
| Package size | 210 * 122 * 70mm / 8.27 * 4.80 * 2.76in |
| Optical interface | AngledPhysical Contacts, UPC (optional) |
| Isolation 1310nm | -- / 40dB / 40dB |
| Detector Type | InGaAs |
| Battery Lifespan | Standby 20 hours; Measurement 12 hours |
| Optical Connector | SCIAPC |
| Item size | 180 * 100 * 50mm / 7.09 * 3.94 * 1.97in |
| Isolation 1490nm | 40dB / -- / 40dB |
| Material | plastics |
| Reading value setting | 10 groups |
| Brand | Thunder Tools |
| Isolation 1550nm | 40dB / 40dB / -- |
| Measurement ranges | -35 to +10dBm / -40 to +12dBm / -40 to +25dBm |
| Item weight | 150g / 5.29ounce |
| Measurement uncertainty | equal or less than 0.5dB |
| Insertion loss | equal or less than 1.5dB |
| Model | DZI10787 |
| Package weight | 581g / 20.49ounce |
| Data interface | USB |
| Power supplys | 3 * 1.5V 1200mAh batteries (included) |
| Display resolution | 0.1dB |
| Display | color LCD screen |
| Operating temperature | -10 Degrees Celsius to +50 Degrees Celsius |

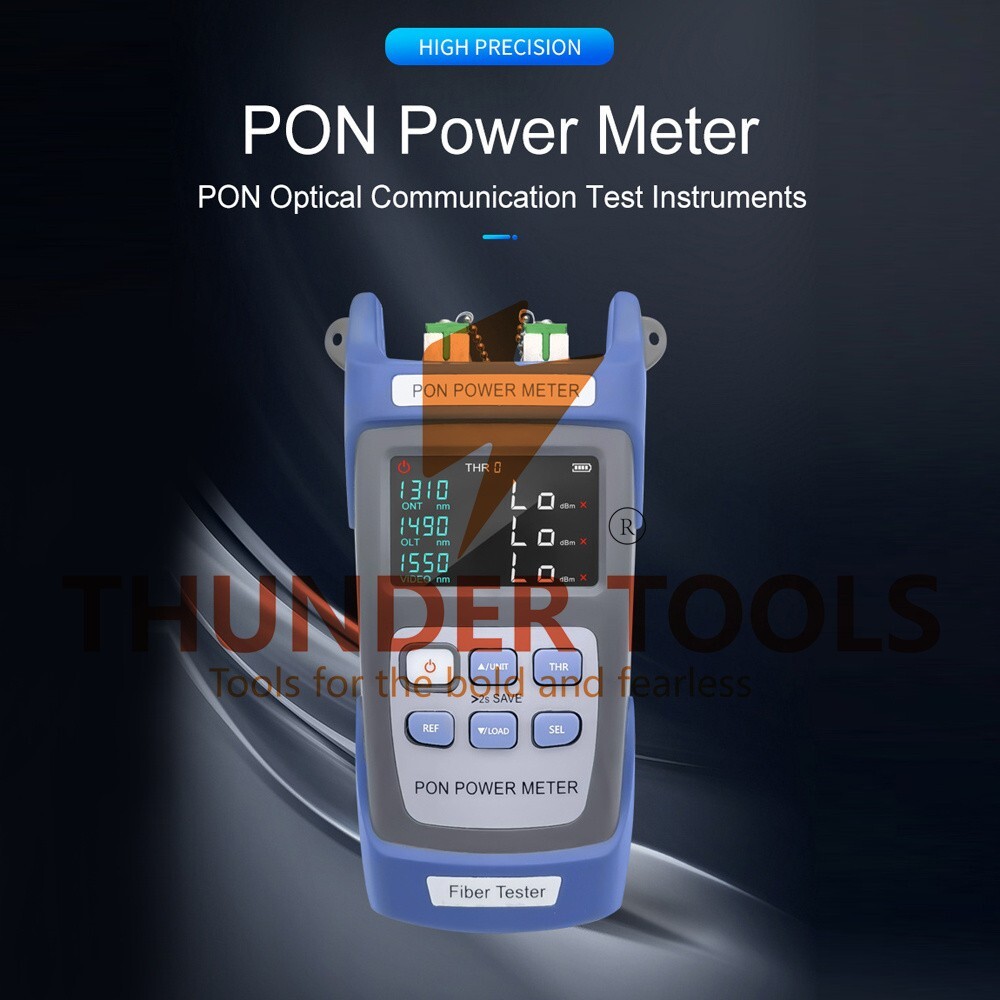

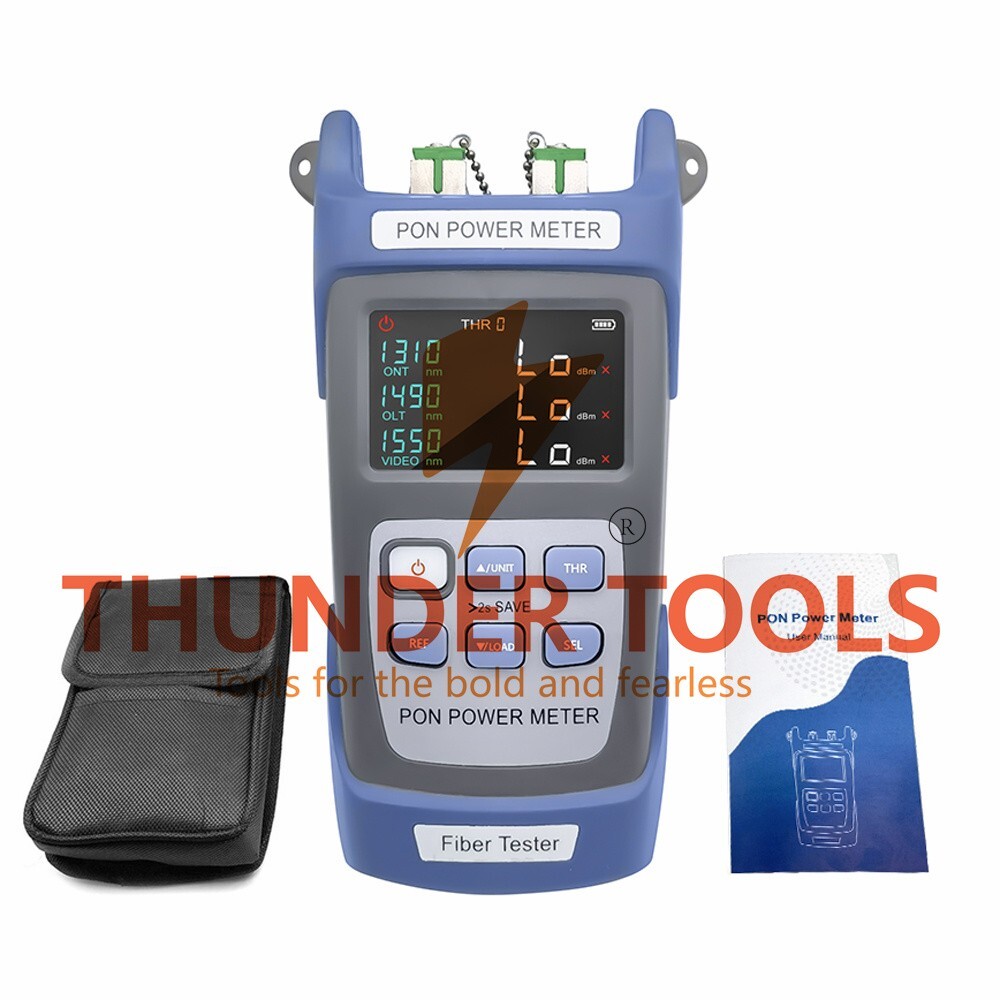

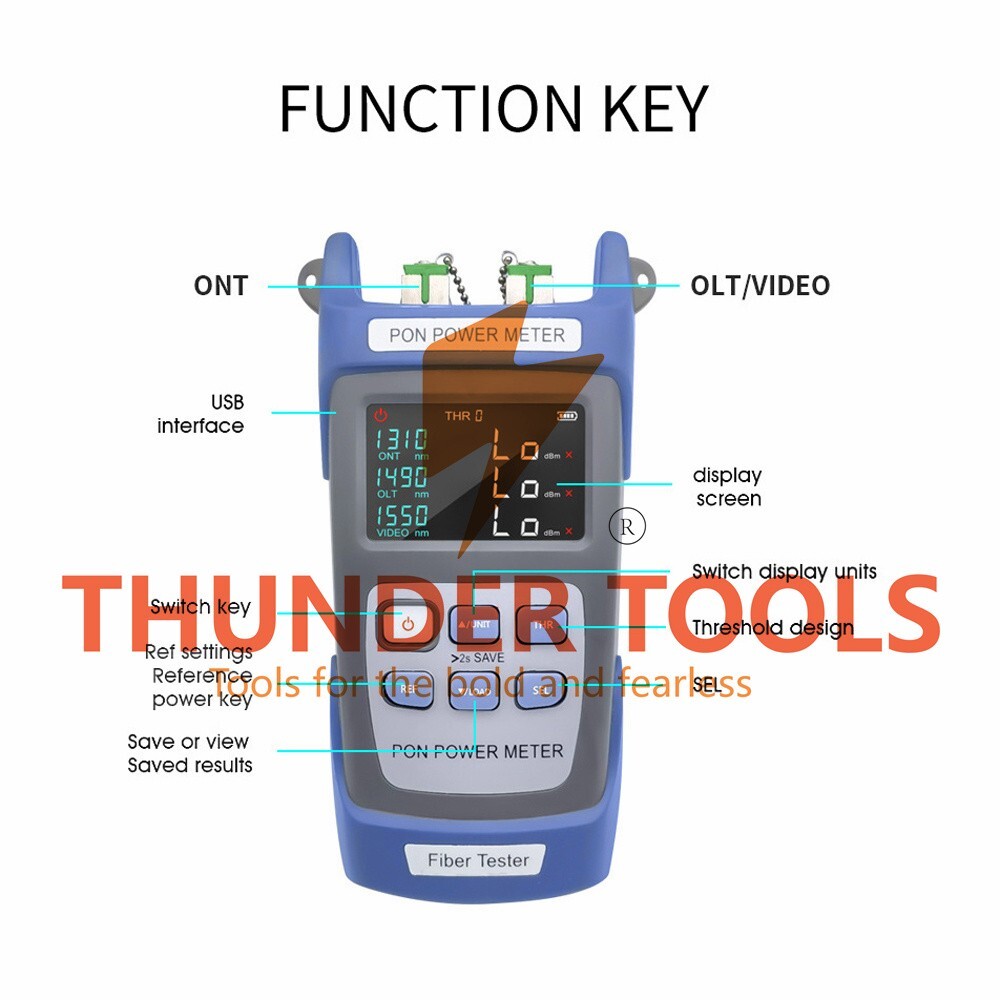

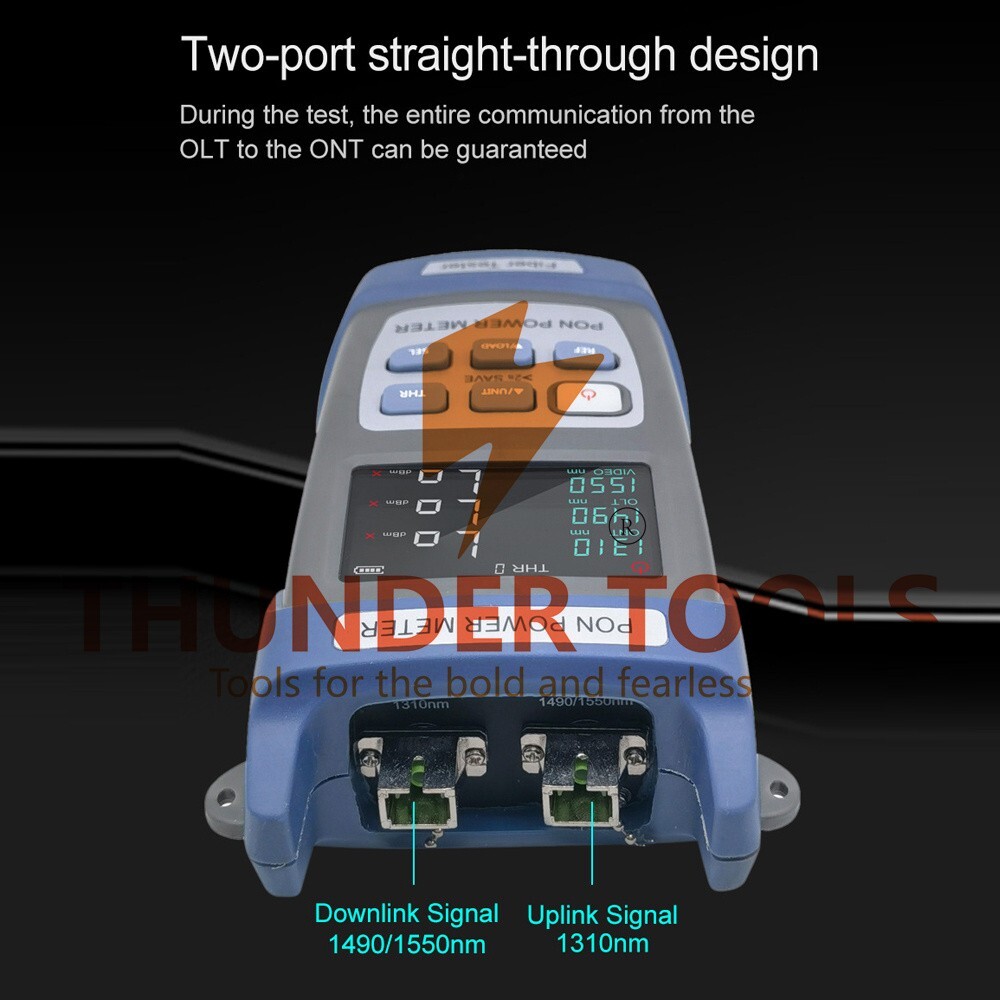

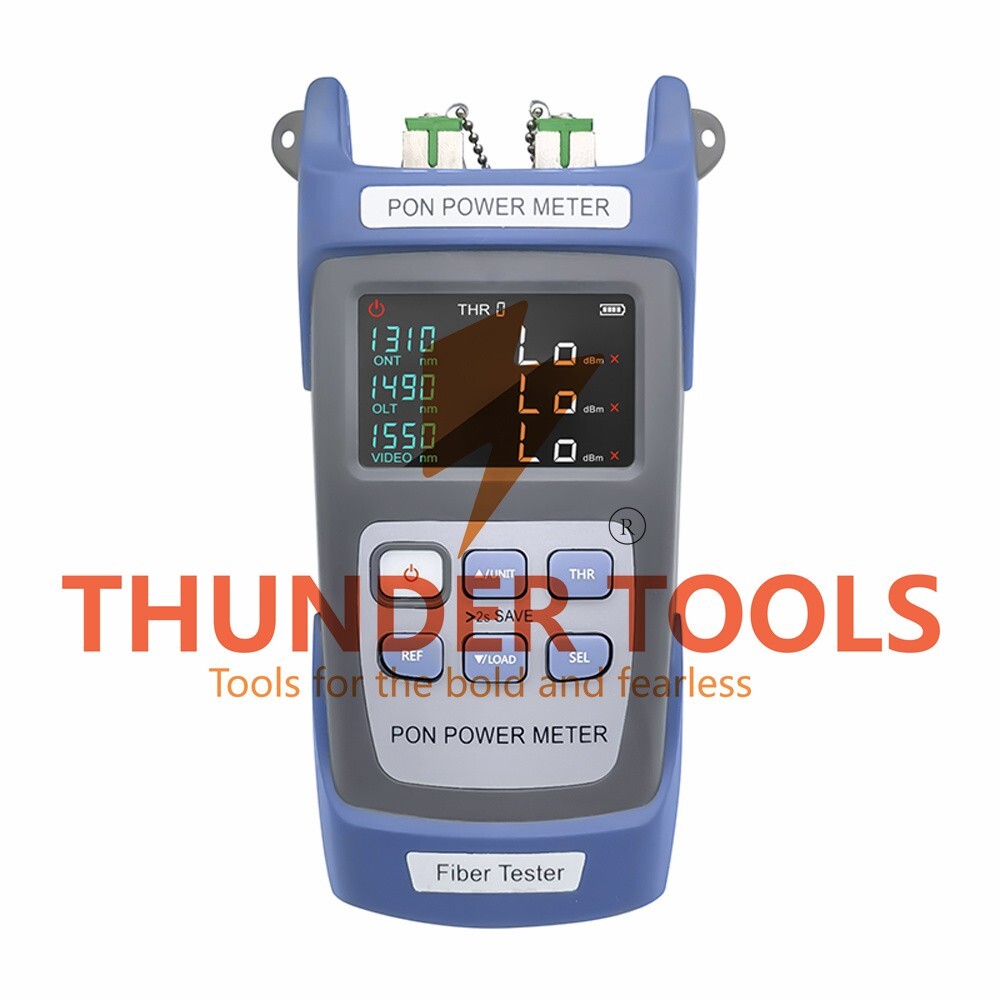

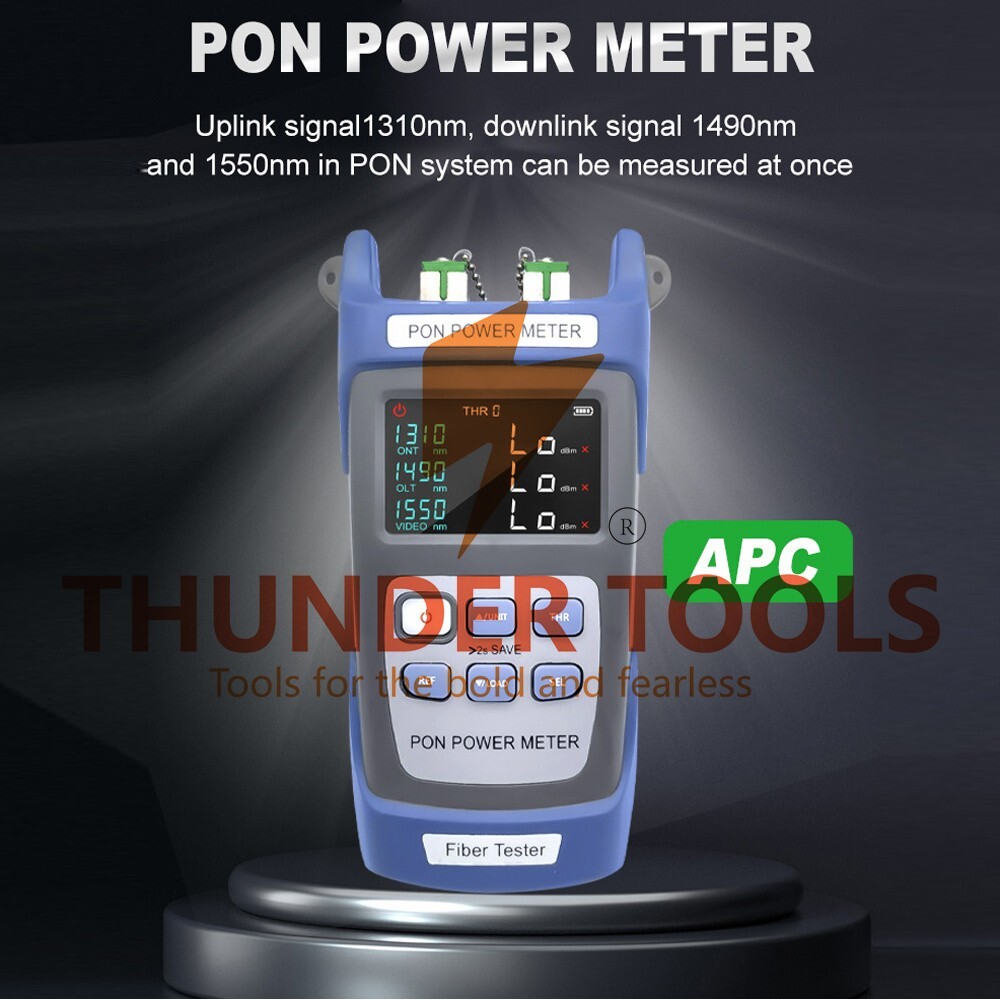

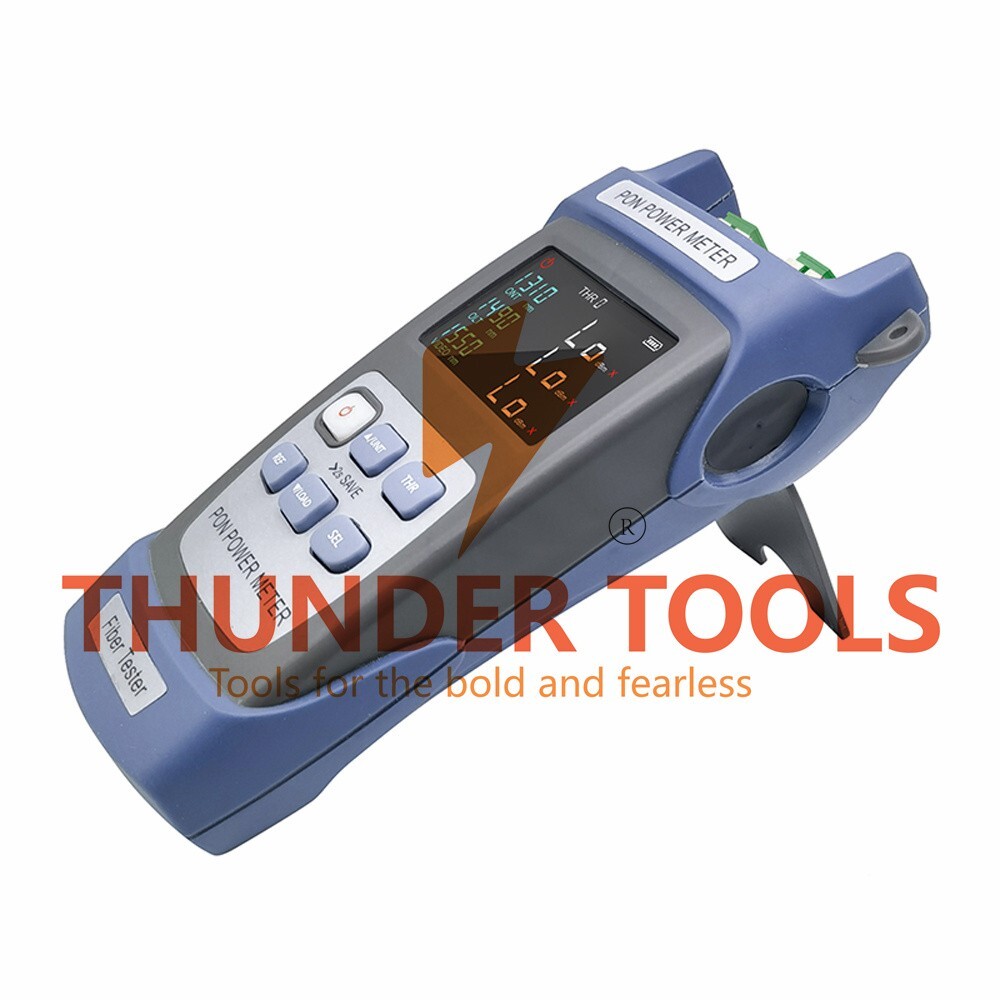

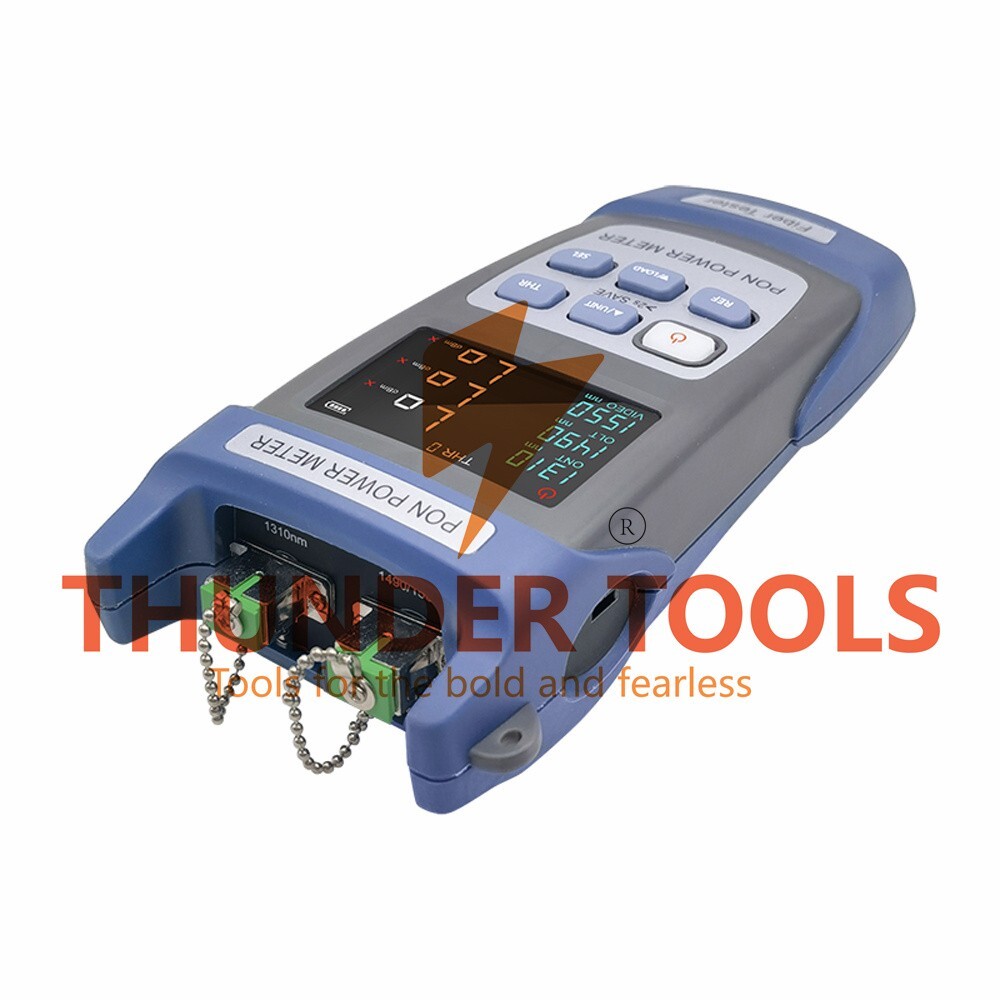

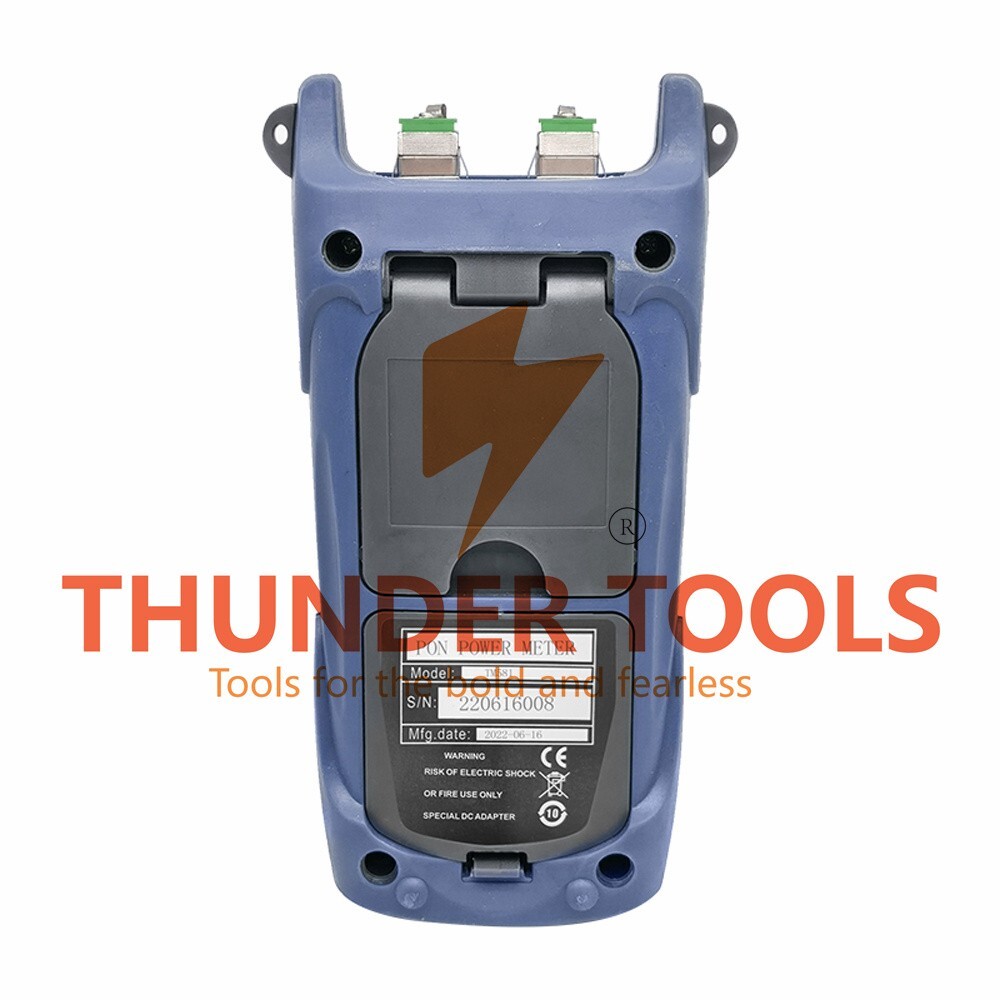

Check the listing for details. Thunder Tools Handheld PON Power Meter Optical Fiber Tester Network Ten. Condition: New. Listed at 80.21 USD. Support ten data storage, in the test interface, long press V/LOAD to save the current power value, short press V/LOAD to enter the saved value view mode. Simultaneous testing of 1310nm uplink signal 1490nm and 1550nm downlink signal in PON system.
