| Brand | TOPDON |
|---|---|
| Manufacturer Part Number | 100% Original TOPDON Rlink X3 |
| OBD Interface | OBDII |
| Connectivity | USB |
| Supported System | Engine, Transmission, BMS, ABS, DPF, EPB, SAS, SRS, TPMS |
| Vehicle Type | Passenger Vehicle |
| Features | Check Engine Light Shut Off, Erases Codes, User Friendly |
| Unit Type | Unit |
| Unit Quantity | 1 |
| Item Weight | 141 g(4.97 oz) |
| Housing | Reinforced plastic housing |
| Dimensions | 92 * 48 * 24mm (3.62 * 1.89 * 0.95 inch) |
| Working Temperature | -10 ℃ ~ 60 ℃ (14 ° F to 122 ° F) |
| Storage Temperature | -20 ℃ ~ 70 ℃ (-4 ° F to 158 ° F) |
| CPU | ARM Cortex-M4F 32-bit |
| Diagnostic interface (Vehicle) | SAE-J1962 Standard OBDII Diagnostic interface |
| Wired interface (PC) | 2-in-1 USB Port (Type-C & USB) |
| Indicator Light | 2 LED Indicators: Communication, Power |
| Operating Voltage | 9 ~ 18V |
| Driver Management | Rlink Platform |
| Warranty | 1 Year |

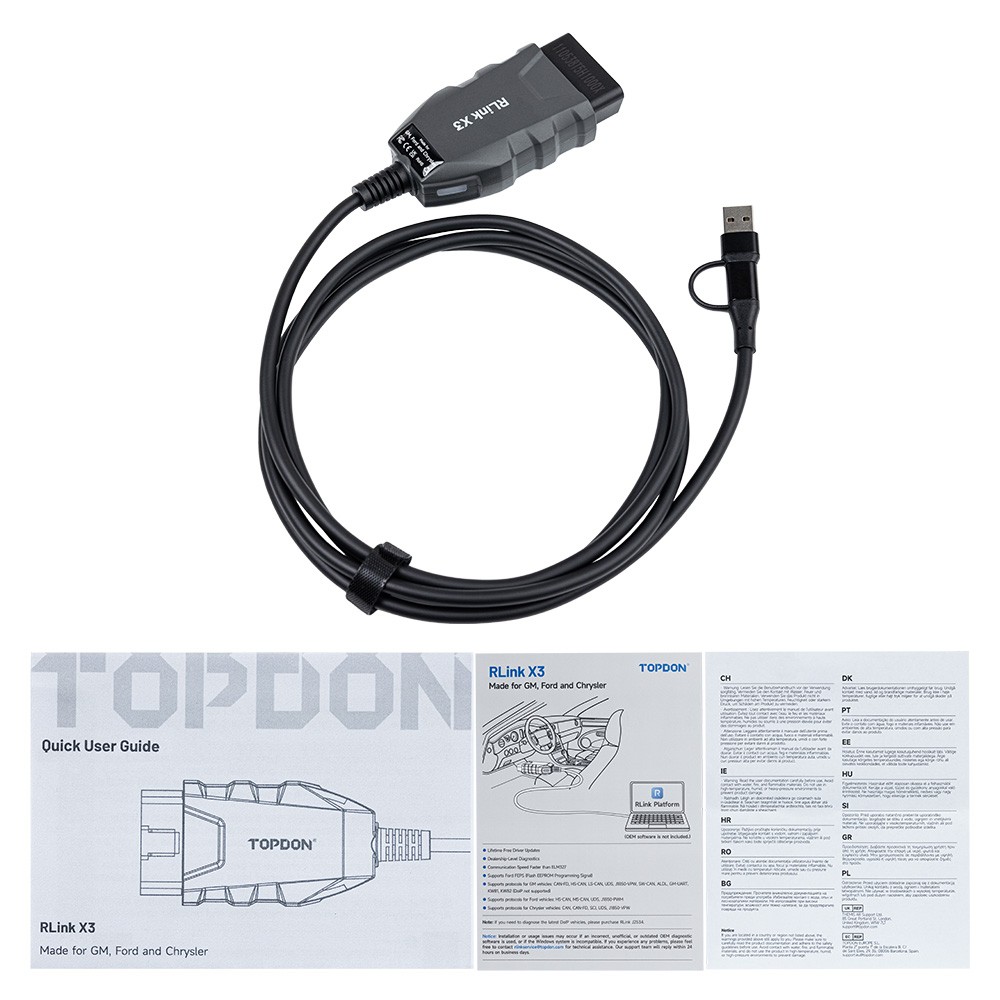

| Accessories | User Guide |
| 🏆Coverage 1 | Ford (Forscan), GM, Chrysler |
| Feature | Support the latest automotive diagnostic communication protocol |
| 🥇Function 1 | Support CAN-FD for the latest vehicles |
| 🥇Function 2 | Support GM (TLC/GDS2,Tech2win,SPS) |
| 🥇Function 3 | Support Ford (FJDS/FDRS/Forscan) |
| 🥇Function 4 | Support Chrysler (Witech2.0) |
| 🥇Function 5 | Use the subscribed OE software to flash or program system modules |
| 🥇Feature 6 | All System Diagnostic |
| 🥇Feature 7 | FUll OBD2 Scan Check Engine Smog Check |
| 🥇Feature 8 | One-Click Install OE-supported Drivers |
| Model | TOPDON Rlink X3 |
| Note | Software is not included |
| UPC | 850028162156 |

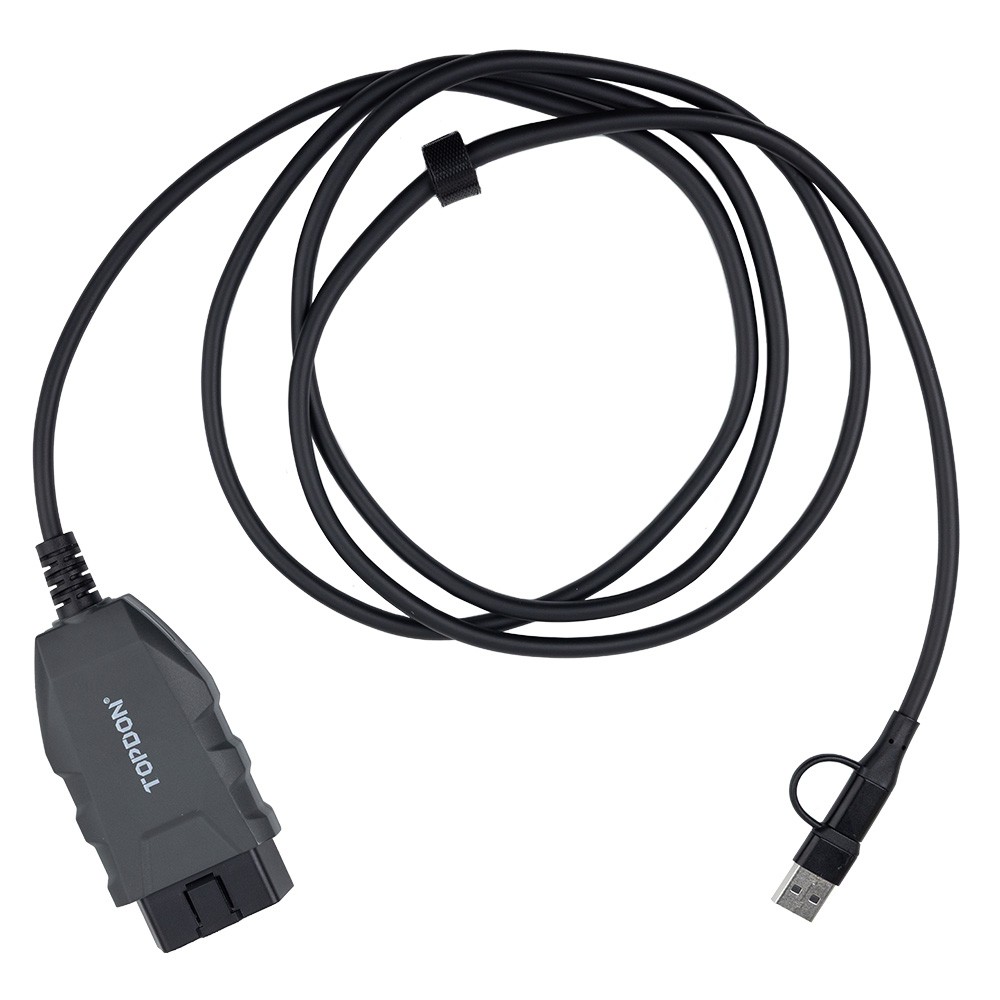

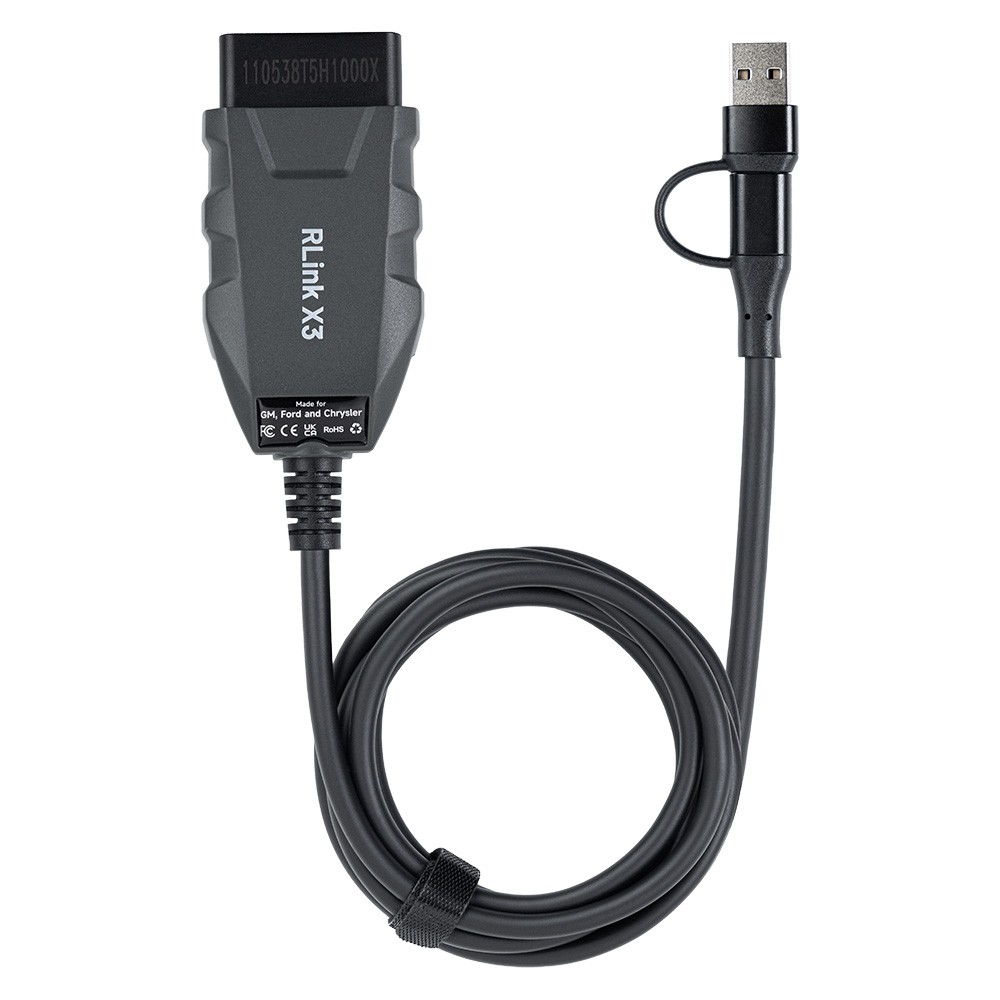

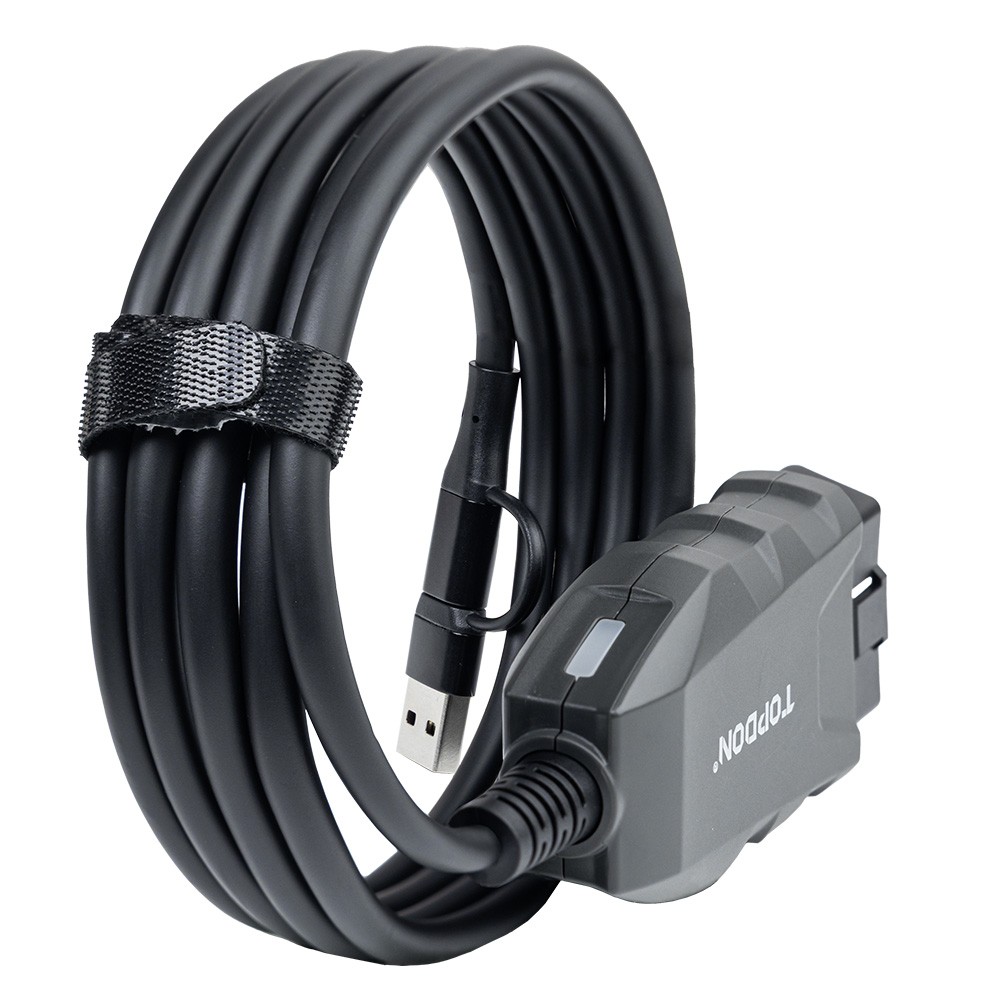

Check the listing for details. TOPDON RLink X3 Reprogramming Tool for GM High-Speed J2534 Pass-Thru Programmer. Condition: New. Listed at 119.99 USD. 1 x TOPDON RLink X3. With J2534 and CAN-FD protocols, it covers vehicles from 2006 to 2025, backed by driver updates for life and U.S.-based support. Supports J2534 and CAN-FD protocols for seamless compatibility with GM, Ford, and Chrysler models from 2006 to 2025.
