Transistor Curve Tracer

Name: Transistor Curve Tracer
SKU: 277923040895
Price: 65.00 USD
Availability: InStock

$32.50

$65.00 -50%

Brand Unbranded

Condition Used

Item ID 277923040895

Brand	Unbranded

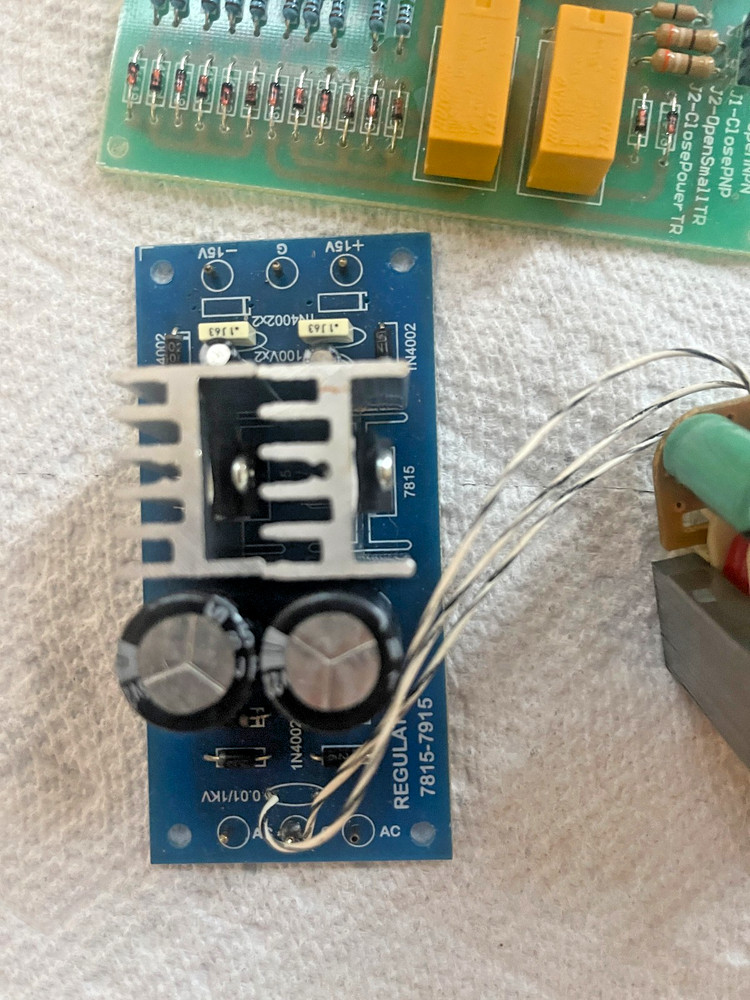

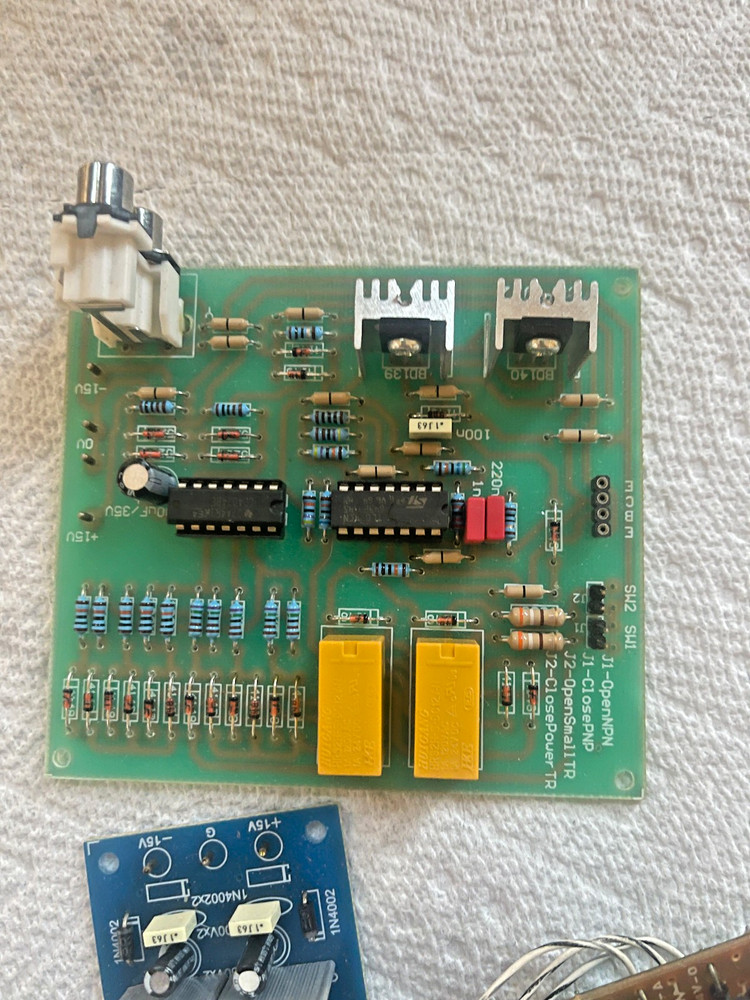

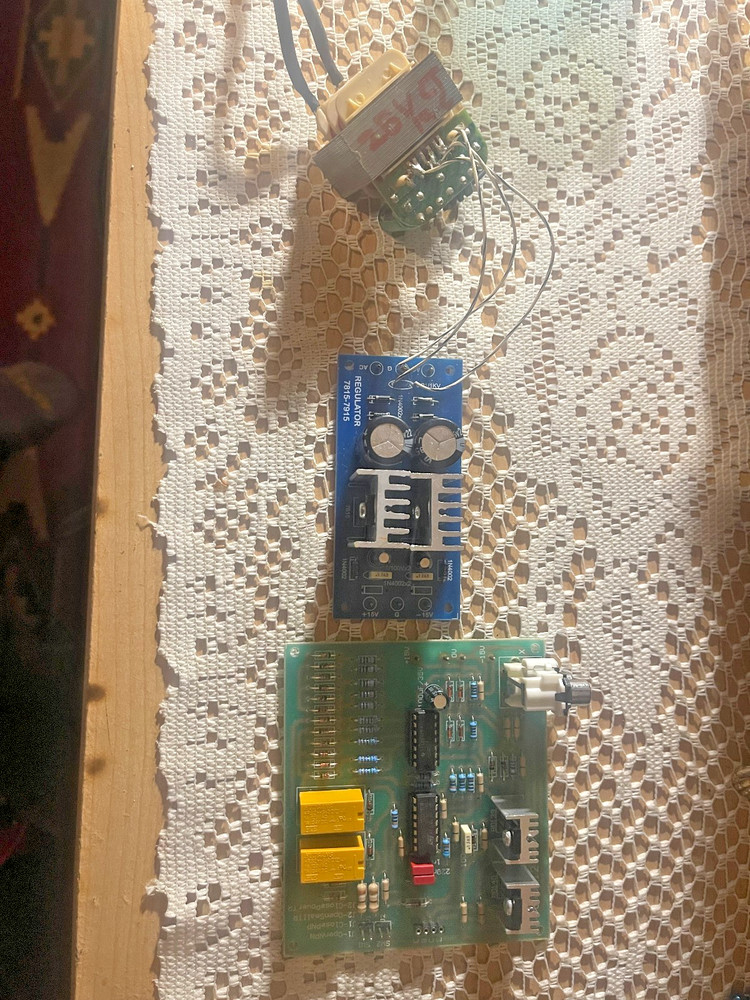

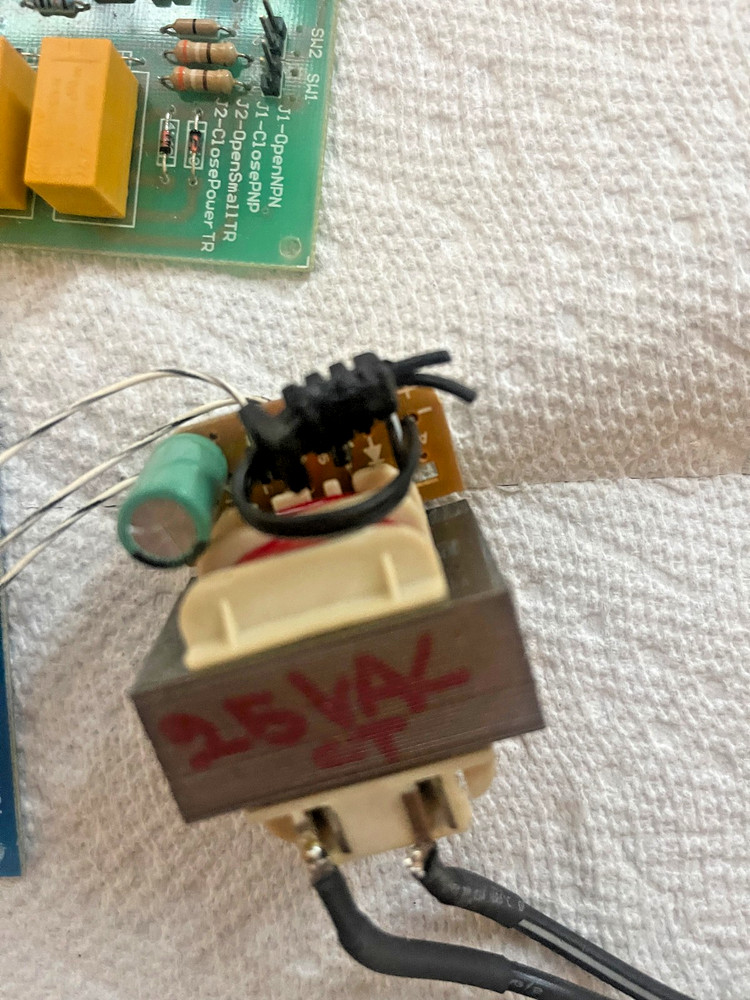

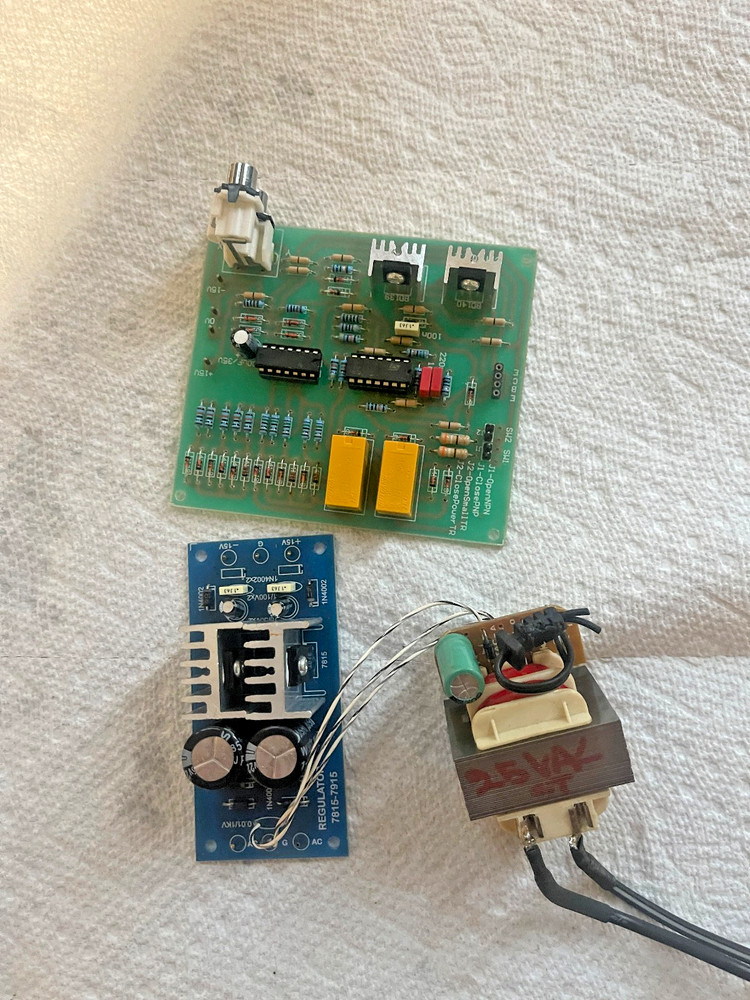

Check the listing for details. Transistor Curve Tracer. Condition: Used. Listed at 65.00 USD. Curve tracer ckt board, regulated power supply, and transformer. Great useful device for matching and testing transistors. Included stepdown transformer and regulated +15 -15 volt DC supply. Will check power transistors as well as small transistors. 8 step 0 to 168 micro amps in 24 micro amp increments for small transistors. 8 step 0 to 2.24 milliamps in 32 milliamp increments. VCE +10v for NPN -10v for PNP Switched at 642 Hz Required: Two channel Oscilloscope capable of X-Y mode operation. Set scope timebase to 500 µs to 1ms. Channel one: 2V /DIV Channel two: 20 to 100mv/DIV
