| DC Voltage Range | 400.0mV/4.000V/40.00V/400.0V/1000V |
|---|---|
| Measuring Capacitance Range | 30nF-300mF |
| Maximum Input Voltage | 1000V |
| Number of Counts | 29999 |
| Dimensions | 204*94*57mm |
| Compatible | Data Hold,Backlight |
| Brand | PEAKMETER |
| Measurement Category | CAT III |
| Form Factor | Handheld |
| Current Range | 400.0µA/4000µA /40.00mA/400.0mA/10.00A |
| Test/Measurement Functions | AC Current, AC Voltage, Capacitance, Continuity Test, DC Current, DC Voltage, Diode Test, Frequency (Hz), Resistance, Temperature, Transistor Test |
| Unit Type | Unit |
| AC Voltage Range | 400.0mV/4.000V/40.00V/400.0V/1000V |
| Features | Auto Power Off, Auto-Ranging, Backlight, Bar Graph Display, Battery Door Access, Fused Current (A) Terminal, Fused Current (mA/uA) Terminal, Low Pass Filter, Over Range Protection, Relative Measurement, Separate Current (mA/uA) Terminal, Shrouded Safety Terminals, Silicone Probe Insulation, True RMS |
| Application | high-resolution digital multimeter |
| Country of Origin | China |
| Display | Digital |
| Resistance Range | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |

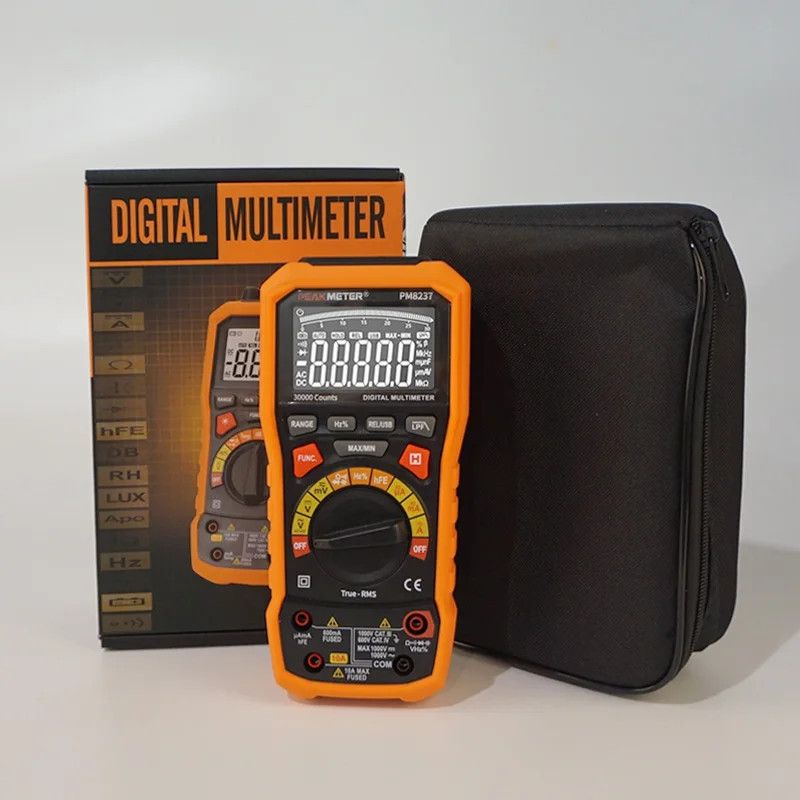

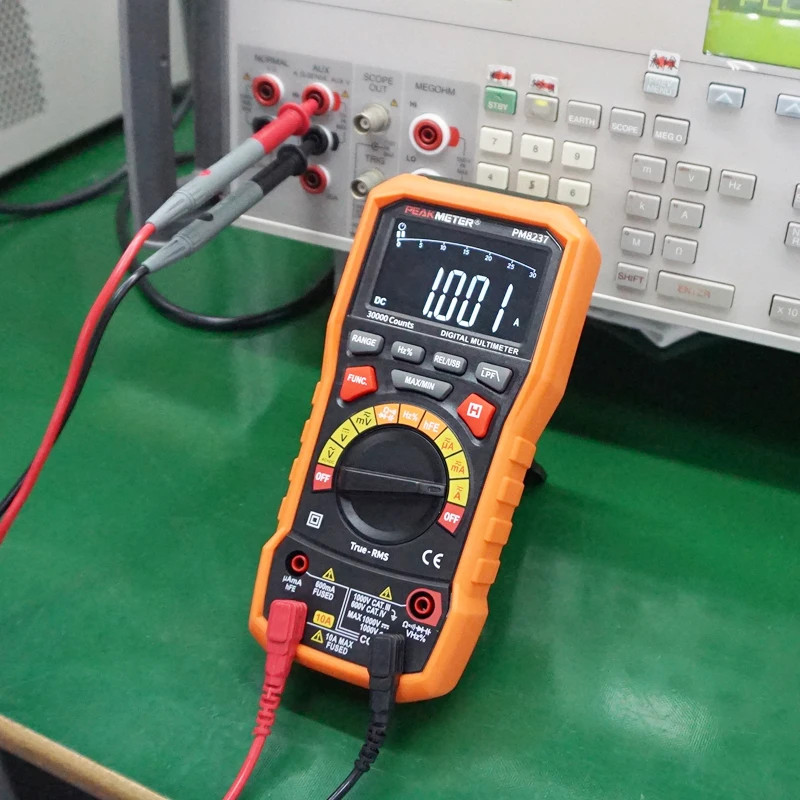

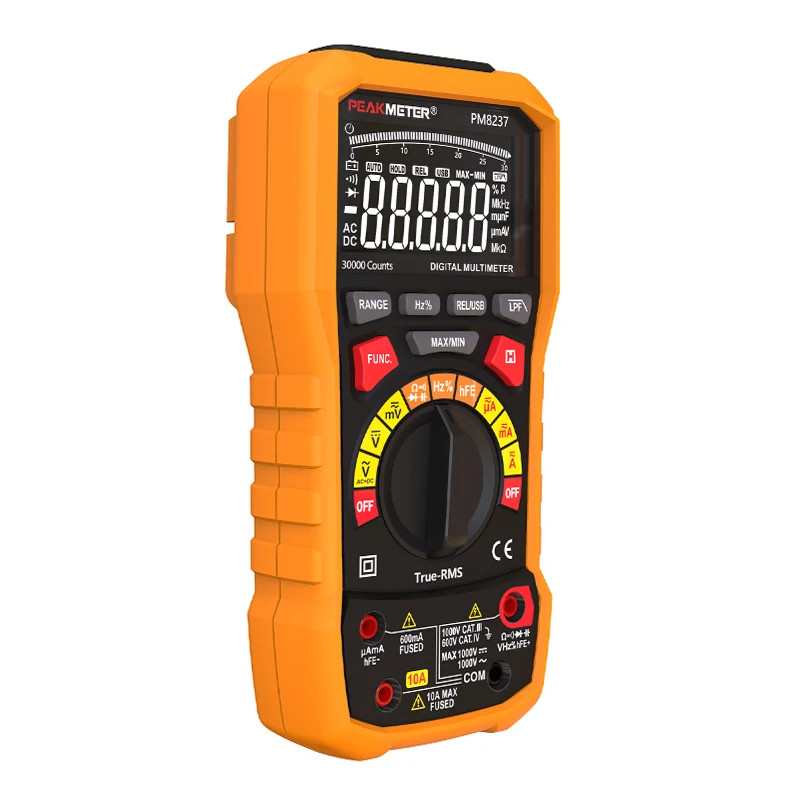

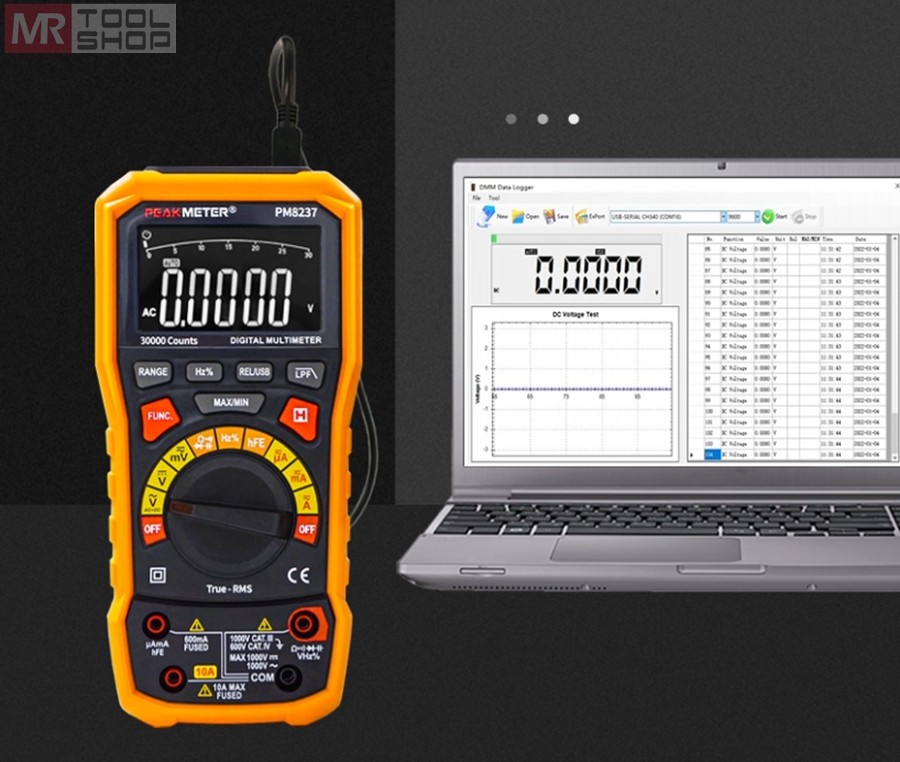

Check the listing for details. True RMS Multimeter 4½ Digital Voltmeter Ammeter LPF VFD Freq Tester USB PC Con. Condition: New, Made in China. Listed at 101.56 USD. The product has a high-definition wide-angle large screen and 30000 counts display which is more convenient for users to obtain accurate readings. 1 USB Cable. ●Combined display of digital and analog bars.
