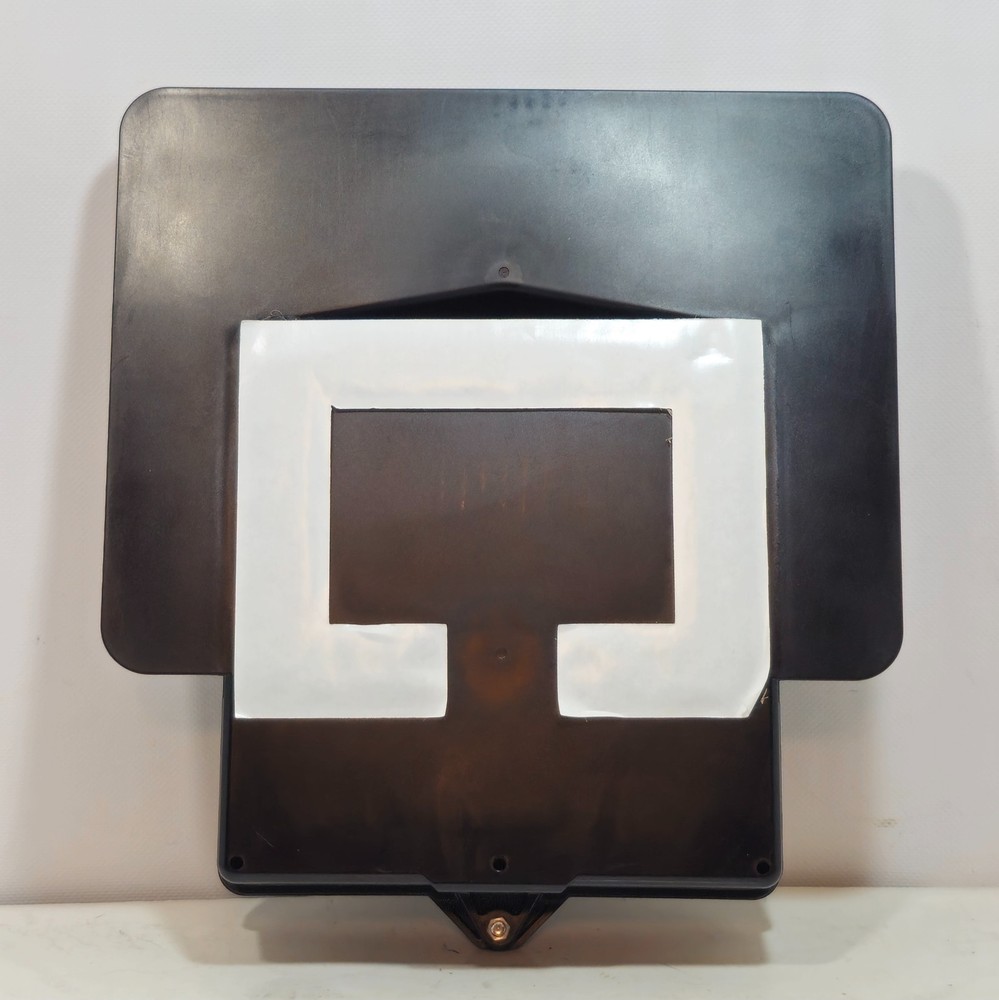

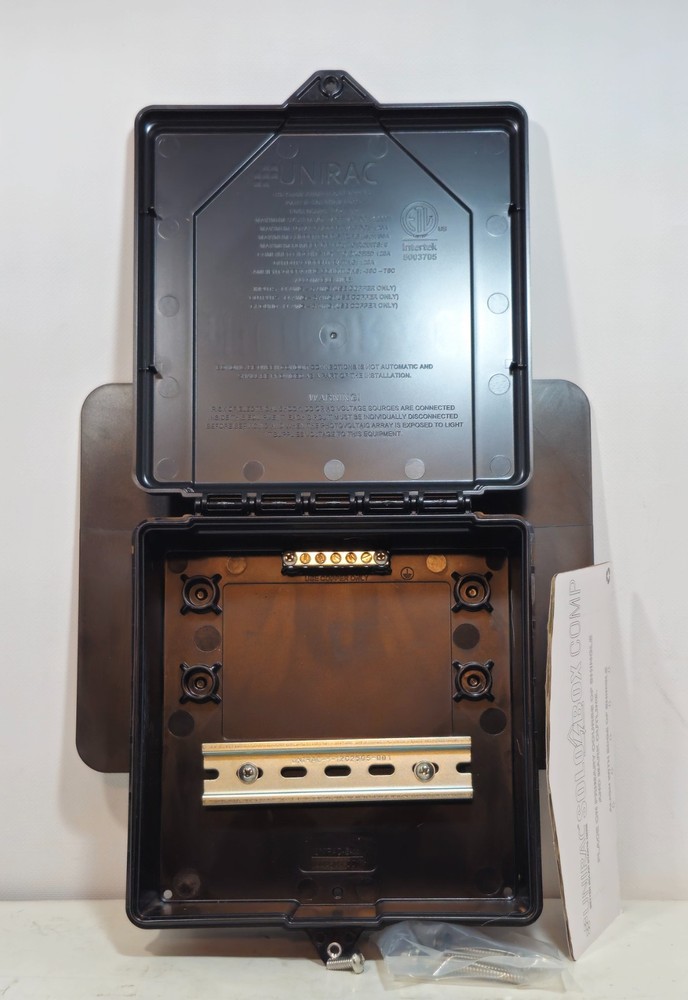

UNIRAC Solobox (junction box)

Name: UNIRAC Solobox (junction box)
SKU: 136776328197
Price: 67.99 USD
Availability: InStock

$34.00

$67.99 -50%

Brand Unirac

Condition Open box

Item ID 136776328197

System Configuration	Can be configured for roof-mounting (comp shingle/roll comp) or r
Power Source	Not applicable; it's an enclosure.
Size	Approx. 8" L x 8" W x 3.5" H (nominal dimensions vary slightly b
Custom Bundle	No
Wattage	Not applicable; it's an enclosure.
MPN	Solobox Comp, SOLOBOX-D
Wire Gauge	Accepts 14 AWG – 6 AWG copper conductors.
Current Type	AC/DC
Voltage	Maximum Voltage: 1000 Volts
Connector Type	Not included; uses standard conduit hubs/fittings (not included)
Features	Hinged lid, single-screw access, integrated flashing/butyl seal,
Protection Properties	NEMA Type 3R enclosure rating (weatherproof)
Non-Domestic Product	No
Maximum Input Voltage	1000V DC
Inverter Technology	Not applicable; it's an enclosure.
Color	Black
Current Rating	Maximum Current: 120 Amps (60A max per circuit)
Material	PC/ASA (a durable plastic blend) resin, with stainless steel har
Modified Item	No
Brand	Unirac
Type	Electrical Junction Box
Connector Configuration	Accommodates up to (2) conduits running to the attic; side wall f
Model	UNIRAC SOLOBOX FLASHLOC
Recommended Environment	Outdoor, ambient operating conditions -35°C to 75°C.
Resistance Properties	Weatherproof, corrosion-resistant, designed for outdoor durabilit
Charging Mode	ot applicable; it's an enclosure
Application	Pitched roof solar installations (residential and commercial)
Country of Origin	China
Power	Not applicable; it's an enclosure.
Product Line	E-BOSS
UPC	810039362082

Check the listing for details. UNIRAC Solobox (junction box). Color: Black, Condition: Open box, Made in China. Listed at 67.99 USD. UNIRAC Solobox Solar PV Junction Box. MPN (Approx): SOLOBOX-D or SOLOBOX. Includes: (1) Solobox unit and 4 self-drilling mounting screws for optional rail mounting. 1 x New (Open Box) UNIRAC Solobox Junction Box.
