| Edge finder outer diameter | 42mm |
|---|---|
| Probe ball head | φ3 ruby |
| Probe length | standard configuration 30mm |
| Waterproof | IP57 |
| Trigger force | 1N |
| Output mode | NO(Normally Open) |
| Material | 304+7075 |
| Connection method | wired connection distance 3m |
| Name | 3D Edge Finder |
| Brand | RATTMMOTOR |
| Wired transmission distance | 3m |
| Indicator light | Normally closed(lit when triggered) |
| Wired work | YES |
| Clamping length | 25mm |
| Model | wp-500 |
| Repetitive accuracy | 0.001mm |
| Probe safety stroke | XY±15° Z±3mm |
| Country/Region of Manufacture | China |
| Signal allows current | ＜50ma |
| Probe thread | M3 |
| Offline work | YES |
| Clamping diameter | 10mm |

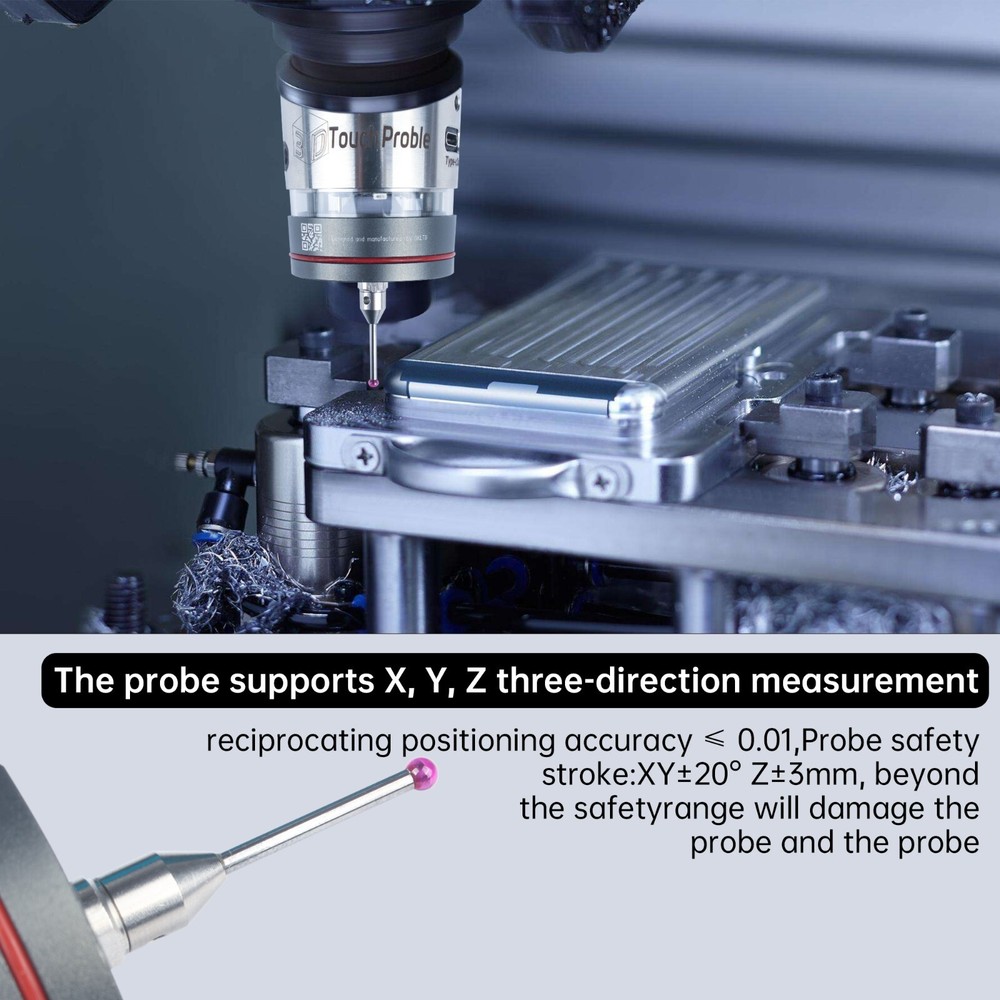

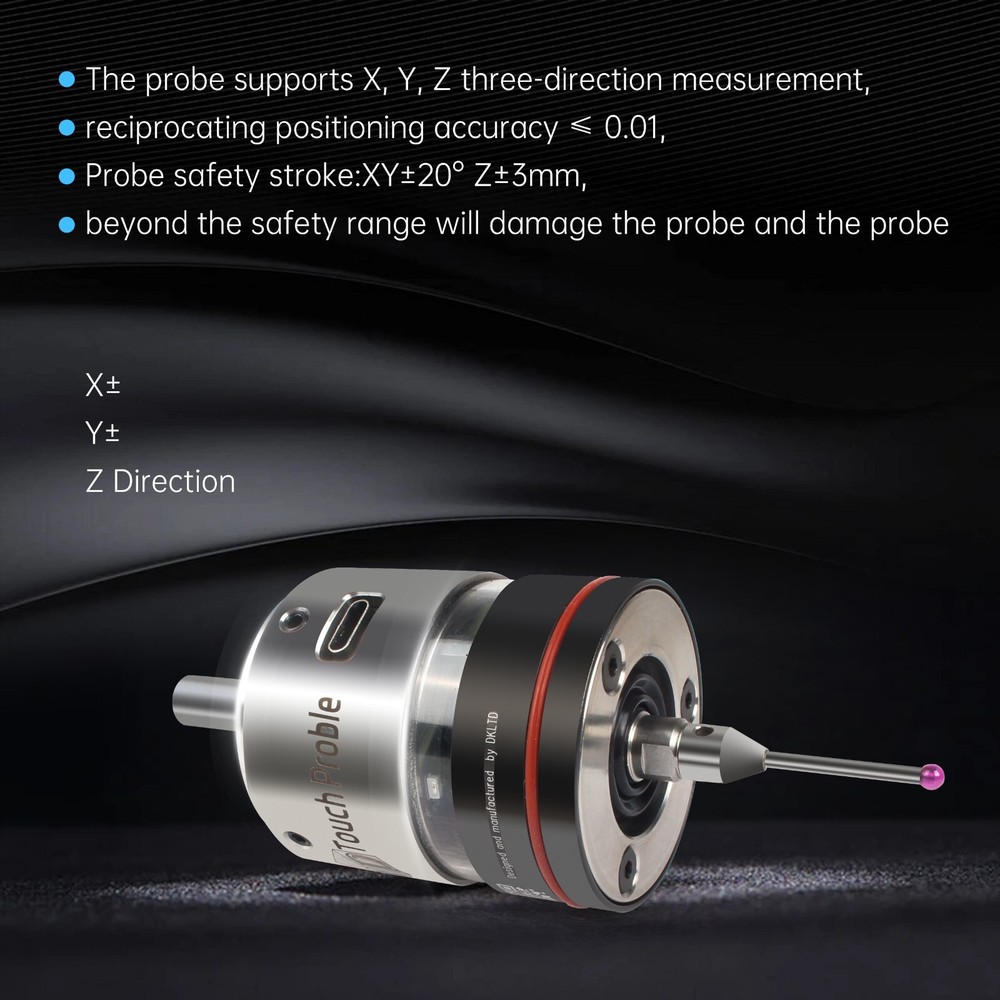

Check the listing for details. 【US】3D Touch Probe, 0.001mm Accuracy CNC Milling Machine 3D Trigger Finder. Condition: New. Listed at 129.00 USD. 【Material】 The 3D viewfinder is made of tungsten steel and aluminum alloy, combining strength and durability with lightweight design to achieve optimal performance. This is a professional CNC probe.
You may also like
$80
Mitutoyo Digimatic Scale, Linear Scale, 572-125, 13" (325mm)
$999.95
Rigibore Smartbore Digital Cartridge Adjuster SB-ADJ187 (LOC31)
$150
NEW Newall 7M Extension Lead with Connector Seal P/N ELD09D0070FL0
$249.99
Fisher Technology MP20E Dualscope w Manual & Case( Missing Probe/ Battery Cover)
$950

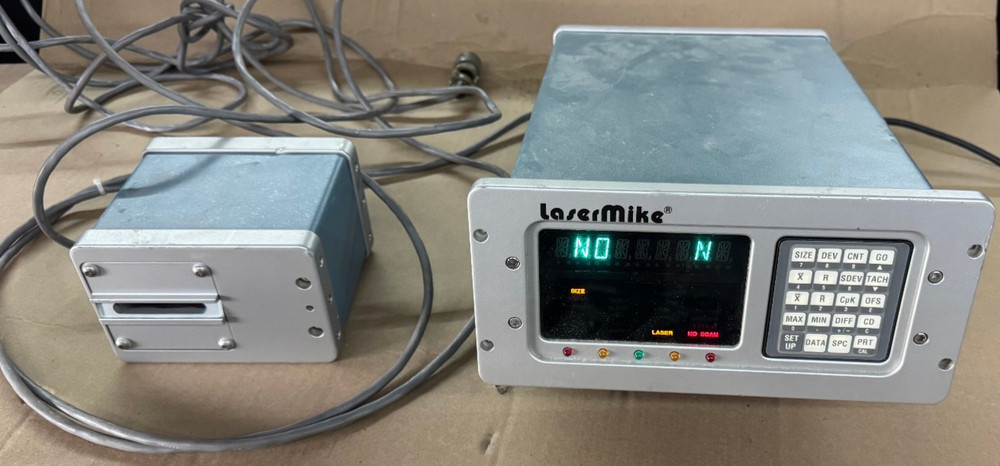

Beta LaserMike Model 501-195 LASER MICROMETER Receiver 2020 Controller Scanner
