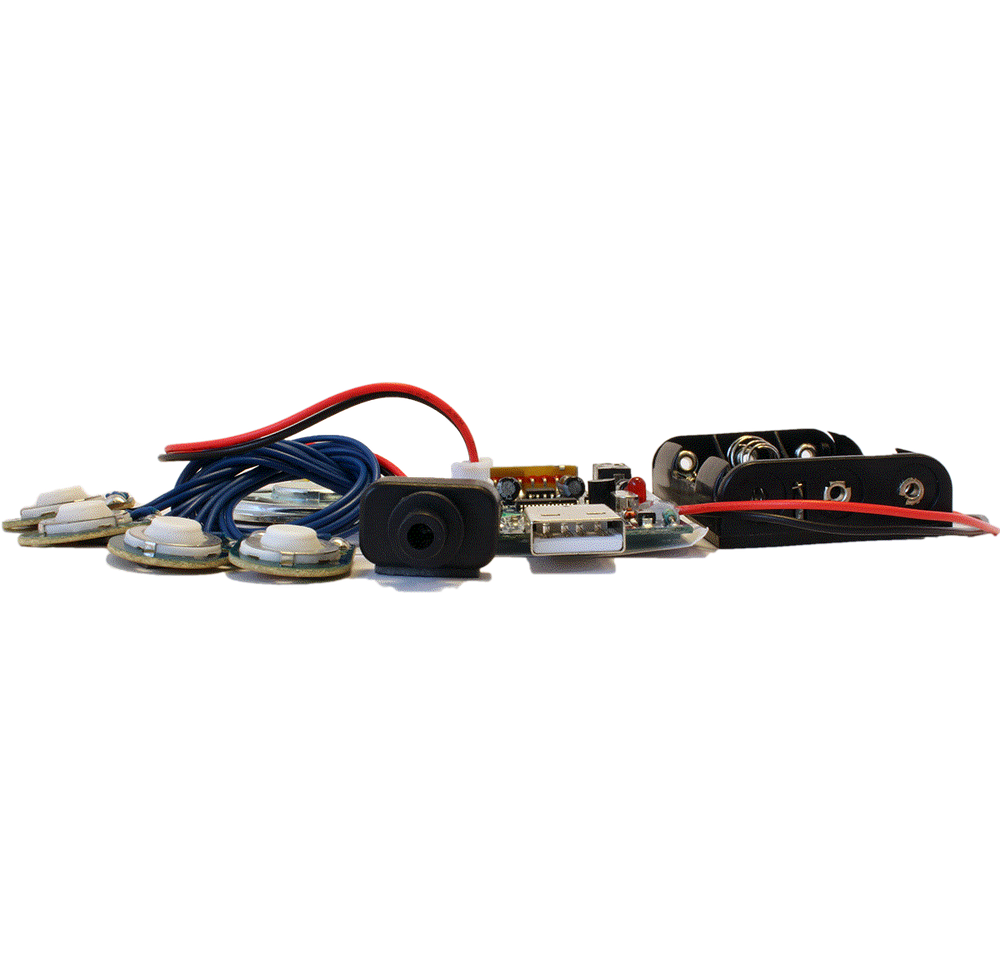

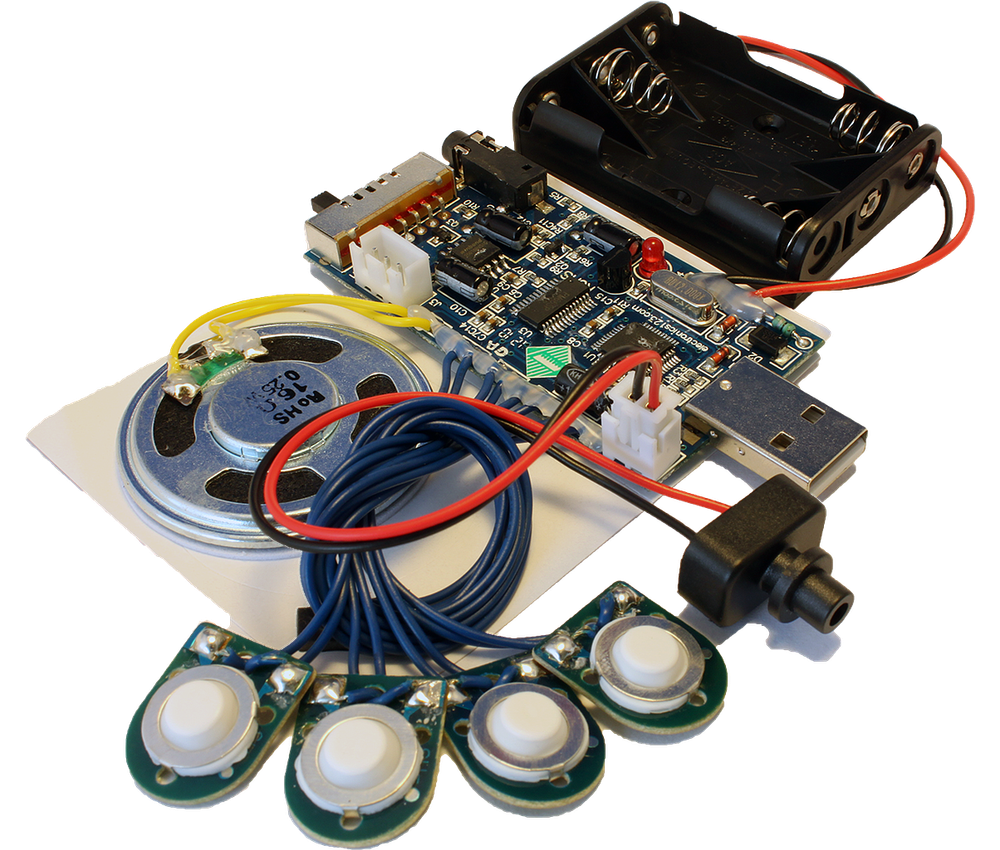

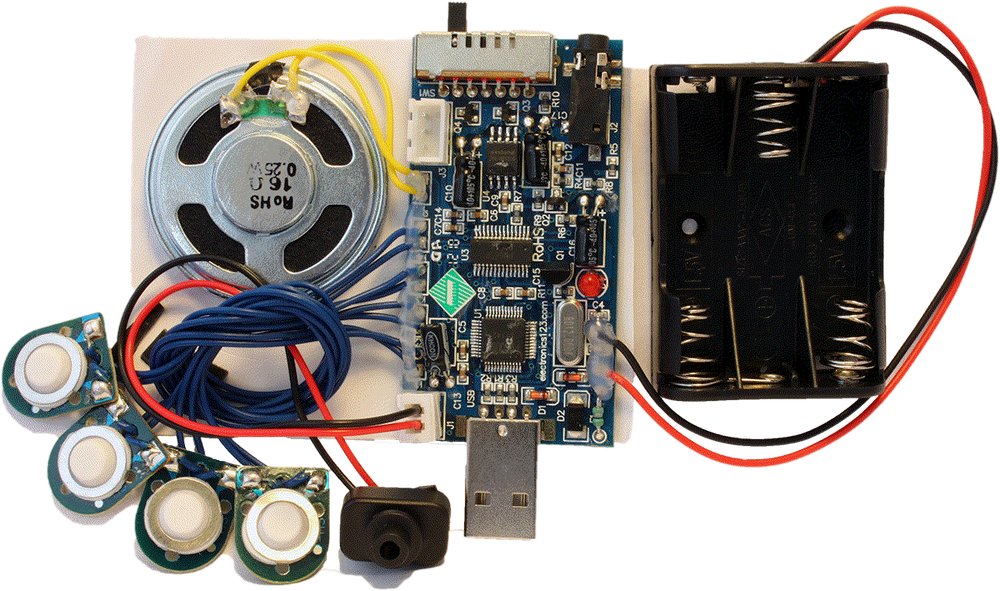

Check the listing for details. USB6M - 300 Second USB Recording Module WITH LIGHT SENSOR and Buttons (W10 an 7). Condition: New. Listed at 25.95 USD. NOW WINDOWS 10 COMPATIBLE! (Needs BOTH the newly redesigned hardware and new software to operate under Windows 10) Description: This module plugs directly into the USB port of your PC. Then use the free software to record up to 300 seconds of .wav and/or .mp3 files to this module over 5 segments. Comes with a speaker and a line out for an additional amplifier or external speakers. Playback can be triggered by any of the following: pressing one of 4 push buttons; or change in light level via the Photo cell light sensor. Features: 300 seconds of re-recordable voice message on 5 segments (4 buttons and one sensor). (4.7K sample rate) Supports up to 4 switches and 2 sensors simultaneously 40mm 0.25W 16ohm metal housing mylar speaker 3.5mm (1/8") mono-audio output Supports multi-section sound Use USB type-A male connect for direct plug in to USB port of PC. Ideal for transferring custom messages for different applications. Adjustable sensitivity for PIR sensor Record sound files from PC with provided software Please click picture and see next page for software operation/download Dimensions: Main Board: Excluding USB connector: 65mm x 35mm Including USB connector & slide switch : 86mm x 35mm Speaker: 40mm (diameter) System Requirements: Unused USB port on computerWindows 10 or earlier Click here for alternative modules that work with Apple Mac3 x AAA Batteries (Not includedSpecifications: IC Function: 300 seconds of re-recordable IC, USB controllerOperation Current: 120mAPlay time: 200 times (with alkaline batteries)Standby Current: 200uA (with motion sensor or PIR sensor)Standby Current: 35uA (no sensors attached)Input / Switch: Push switch (play / stop)LED: LED playing indicatorSpeaker: 40mm metal housing mylar speakerBattery Type: External AAAx3 battery holderDimensions: 34mm x 64mm x 8mm (connector height)40mm mylar speaker3x AAA battery holderThis unit will directly plug into the USB port of your computer. A USB cable is NOT required. However if you do want to plug the unit into a extension USB cable first, you can order our A-male to A-female USB extension cable product number: BB147Additional Details: After you have added your sound files in the PM66Q program make sure to save your settings first by clicking on the "Save file" button, and THEN click the "PM66" button to program your module. (this is different from the previous version hardware where you could program the module directly without saving the configuration file first" NOTE: When using the software for the USB6M, be sure to select "DAC for Ext.AMP" under the Voice Output tab before you program the board. Failing to do so, will make the sound distorted during playback on the module. In Windows 7 the PM66/PM66Q software must be run as administrator by right-clicking on the PM66 icon and then click to "Run as administrator"
