| Roller placement | Vertical paired placement |
|---|---|
| Hardness of press roller surface | HRC62 |
| Maximum pressure | 5T |
| Roller cylindricity | ≤±2μm |
| Roller material | Chromium-molybdenum-vanadium alloy |

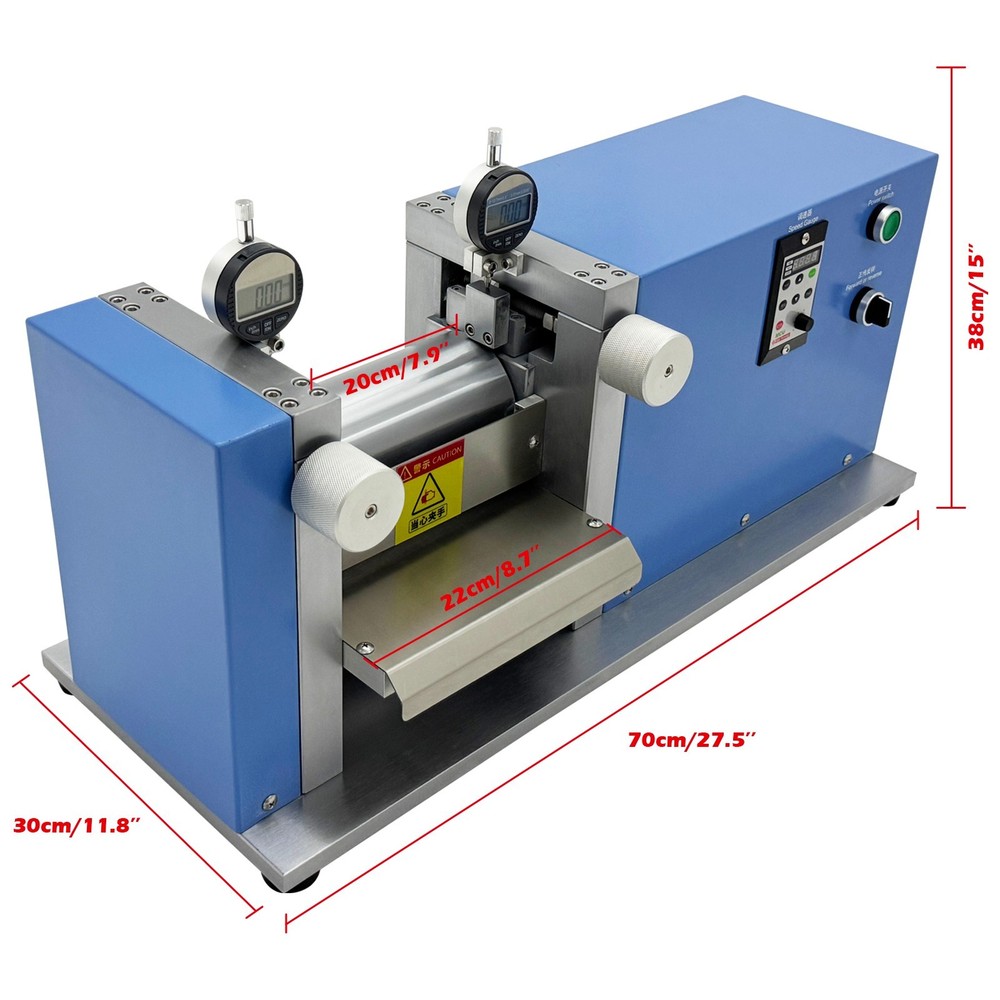

| Maximum working width | 200mm (7.87 inches) |

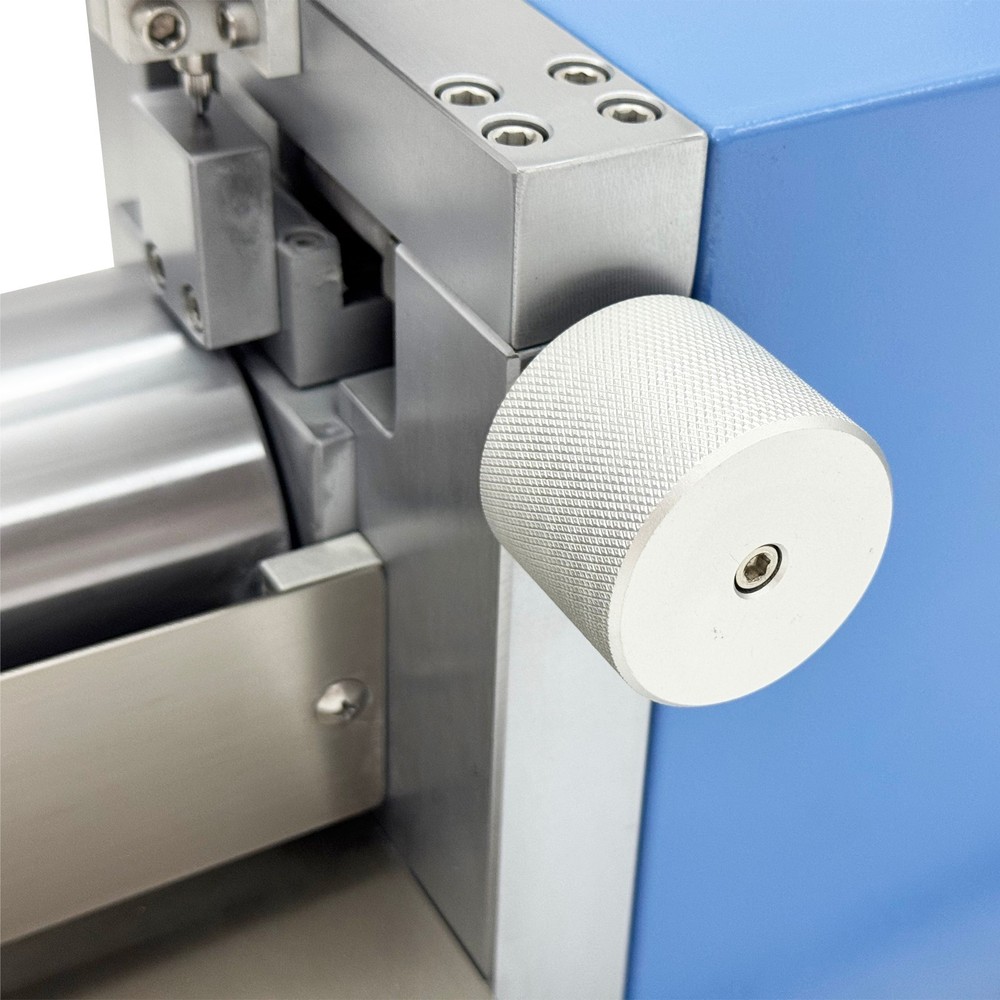

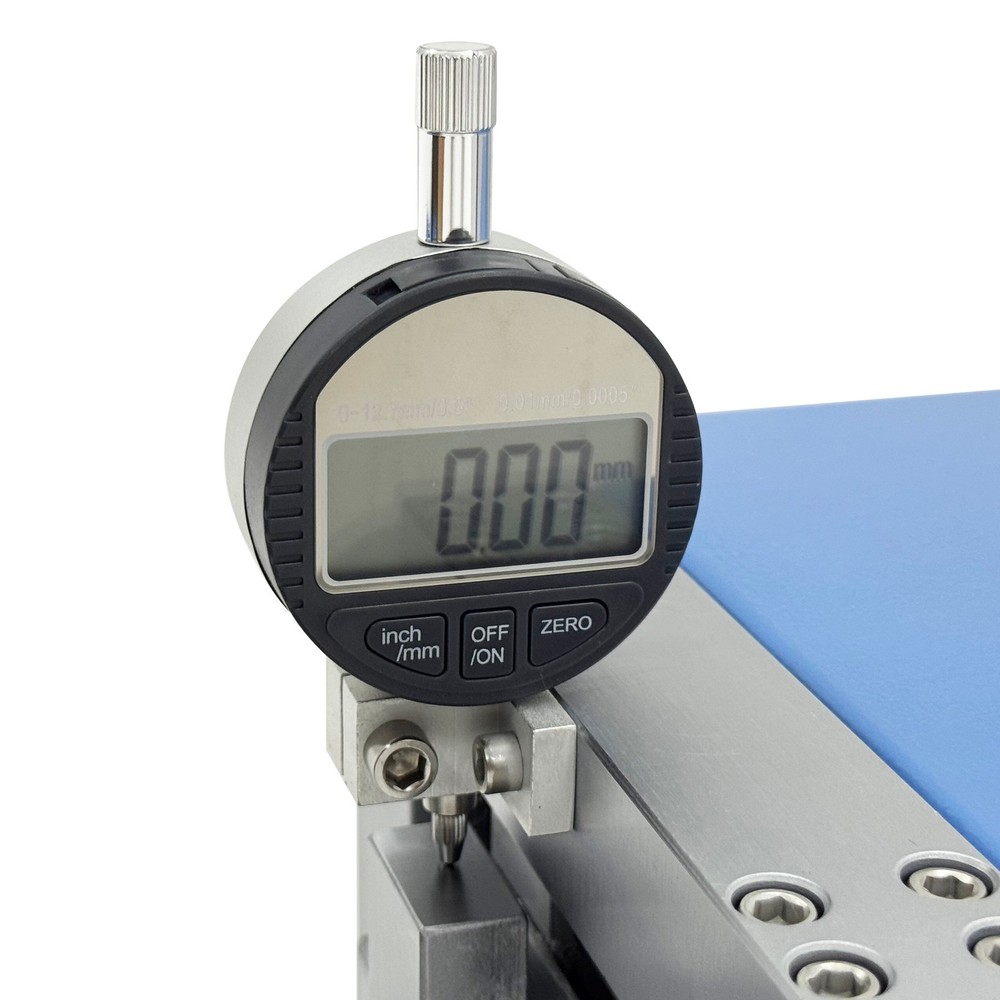

| Effective gap | 0-3mm adjustable |

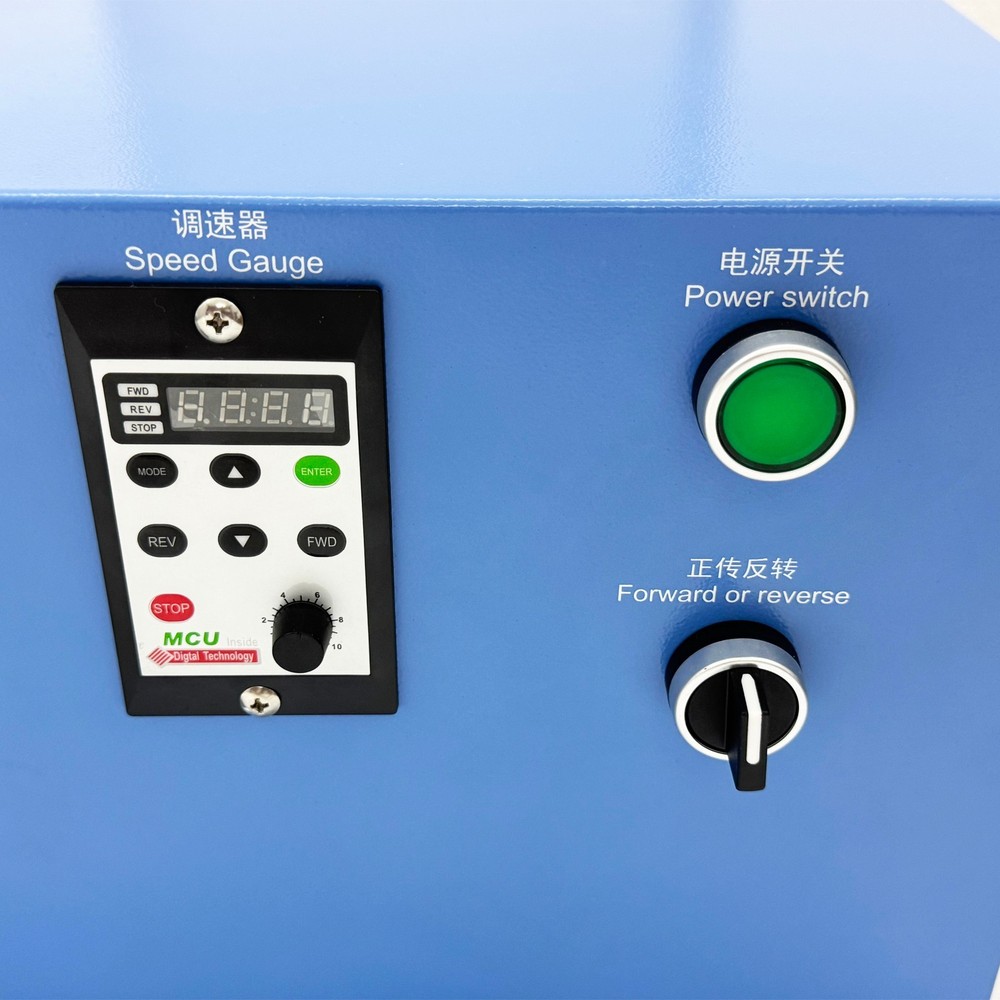

| Working speed | Stepless speed change, linear speed: 0-4.0m/min |

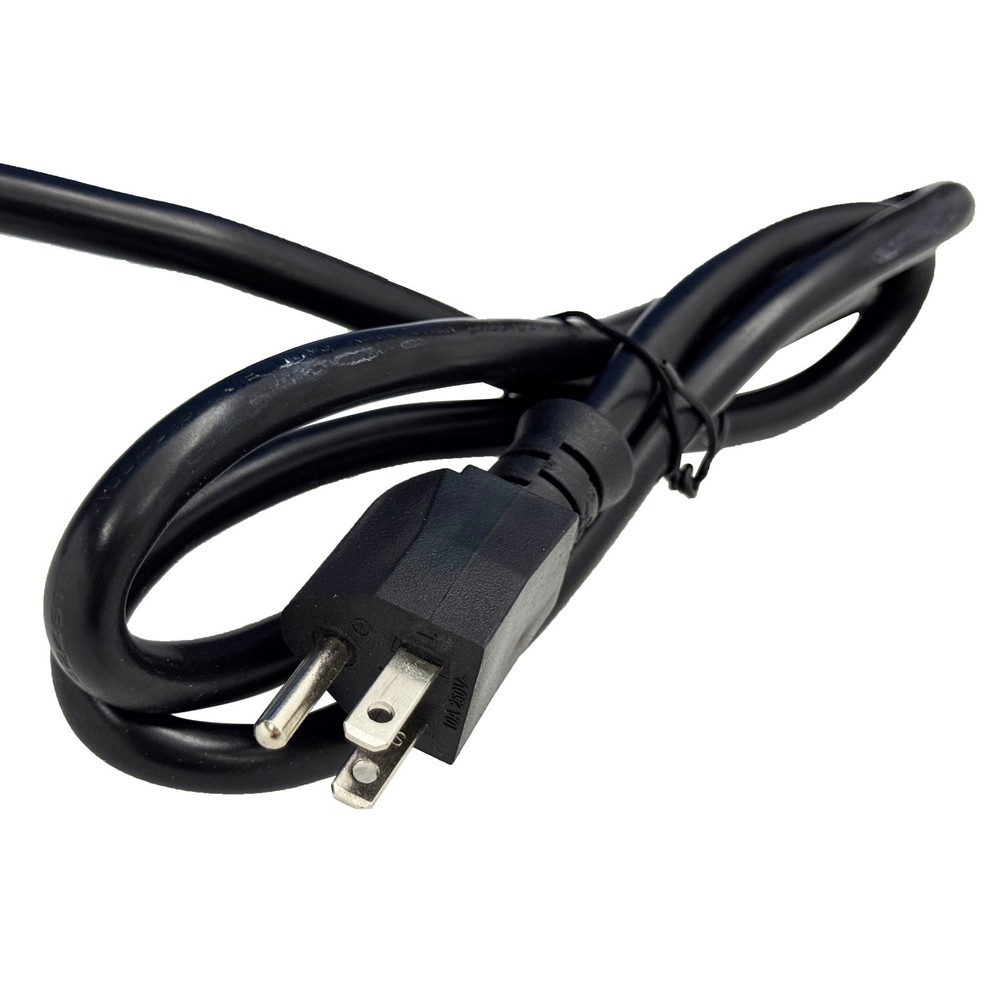

| Working power | 140W 110V |
| MPN | 057260 |
| Quenching depth of roller surface | 5mm (0.19 inch) |
| Brand | BANFLUXION |

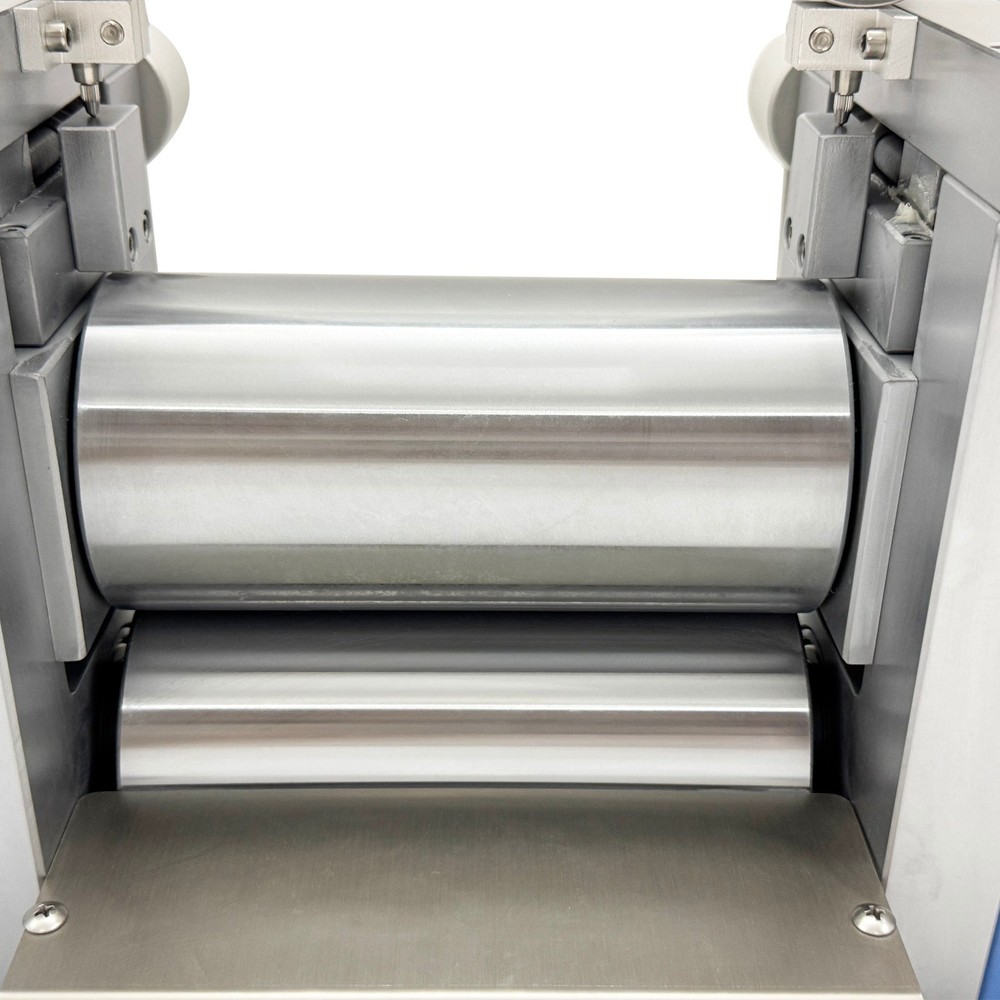

| Roller size | Φ97mm×200mm (Φ3.82x7.87 inches) |
| Roller surface finish degree | 0.8√ |

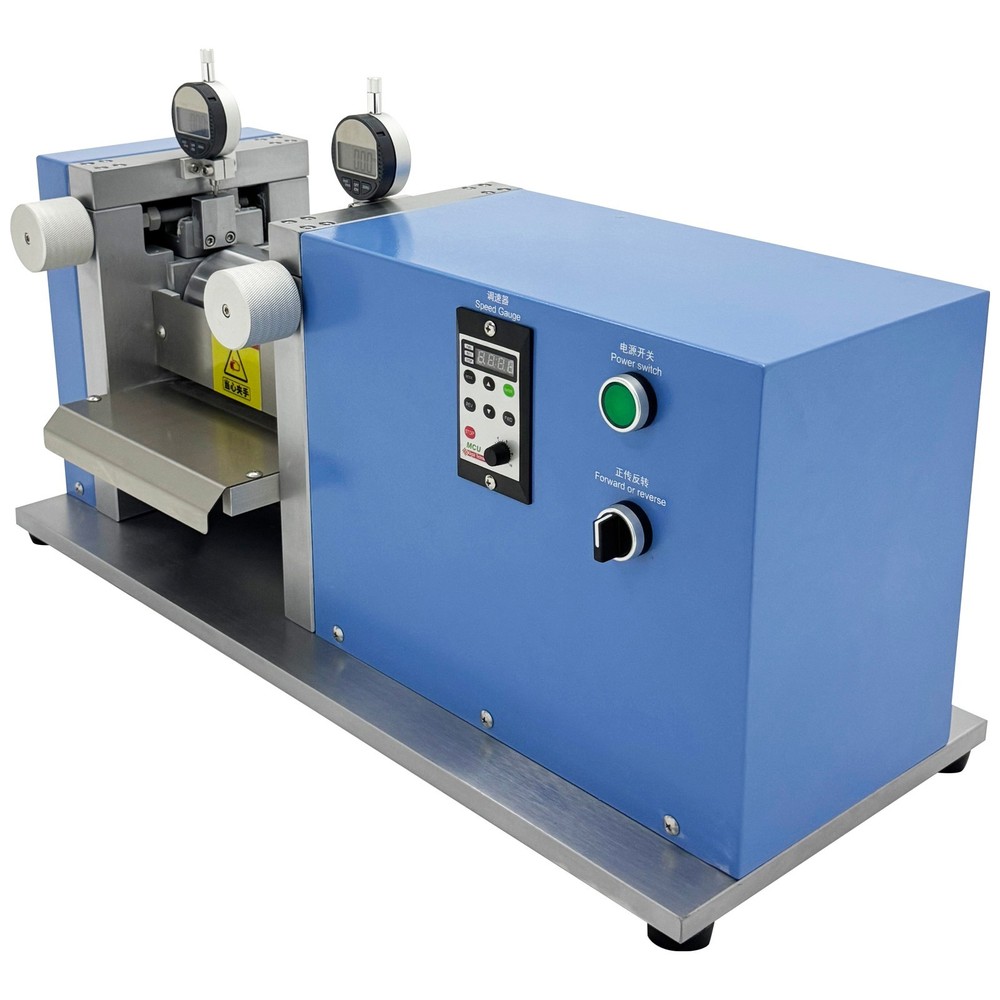

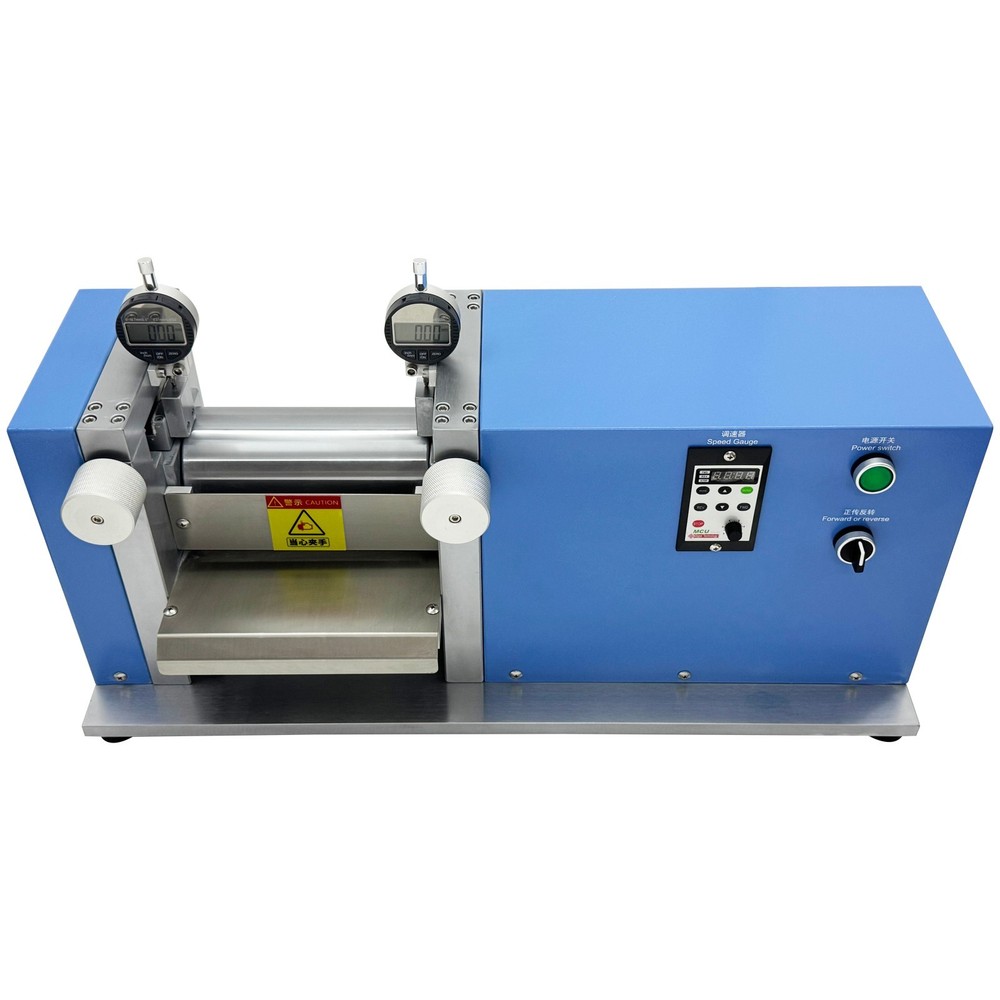

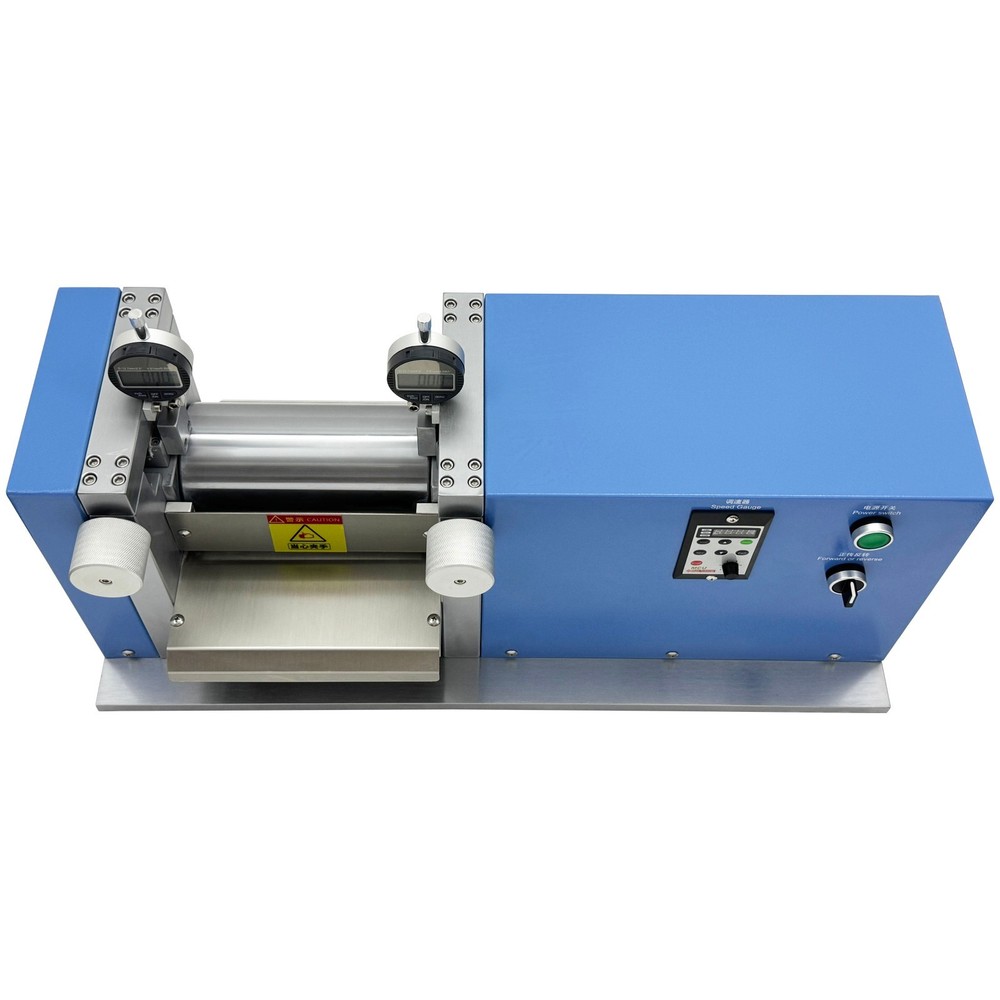

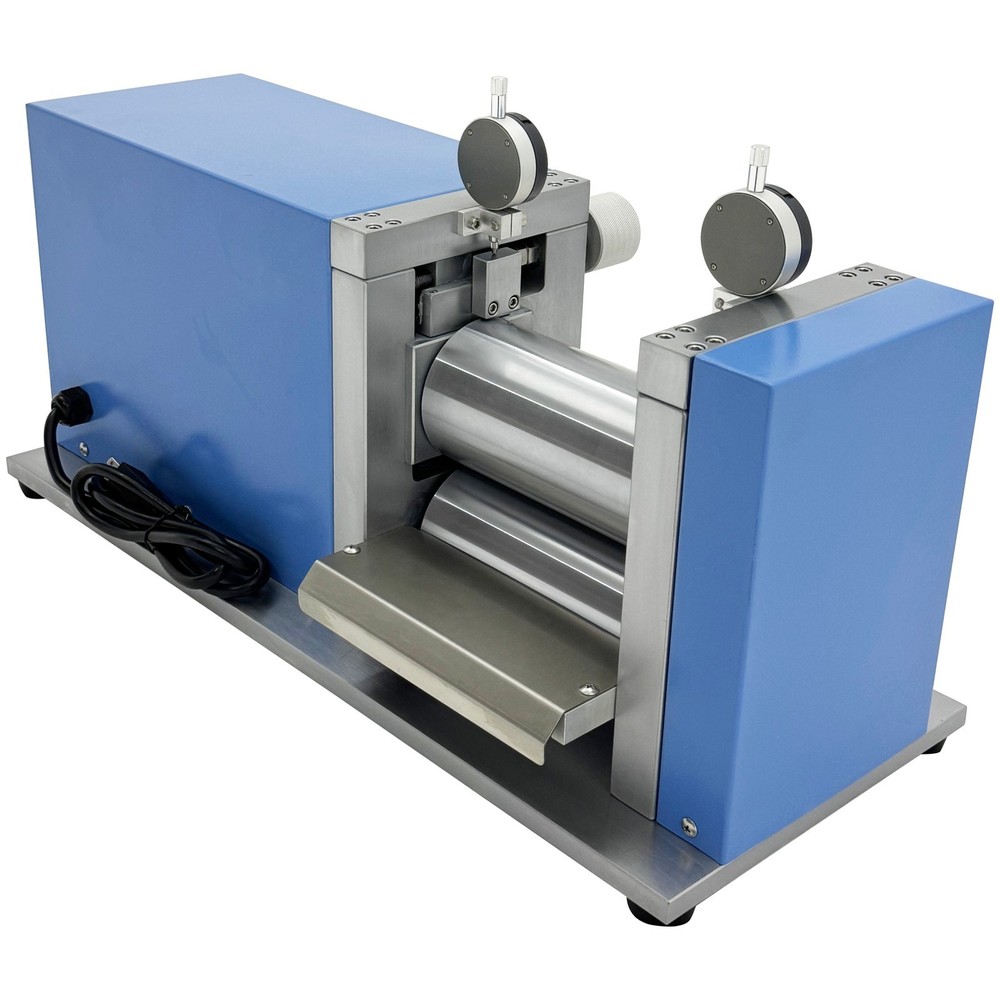

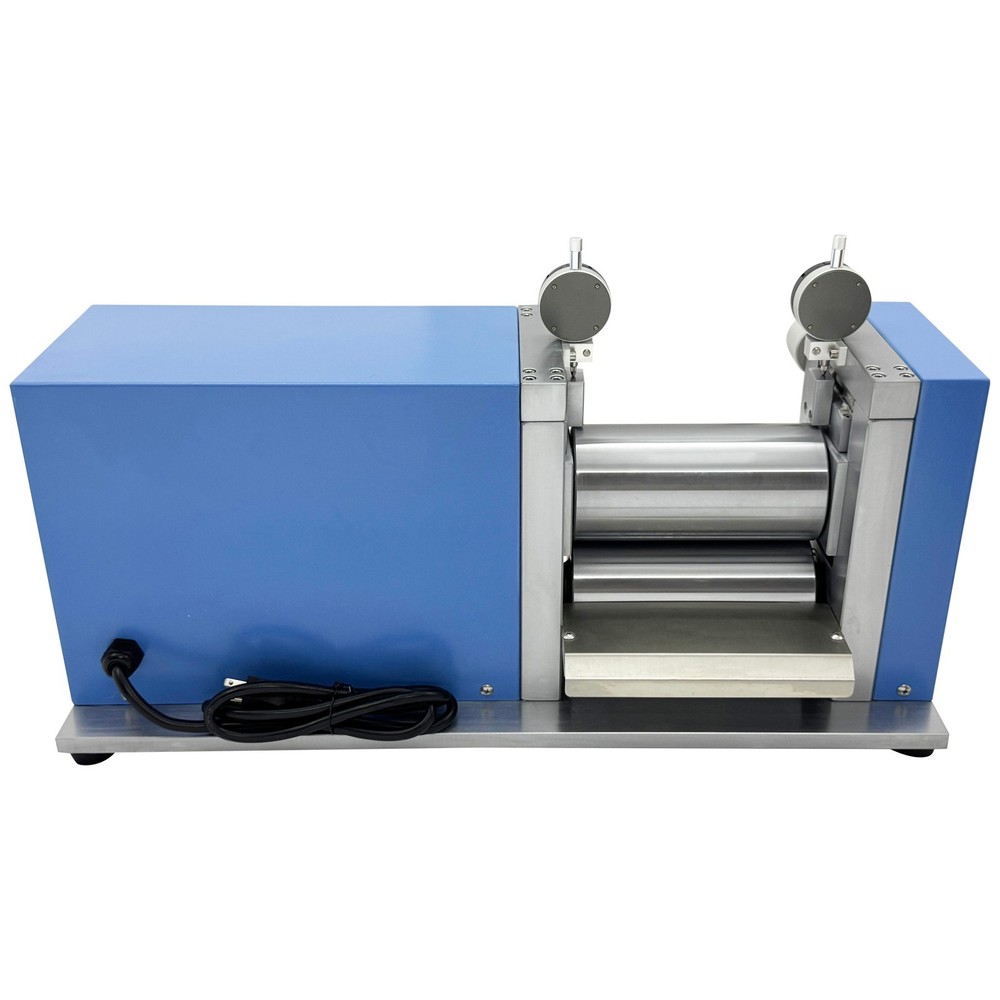

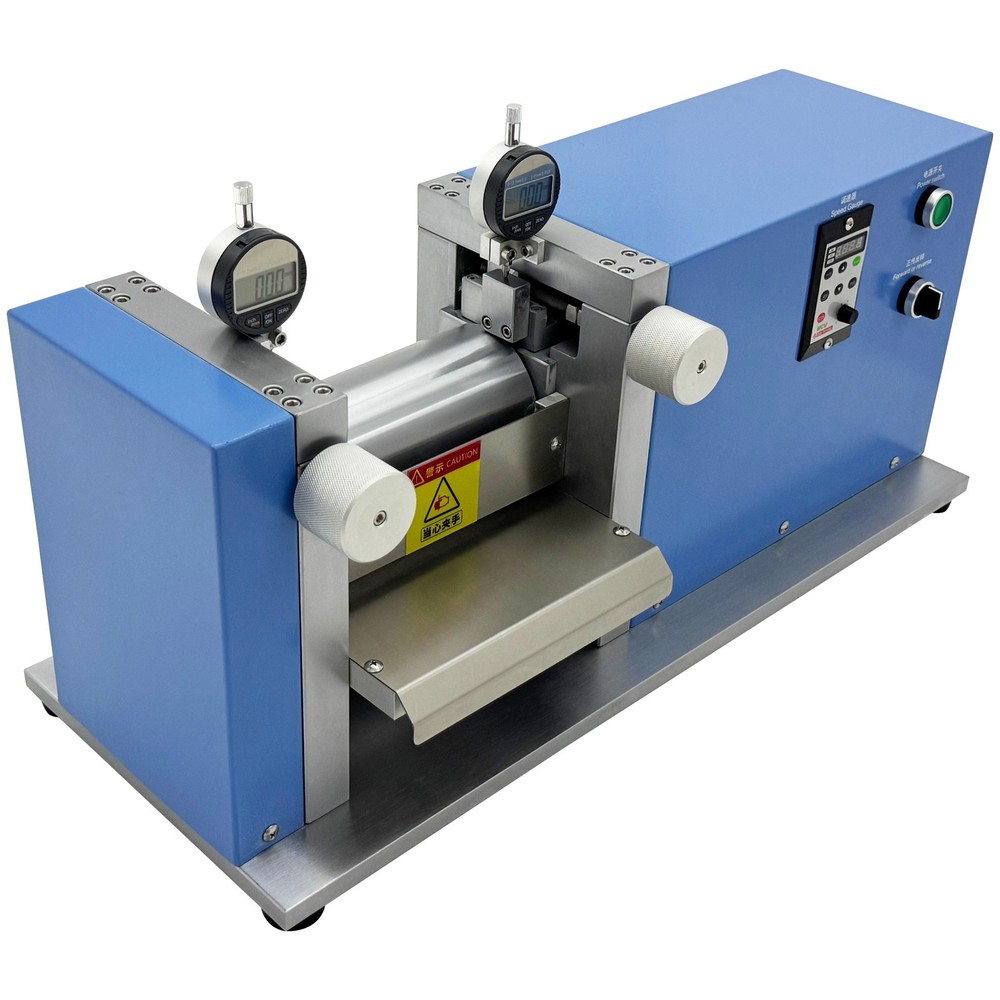

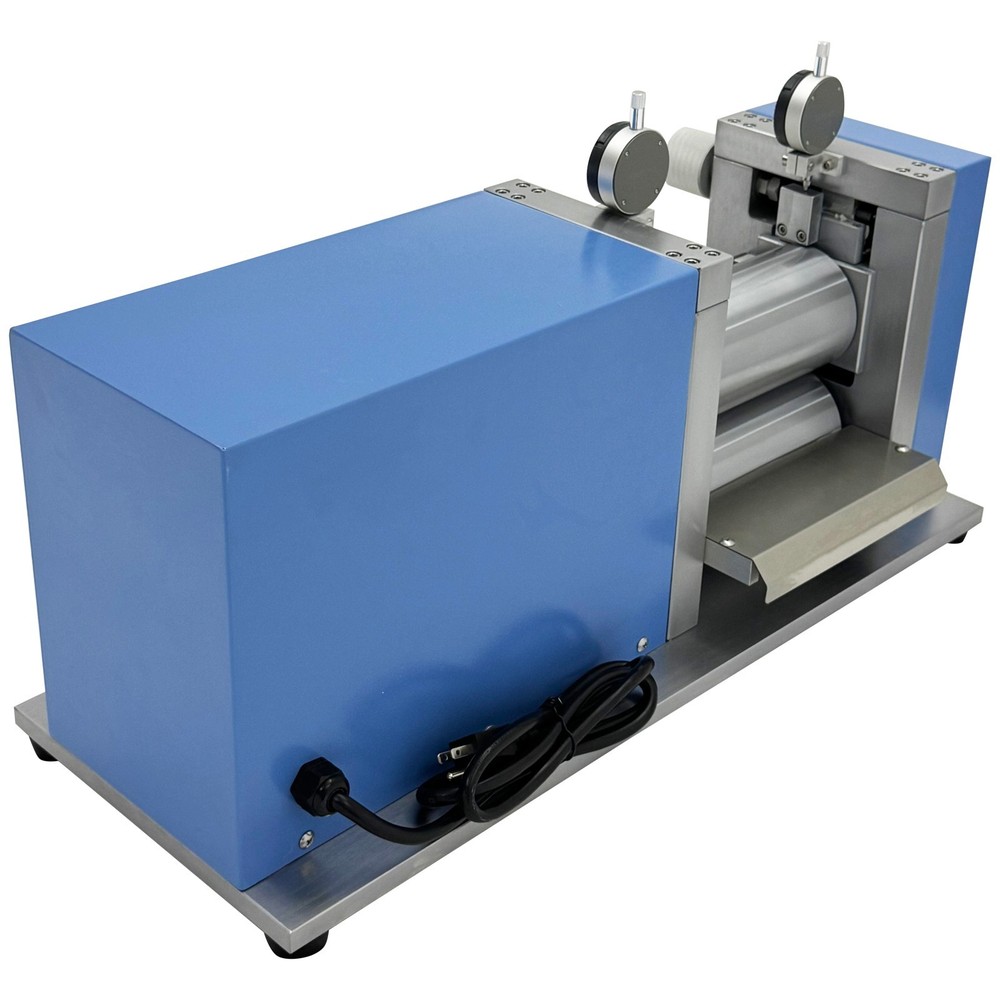

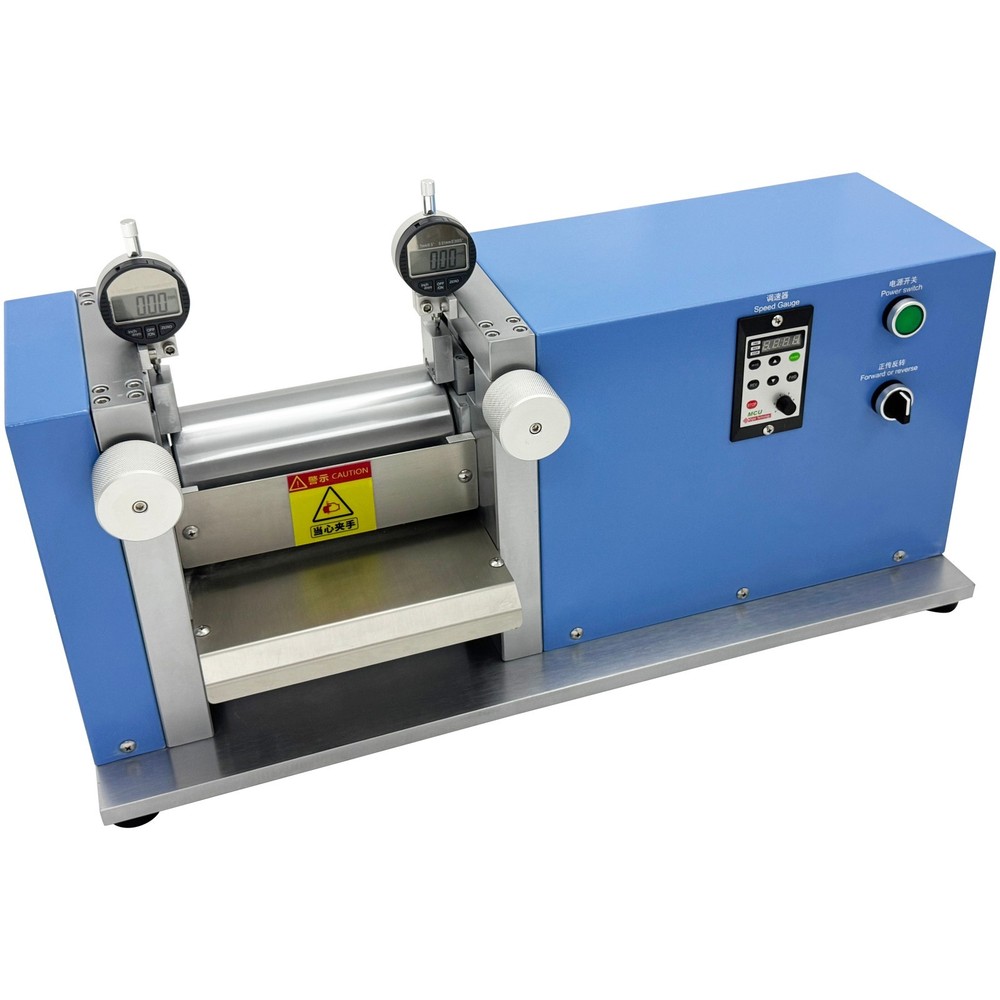

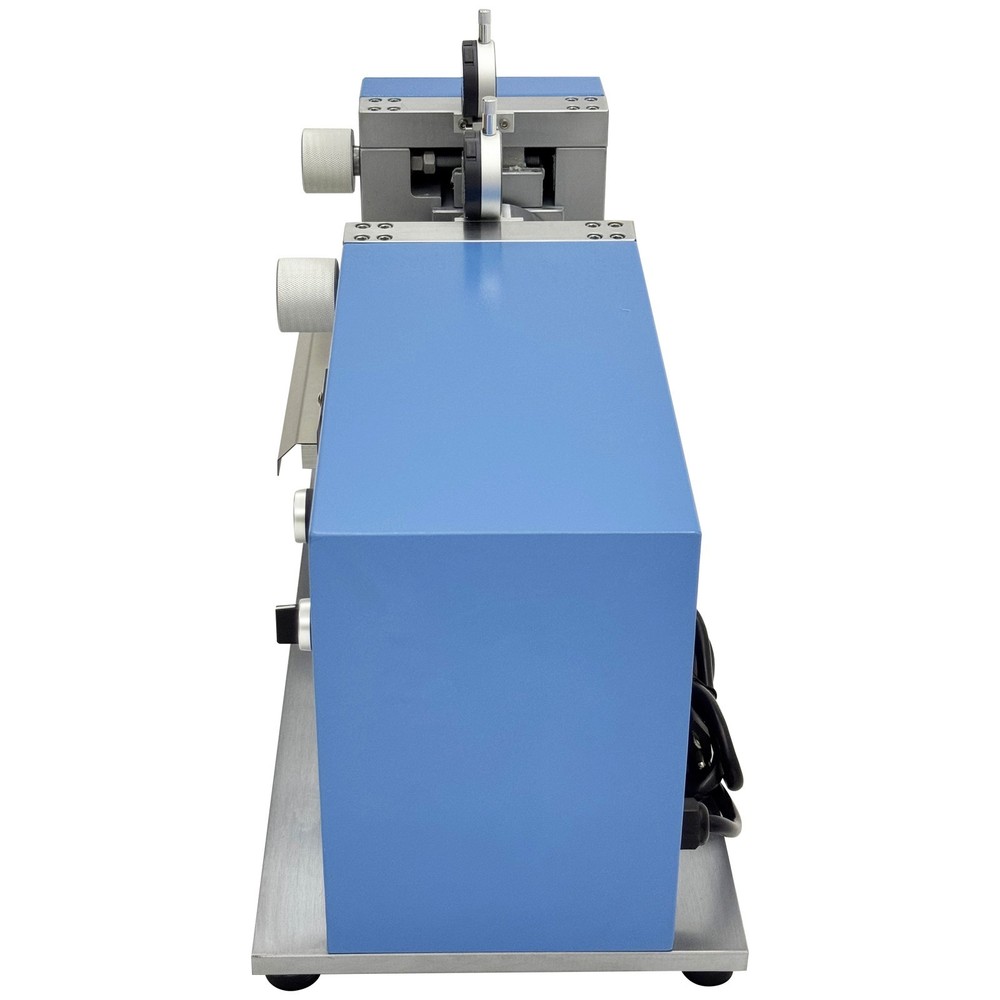

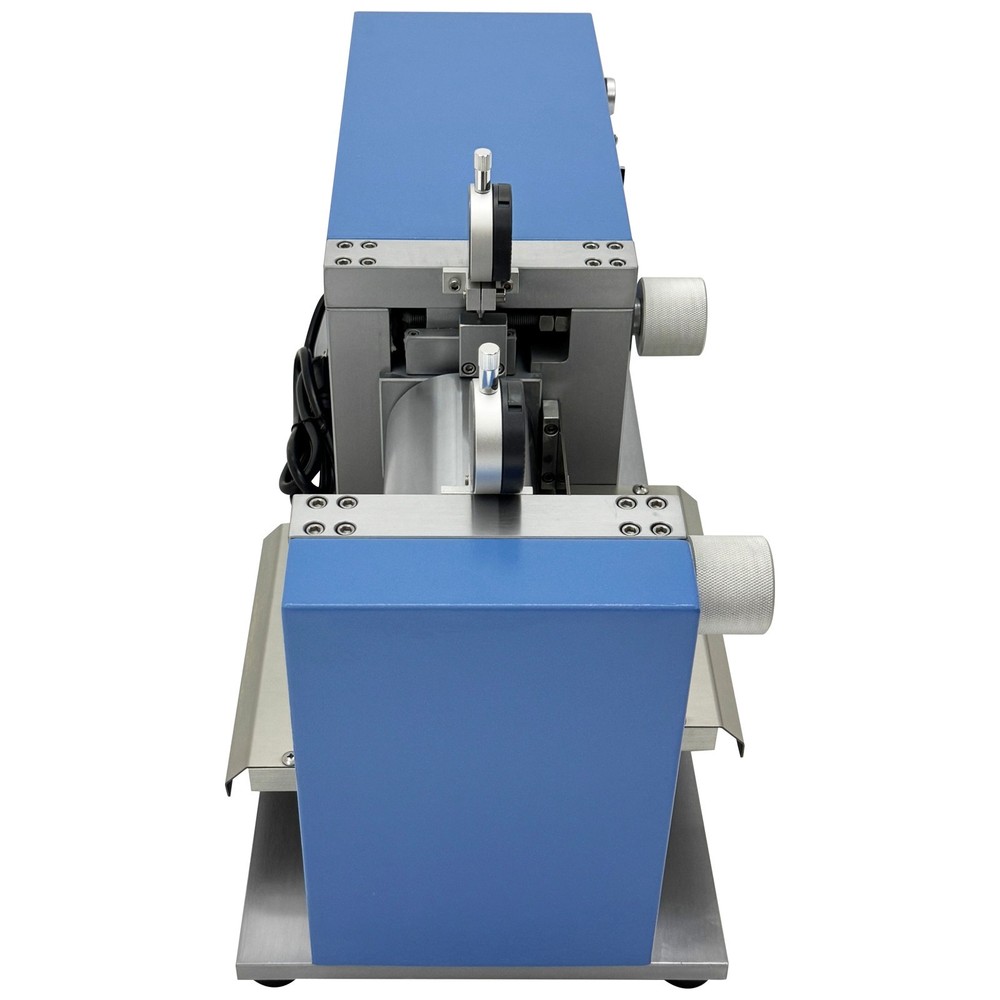

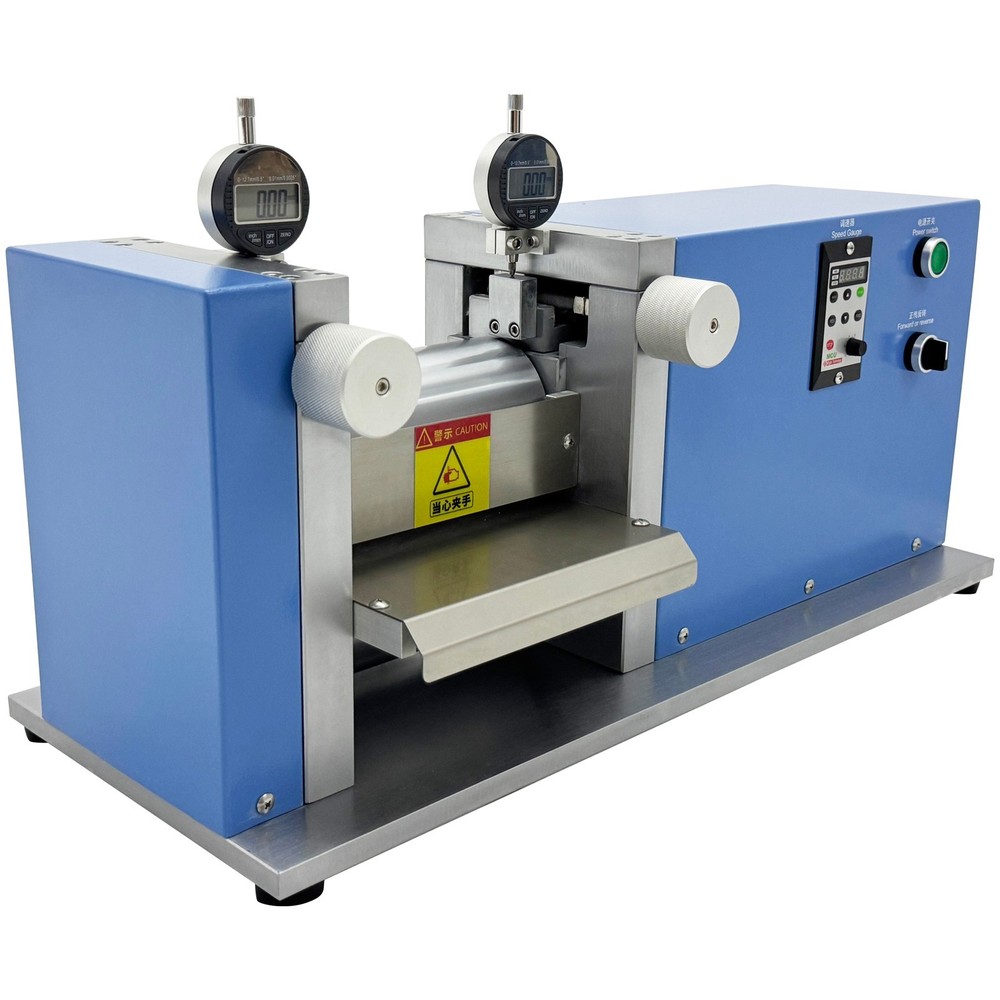

Check the listing for details. Vertical Battery Electrode Sheet Calendering Machine Roller Press Machine 110V. Condition: New. Listed at 3321.20 USD. It is particularly suitable for thinning and increasing the density of lithium battery plates in the clean energy materials. The machine adopts the gear drive technology to achieve paired roller pressing, and is adjustable in rolling thickness and speed and convenient to use, ensuring user-friendly operation.
