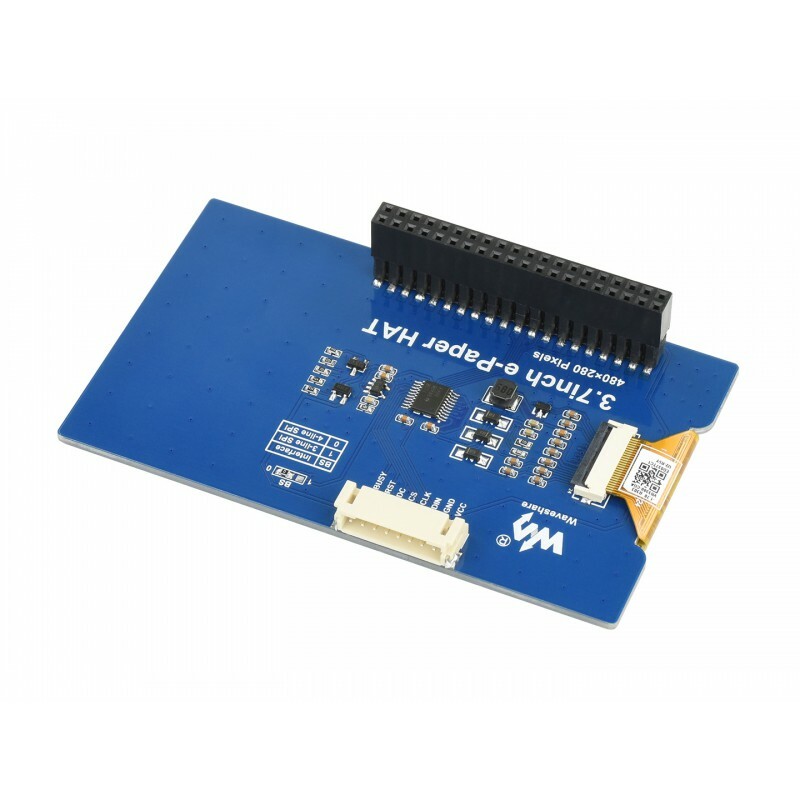

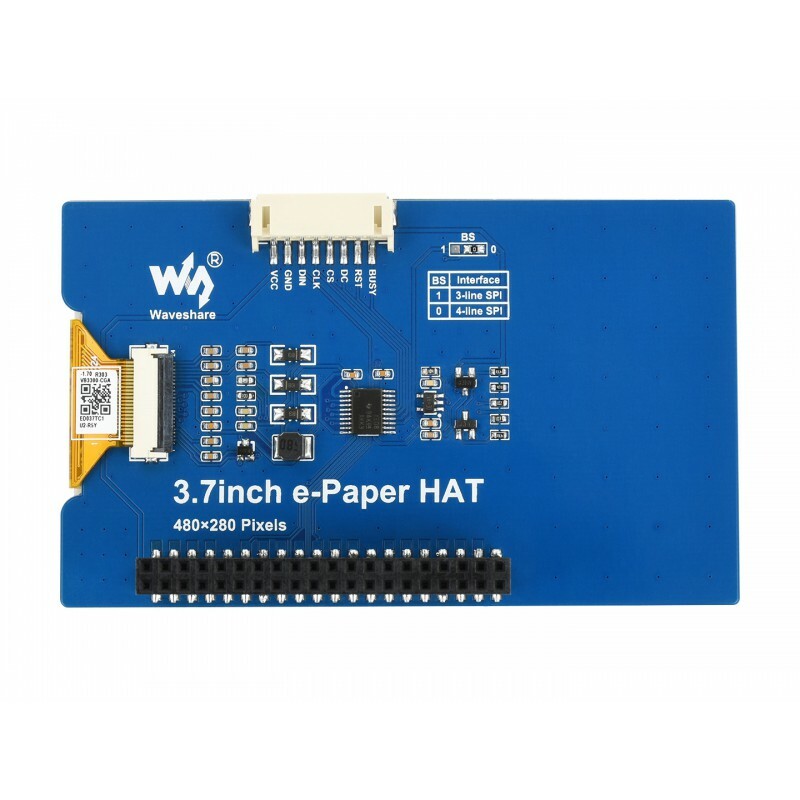

Check the listing for details. Waveshare 3.7inch E-Paper E-Ink Display HAT SPI For Raspberry Pi 480×280 4 Grey. Condition: New. Listed at 34.31 USD. This auction is for 3.7inch e-Paper HAT 3.7inch e-Paper E-Ink Display HAT for Raspberry Pi, 480×280 pixels, Black / White, 4 Grey Scales, SPI Interface 3.7" e-Paper HAT for Raspberry Pi partial refresh support, low power, wide viewing angle, paper-like effect Ideal for price tags, shelf labels, industrial instruments... Size3.7" Resolution480×280 Viewing Angle>170° Display ColorBlack and White Grey Scale4 CommunicationSPI Display PanelE-paper ExperiencePaper-like EnvironmentAmbient Light Required Display TypePassively Reflective RefreshingPartial Refresh Support Features at a glance No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications operating voltage 3.3V/5V grey scale 4 interface 3-wire SPI, 4-wire SPI partial refresh time 0.3s outline dimensions 58.0 × 96.5mm full refresh time 3s display size 47.32 × 81.12mm refresh power 50mW (typ.) dot pitch 0.169 × 0.169mm standby current 170° display color black, white Advantages of EINK E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect. Standard Raspberry Pi 40PIN GPIO header compatible with Raspberry Pi series boards, Jetson Nano Raspberry Pi in the photo are NOT included. Onboard SPI control interface for use with other controller boards like STM32/Arduino VCC 3.3V/5V GND Ground DIN SPI MOSI pin CLK SPI SCK pin CS SPI chip selection, low active DC Data / Command selection (high for data, low for command) RST External reset, low active BUSY Busy status output, high active Onboard voltage translator compatible with 3.3V / 5V MCUs Application examples Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags... Outline dimensions Resources & Services WIKI: 3.7inch_e-Paper_HAT * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. Selection Guide Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh1Pi Header2Interface 1.02inch e-Paper Module black, white 2 128×80 21.76 × 14.00 42.0 × 27.0 2 √ × SPI 1.54inch e-Paper Module black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 2 √ × SPI 1.54inch e-Paper Module (B) red, black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 8 × × SPI 1.54inch e-Paper Module (C) yellow, black, white 2 152×152 27.51 × 27.51 48.0 × 33.0 27 × × SPI 2.13inch e-Paper HAT black, white 2 250×122 48.55 × 23.71 65.0 × 30.2 2 √ √ SPI 2.13inch e-Paper HAT (B) red, black, white 2 212×104 48.55 × 23.71 65.0 × 30.2 15 × √ SPI 2.13inch e-Paper HAT (C) yellow, black, white 2 212×104 48.55 × 23.71 65.0 × 30.2 15 × √ SPI 2.13inch e-Paper HAT (D) black, white 2 212×104 48.55 × 23.71 59.2 × 29.2 2 √ √ SPI 2.66inch e-Paper Module black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 6 √ × SPI 2.7inch e-Paper HAT black, white 4 264×176 57.29 × 38.19 85.0 × 56.0 6 × √ SPI 2.7inch e-Paper HAT (B) red, black, white 2 264×176 57.29 × 38.19 85.0 × 56.0 15 × √ SPI 2.9inch e-Paper Module black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 2 √ × SPI 2.9inch e-Paper Module (B) red, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 × × SPI 2.9inch e-Paper Module (C) yellow, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 × × SPI 2.9inch e-Paper HAT (D) black, white 2 296×128 66.90 × 29.06 79.0 × 36.7 2 √ √ SPI 3.7inch e-Paper HAT black, white 4 480×280 47.32 × 81.12 58.0 × 96.5 3 √ √ SPI 4.2inch e-Paper Module black, white 4 400×300 84.80 × 63.60 103.0 × 78.5 4 × × SPI 4.2inch e-Paper Module (B) red, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 × × SPI 4.2inch e-Paper Module (C) yellow, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 × × SPI 4.3inch e-Paper UART Module black, white 4 800×600 88.00 × 66.00 118.0 × 75.0 1.5 × × UART 5.65inch e-Paper Module (F) 7-Color 2 600×448 114.9 × 85.8 138.5 × 100.5 15 × × SPI 5.83inch e-Paper HAT black, white 2 600×448 118.8 × 88.26 125.4 × 99.5 3.5 × √ SPI --> 5.83inch e-Paper HAT (B) red, black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 20 × √ SPI 5.83inch e-Paper HAT (C) yellow, black, white 2 600×448 118.8 × 88.26 125.4 × 99.5 26 × √ SPI 6inch e-Paper HAT black, white 16 800×600 122.4 × 90.6 138.4 × 101.8
