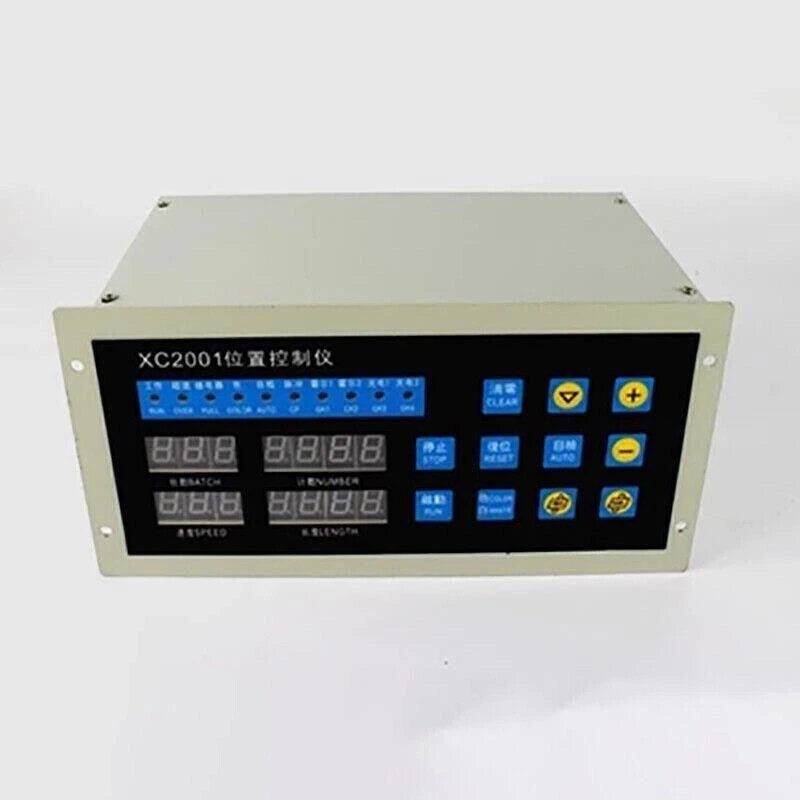

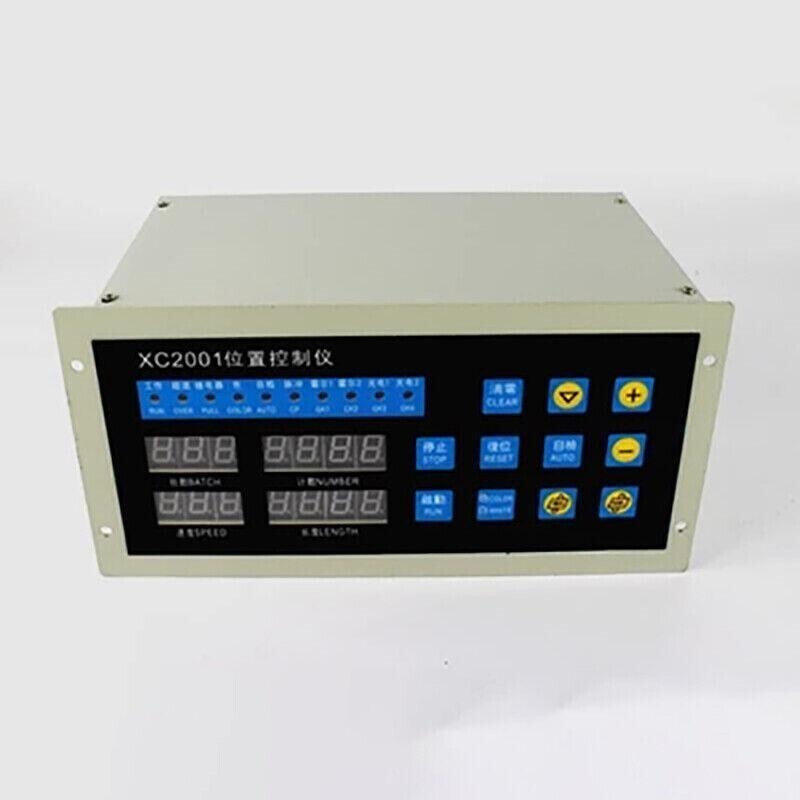

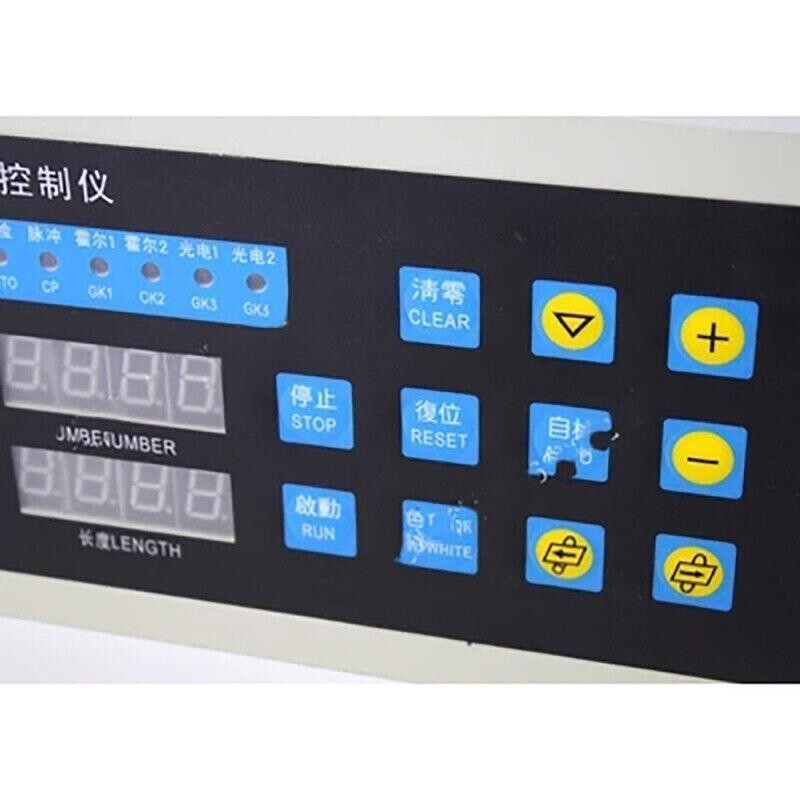

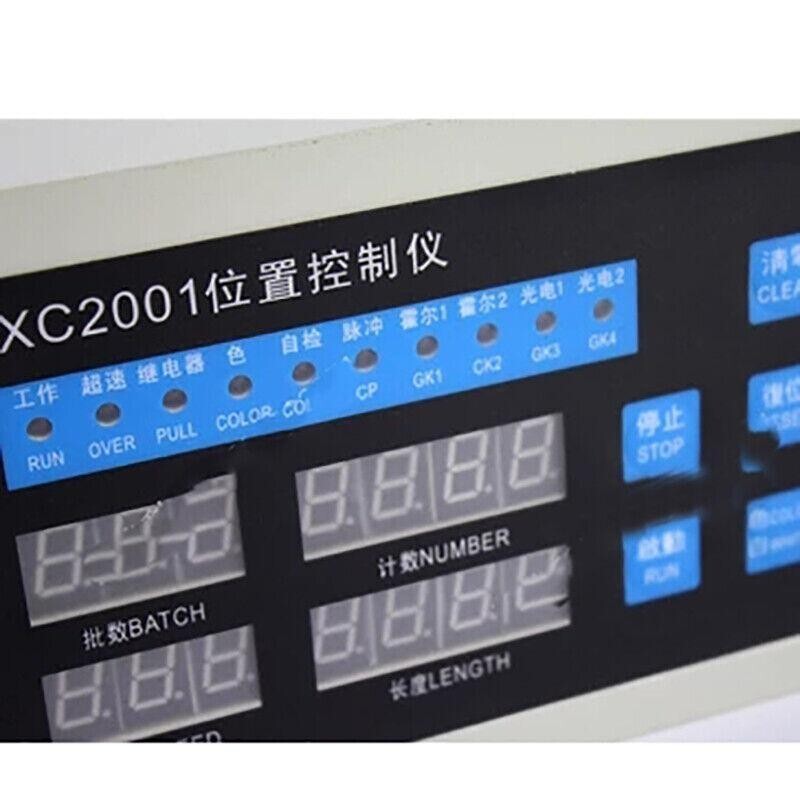

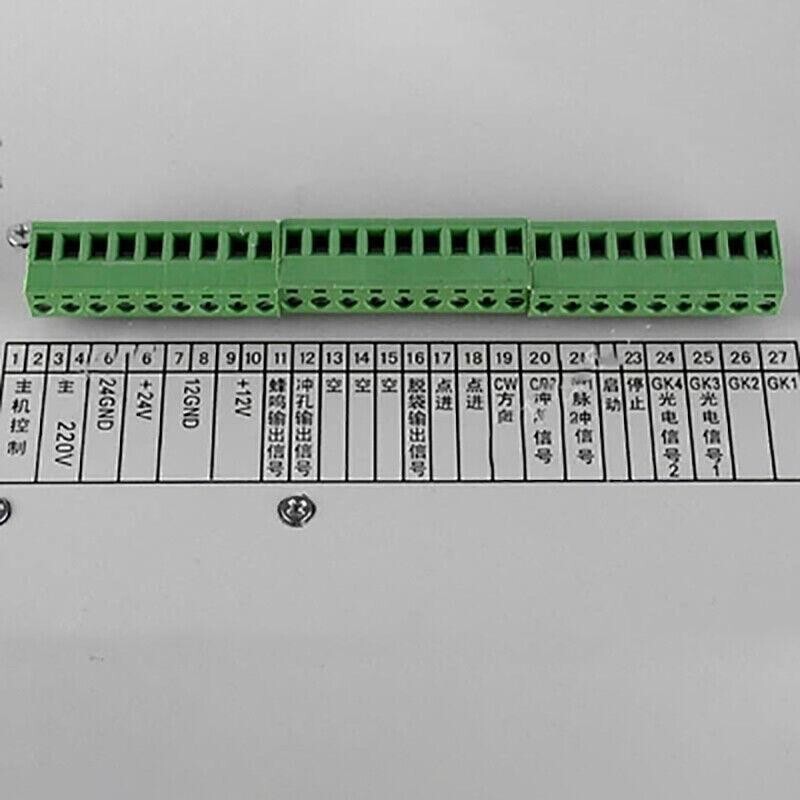

Check the listing for details. XC-2001 Position Control System/Position Controller Bag Making Machine Computer. Condition: New. Listed at 180.21 USD. eBay eBay XC-2001 position control system / position controller / bag making machine computer 1. Power supply: 220V (AC) + 10%; 50 hz / 60 hz; 2A. 2. Scope of application: single-film, double-film, heat-sealing, full-automatic machine and other equipment (including medical packaging) requiring fixed- length position control. 3. Diameter of cots: 0 ~ 99.99mm 4. Fixed length: 0 ~ 9999mm 5. Speed: 0 ~ 300 segments/min. Different lengths of fixed lengths have different speeds. 6, the whole number of 0 ~ 999 paragraphs 7. Batch number: 0 ~ 9999 8. External dimension: 240mm(width) * 120mm(height) * 150mm(depth) 9. Weight: 2kg Grade function Grade function 1, 2 Main motor relay often open contact (JD1) 17 Analog signal of discharge (DACB) 3, 4 AC220V power supply 18 Analog signal of main motor (DACA) 5 + 24V 19 CCW step direction signal 6 24V 20 CP2 second step pulse signal 7, 8 -12V land 21 CP1 first step pulse signal (constant connection) 9, 10 12V 22 KRUN connect the "start" button and open the connection to "12GND" 11 Beep output signal (JD7) 23 Kstop out of the "stop" button 12 Punching output signal (JD6) 24 GK4 floating roll signal / second color standard optoelectronic 13 Punching output signal (JD5) 25 GK3 first color signal photoelectric signal 14 Multiple output signal (JD4) 26 GK2 logical sampling 2 (a magnet) 15 Multiple output signal (JD3) 27 GK1 logical sampling 1 (two magnets) 16 Off bag output signal (JD2) Note: seventeenth and eighteenth orders must be noted, otherwise there is no. Packaging Details： · Unit Type: piece · Package Weight: 3kg · Package Size: 25cmx15cmx15cm
