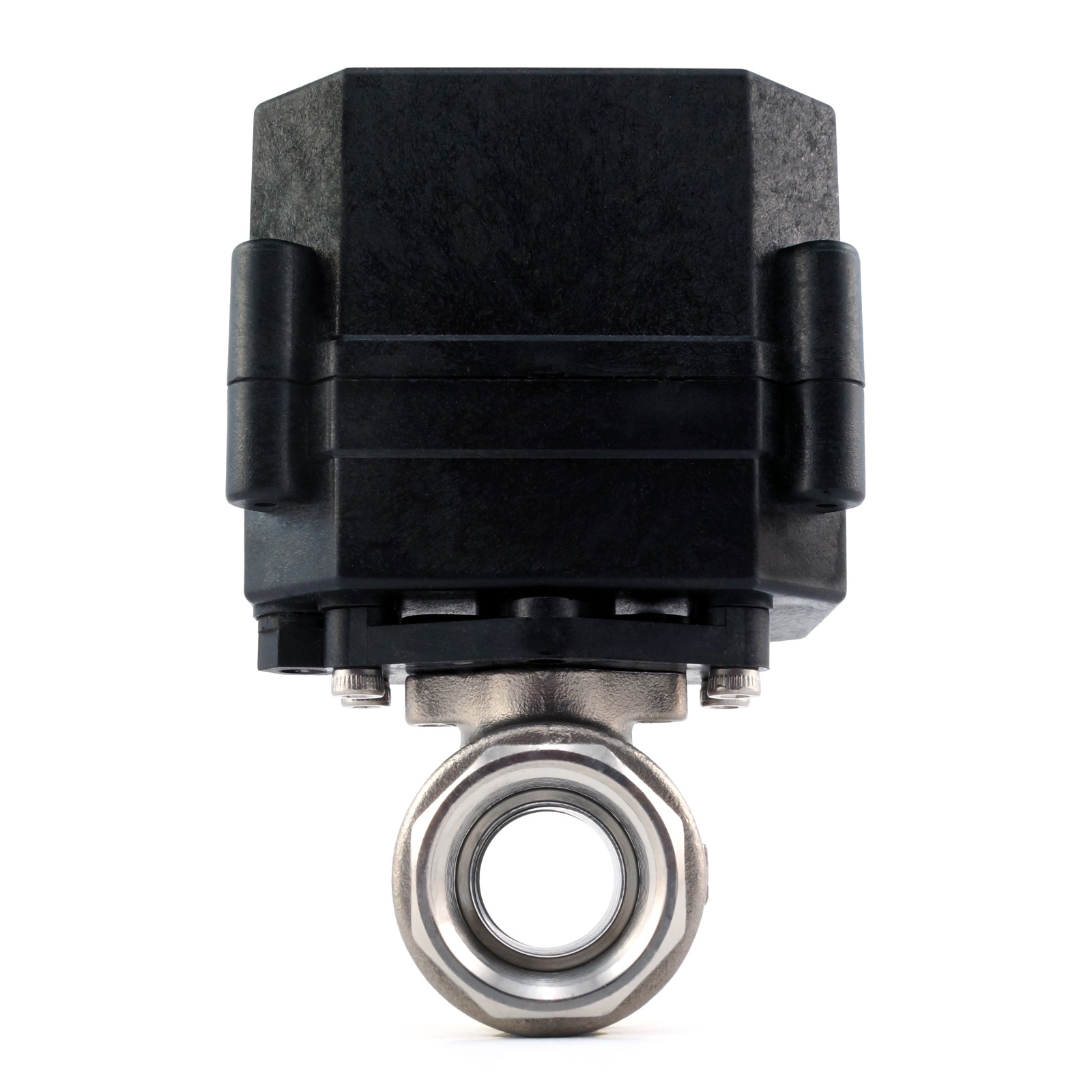

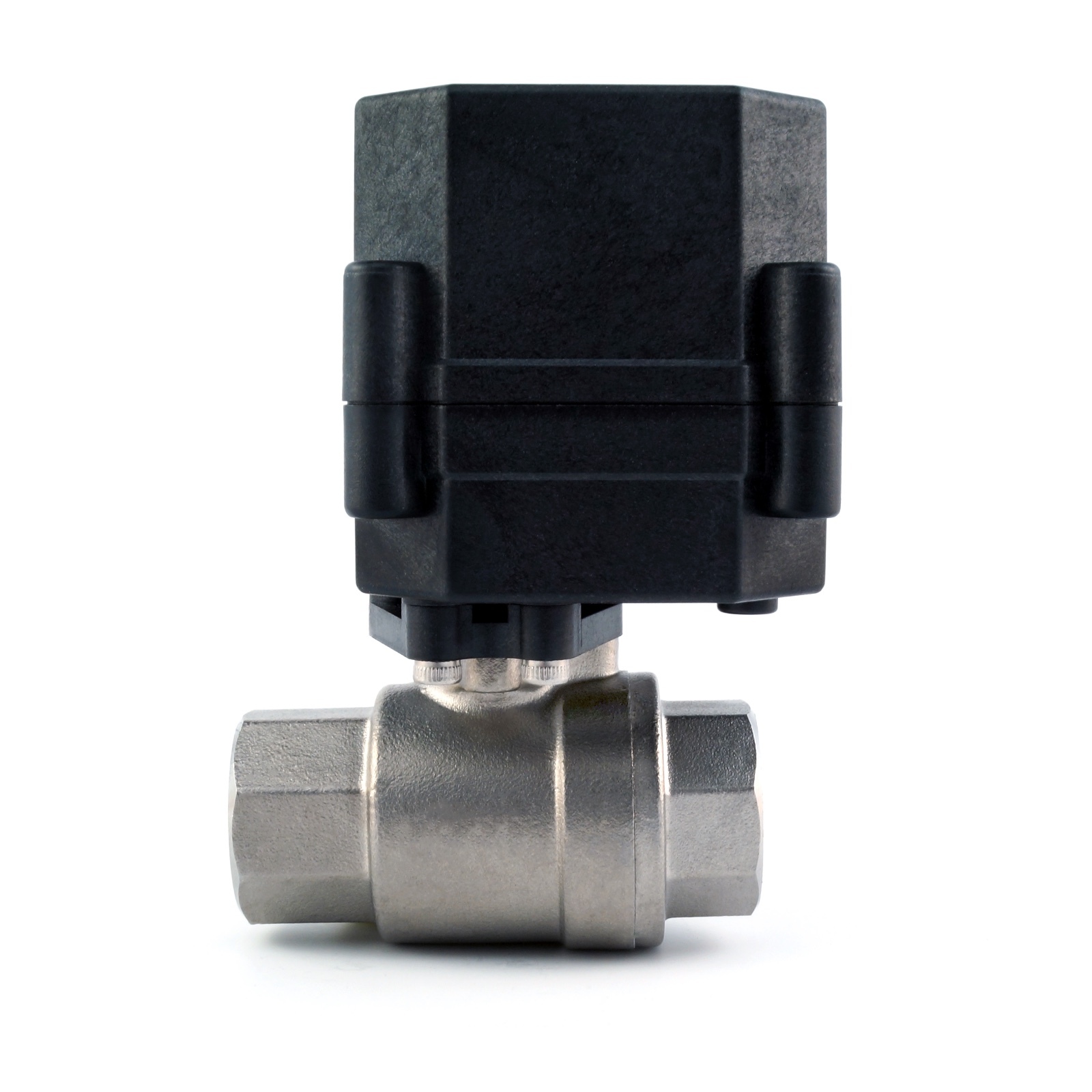

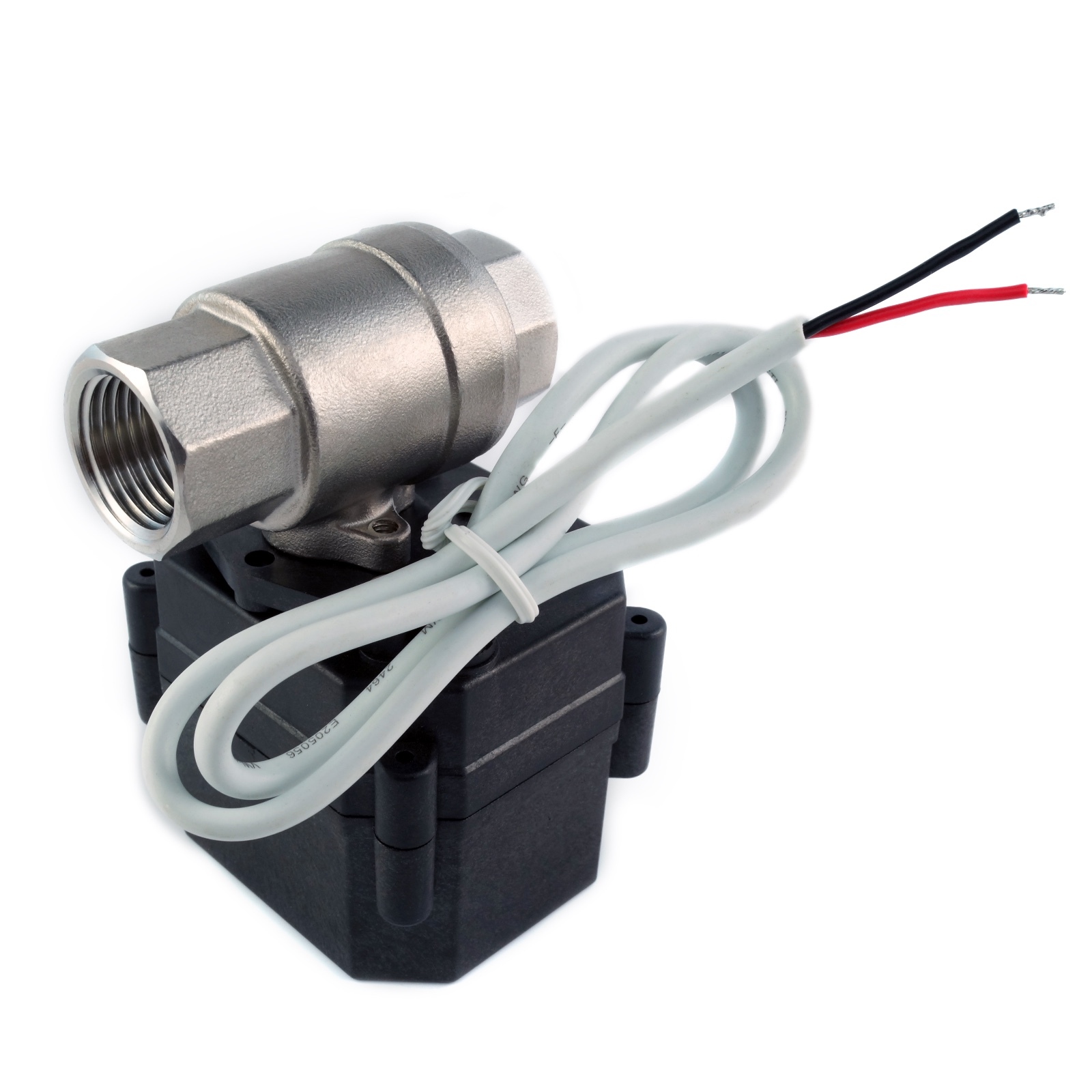

Check the listing for details. 1/2" Motorized Ball Valve N/O 9V 12V to 24 VDC/VAC 2-wire Stainless SS EPDM. Condition: New. Listed at 65.00 USD. Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. EHCOTECH M21SE-1/2-C2AW MOTORIZED BALL VALVE 1/2" NPT | SS304 Body | Normally OPEN | 0 - 215 psi | 9 to 24 VDC/VAC General FREE 2 to 4 DAY SHIPPING, ships within one business day from San Diego, California 2-way, bidirectional Normally OPEN 2-wire actuator - Allows for simple control and wiring Energize actuator to close the valve De-energize to open the valve (opens with power supplied by internal capacitor) Visual valve position indicator Excellent choice for gravity feed applications (or any pressurized application below 215 psi) Excellent choice for applications requiring long activation periods Port Size 1/2" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.840 inches / 14 TPI Full port design (1/2" or 15 mm internal port diameter) Straight through design (no directional changes inside valve) Pressure and Temperature 0 to 215 psi (0 to 15 BAR) Max media temp: 265º F (130º C) Superior to solenoid valves in gravity feed and low pressure applications Suitable Media Potable Water Air, etc Media must be compatible with FKM (Viton) rubber Electrical / Wiring 9 to 24-volt AC or DC (auto detects voltage) 300 mA max while ball is turning (30mA max when held in closed position) 20" power cable with 2 lead wires (no polarity requirement) Works with irrigation timers Energize actuator to close the valve, De-Energize to open 4 second cycle time from closed to open and vice versa Internal micro-switches stop current flow to motor when open/closed positions are reached Valve Materials Valve body: Stainless Steel (SS304) Ball: Stainless Steel (SS304) PTFE (Teflon) Primary Seals, EPDM Secondary Seals Metal gears Dimensions Height: 4" Width: 2-1/2" Length: 2-1/8" Weight: 13 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right! All orders are shipped within 1 business day 30-day, hassle free returns 6 month warranty on all motorized ball valves Please use store categories on the left to explore our other valves Copyright © Ehcotech International Inc. 2015Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. EHCOTECH M21SE-1/2-C2AW MOTORIZED BALL VALVE 1/2" NPT | SS304 Body | Normally OPEN | 0 - 215 psi | 9 to 24 VDC/VAC General FREE 2 to 4 DAY SHIPPING, ships within one business day from San Diego, California 2-way, bidirectional Normally OPEN 2-wire actuator - Allows for simple control and wiring Energize actuator to close the valve De-energize to open the valve (opens with power supplied by internal capacitor) Visual valve position indicator Excellent choice for gravity feed applications (or any pressurized application below 215 psi) Excellent choice for applications requiring long activation periods Port Size 1/2" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.840 inches / 14 TPI Full port design (1/2" or 15 mm internal port diameter) Straight through design (no directional changes inside valve) Pressure and Temperature 0 to 215 psi (0 to 15 BAR) Max media temp: 265º F (130º C) Superior to solenoid valves in gravity feed and low pressure applications Suitable Media Potable Water Air, etc Media must be compatible with FKM (Viton) rubber Electrical / Wiring 9 to 24-volt AC or DC (auto detects voltage) 300 mA max while ball is turning (30mA max when held in closed position) 20" power cable with 2 lead wires (no polarity requirement) Works with irrigation timers Energize actuator to close the valve, De-Energize to open 4 second cycle time from closed to open and vice versa Internal micro-switches stop current flow to motor when open/closed positions are reached Valve Materials Valve body: Stainless Steel (SS304) Ball: Stainless Steel (SS304) PTFE (Teflon) Primary Seals, EPDM Secondary Seals Metal gears Dimensions Height: 4" Width: 2-1/2" Length: 2-1/8" Weight: 13 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right! All orders are shipped within 1 business day 30-day, hassle free returns 6 month warranty on all motorized ball valves Please use store categories on the left to explore our other valves Copyright © Ehcotech International Inc. 2015
