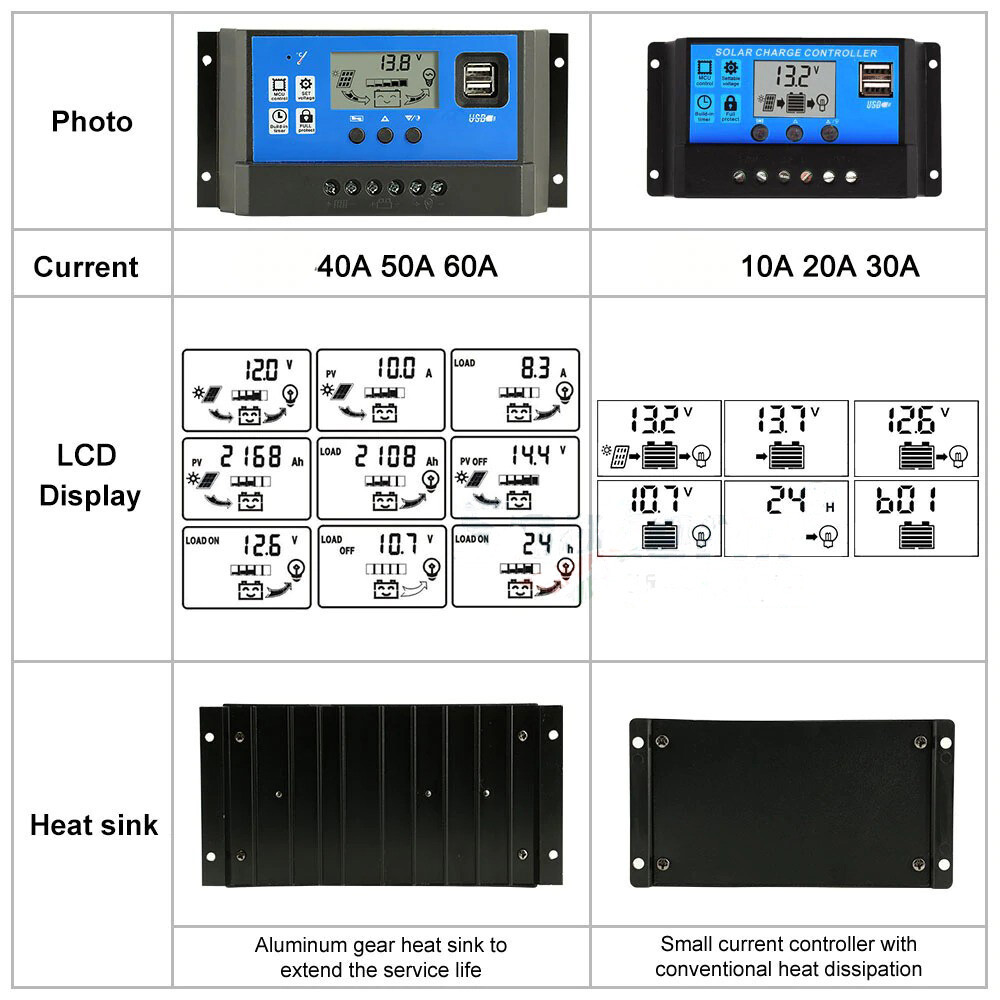

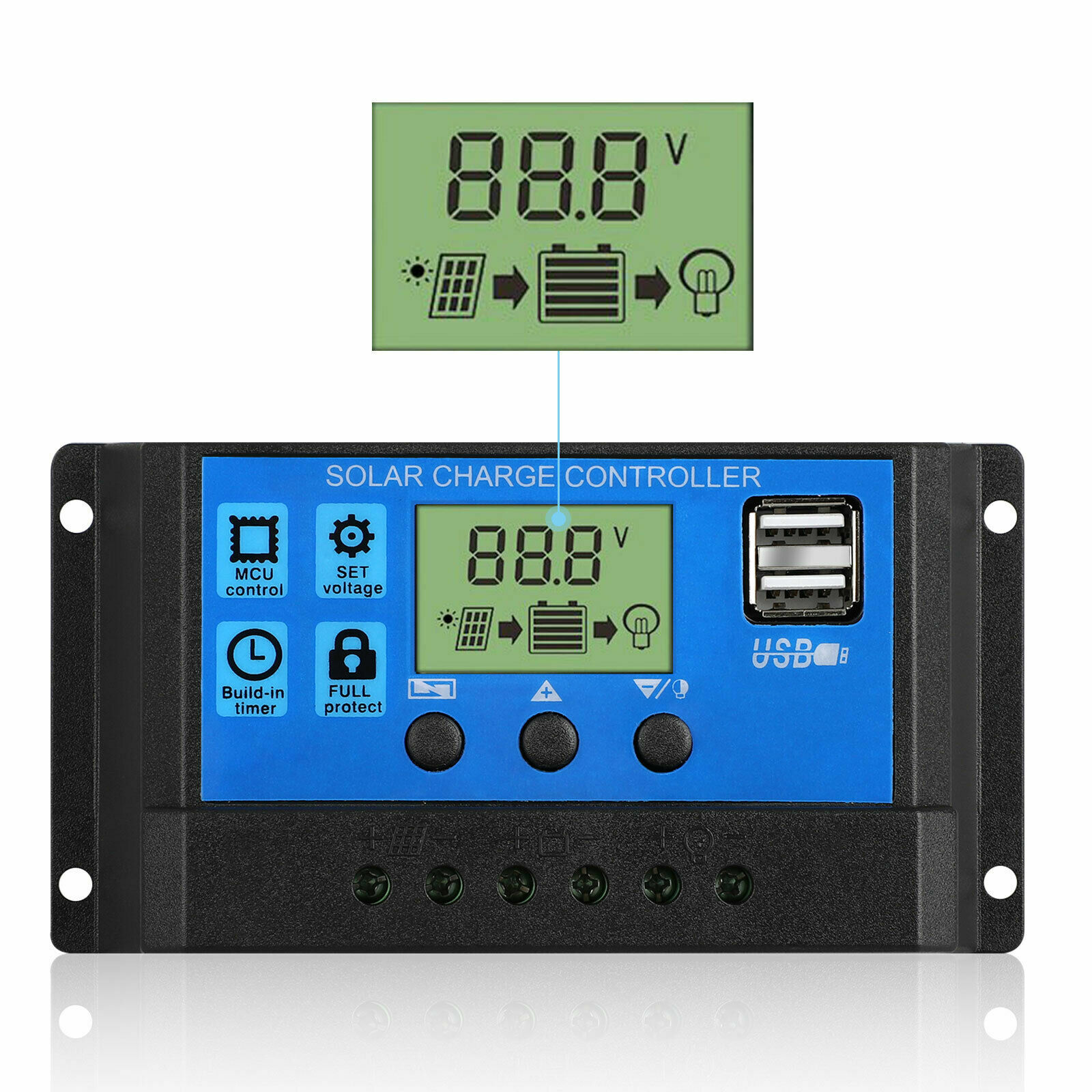

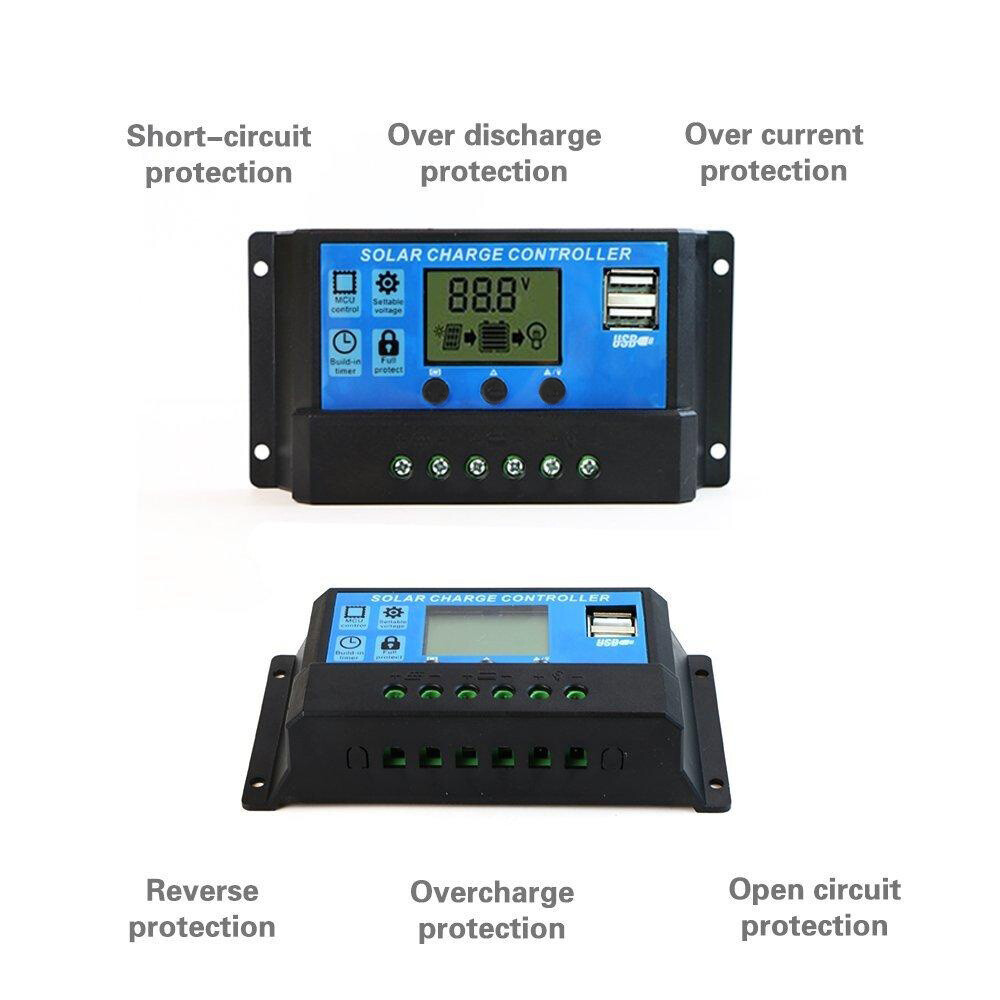

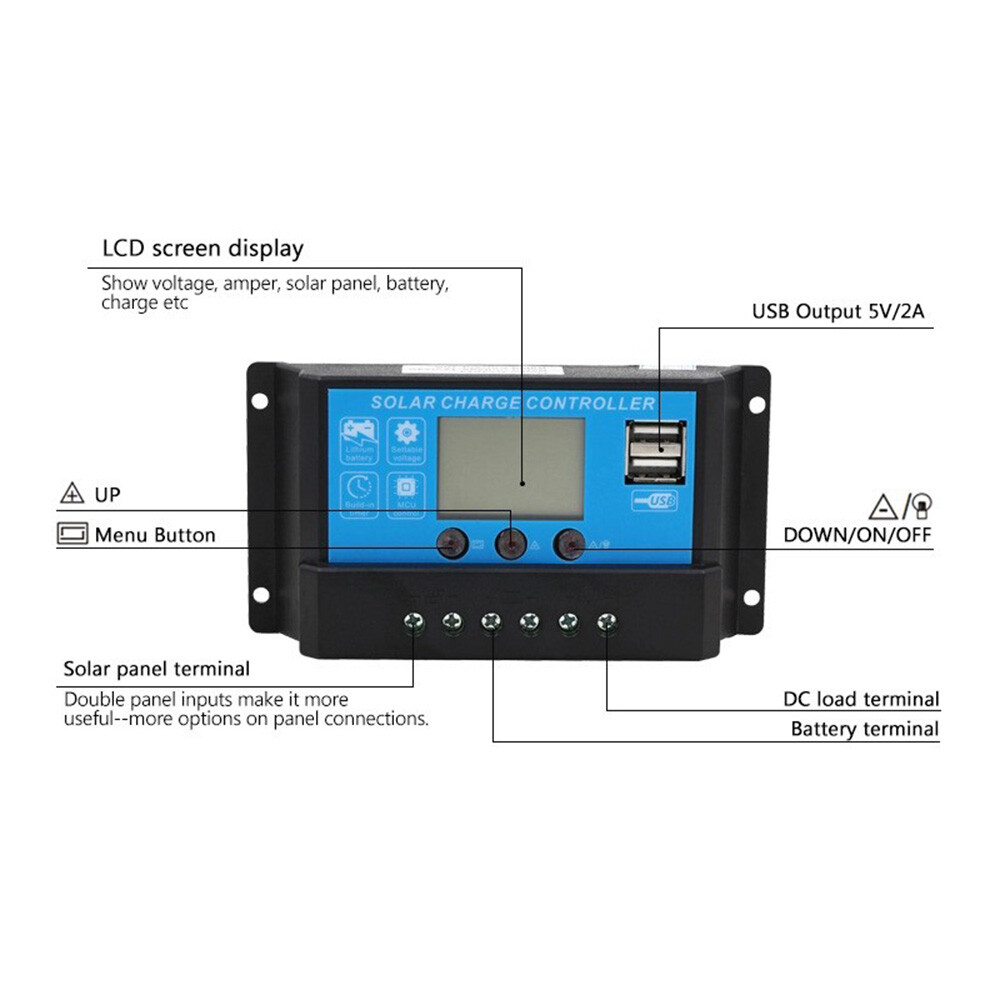

Check the listing for details. 10/20/30/40/60A PWM Solar Panel Battery Regulator Charge Controller USB 12/24V. Color: Blue or White (60A Model), Condition: New. Listed at 10.79 USD. 10A / 20A / 30A / 40A / 60A PWM Solar Panel Battery Regulator Charge Controller 12V or 24V Batteries with Dual USB Output - Blue CaseThis PWM Solar Battery Charge Controller automatically manages and regulates the voltage and current to the battery from the solar panel(s). It incorporates short-circuit, open-circuit, reverse polarity, and overload protection in order to ensure that the batteries are not overcharged and that power isn't discharged from the batteries to the solar panels during shaded or dark conditions and drain the batteries. It comes with USB ports to charge your phone and other electronic devices directly from the controller.This solar charge controller is perfect for smaller home, cabin, RV and other remote and portable solar systems.FeaturesThis controller is designed for use only with 12V and 24V lead-acid batteries. It cannot be used with lithium-ion, nickel-cadmium or other battery types.Regulates the voltage from the solar panels going to the batteries.Built-in industrial master chip to control the charge and discharge process with adjustable parameters to prolong the battery life cycle and stabilize power to the load.3-stage PWM charge management with short-circuit protection, open-circuit protection, and reverse polarity protection.Dual USB outputs with 5V/2A maximum power (across both outputs) can charge mobile phones, tablets, and other USB-powered devices.LCD display with backlight function displays status and parameters.Dual MOSFET reverse current protection, low power dissipation.Easy to install and operate, suitable for home, industrial, commercial, remote and portable solar energy systems.Models for !0A, 20A, 30A, 40A and 60A maximum input currentSpecificationsSize: Approx. 13.3 x 7 x 3.5 cm/ 5.24 x 2.76 x 1.38 inch (LxWxH) (10A, 20A and 30A models) Approx. 18.8 x 9 x 4.7 cm/ 7.4 x 3.54 x 1.85 inch (LxWxH) (40A & 60A models)Battery Voltage: 12V/ 24V (Auto recognition)Input Charging Current: 10A / 20A / 30A / 40A / 60A dependent upon the model chosen. The maximum panel output current should be about 25% less than the controller's maximum input current rating. For example, with a single 6A 100W panel, use the 10A model. Two 6A panels (12A total) should use the 20A model. If in doubt, use the higher current model, i.e. if the maximum panel output current is 9A, use the 20A model rather than the 10A model. Maximum Discharge Current: 10A (10A, 20A and 30A models) 20A (40A model) 30A (60A model)Internal power consumption: =10mAOver Charge Protection:B01 Sealed: 14.4V/28.8VB02 Gel: 14.2V/28.4VB03 Flood: 14.6V/29.2VOver Charge Float: 13.7V/27.4VCharge Recovery Voltage: 12.6V/25.2VOver-discharge Protection: 10.7V/21.4VOver-discharge Recovery: 12.6V/25.2VUSB output: 5V/2A12V batteries should be used with solar panels capable of generating 18V-25V With 12V batteries, the maximum panel voltage must not exceed 25V24V batteries should be used with solar panels capable of generating 36V-50V With 24V batteries, the maximum panel voltage must not exceed 50VMaximum Power Input:10A Model 12V: 120W (MAX), 24V: 240W (MAX)20A Model 12V: 240W (MAX), 24V: 480W (MAX)30A Model 12V: 360W (MAX), 24V: 720W (MAX)40A Model 12V: 520W (MAX), 24V: 1040W (MAX) 60A Model 12V: 780W (MAX), 24V: 1560W (MAX)Operating Temperature: -35 ~ +60CStorage Temperature: -35 ~ +60CPackage Includes:1X (1 Piece) 10A, 20A, 30A, 40A or 60A PWM Solar Charge Controller (Amperage selected at checkout) - Blue Case (10A, 20A, 30A and 40A models) or White Case (60A model) Link to online Installation and Operating InstructionsNOTE: The solar panel and battery in the photo are shown to illustrate the controller's interconnections only. They are not included with the charge controllerWe also carry these PWM solar charge controllers with a BLACK faceplate rather than BLUE: 10/20/30A PWM Solar Panel Battery Regulator Charge Controller USB 12V 24V Black Faceplate.Get it faster! Stocks and ships from our US Colorado office for quick delivery.Contact us for quantity/OEM discounts.We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
