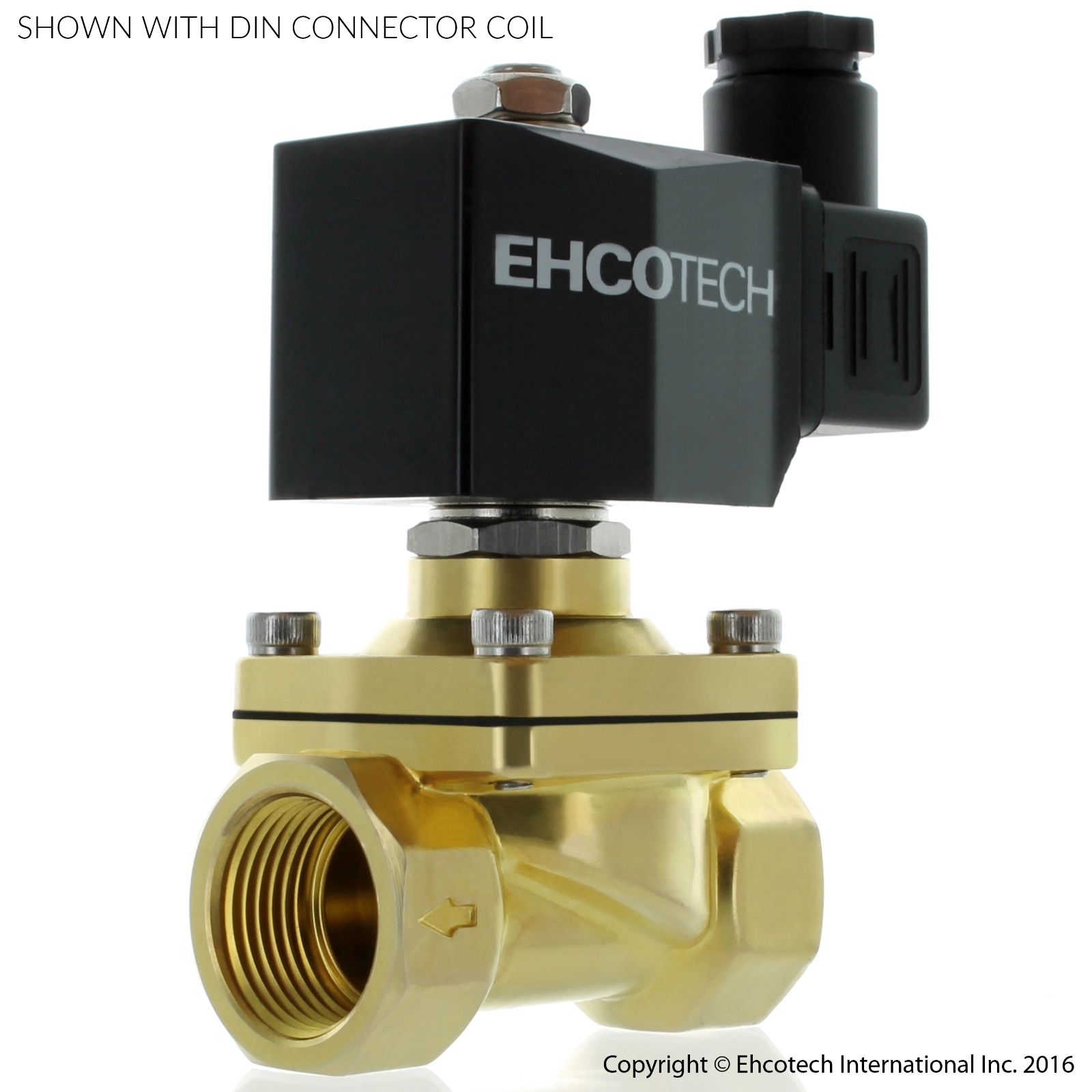

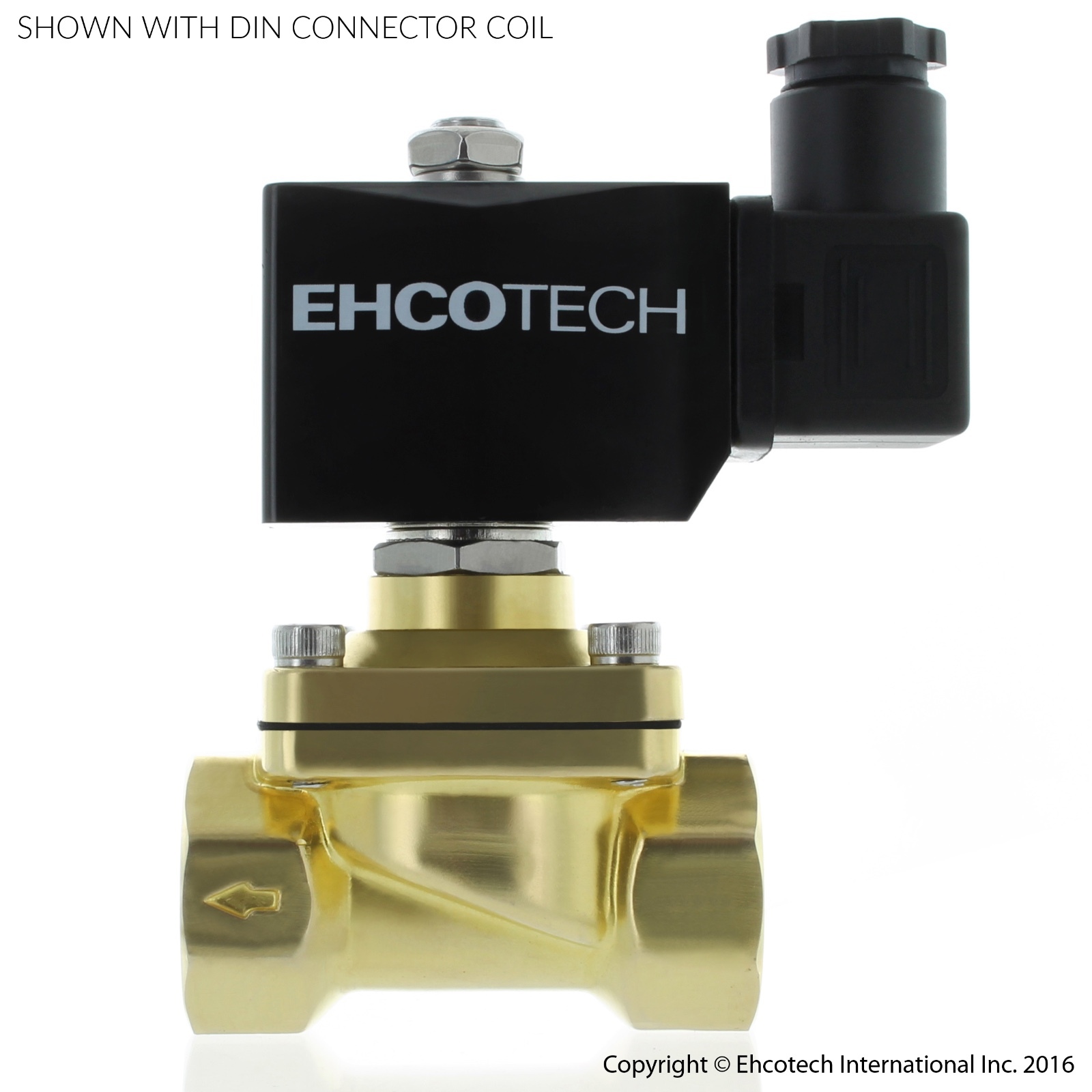

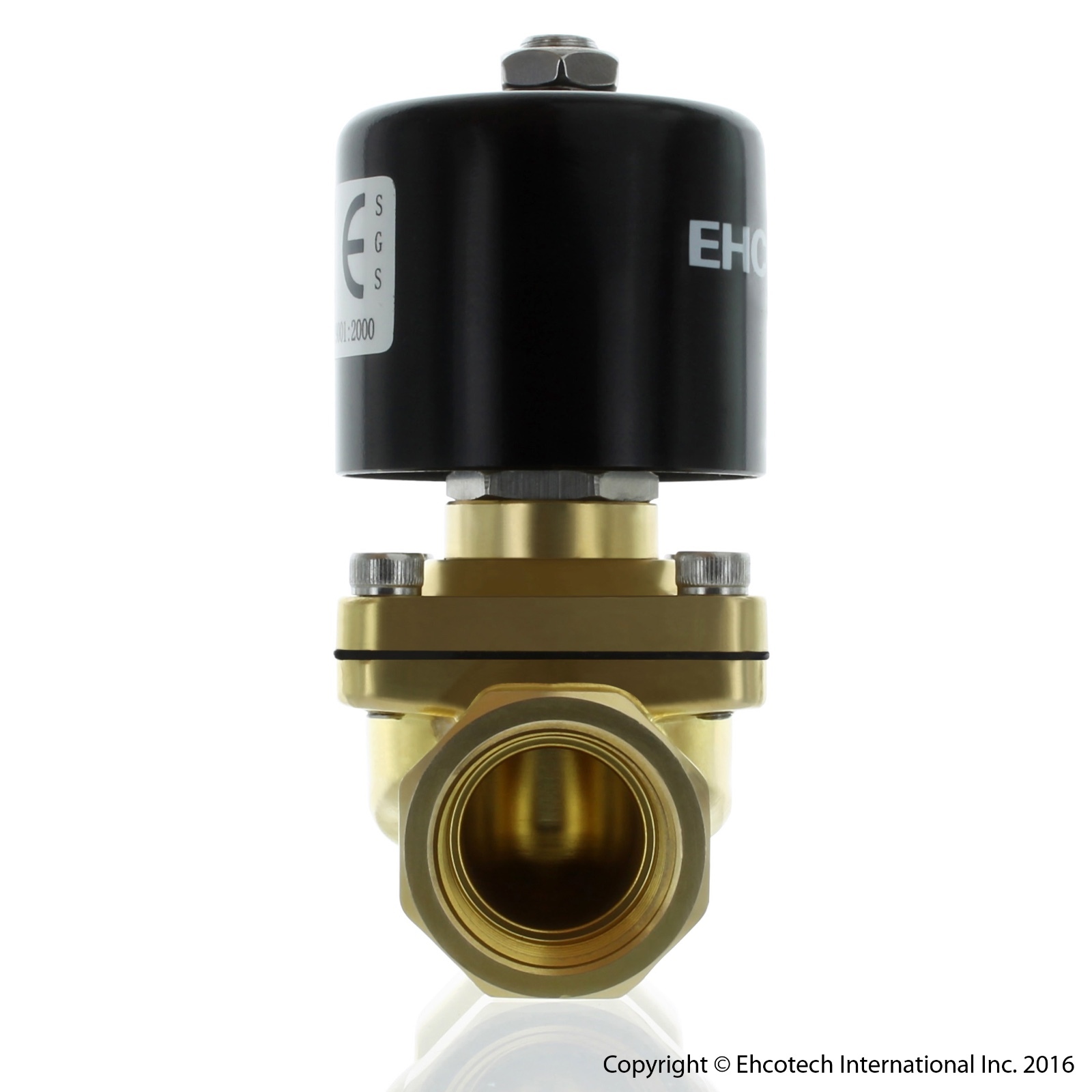

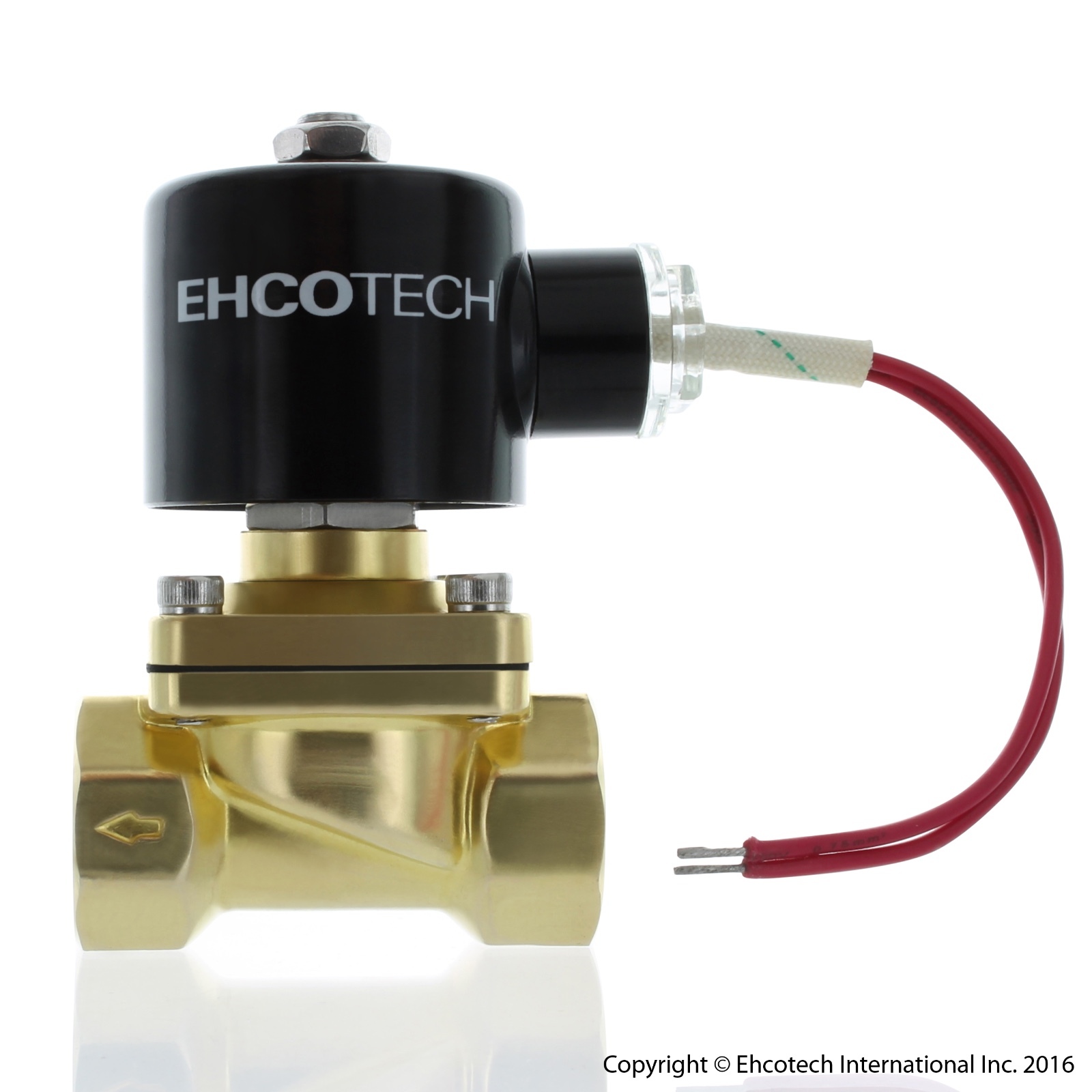

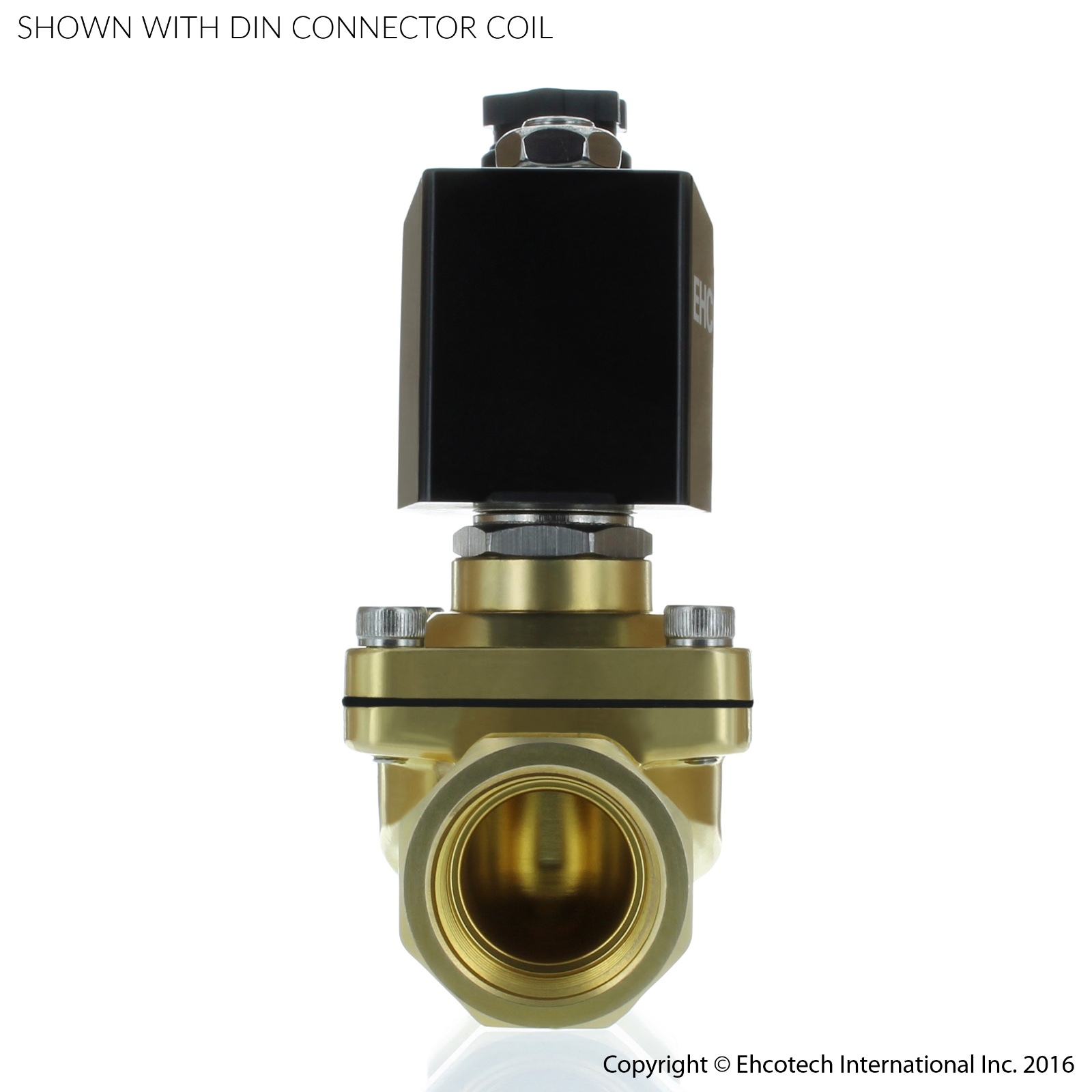

Check the listing for details. 3/4" Brass Electric Solenoid Valve 12V 12 VDC Volt DC Water Air Gas VITON NC B21. Condition: New. Listed at 36.80 USD. B21V-1/2-CC-120VAC Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. ***NEW LISTING — SAME GREAT VALVE!*** EHCOTECH B21V-3/4-CC-12VDC SOLENOID VALVE 3/4" NPT | 12-Volt DC | Brass Body / FKM (Viton) Seal | Normally Closed | 0 - 145 psi More than 20,000 EHCOTECH 21-series valves have been delivered to hobbyists, businesses and manufacturers. General FREE 2 to 4 DAY SHIPPING, ships within one business day from San Diego, California Great general purpose valve for many water, air, fuel, or gas projects 2-way, Normally Closed Semi-Direct Acting Valve (allows for good low pressure performance and gravity feed capability) Fast acting Port / Orifice Size 3/4" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 1.050 inches / 14 TPI Large internal orifice (3/4" or 20 mm internal orifice diameter) Cv value: 7.6 Pressure and Temperature 0 to 145 psi or Vacuum Max media temp: 265° F (130° C) Excellent choice for low pressure applications due to semi-direct lift design Gravity Feed capable Suitable Media Water Air Gases Diesel Gasoline (with or without Ethanol) Glycol Other media compatible with FKM/Viton Coil Options 12-Volt DC / 1.4 Amps COIL OPTION #1: LEAD WIRE COIL (see pictures) IF NO SPECIAL REQUEST IS MADE, WE WILL SHIP WITH THE LEADWIRE COIL Metal shielded coil (IP54 rating) 5.5" lead wires (fast/simple wiring for quick projects) 1/2" conduit connection COIL OPTION #2: DIN CONNECTOR COIL (see pictures) YOU MUST REQUEST THIS OPTION VIA EBAY MESSAGE OR LEAVE A NOTE DURING CHECKOUT Resin encapsulated coil (IP65 rating) Screw-down terminals inside the connector for your own cable/wires Valve Materials Valve body: Brass Plunger and plunger guide tube: Stainless Steel Diaphragm: FKM (Viton) Dimensions Height: 4.3" Width: 2" Length: 2.7" Weight: 1 lb 10 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right! All orders are shipped within 1 business day 30-day, hassle free returns 12 month warranty Please use store categories on the left side to explore our other valves Copyright © Ehcotech International Inc. 2015B21V-1/2-CC-120VAC Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. ***NEW LISTING — SAME GREAT VALVE!*** EHCOTECH B21V-3/4-CC-12VDC SOLENOID VALVE 3/4" NPT | 12-Volt DC | Brass Body / FKM (Viton) Seal | Normally Closed | 0 - 145 psi More than 20,000 EHCOTECH 21-series valves have been delivered to hobbyists, businesses and manufacturers. General FREE 2 to 4 DAY SHIPPING, ships within one business day from San Diego, California Great general purpose valve for many water, air, fuel, or gas projects 2-way, Normally Closed Semi-Direct Acting Valve (allows for good low pressure performance and gravity feed capability) Fast acting Port / Orifice Size 3/4" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 1.050 inches / 14 TPI Large internal orifice (3/4" or 20 mm internal orifice diameter) Cv value: 7.6 Pressure and Temperature 0 to 145 psi or Vacuum Max media temp: 265° F (130° C) Excellent choice for low pressure applications due to semi-direct lift design Gravity Feed capable Suitable Media Water Air Gases Diesel Gasoline (with or without Ethanol) Glycol Other media compatible with FKM/Viton Coil Options 12-Volt DC / 1.4 Amps COIL OPTION #1: LEAD WIRE COIL (see pictures) IF NO SPECIAL REQUEST IS MADE, WE WILL SHIP WITH THE LEADWIRE COIL Metal shielded coil (IP54 rating) 5.5" lead wires (fast/simple wiring for quick projects) 1/2" conduit connection COIL OPTION #2: DIN CONNECTOR COIL (see pictures) YOU MUST REQUEST THIS OPTION VIA EBAY MESSAGE OR LEAVE A NOTE DURING CHECKOUT Resin encapsulated coil (IP65 rating) Screw-down terminals inside the connector for your own cable/wires Valve Materials Valve body: Brass Plunger and plunger guide tube: Stainless Steel Diaphragm: FKM (Viton) Dimensions Height: 4.3" Width: 2" Length: 2.7" Weight: 1 lb 10 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right! All orders are shipped within 1 business day 30-day, hassle free returns 12 month warranty Please use store categories on the left side to explore our other valves Copyright © Ehcotech International Inc. 2015
