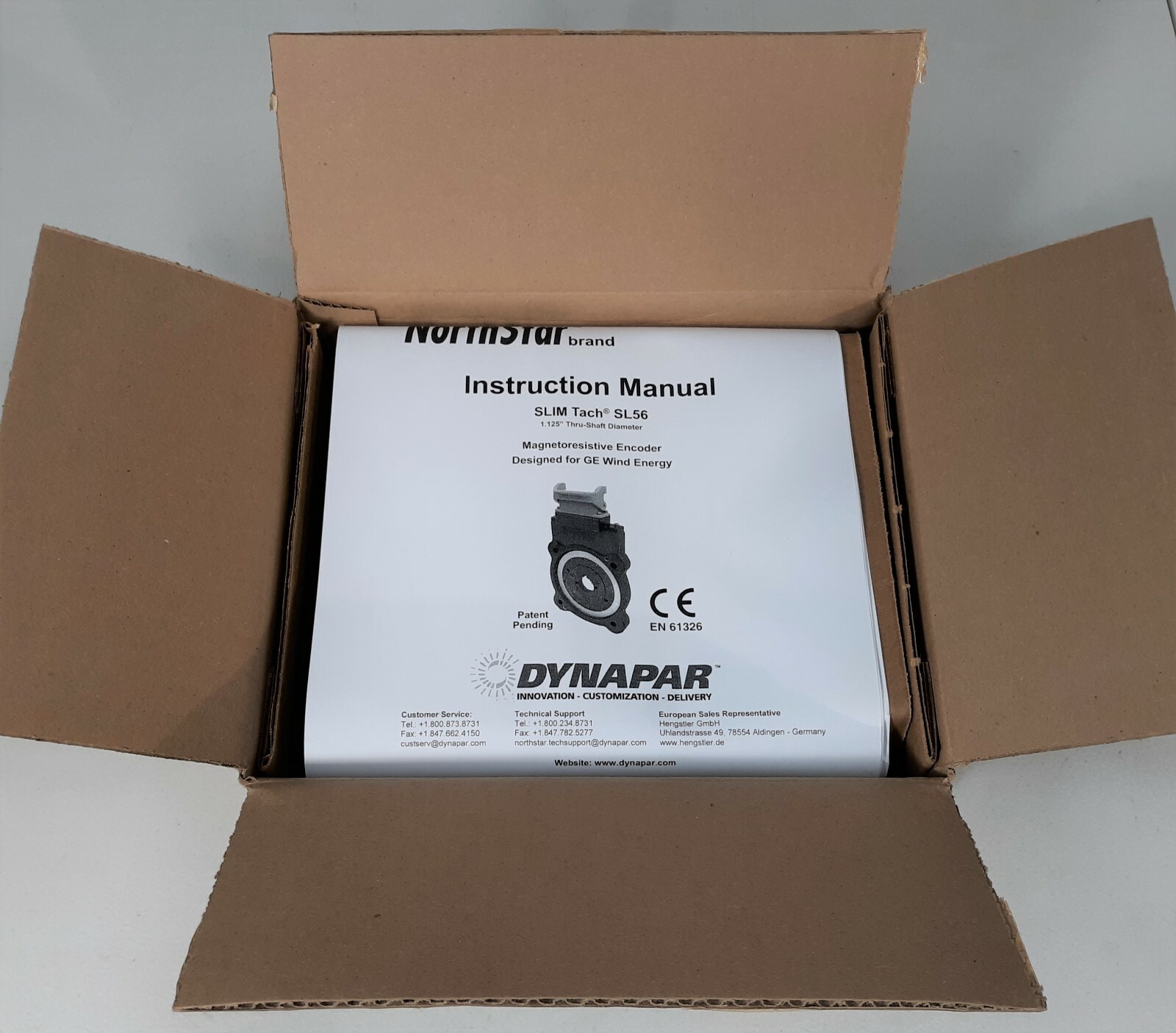

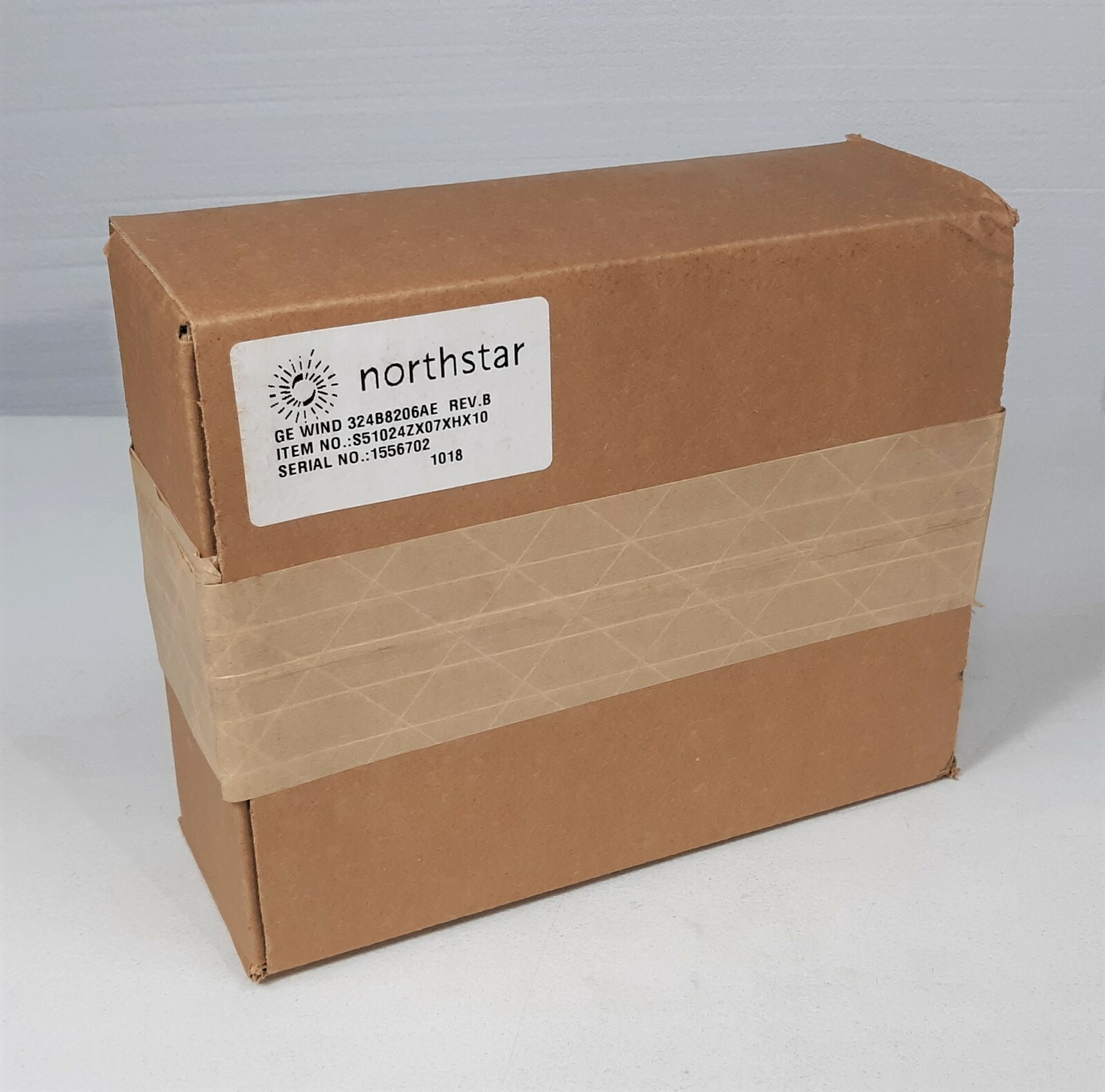

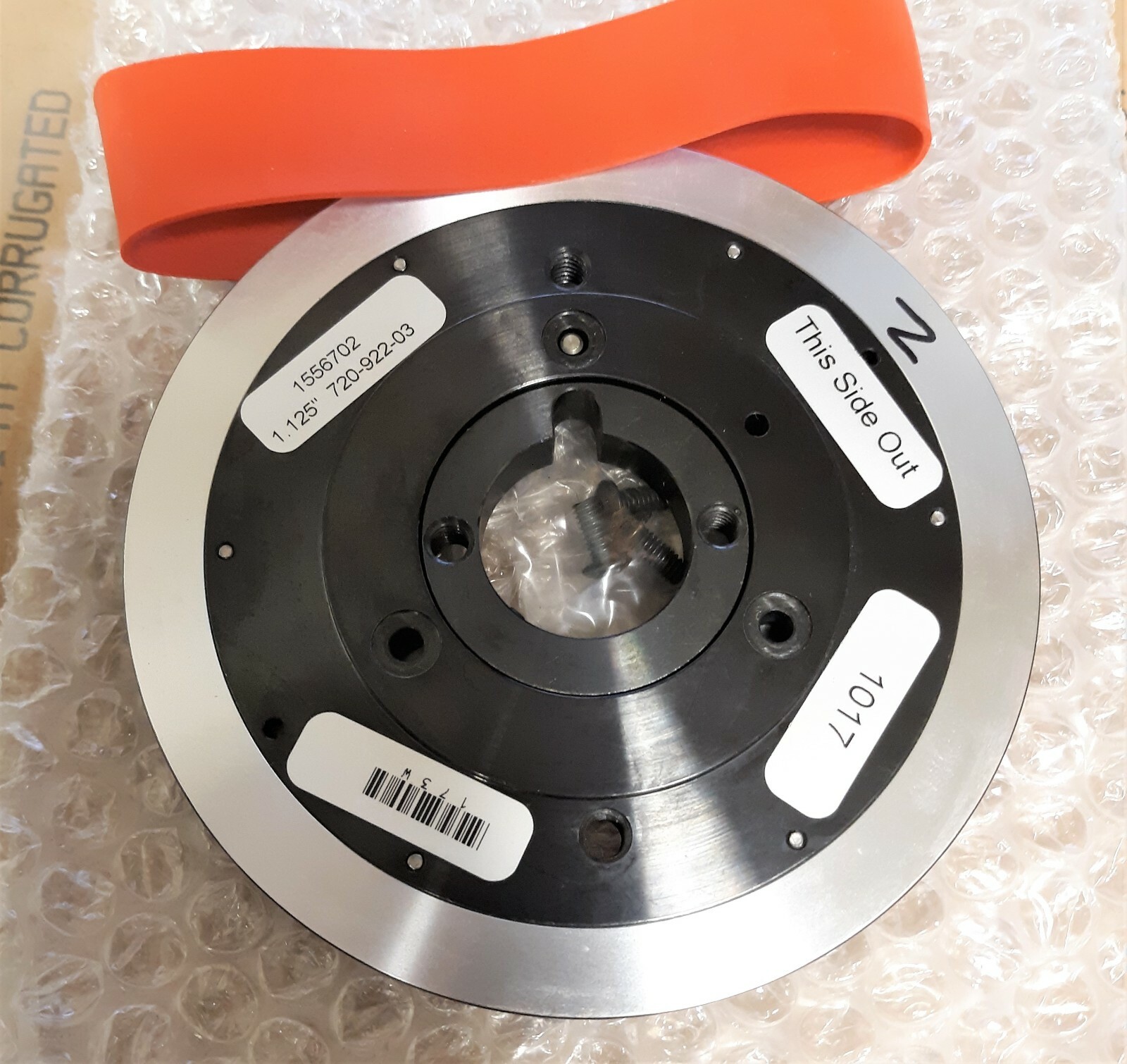

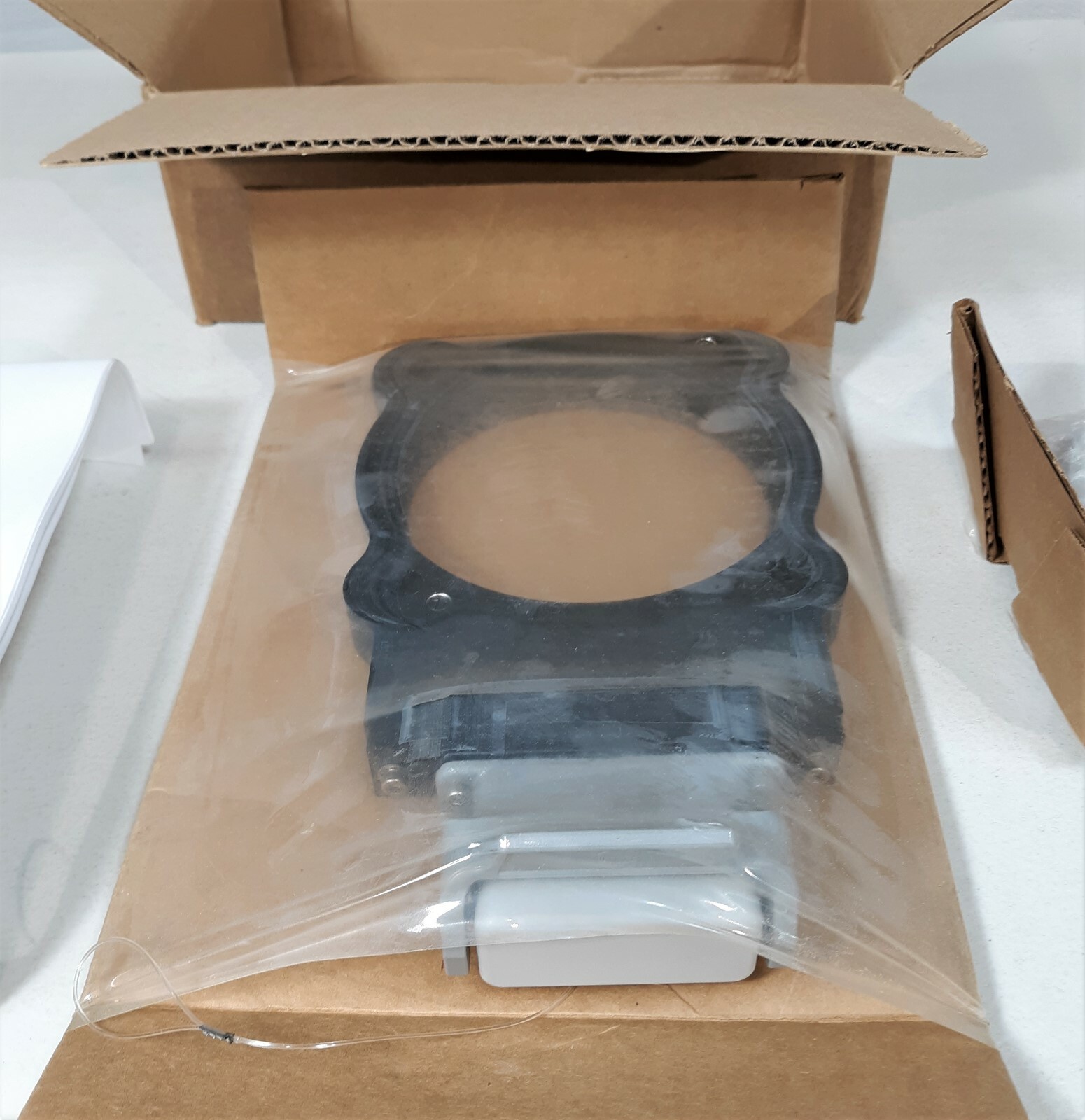

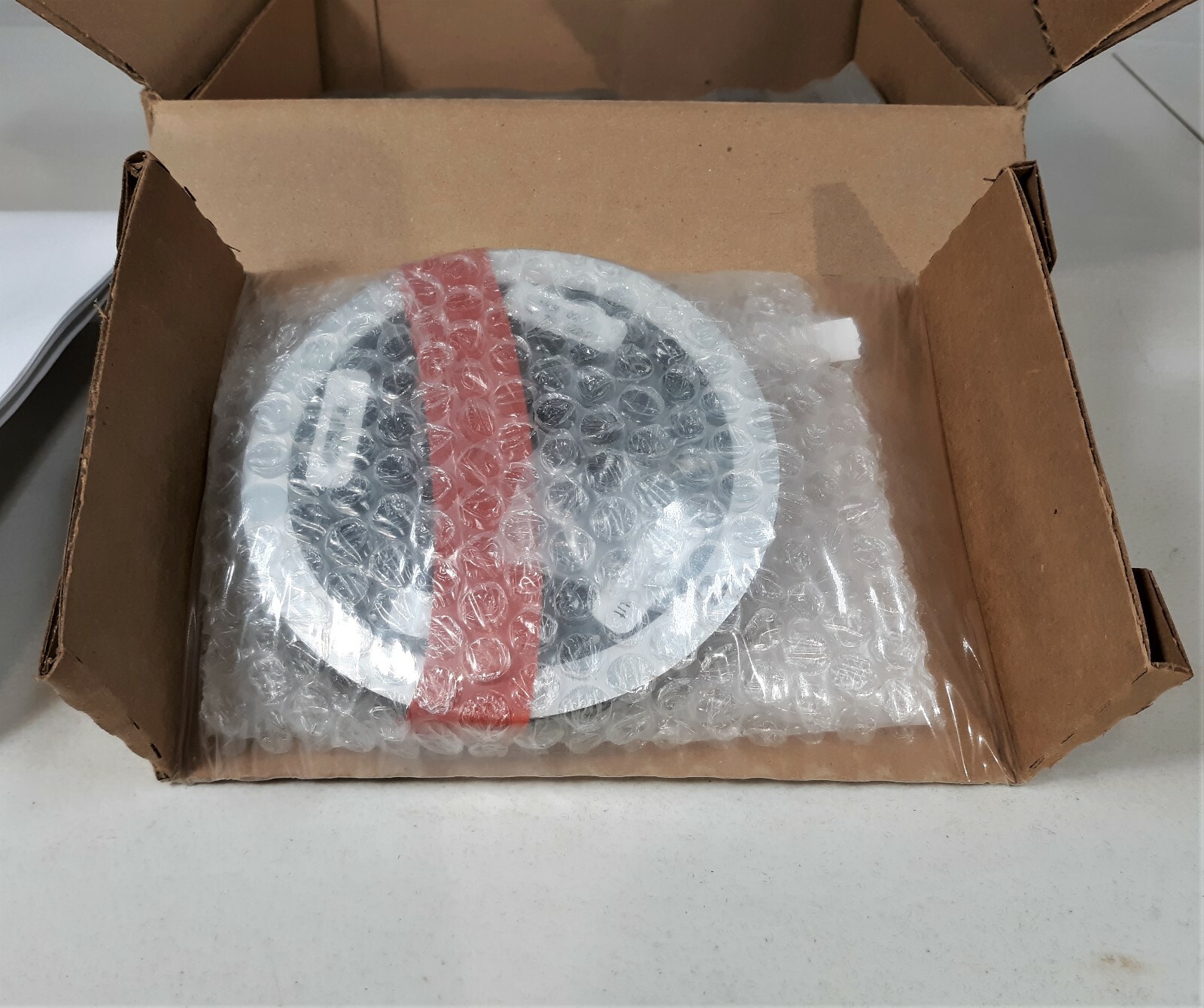

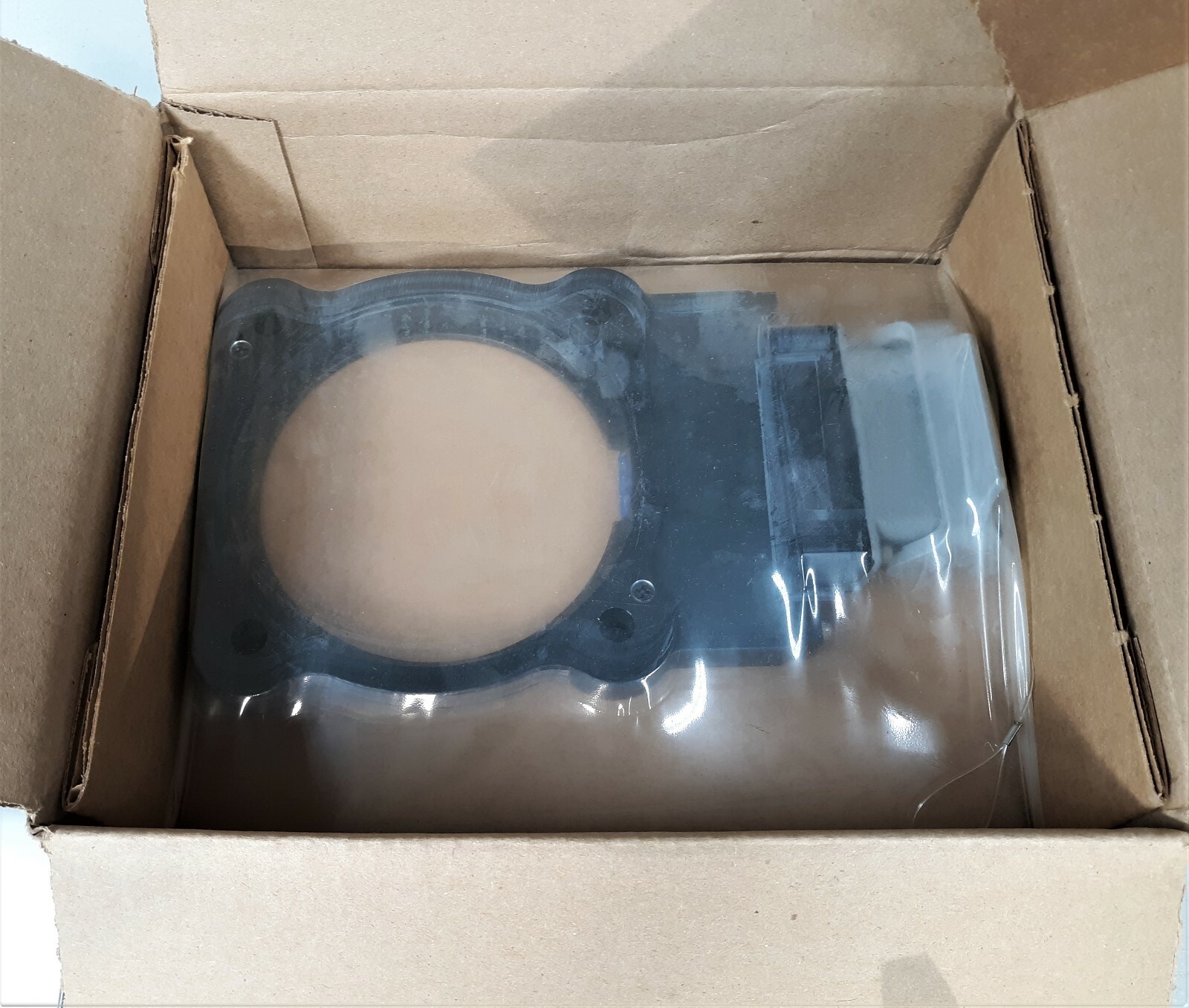

Check the listing for details. DYNAPAR SLIM Tach SL56 Magnetoresistive Encoder, NorthStar S51024ZX07XHX10. Condition: New. Listed at 398.48 USD. NEW - New working and cosmetic condition DYNAPAR NorthStar SLIM Tach SL56 Magnetoresistive Encoder. Designed for GE Wind Energy. Description:The NorthStar SLIM Tach SL56 is a modular digital encoder. This magnetoresistive encoder sensor-based unit has been designed for fast, easy mounting onto a standard NEMA 56C motor face. The basic design philosophy is as follows: The encoder frame is mounted onto the C-face flange of a motor. This positions the sensor and contains the electronics. The magnetic pulse wheel on the motor shaft has magnetic pulses imprinted on its outside surface. The resulting electronic signals are processed into square wave signals by the internal electronics. Item Number S51024ZX07XHX10 DYNAPAR Model SLIM Tach SL56 Standard Operating Characteristics Code Incremental Pulses per Revolution 1024 Phase Sense A leads B for CCW rotation viewing encoder-mount end Quadrature Phasing 90° ±22° Symmetry 180° ±54° Index 180° to 2160° Electrical Input Voltage Requirement 5-24V DC Current Requirement 50 mA Output Signals 5-17 V Line Driver, 150 mA Frequency Response 0 - 120 kHz Data & Index Electrical Immunity 2kV ESD, Reverse polarity, Short circuit Connector 10-pin Industrial Duty latching, sealed NEMA 4&12, IP65 with gold pins Mechanical Shaft Speed 5,000 RPM Mopunting Configuration 4.5" 56C face mount for NEMA MG1 Standards Hoousing Material Cast Aluminum Acceleration Rate 12,000 rpm/sec max. Shaft Length Required 0.7" min. Allowable Shaft End-Play ± 0.045" Wheel Bore 1.125" Weight 2.8 lbs. (1.3 kg) Environmental Operating Temperature Range -40° C to +130° C Standard Storage Temperature Range -40° C to +130° C Humidity to 98% RH (non-condensing) Shock (Sensor Module) 1 meter drop test, 30 G's Min Vibration 18 G's @ 5-2000 Hz spectrum Buyer will receive item like pictured in unopened OEM package. One box opened for listing pictures. Feel free to contact us via eBay mail if you have any questions. We will do our best to get back with you and answer quickly. All serious offers will be considered, especially for multiple quantities. Please check for proper application. Please check out our other items available on eBay in our store! *Customer service is an attitude - not a department! This item is for sale locally and may be removed without notice. *Ohio sales tax of 7.25% will be collected from all Ohio buyers. You may provide me a Sales and Use Tax Exemption STEC-B form prior to payment, and I will re-issue a corrected invoice.NEW - New working and cosmetic condition DYNAPAR NorthStar SLIM Tach SL56 Magnetoresistive Encoder. Designed for GE Wind Energy. Description:The NorthStar SLIM Tach SL56 is a modular digital encoder. This magnetoresistive encoder sensor-based unit has been designed for fast, easy mounting onto a standard NEMA 56C motor face. The basic design philosophy is as follows: The encoder frame is mounted onto the C-face flange of a motor. This positions the sensor and contains the electronics. The magnetic pulse wheel on the motor shaft has magnetic pulses imprinted on its outside surface. The resulting electronic signals are processed into square wave signals by the internal electronics. Item Number S51024ZX07XHX10 DYNAPAR Model SLIM Tach SL56 Standard Operating Characteristics Code Incremental Pulses per Revolution 1024 Phase Sense A leads B for CCW rotation viewing encoder-mount end Quadrature Phasing 90° ±22° Symmetry 180° ±54° Index 180° to 2160° Electrical Input Voltage Requirement 5-24V DC Current Requirement 50 mA Output Signals 5-17 V Line Driver, 150 mA Frequency Response 0 - 120 kHz Data & Index Electrical Immunity 2kV ESD, Reverse polarity, Short circuit Connector 10-pin Industrial Duty latching, sealed NEMA 4&12, IP65 with gold pins Mechanical Shaft Speed 5,000 RPM Mopunting Configuration 4.5" 56C face mount for NEMA MG1 Standards Hoousing Material Cast Aluminum Acceleration Rate 12,000 rpm/sec max. Shaft Length Required 0.7" min. Allowable Shaft End-Play ± 0.045" Wheel Bore 1.125" Weight 2.8 lbs. (1.3 kg) Environmental Operating Temperature Range -40° C to +130° C Standard Storage Temperature Range -40° C to +130° C Humidity to 98% RH (non-condensing) Shock (Sensor Module) 1 meter drop test, 30 G's Min Vibration 18 G's @ 5-2000 Hz spectrum Buyer will receive item like pictured in unopened OEM package. One box opened for listing pictures. Feel free to contact us via eBay mail if you have any questions. We will do our best to get back with you and answer quickly. All serious offers will be considered, especially for multiple quantities. Please check for proper application. Please check out our other items available on eBay in our store! *Customer service is an attitude - not a department! This item is for sale locally and may be removed without notice. *Ohio sales tax of 7.25% will be collected from all Ohio buyers. You may provide me a Sales and Use Tax Exemption STEC-B form prior to payment, and I will re-issue a corrected invoice.
