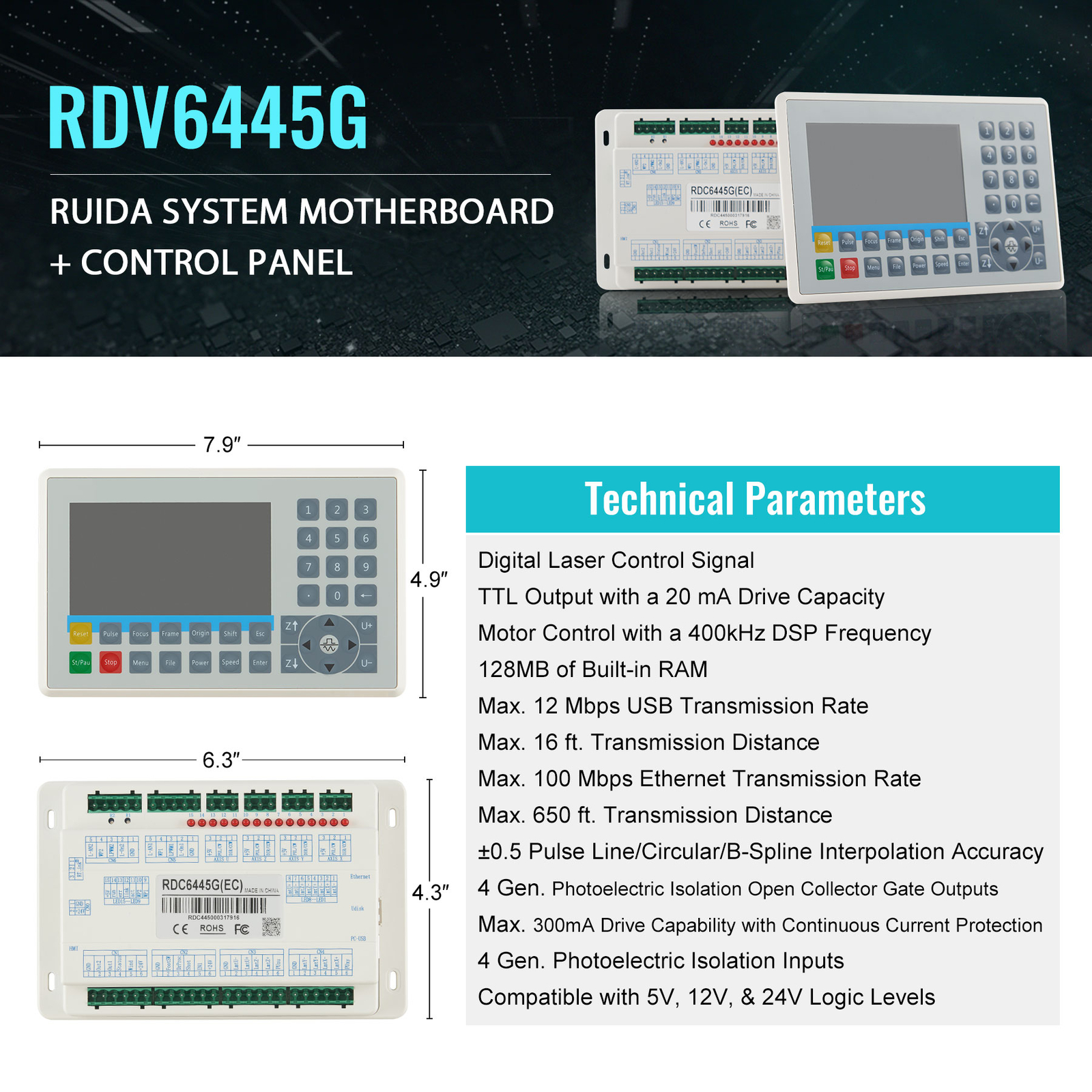

| Model | 6445S |
|---|---|
| Memory Capacity | 128MB |
| I/O Input | 4-Channel Photoelectric Isolated |
| TTL Levels | 5V, 12V, 24V |
| OC Output | 4 Way (300 mA ea.) |
| Laser Control | Digital |
| PMW Value | 0-5V |
| PMW Frequency | 2-50 kHz |
| PMW Duty Ratio | 1-99% |
| Motor Control Signal | Common-Anode Output |
| Drive Capacity | 20 mA |
| Max. Motor Control Pulse Frequency | 500 kHz |
| Interpolation Methods | Linear, Circular Arc, B Spline |
| Interpolation Accuracy | ±0.5 Pulse |

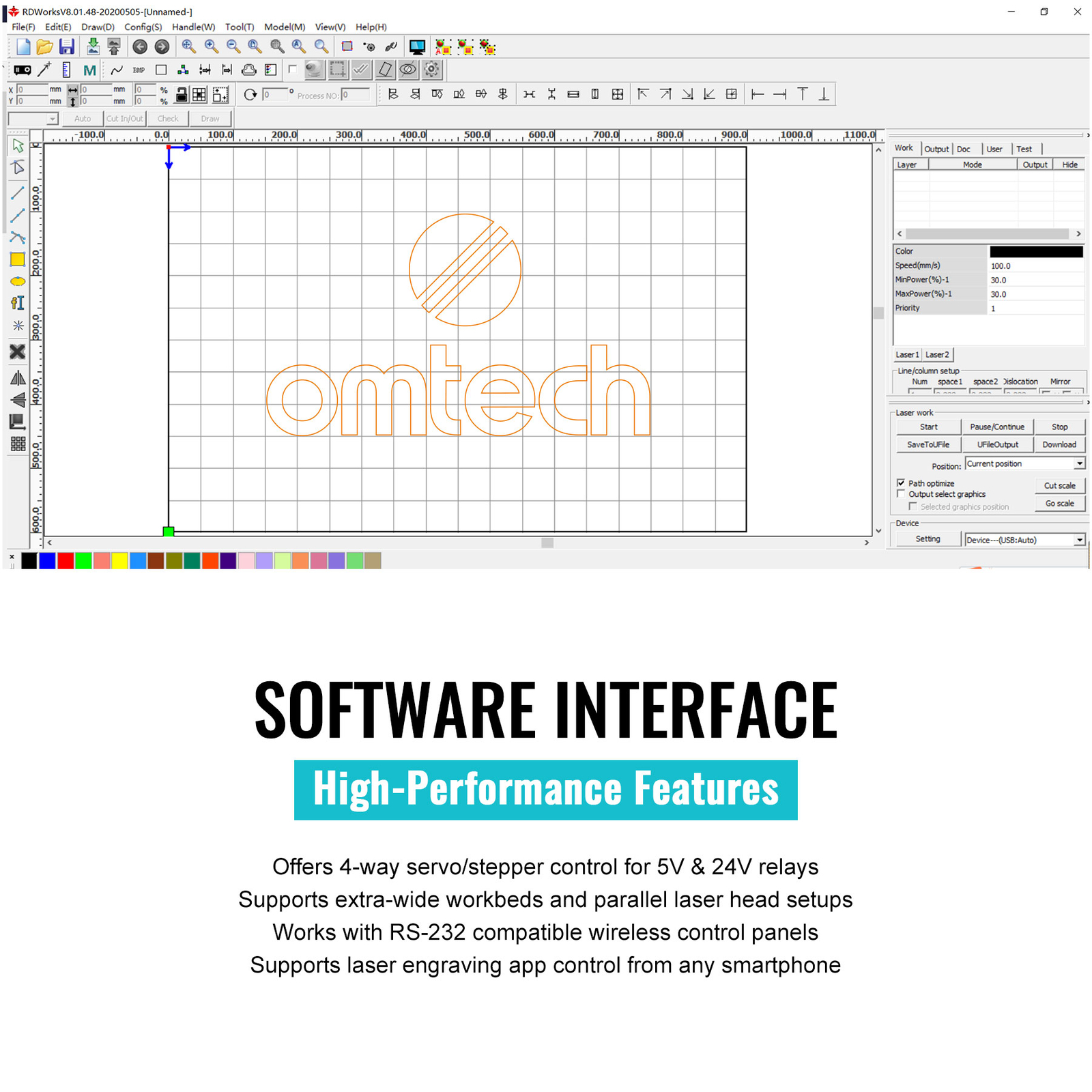

| Compatible Software | RDWorks, LightBurn, CADLaser, CorelDraw, AutoCAD, REVision |
| Operating Temperature Range | 32-122°F (0-50°C) |
| Warranty | 1 Year |
| UPC | 0797434265920 |
| Brand | OMTech |
| Engraving Method | Laser |
| Type | Parts/Accessories |
| MPN | RD445 |

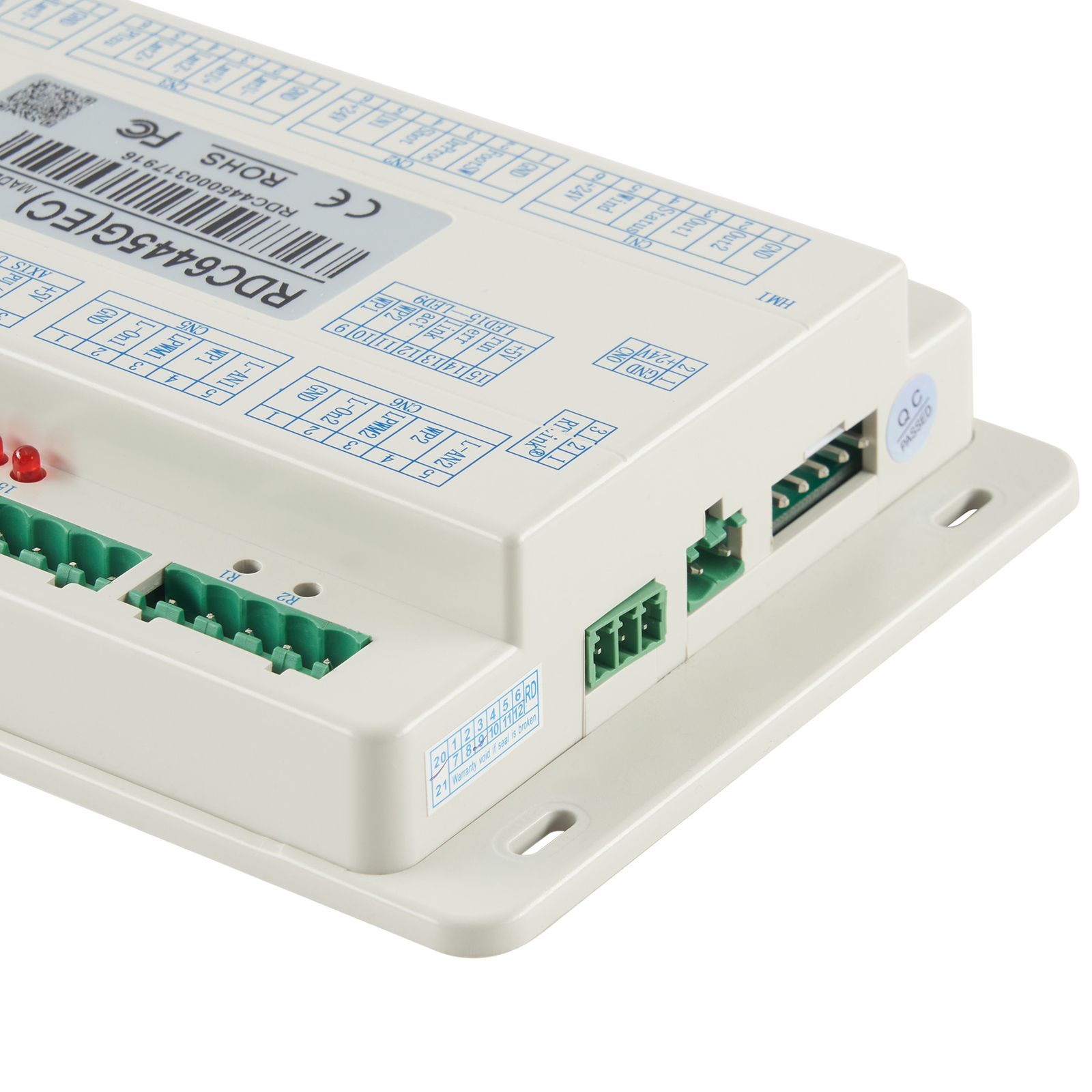

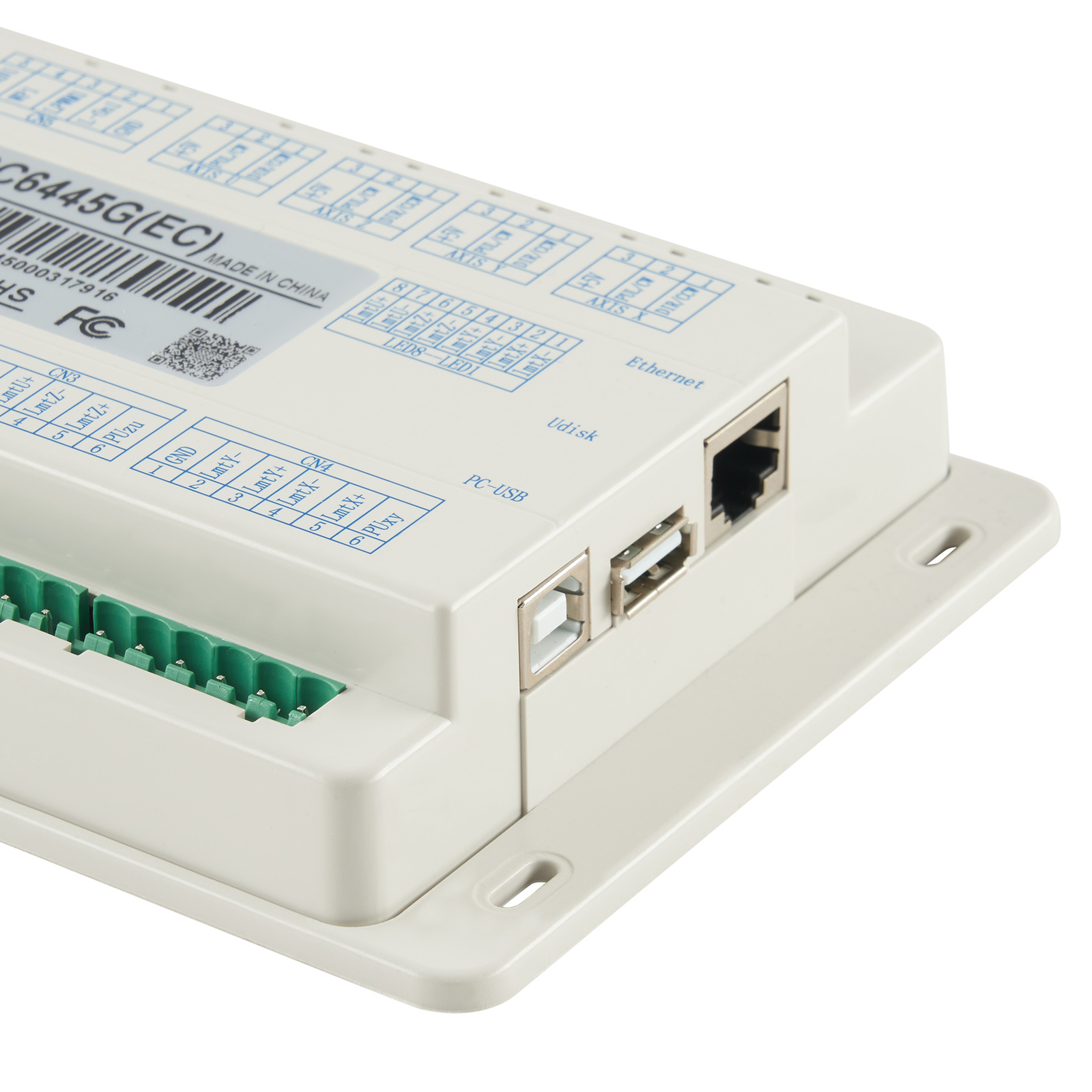

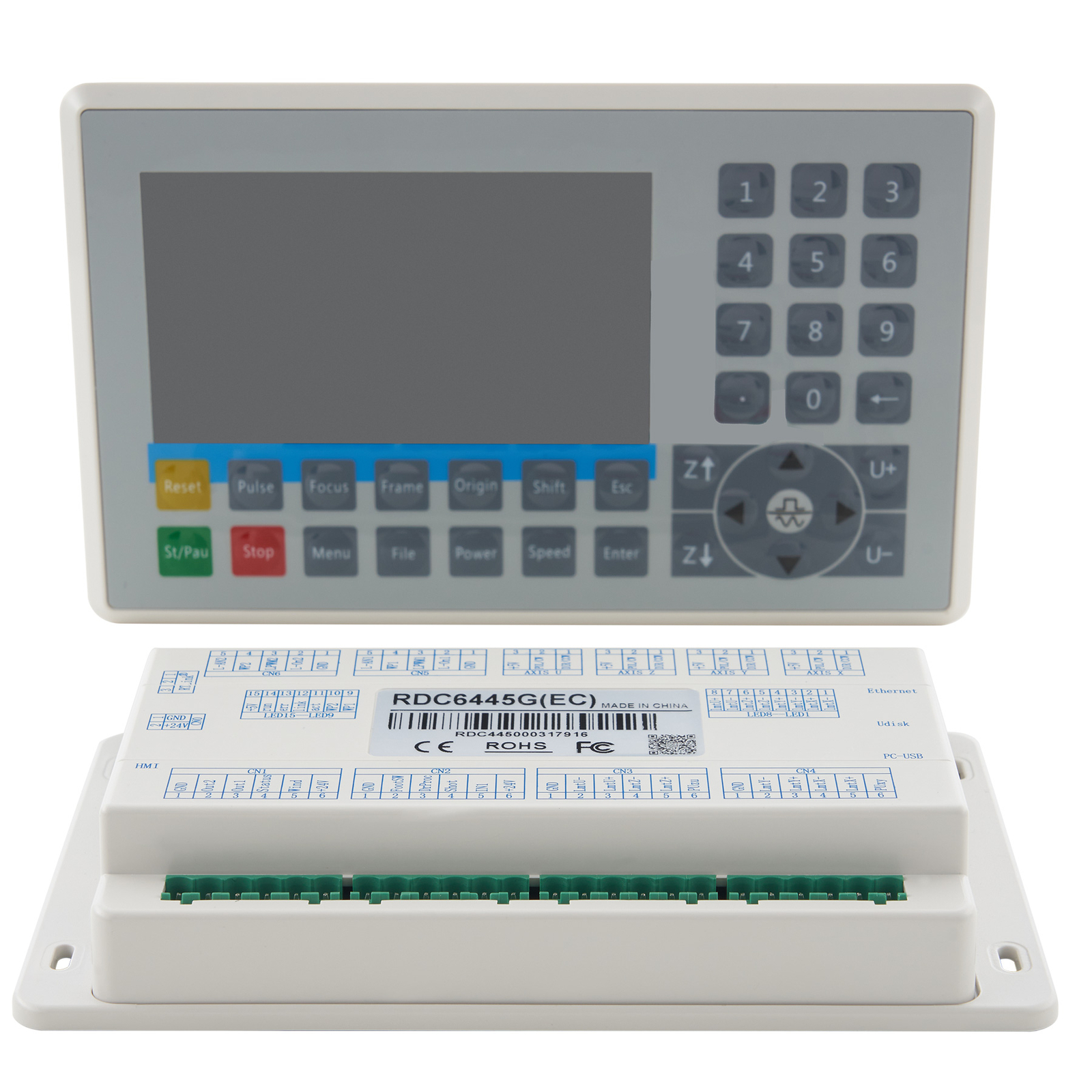

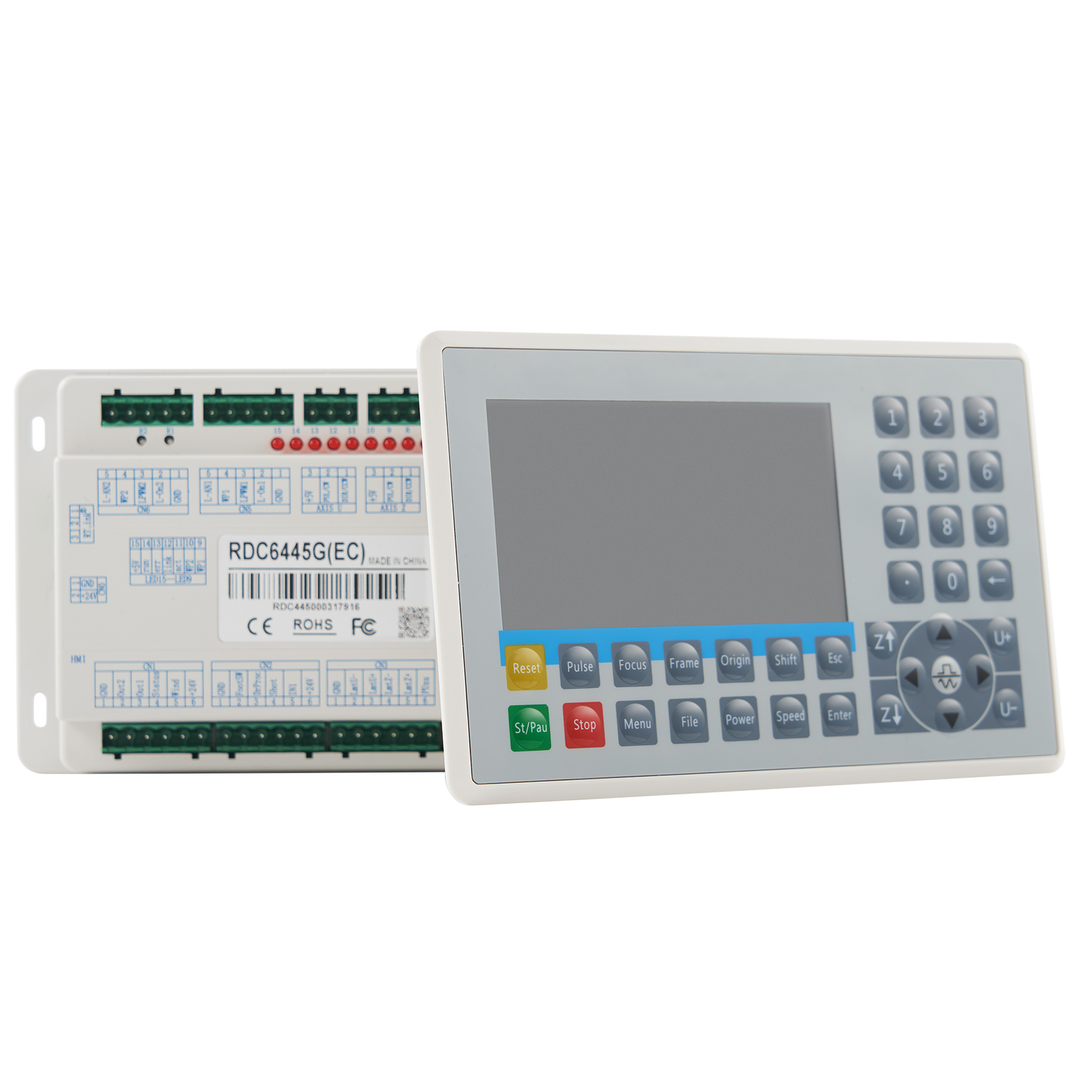

Check the listing for details. OMTech Laser Engraver Control Panel Kit RDC6445S Replacement with Mainboard. Condition: New. Listed at 349.99 USD. Look no further! Once set up, it works with all the most common laser engraving software, including RDWorks, LightBurn, CADLaser, CorelDraw, AutoCAD, and REVision. Need a new digital signal processor for your trusty CO2 laser engraver cutter machine?.
