| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Brand | ToAuto |
| Type | TTL Linear Scale |
| Axis | 2Axis / 3Axis |
| MPN | Does Not Apply |
| Scale | Optical |
| Supply Voltage range : | AC 80V~260V; 50~60Hz |
| Power consumption: | 15VA |
| Length resolution: | 100 ~ 1000mm |
| Model | DRO / Linear Scale |

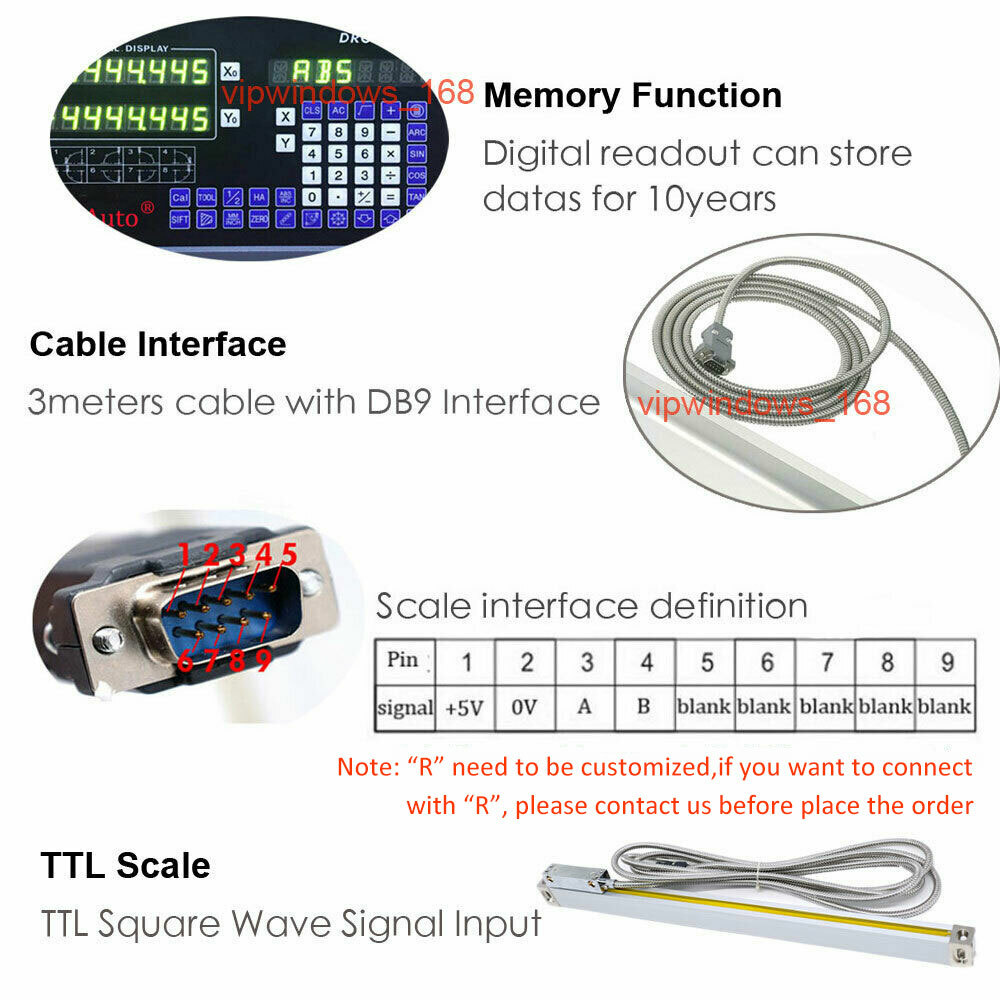

| Number of Pins | 9 |
| Precision | 1um/0.001mm/0.0001" |

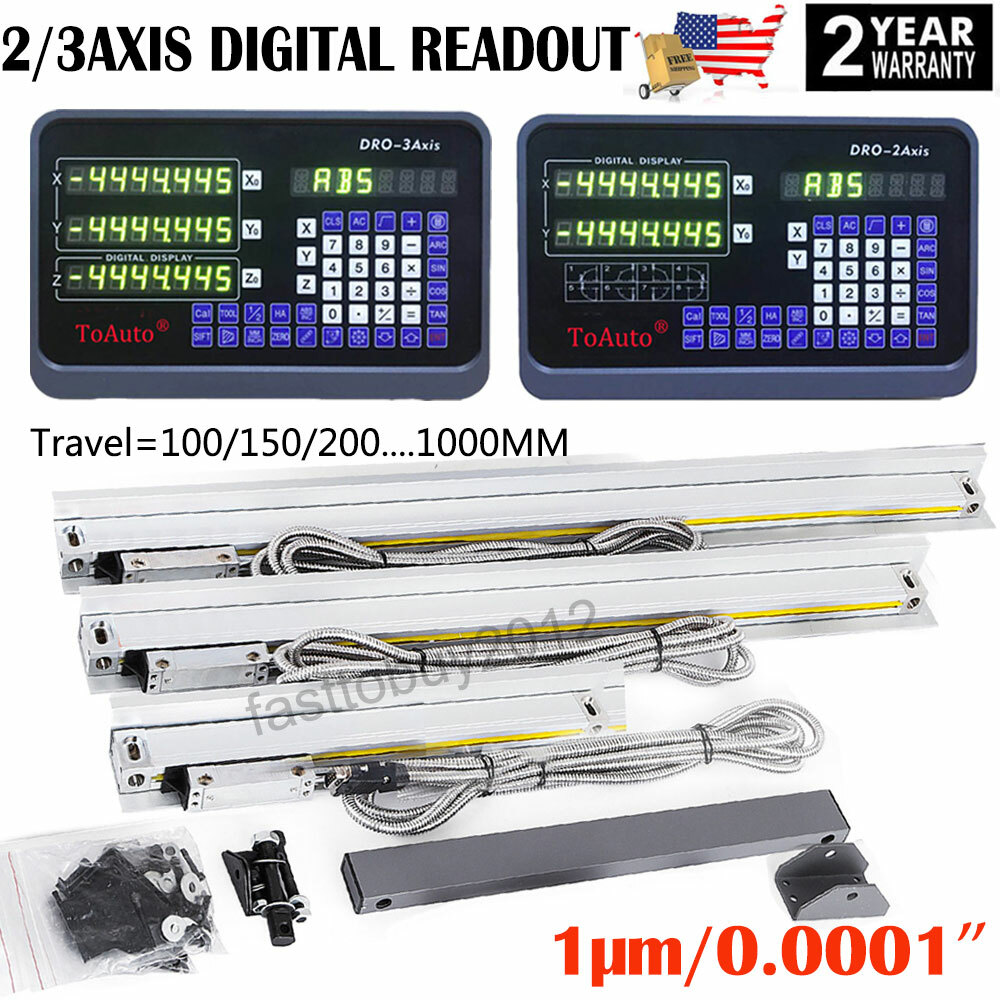

Check the listing for details. 1μm Linear Scale DRO 2/3 Axis Digital Readout Encoder High Precision Lathe Mill. Condition: New. Listed at 61.84 USD. High Precision 1um 2/3 Axis Digital Readout Linear Glass Scale TTL DRO Display for Milling Lathe Application : This kind of DRO is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy Supply Voltage range : AC 80V~260V; 50~60Hz，US Plug Power consumption: 15VA Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequebcy: Less than 5MHz Max resolution of digital display length: 1µm (0.001mm/0.0001") Min resolution of digital display angle :0.0001/pulse RESOLUTION OPTIONAL
