| Operation Mode | ON-OFF |
|---|---|
| Current Rating | 32 Amps |
| Operating Voltage | 800 Volts (AC) |
| Contact Type | 4 Normally Open |
| Connector Type | Screw |
| Switch Type | Disconnect Switch |
| Terminal | Screw |
| Material | Polycarbonate |
| Item dimensions L x W x H | 5.91 x 3.15 x 4.65 inches |
| Circuit Type | 4-way |
| Contact Material | Silver |
| International Protection Rating | IP66 |
| Number of Positions | 4 |
| Upper Temperature Rating | 55 Degrees Celsius |
| Controller Type | Disconnect Switch |
| Control Method | Touch |
| Color | White |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Control Type | ON-OFF |
| Product Dimensions | 5.91 x 3.15 x 4.65 inches |
| Item Weight | 1.26 pounds |
| Item model number | KD80-EL32R-4 |
| Date First Available | June 26, 2025 |
| Item Length | 5.91 |
| Item Height | 4.65 |
| Item Width | 3.15 |
| Style | 32Amp 4-Pole |

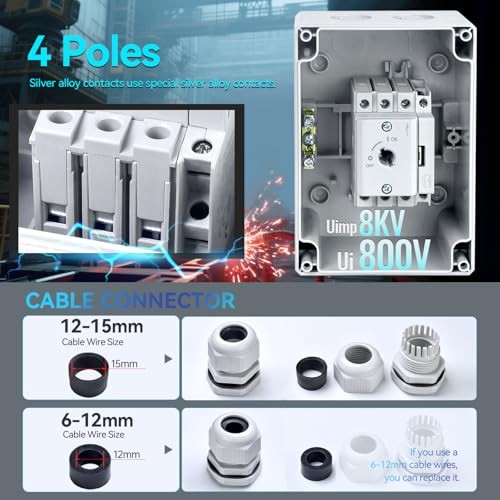

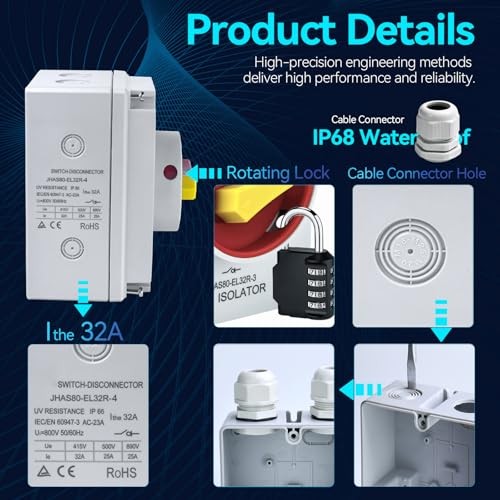

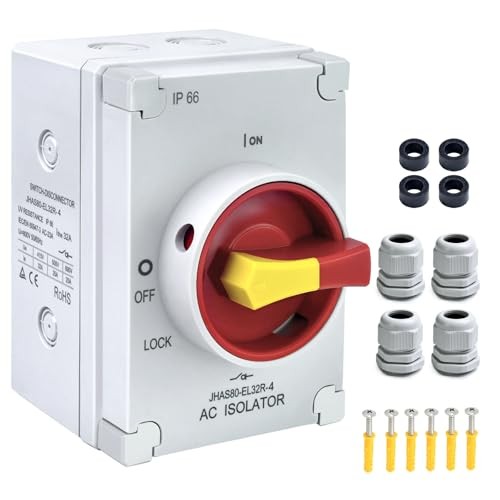

Check the listing for details. UL-Listed 32Amp Disconnect Switch 800V AC; IP66 Waterproof; 32Amp 4-Pole. Color: White, Condition: New. Listed at 54.34 USD. UL-Listed 32Amp Disconnect Switch 800V AC; IP66 Waterproof; Isolation PV On Off; Rotary Switch 4-Pole; Ac Disconnect Box Outdoor Breaker Power Off. Passed UL certification on June 4, 2025 (Certificate NO: UL-US-2571359-0).
