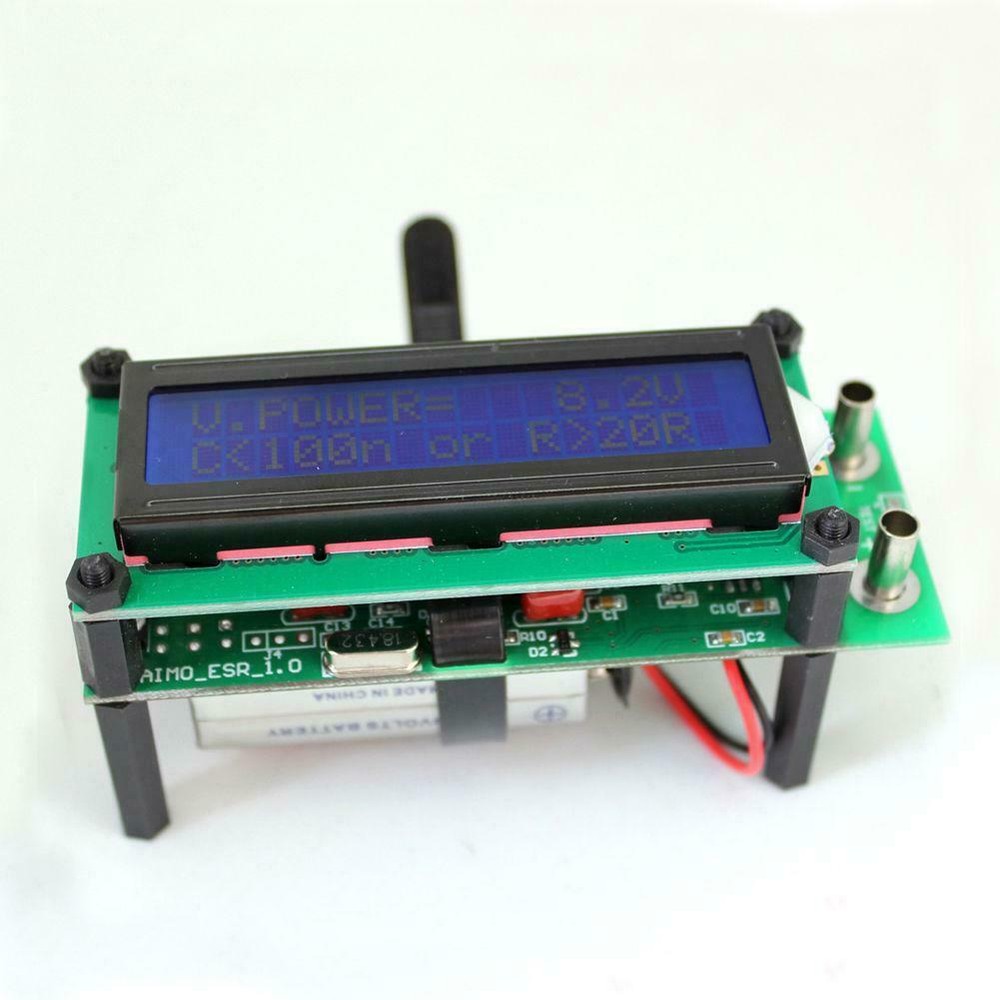

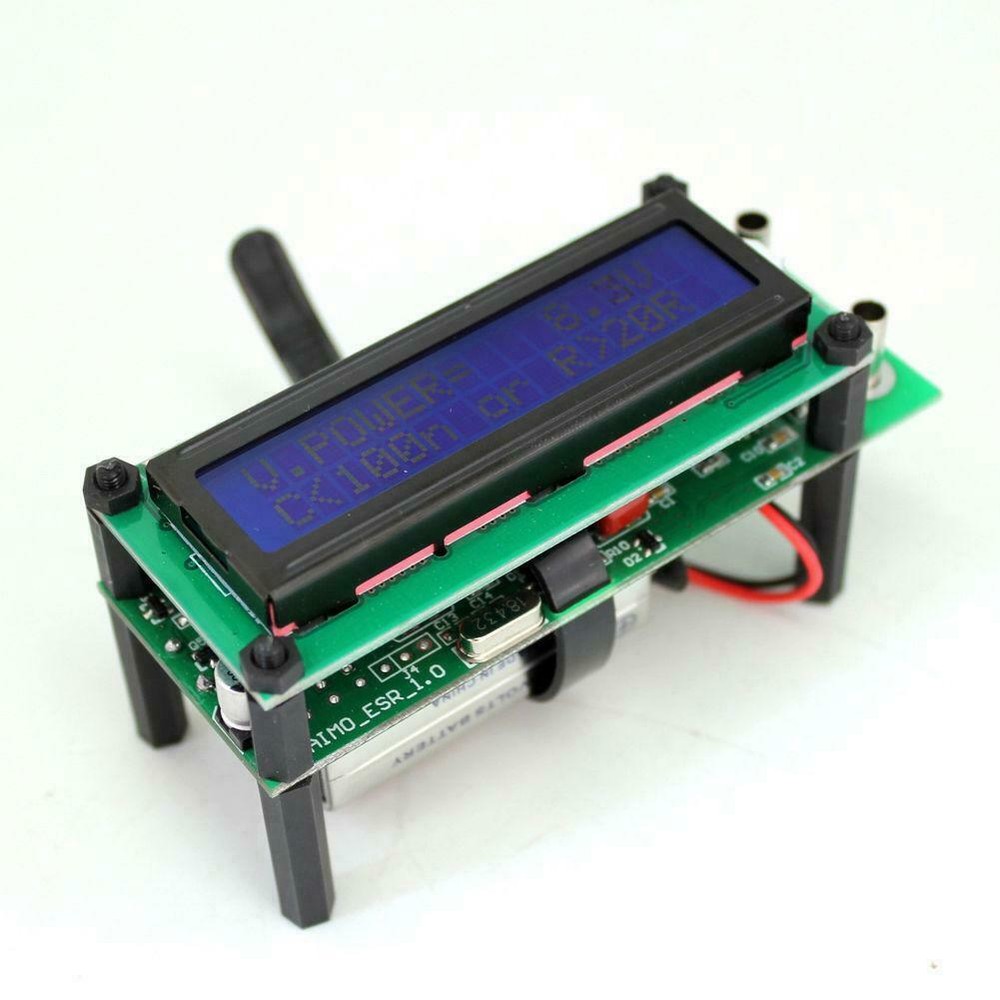

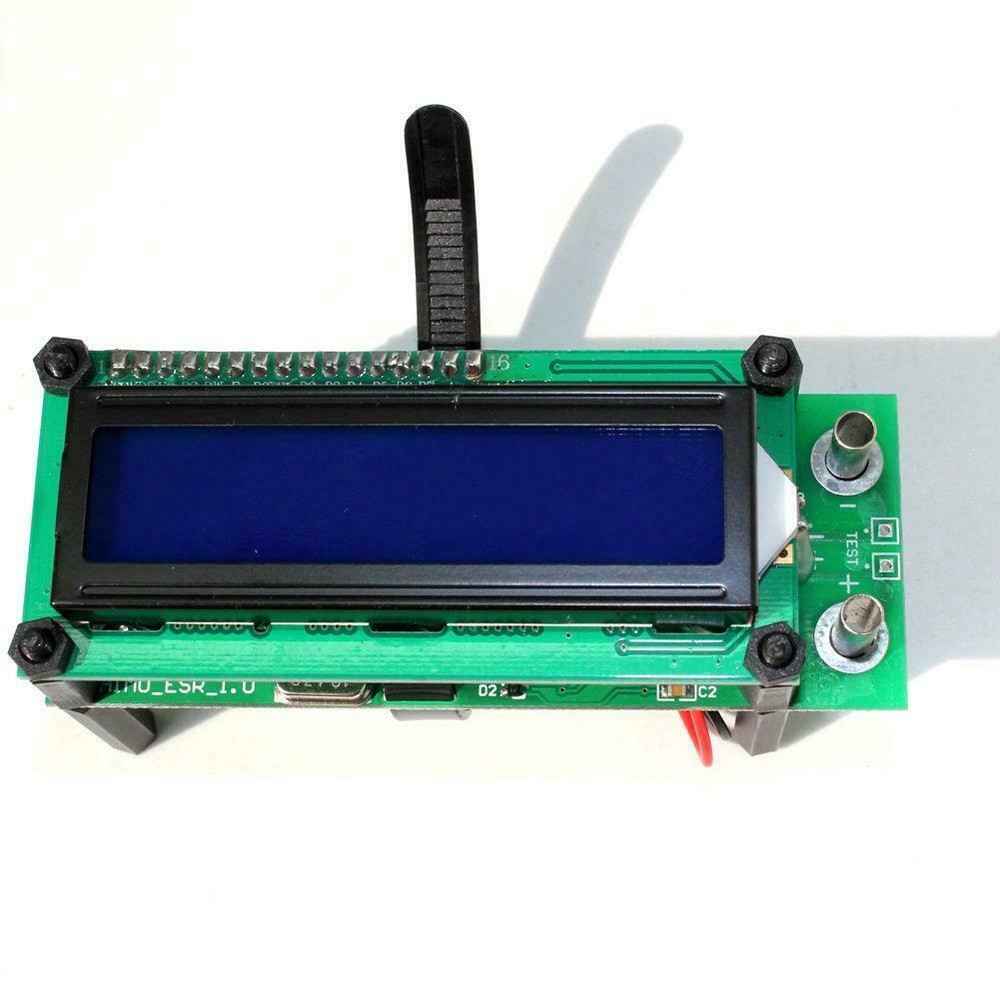

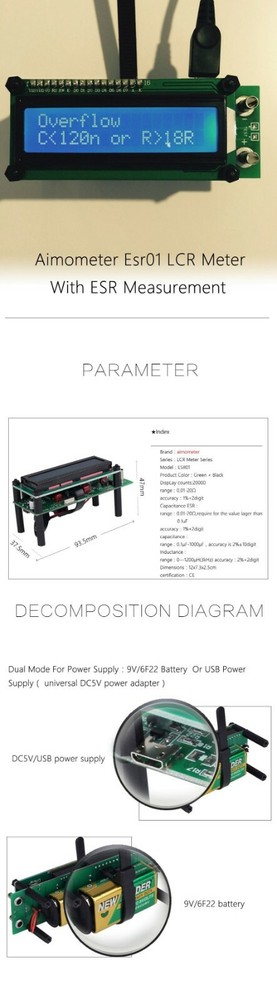

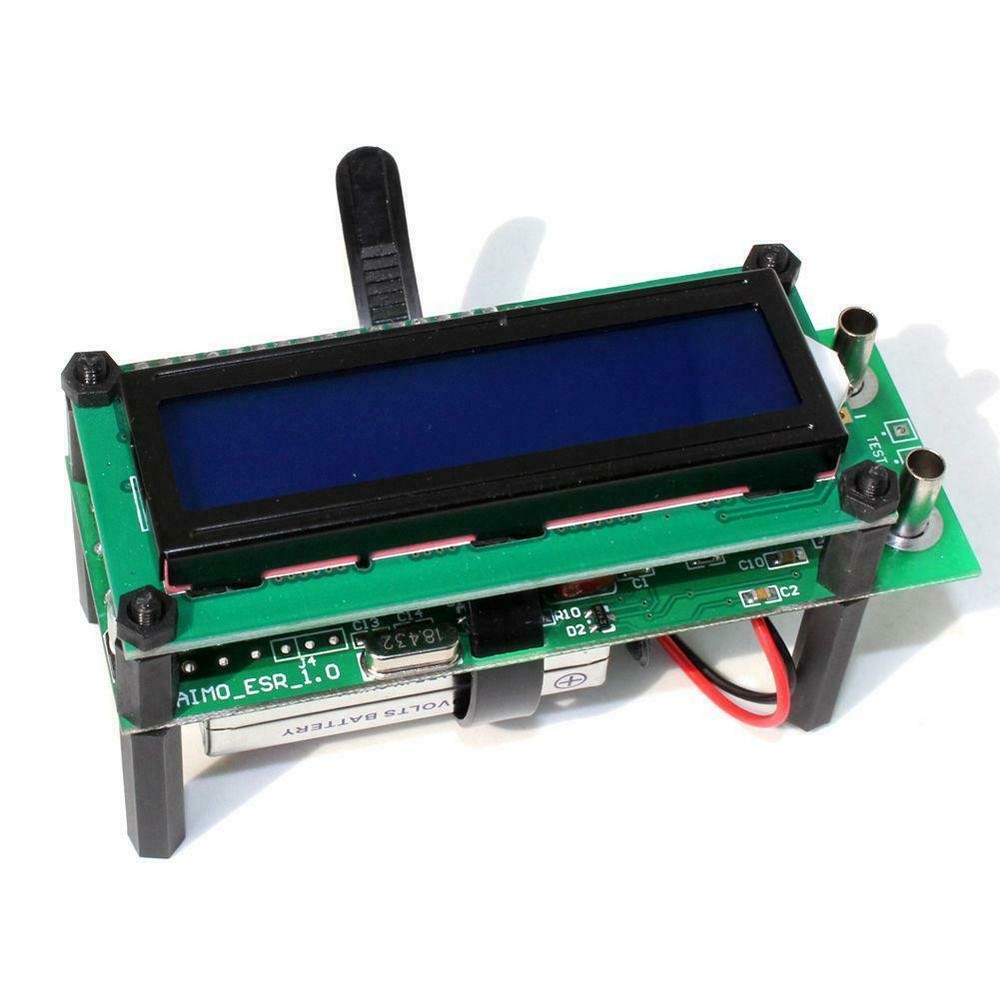

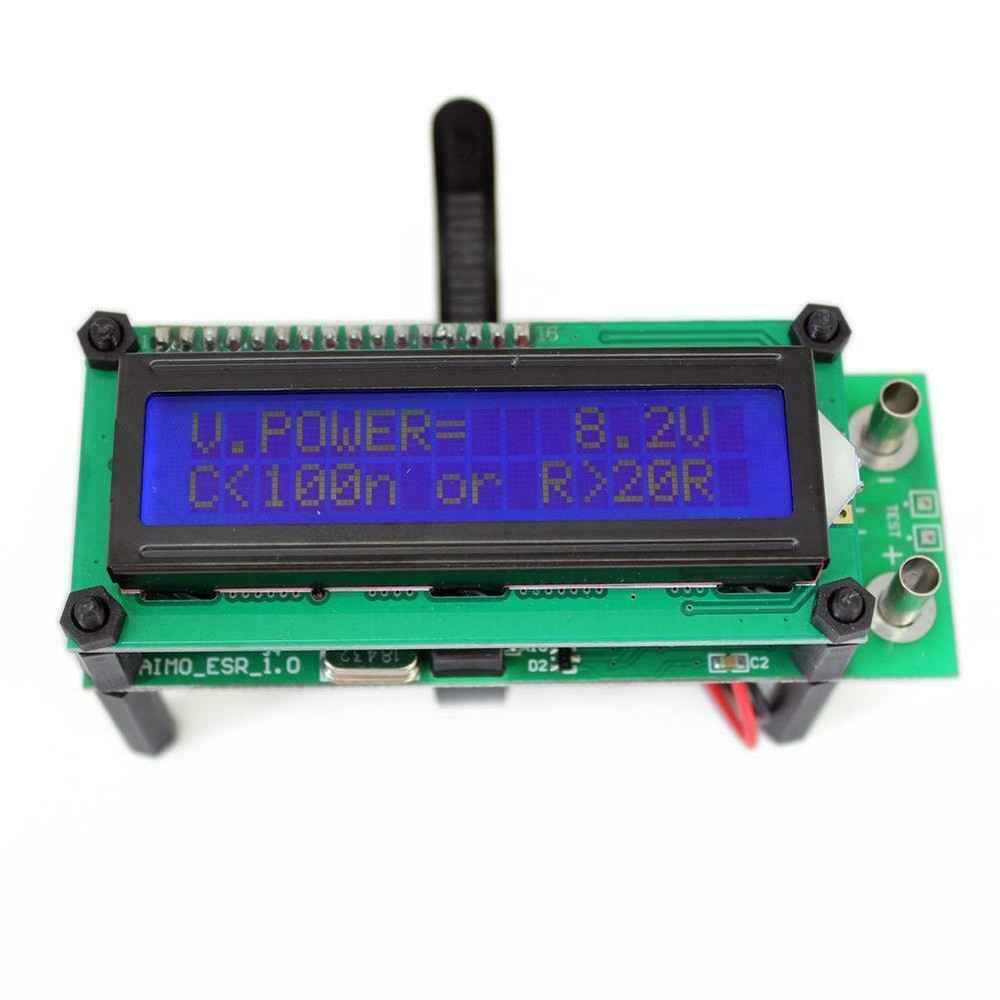

Check the listing for details. ESR01 Autorange Inductance Tester Capacitance ESR Resistance SMD Component Test. Condition: New. Listed at 11.15 USD. ESR01 ESR LCR Meter ohm Capacitance 0.01-20Ω 0-60uH Inductance 72K 3Khz Overview:1, using SCM port directly synchronous detection, single chip to generate square wave signal measurement and precision of the synchronization signal2, using a method similar to LCR digital bridge detection.After the 90 phase synchronous detection, obtain the capacitance. Electrolytic capacitor used frequency method to measure the capacity, extends the measurement range.3, to solve nonlinear problems of constant resistance of encouragement, the square waveresponse of RC series expansion, and series prior two calculation of Rs and Cs,greatly improving the measurement accuracy of 2uF following high Q CBB capacitors4, the application of over sampling technique, use the12 bit AD converter , so just one range can achieve 0.01 to 20 ohm measurement.5, with automatic constant zero function, zero driftreduction decimal zero, ensure the long time stable.6, to join the temperature drift compensation circuit, which makes the detection circuit structure is close to the bridge circuit, temperature drift is very small.Measurement conversion of 7, only one button for ESR and the inductance and power switch.2、SpecificationsResistance：range：0.01-20Ωaccuracy：0.5%+2digit Capacitance ESR：range：0.01-20Ω, require for the value lager than 0.1uFaccuracy：1%+2digitcapacitance：range：0.1uF-2000uF，(3uF-2000uF,test with 3K Hz signal，0.1uF-3uF,test with 72K Hz signal)accuracy：test with 72kH/3kHz signal at the same time,can get two value of capacitance，the accuracy is 2%±10digit（depends on the range and Hz） Inductance：range：0—60uH(72kHz)，0—1200uH(3kHz)accuracy：2%+2digit，the resolution is 0.01uH
